Kenwood DMX80AXS 9 Inch Bundle for Toyota LandCruiser 200 Series 2012 to 2015, with steering wheel controls, Aerpro AKTO18 Kit, APP8KE8 and APKWPL

Bring CarPlay and Android Auto to the Toyota LandCruiser 200 Series 2012 to 2015 GXL, VX, GX & Altitude with steering wheel controls with the Kenwood DMX80AXS, the Aerpro AKTO18 kit and the Aerpro APP8KE8 wiring adaptor.

Problems it solves

• No CarPlay or Android Auto: the DMX80AXS runs both
• Wheel buttons after the swap: kept by the AKTO18
• Factory reverse camera: kept through the AKTO18
• Factory USB port: kept with the AKTO18 USB retention
• Factory wiring: the Aerpro APP8KE8 plugs into the AKTO18 loom

What is in the box

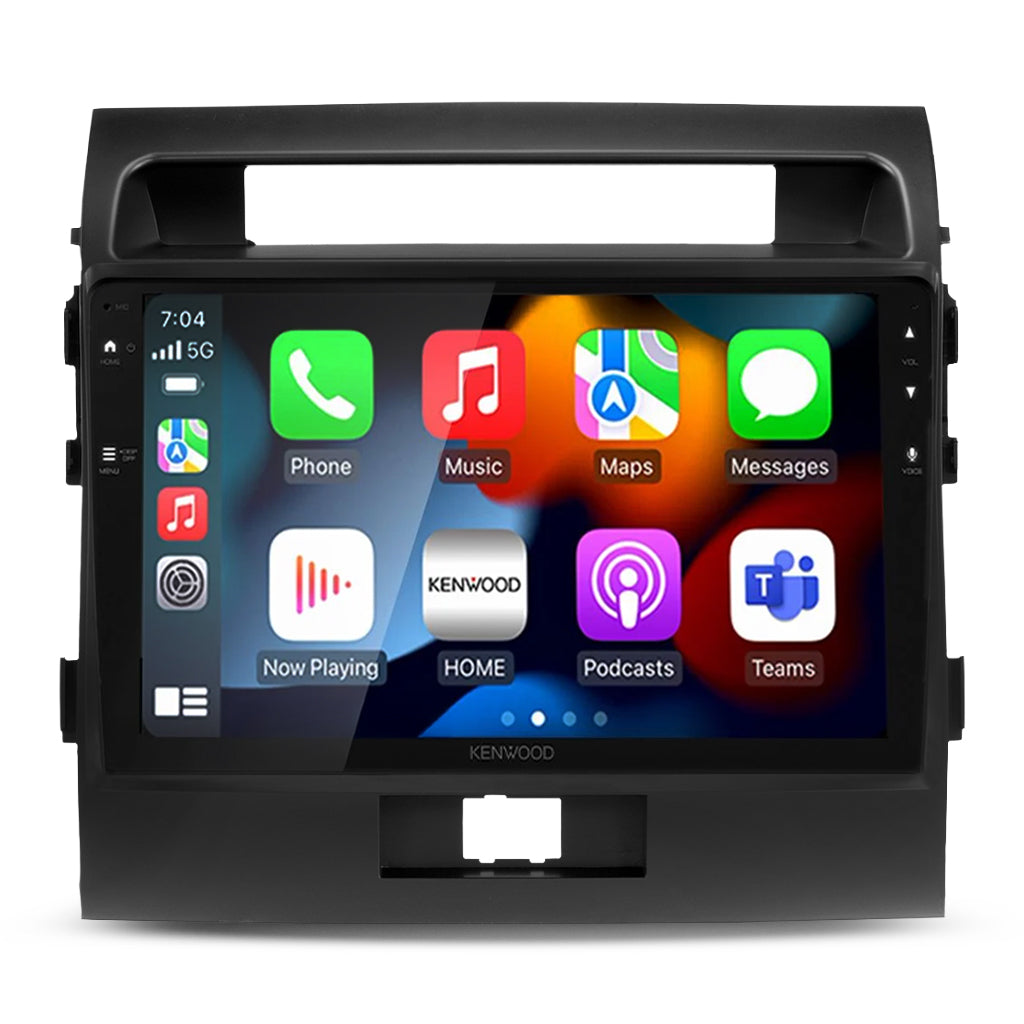

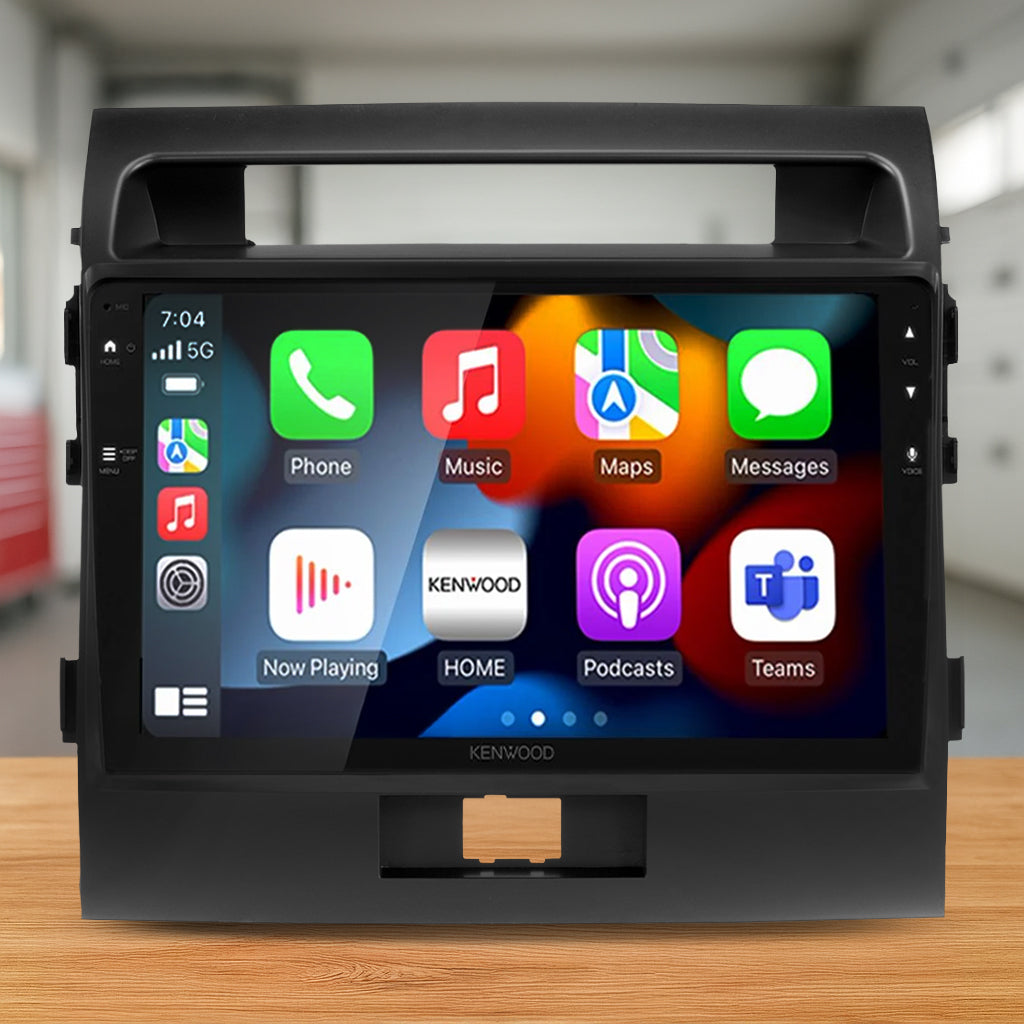

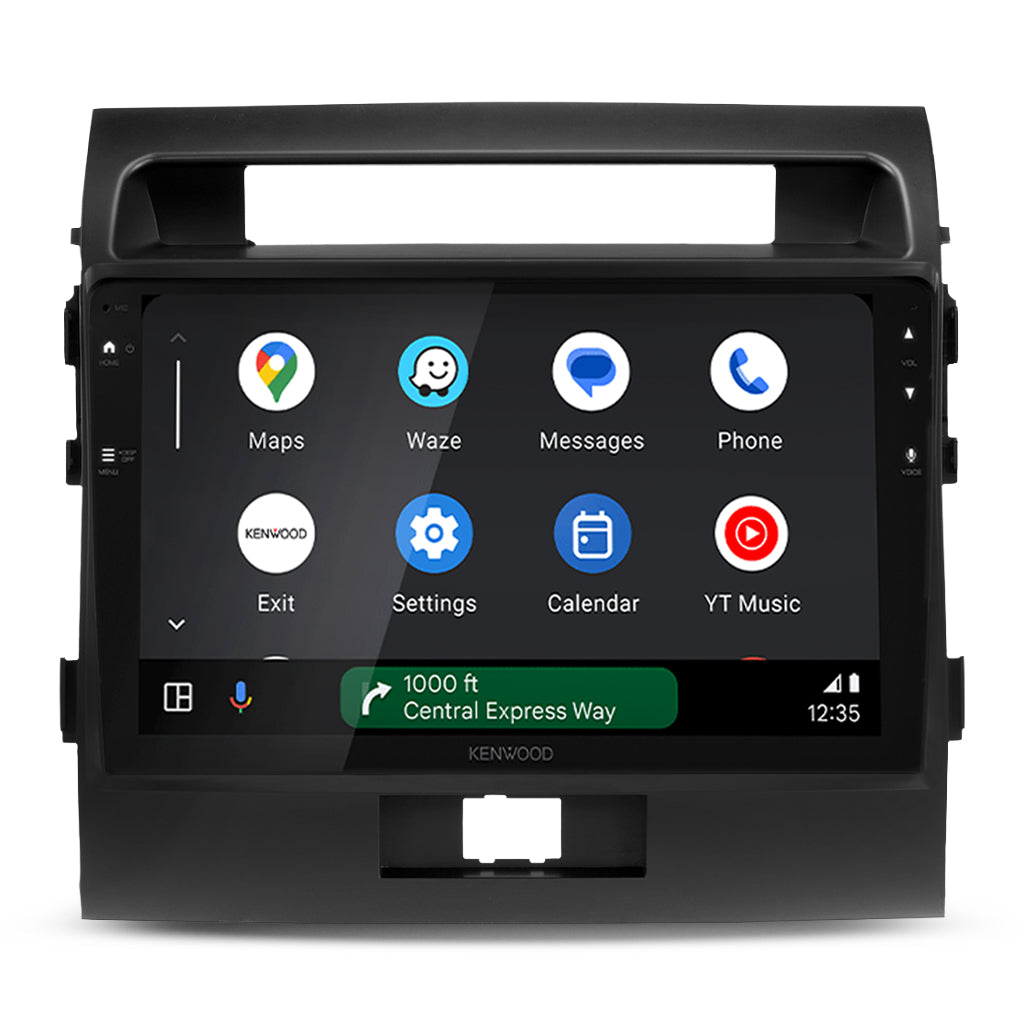

• Head unit: Kenwood DMX80AXS 9 inch receiver

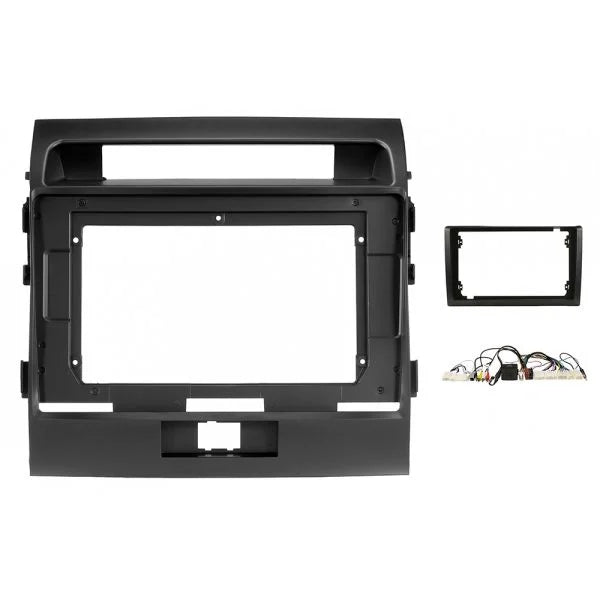

• From the Aerpro AKTO18 kit: black facia kit
• From the Aerpro AKTO18 kit: steering wheel control interface harness
• From the Aerpro AKTO18 kit: SWC patch lead
• From the Aerpro AKTO18 kit: 9 and 10 inch radio adaptor
• From the Aerpro AKTO18 kit: antenna adaptor
• From the Aerpro AKTO18 kit: factory USB retention adaptor
• From the Aerpro AKTO18 kit: camera retention adaptor
• Aerpro APP8KE8: secondary ISO harness, 22 pin to double ISO
• Aerpro APKWPL: Kenwood SWC patch lead

DMX80AXS features

• Screen: 9 inch WSVGA capacitive touch panel, universal shape
• Phone: wired and wireless Apple CarPlay and Android Auto
• Mirroring: wireless mirroring for iPhone and Android
• Sound: 13 band EQ and digital time alignment
• Camera input: rear view camera input with parking guidelines
• Bluetooth: built in
• Outputs: 2 preouts at 2.5V plus a mono subwoofer output
• Chassis: short chassis

Fitment

• Aerpro lists the AKTO18 for: Toyota LandCruiser 200 Series 2012 to 2015 GXL, VX, GX & Altitude with steering wheel controls
• Head unit list: DMX80AXS named by Aerpro
• Radio shape: 9 inch trapezoid units, not Single DIN or double DIN
• Version: with steering wheel controls

What the AKTO18 keeps

• Steering wheel controls: yes
• Factory reverse camera: yes, if fitted
• Factory AUX input: yes
• Factory USB input: yes
• Parking sensor tones: not applicable
• Factory amplifier support: no

Install notes

• Head unit plug: 22 pin, to double ISO via the Aerpro APP8KE8
• Kit loom: the AKTO18 harness takes the double ISO plug
• SWC lead: the APKWPL links the AKTO18 interface to the DMX80AXS
• Hard wiring: Aerpro says some cars need a little
• Fitting: we recommend a professional installer

Warranty

Your rights under the Australian Consumer Law always apply. Keep your receipt and contact us first if anything goes wrong.

Need just one piece? See Aerpro AKTO18 kit, Toyota Land Cruiser, Kenwood

FAQ

Does the Kenwood DMX80AXS support Apple CarPlay and Android Auto?

Yes, both are supported, including wireless connection.

Does the Kenwood DMX80AXS have Bluetooth?

Yes. It has built in Bluetooth for phone calls and audio streaming.

Will it fit my car?

Fitment depends on the vehicle. Contact the F.A.E. team with your make, model and year and we will confirm before you order.
