Kenwood DMX80AXS 9 Inch Bundle for Mitsubishi Lancer 2007 to 2013, without steering wheel controls, Aerpro AKMB24 Kit, APP8KE8 and APKWPL

Swap the factory radio in your Mitsubishi Lancer 2007 to 2013 without steering wheel controls for the Kenwood DMX80AXS; the Aerpro AKMB24 brings the facia, vehicle harness and 9 and 10 inch radio adaptor and the APP8KE8 takes care of the 22 pin plug, though Aerpro lists the steering wheel buttons, factory reverse camera, factory AUX input, factory USB port and factory amplifier as not kept.

Problems it solves

• No CarPlay or Android Auto: the DMX80AXS runs both
• Factory wiring: the Aerpro APP8KE8 plugs into the AKMB24 loom

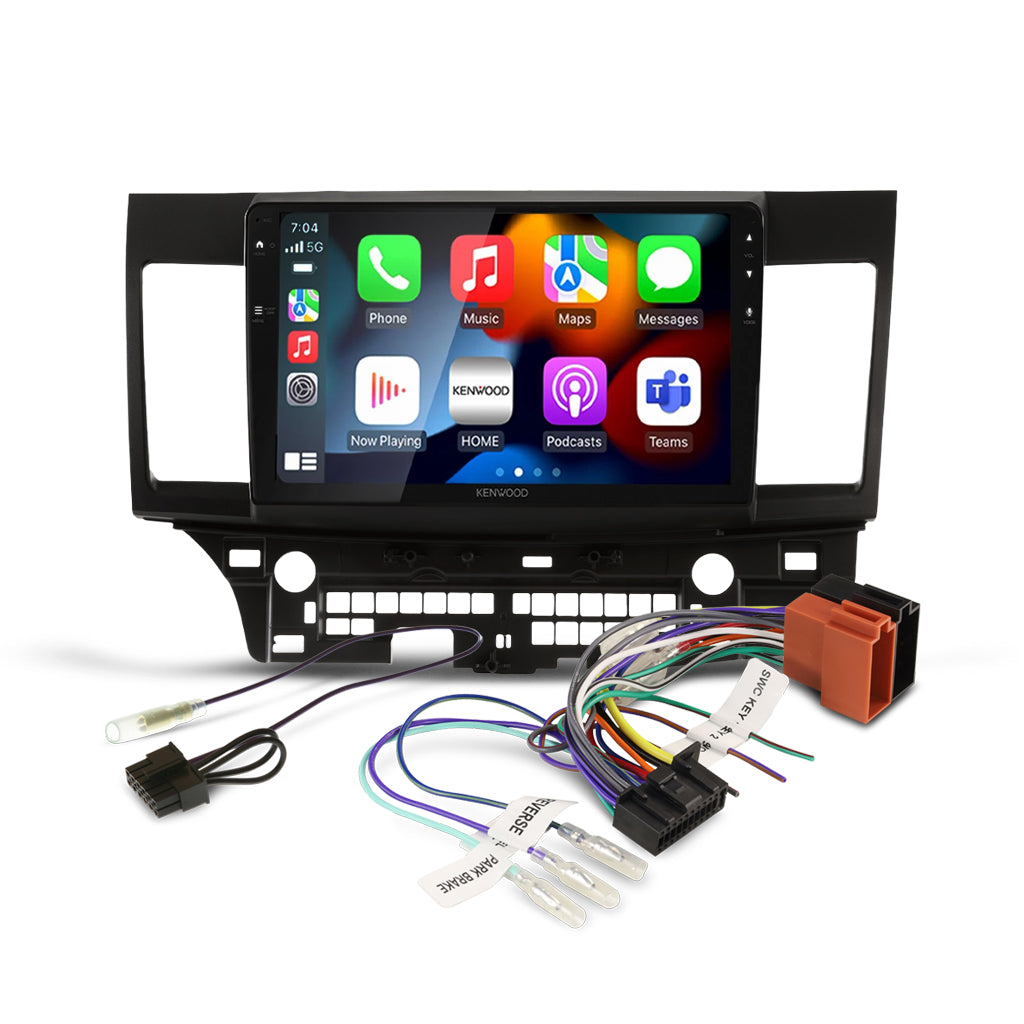

What is in the box

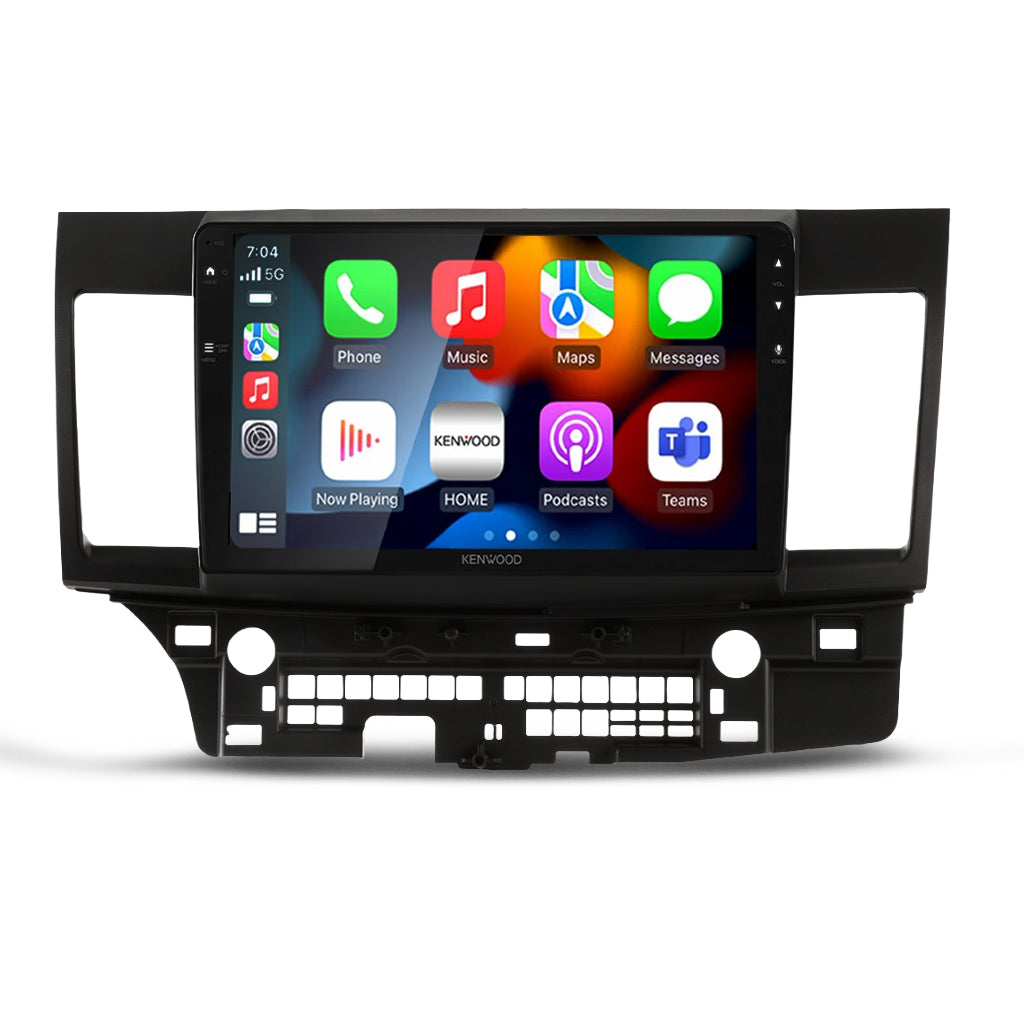

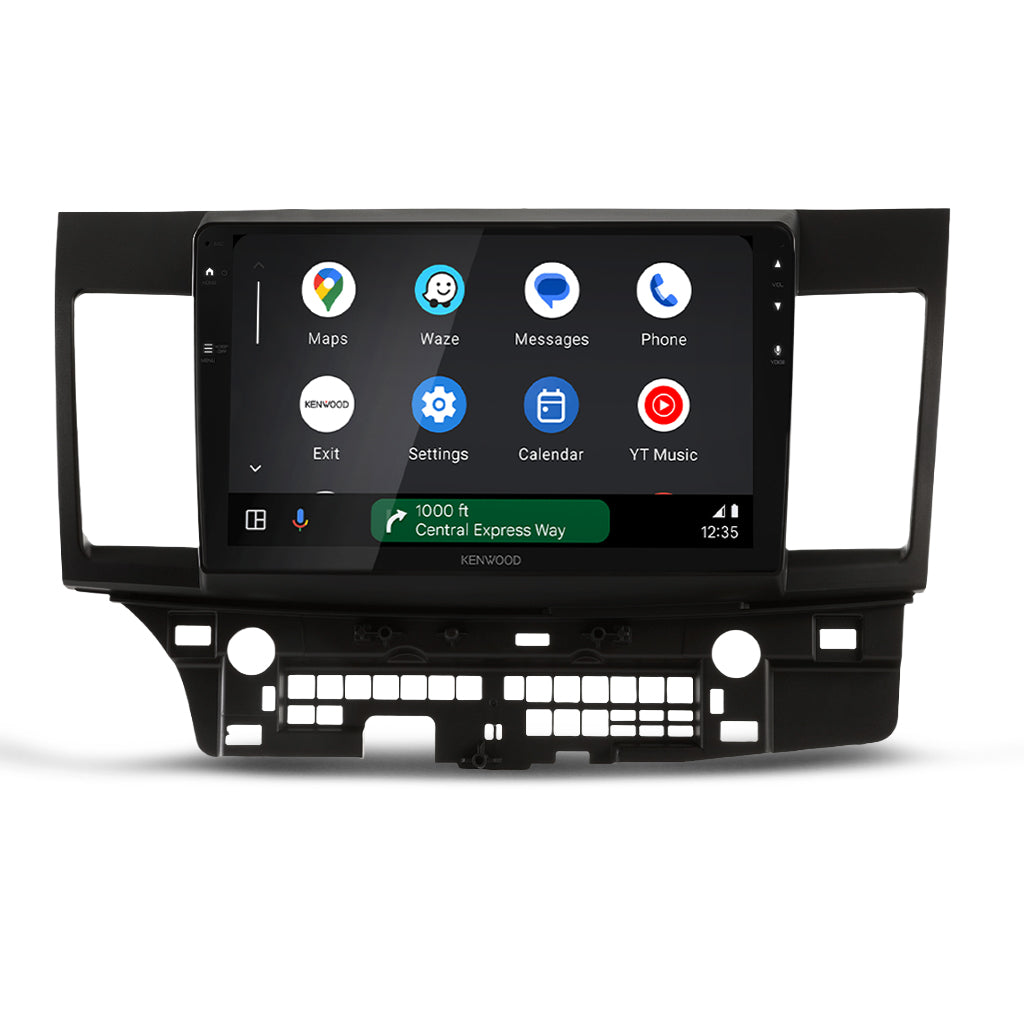

• Head unit: Kenwood DMX80AXS 9 inch receiver

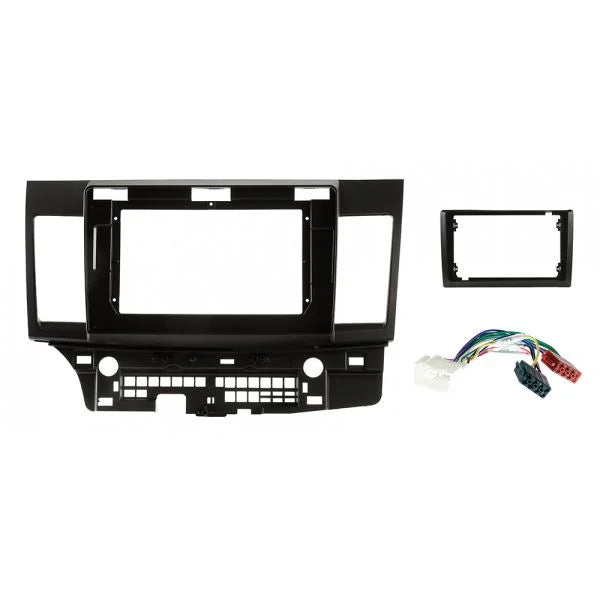

• From the Aerpro AKMB24 kit: vehicle harness
• From the Aerpro AKMB24 kit: 9 and 10 inch radio adaptor
• Aerpro APP8KE8: secondary ISO harness, 22 pin to double ISO
• Aerpro APKWPL: Kenwood SWC patch lead

DMX80AXS features

• Screen: 9 inch WSVGA capacitive touch panel, universal shape
• Phone: wired and wireless Apple CarPlay and Android Auto
• Mirroring: wireless mirroring for iPhone and Android
• Sound: 13 band EQ and digital time alignment
• Camera input: rear view camera input with parking guidelines
• Bluetooth: built in
• Outputs: 2 preouts at 2.5V plus a mono subwoofer output
• Chassis: short chassis

Fitment

• Aerpro lists the AKMB24 for: Mitsubishi Lancer 2007 to 2013 without steering wheel controls
• Head unit list: DMX80AXS named by Aerpro
• Radio shape: 9 inch trapezoid units, not Single DIN or double DIN
• Version: without steering wheel controls
• Feature retention: radio dependent, per Aerpro

What the AKMB24 keeps

• Steering wheel controls: no
• Factory reverse camera: no
• Factory AUX input: no
• Factory USB input: no
• Parking sensor tones: not applicable
• Factory amplifier support: no

Install notes

• Head unit plug: 22 pin, to double ISO via the Aerpro APP8KE8
• Kit loom: the AKMB24 harness takes the double ISO plug
• SWC lead: the APKWPL stays spare, this kit has no SWC interface
• Hard wiring: Aerpro says some cars need a little
• Fitting: we recommend a professional installer

Warranty

Your rights under the Australian Consumer Law always apply. Keep your receipt and contact us first if anything goes wrong.

Need just one piece? See Aerpro AKMB24 kit, Mitsubishi Lancer, Kenwood

FAQ

Does the Kenwood DMX80AXS support Apple CarPlay and Android Auto?

Yes, both are supported, including wireless connection.

Does the Kenwood DMX80AXS have Bluetooth?

Yes. It has built in Bluetooth for phone calls and audio streaming.

Will it fit my car?

Fitment depends on the vehicle. Contact the F.A.E. team with your make, model and year and we will confirm before you order.
