Kenwood DMX80AXS 9 Inch Bundle for Hyundai iLoad and iMax 2018 to 2020, Stinger HR9-HY001 Kit, APP8KE8 and APKWPL

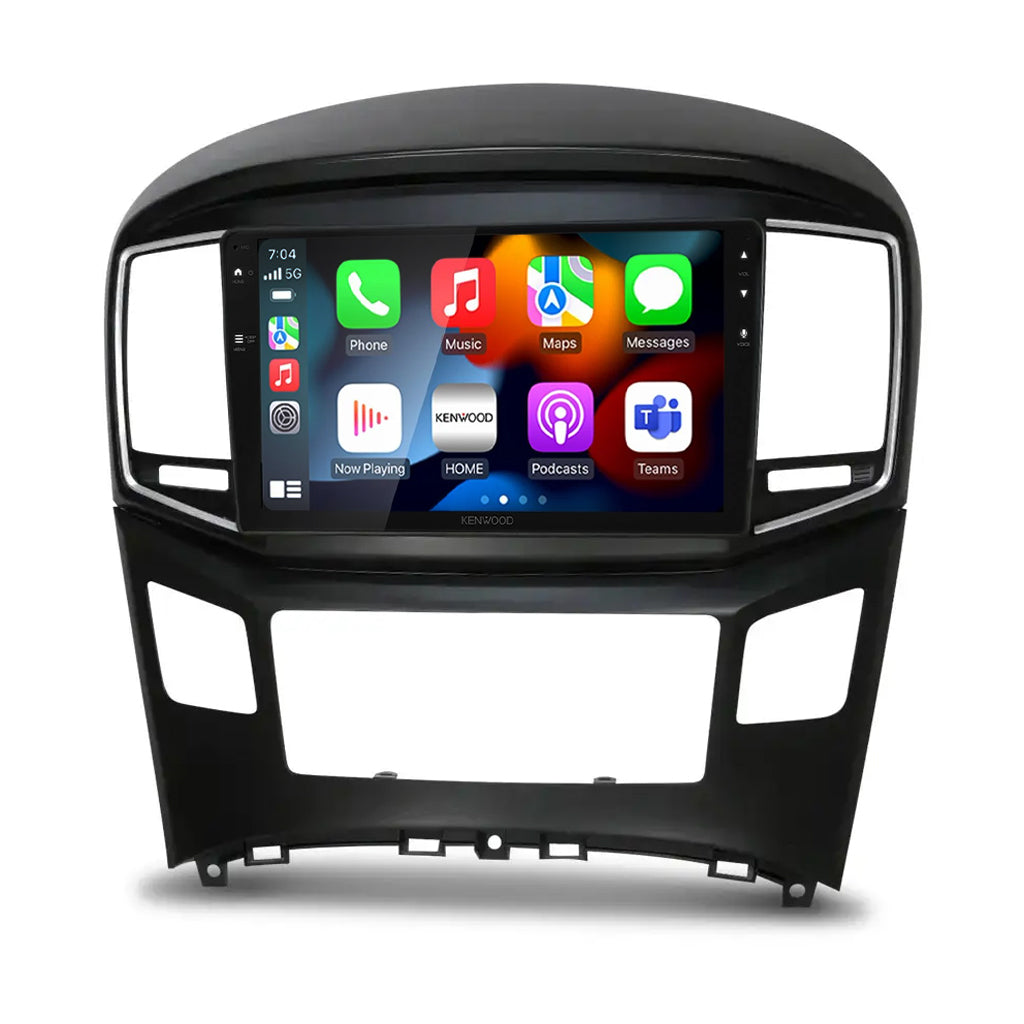

Phone maps and music reach the Hyundai iLoad dash through the DMX80AXS, mounted in the HR9-HY001 with its antenna adaptor, USB retention and reverse camera retention.

Problems it solves

• No CarPlay or Android Auto: the DMX80AXS runs both
• Wheel buttons after the swap: kept by the HR9-HY001
• Factory reverse camera: kept through the HR9-HY001
• Factory USB port: kept with the HR9-HY001 USB retention
• Factory wiring: the Aerpro APP8KE8 plugs into the HR9-HY001 loom

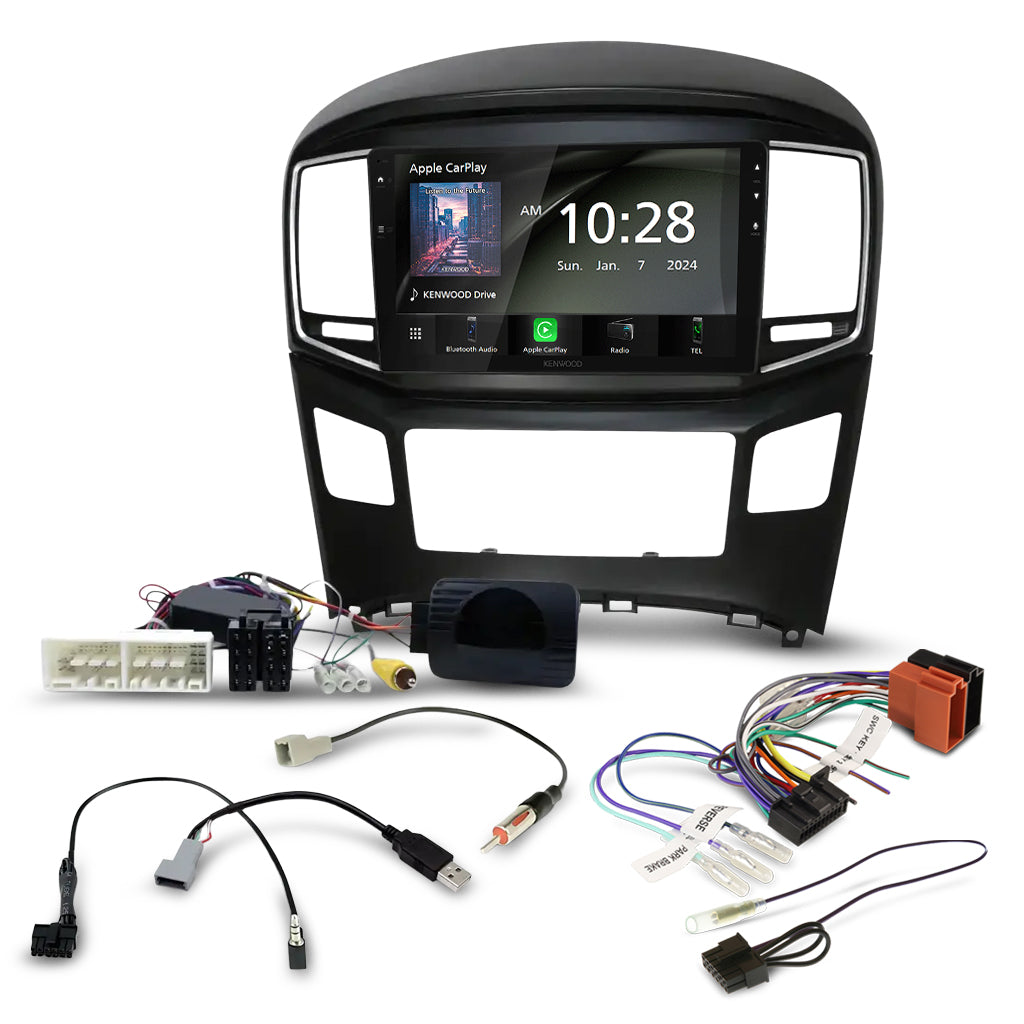

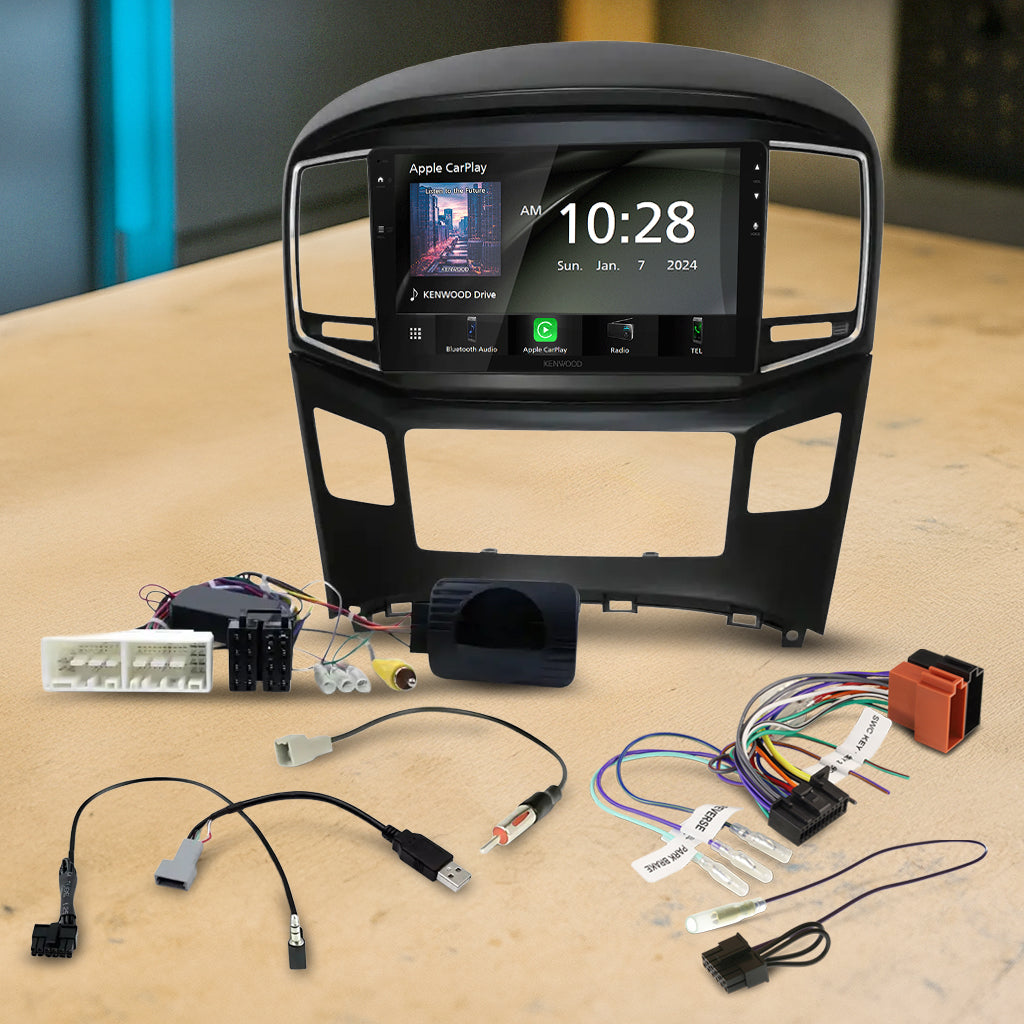

What is in the box

• Head unit: Kenwood DMX80AXS 9 inch receiver
• From the Stinger HR9-HY001 kit: 9 inch flush fit radio panel
• From the Stinger HR9-HY001 kit: SWC interface and patch lead
• From the Stinger HR9-HY001 kit: antenna adaptor
• From the Stinger HR9-HY001 kit: USB retention
• From the Stinger HR9-HY001 kit: reverse camera retention
• Aerpro APP8KE8: secondary ISO harness, 22 pin to double ISO
• Aerpro APKWPL: Kenwood SWC patch lead

DMX80AXS features

• Screen: 9 inch WSVGA capacitive touch panel, universal shape
• Phone: wired and wireless Apple CarPlay and Android Auto
• Mirroring: wireless mirroring for iPhone and Android
• Sound: 13 band EQ and digital time alignment
• Camera input: rear view camera input with parking guidelines
• Bluetooth: built in
• Outputs: 2 preouts at 2.5V plus a mono subwoofer output
• Chassis: short chassis

Fitment

• Stinger lists the HR9-HY001 for: Hyundai iLoad and iMax 2018 to 2020 (TQ4)
• Head unit list: DMX80AXS named by Stinger

What the HR9-HY001 keeps

• Steering wheel controls: yes
• Factory reverse camera: yes
• Factory USB input: yes

Install notes

The bundle also includes the Aerpro APKWPL Kenwood SWC patch lead; Aerpro designs it for its own interfaces and the HR9-HY001 has its own patch lead, so we confirm which lead your install uses.

• Head unit plug: 22 pin, to double ISO via the Aerpro APP8KE8
• Hard wiring: Aerpro says some cars need a little
• Fitting: we recommend a professional installer

Warranty

Your rights under the Australian Consumer Law always apply. Keep your receipt and contact us first if anything goes wrong.

Need just one piece? See Stinger HR9-HY001 kit, Kenwood

FAQ

Does the Kenwood DMX80AXS support Apple CarPlay and Android Auto?

Yes, both are supported, including wireless connection.

Does the Kenwood DMX80AXS have Bluetooth?

Yes. It has built in Bluetooth for phone calls and audio streaming.

Will it fit my car?

Fitment depends on the vehicle. Contact the F.A.E. team with your make, model and year and we will confirm before you order.
