Kenwood DMX80AXS 9 Inch Bundle for Ford Ranger PX2 2015 to 2019, with the 4.3 inch factory screen, Stinger HR9-FD002 Kit, APP8KE8 and APKWPL

A HR9-FD002 panel, the DMX80AXS head unit and the Aerpro APP8KE8 lead make up this Ford Ranger PX2 pack, matched by Stinger to the Ford Ranger 2015 to 2019 (PX MK2) with the 4.3 inch factory screen and CD.

Problems it solves

• No CarPlay or Android Auto: the DMX80AXS runs both
• Wheel buttons after the swap: kept by the HR9-FD002
• Factory reverse camera: kept through the HR9-FD002
• Factory USB port: kept with the HR9-FD002 USB retention
• Factory wiring: the Aerpro APP8KE8 plugs into the HR9-FD002 loom

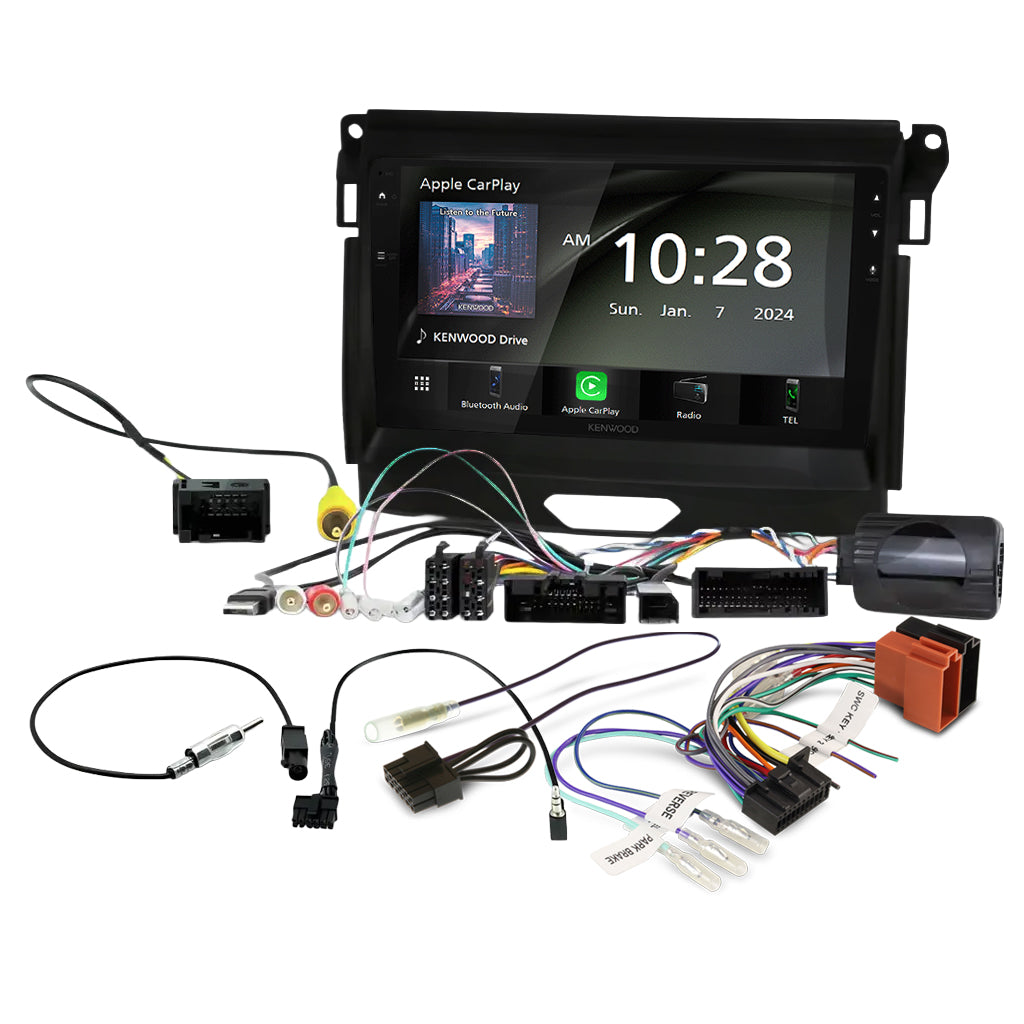

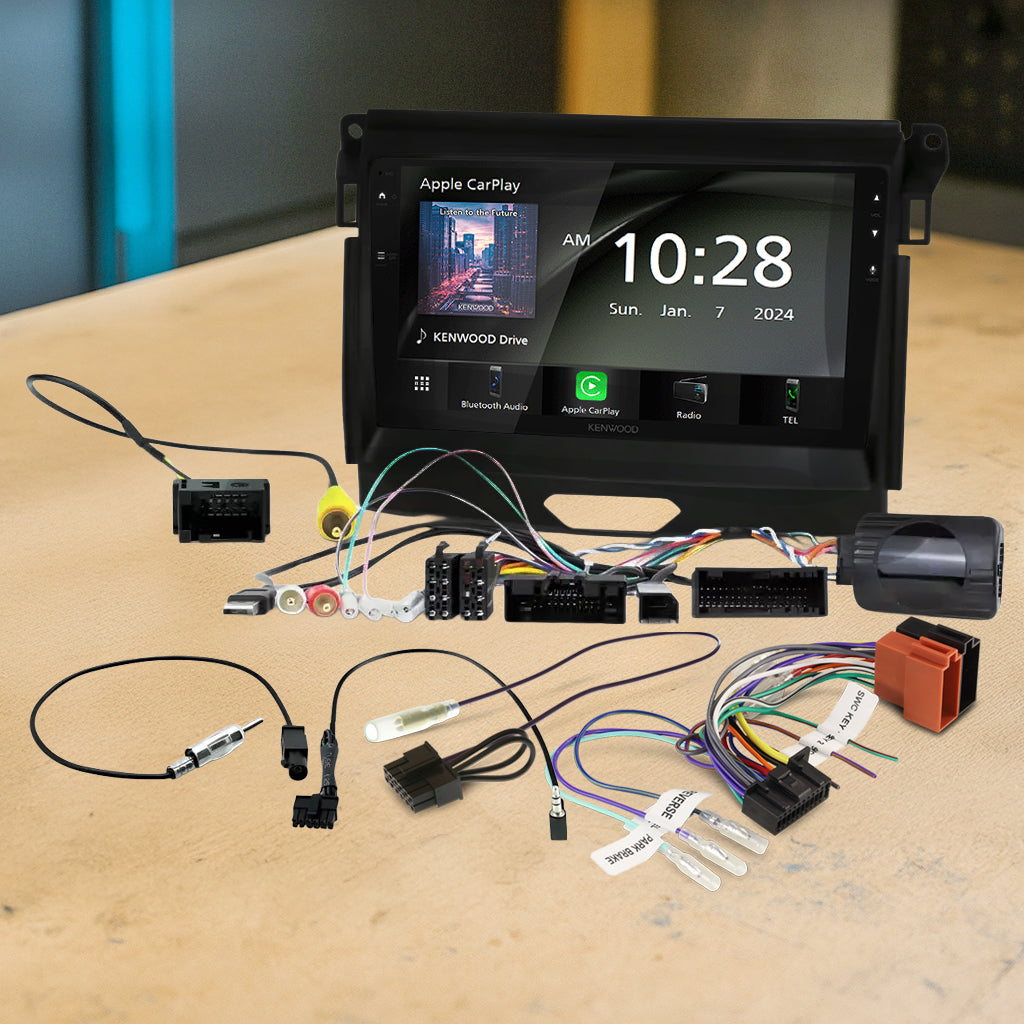

What is in the box

• Head unit: Kenwood DMX80AXS 9 inch receiver
• From the Stinger HR9-FD002 kit: 9 inch flush fit radio panel
• From the Stinger HR9-FD002 kit: SWC interface and patch lead
• From the Stinger HR9-FD002 kit: antenna adaptor
• From the Stinger HR9-FD002 kit: USB retention
• From the Stinger HR9-FD002 kit: reverse camera retention
• Aerpro APP8KE8: secondary ISO harness, 22 pin to double ISO
• Aerpro APKWPL: Kenwood SWC patch lead

DMX80AXS features

• Screen: 9 inch WSVGA capacitive touch panel, universal shape

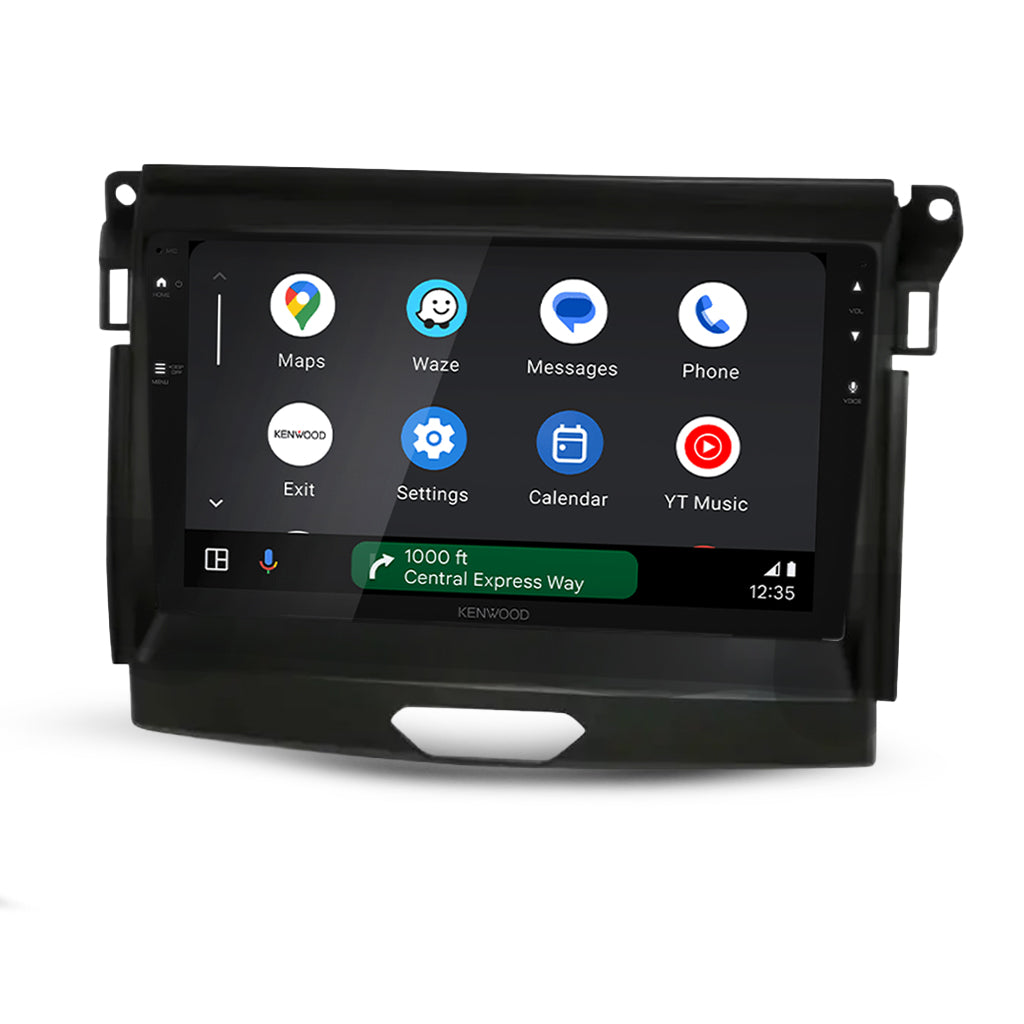

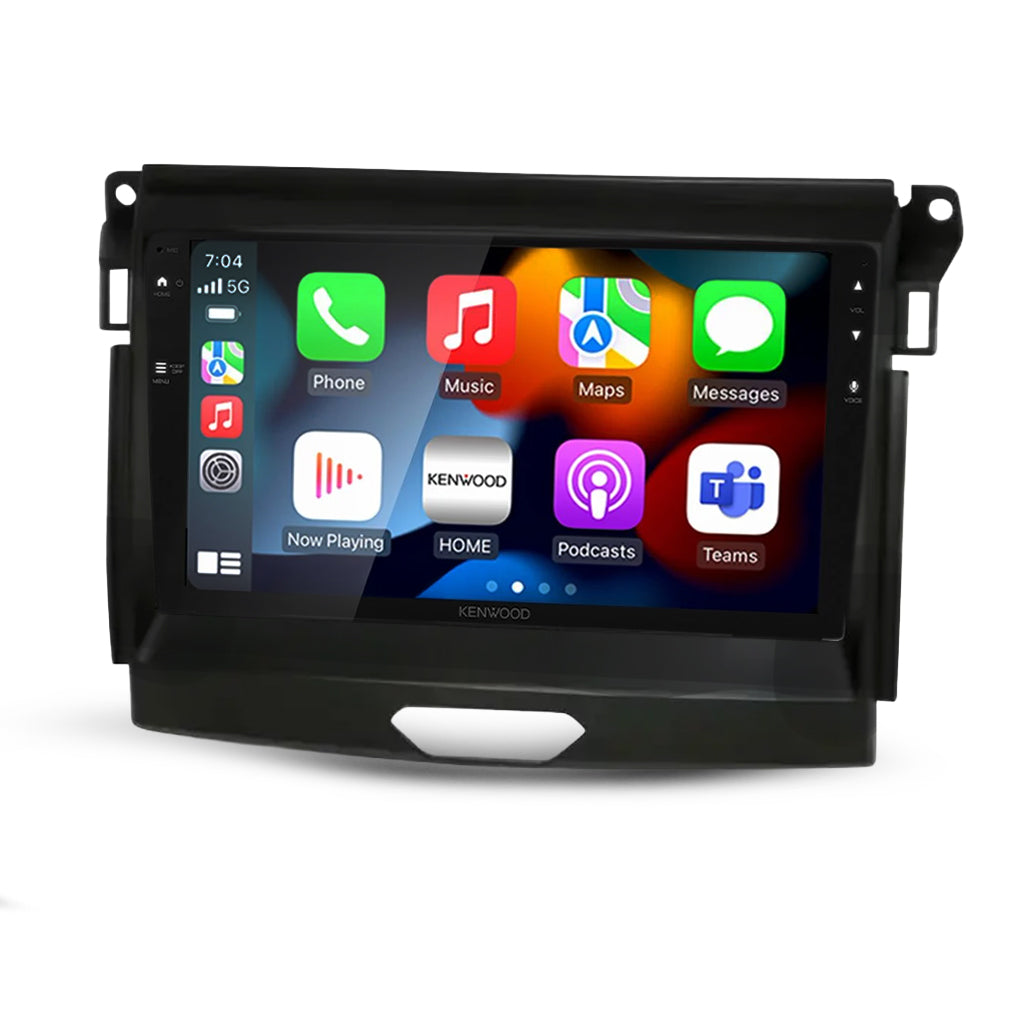

• Phone: wired and wireless Apple CarPlay and Android Auto
• Mirroring: wireless mirroring for iPhone and Android
• Sound: 13 band EQ and digital time alignment
• Camera input: rear view camera input with parking guidelines
• Bluetooth: built in
• Outputs: 2 preouts at 2.5V plus a mono subwoofer output
• Chassis: short chassis

Fitment

• Stinger lists the HR9-FD002 for: Ford Ranger 2015 to 2019 (PX MK2) with the 4.3 inch factory screen and CD
• Head unit list: DMX80AXS named by Stinger
• Version: with the 4.3 inch factory screen
• Stinger note: it does not suit a Ranger with the 8 inch factory screen

What the HR9-FD002 keeps

• Steering wheel controls: yes
• Factory reverse camera: yes
• Factory USB input: yes

Install notes

The bundle also includes the Aerpro APKWPL Kenwood SWC patch lead; Aerpro designs it for its own interfaces and the HR9-FD002 has its own patch lead, so we confirm which lead your install uses.

• Head unit plug: 22 pin, to double ISO via the Aerpro APP8KE8
• Hard wiring: Aerpro says some cars need a little
• Fitting: we recommend a professional installer

Warranty

Your rights under the Australian Consumer Law always apply. Keep your receipt and contact us first if anything goes wrong.

Need just one piece? See Stinger HR9-FD002 kit, Kenwood

FAQ

Does the Kenwood DMX80AXS support Apple CarPlay and Android Auto?

Yes, both are supported, including wireless connection.

Does the Kenwood DMX80AXS have Bluetooth?

Yes. It has built in Bluetooth for phone calls and audio streaming.

Will it fit my car?

Fitment depends on the vehicle. Contact the F.A.E. team with your make, model and year and we will confirm before you order.
