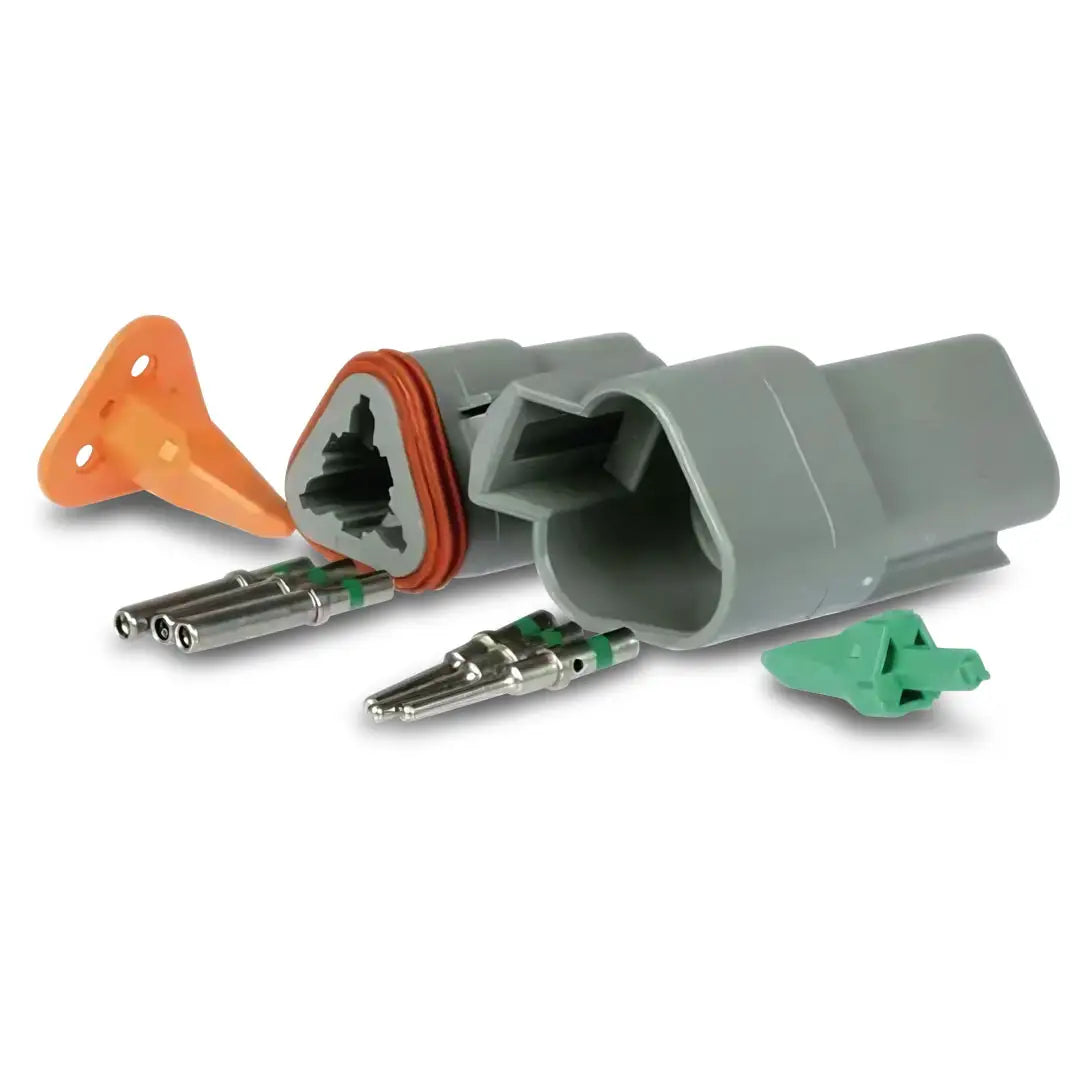

Deutsch ACX2911 kit with mated plug and receptacle, orange and green wedgelocks, pins and sockets
Deutsch ACX2911 kit with mated plug and receptacle, orange and green wedgelocks, pins and sockets

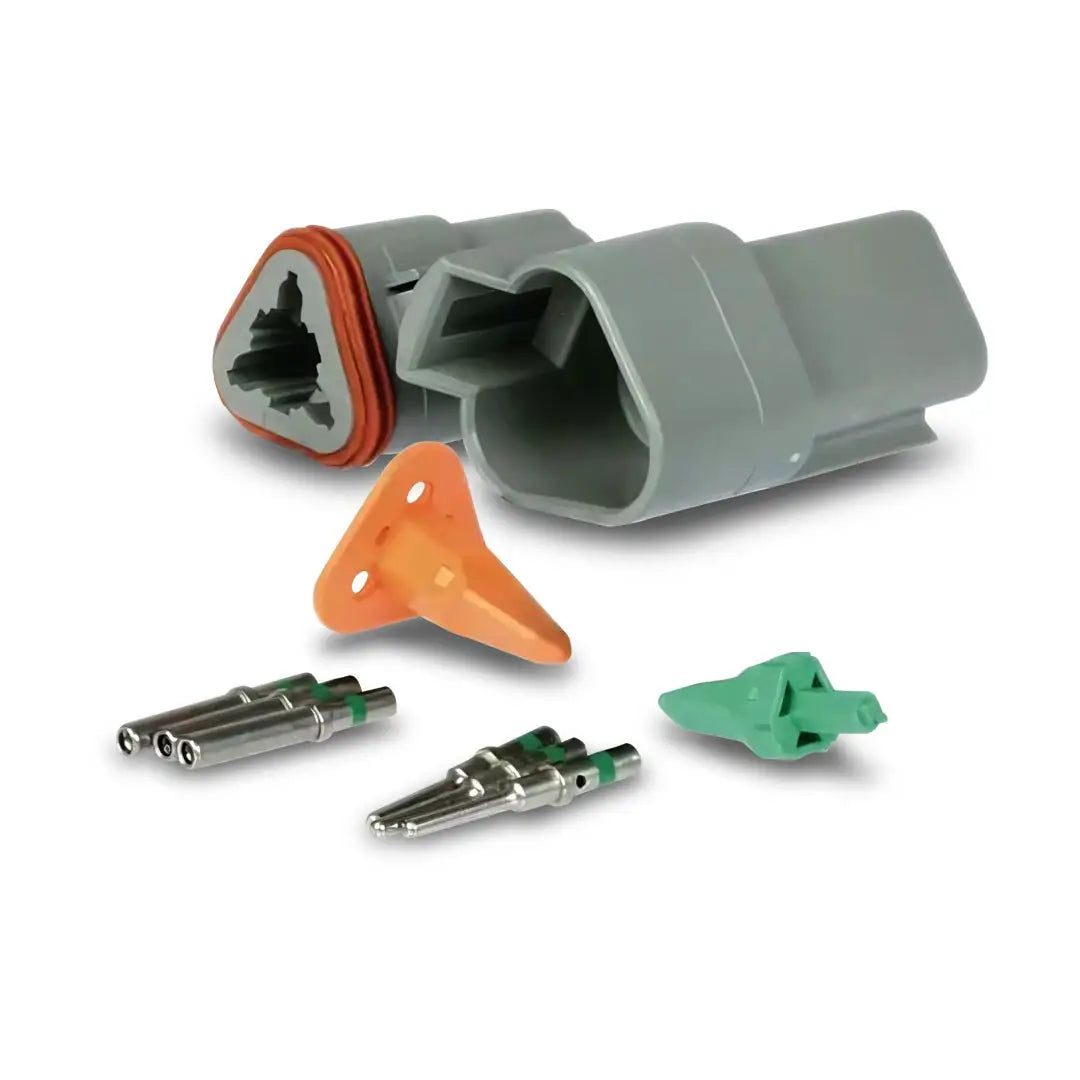

ACX2911 mated housings with the orange wedgelock alongside and terminals in front
ACX2911 mated housings with the orange wedgelock alongside and terminals in front

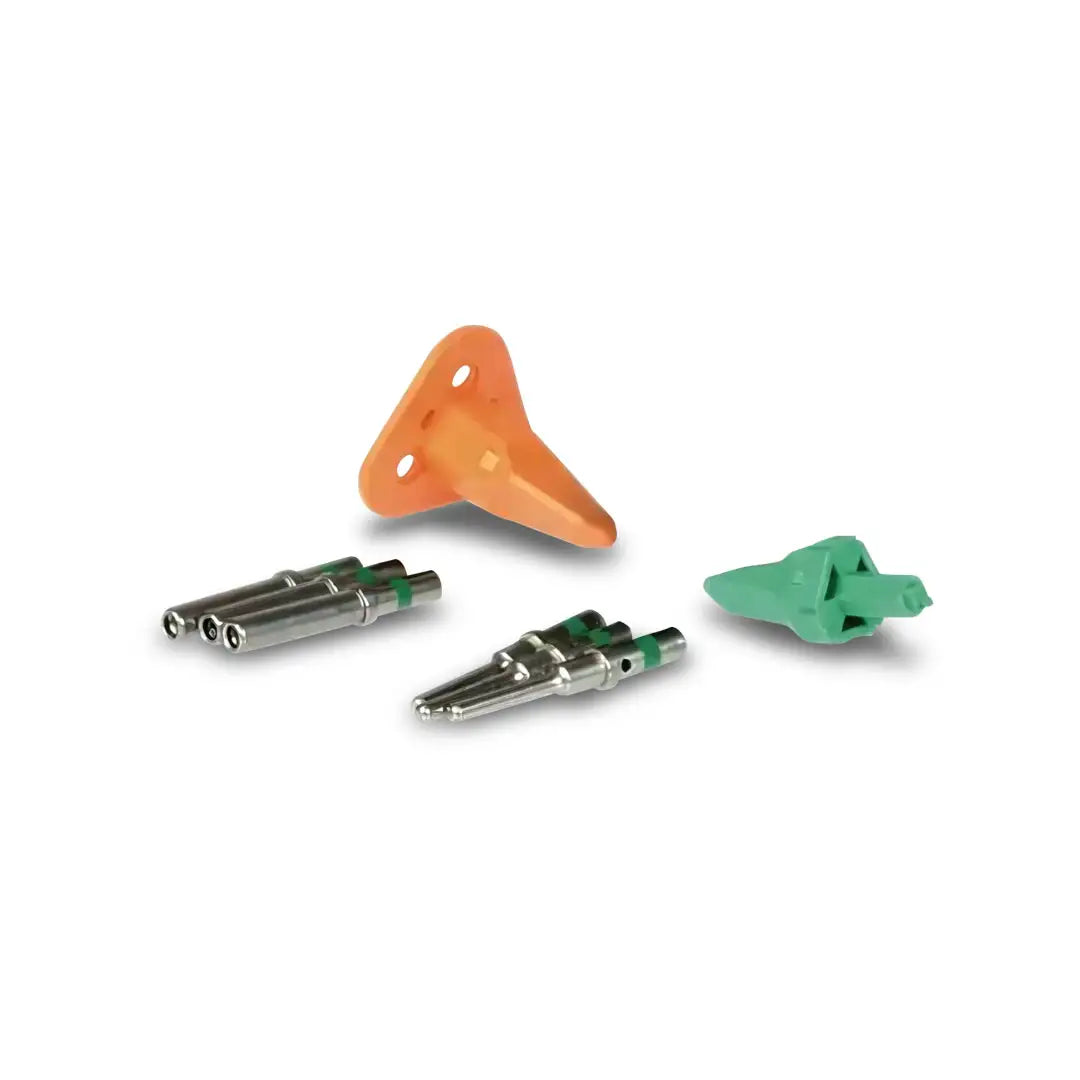

ACX2911 orange and green wedgelocks with the size 16 pins and sockets
ACX2911 orange and green wedgelocks with the size 16 pins and sockets

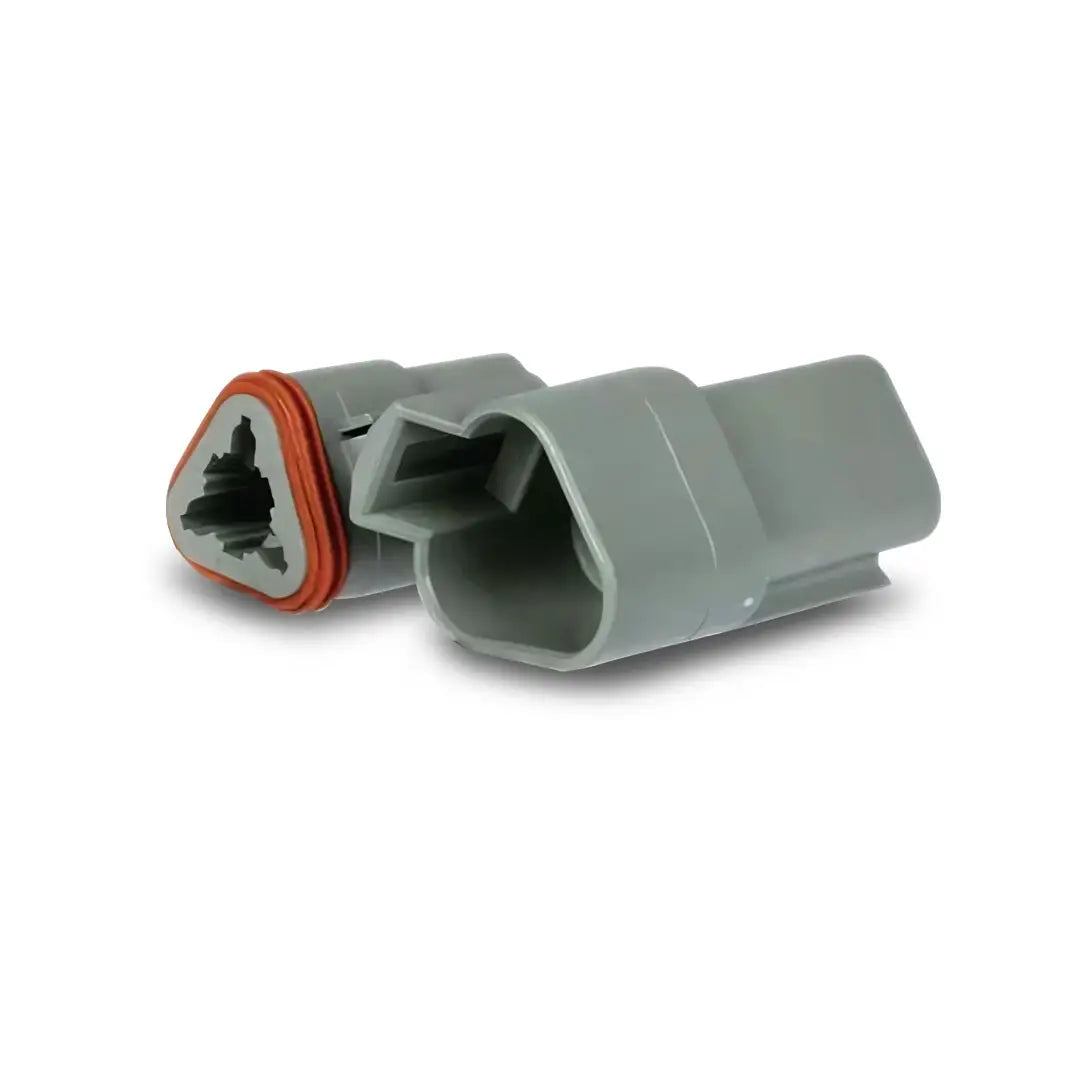

Deutsch DT 3 way plug and receptacle mated together, terminal face showing
Deutsch DT 3 way plug and receptacle mated together, terminal face showing

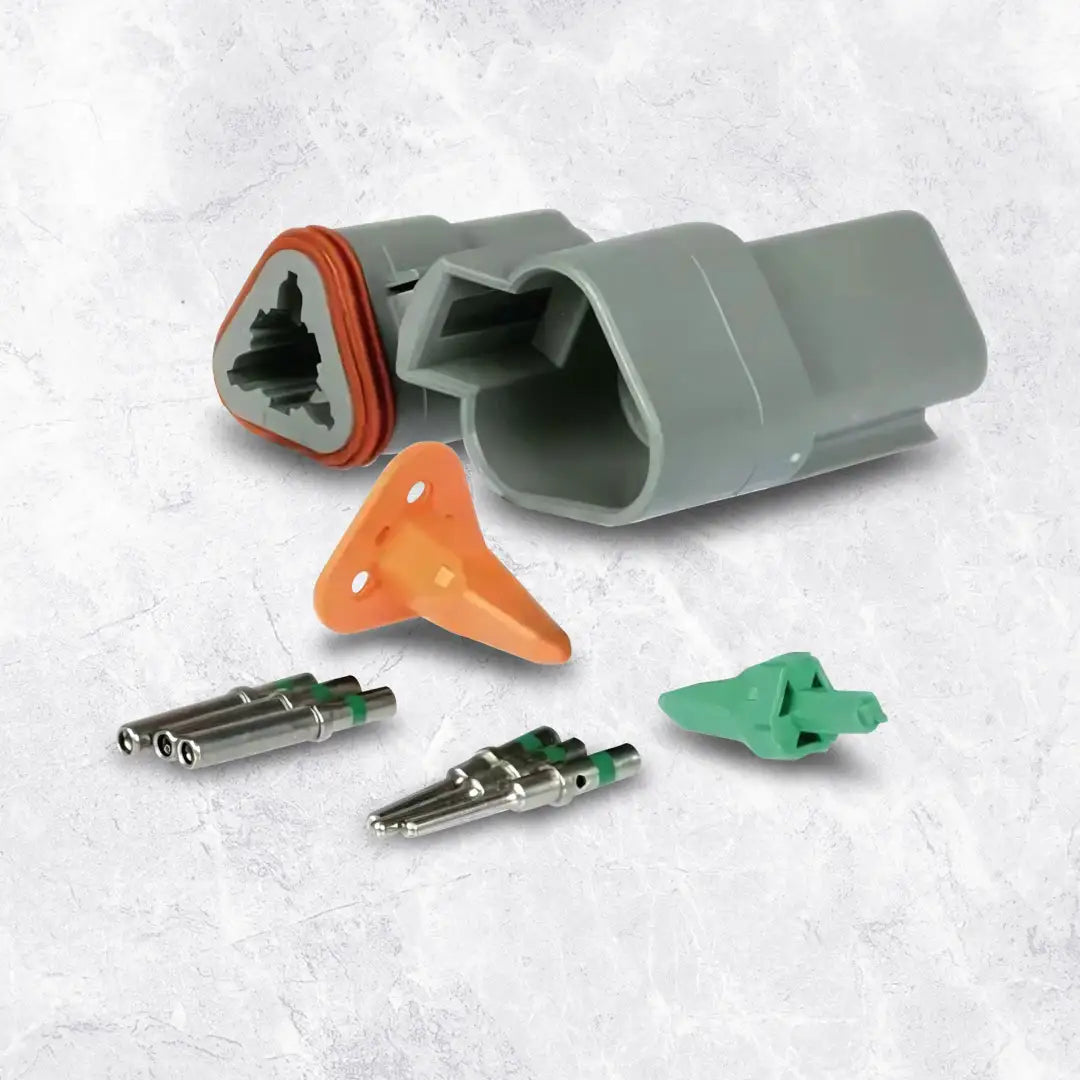

ACX2911 full kit laid out on a white marble surface
ACX2911 full kit laid out on a white marble surface

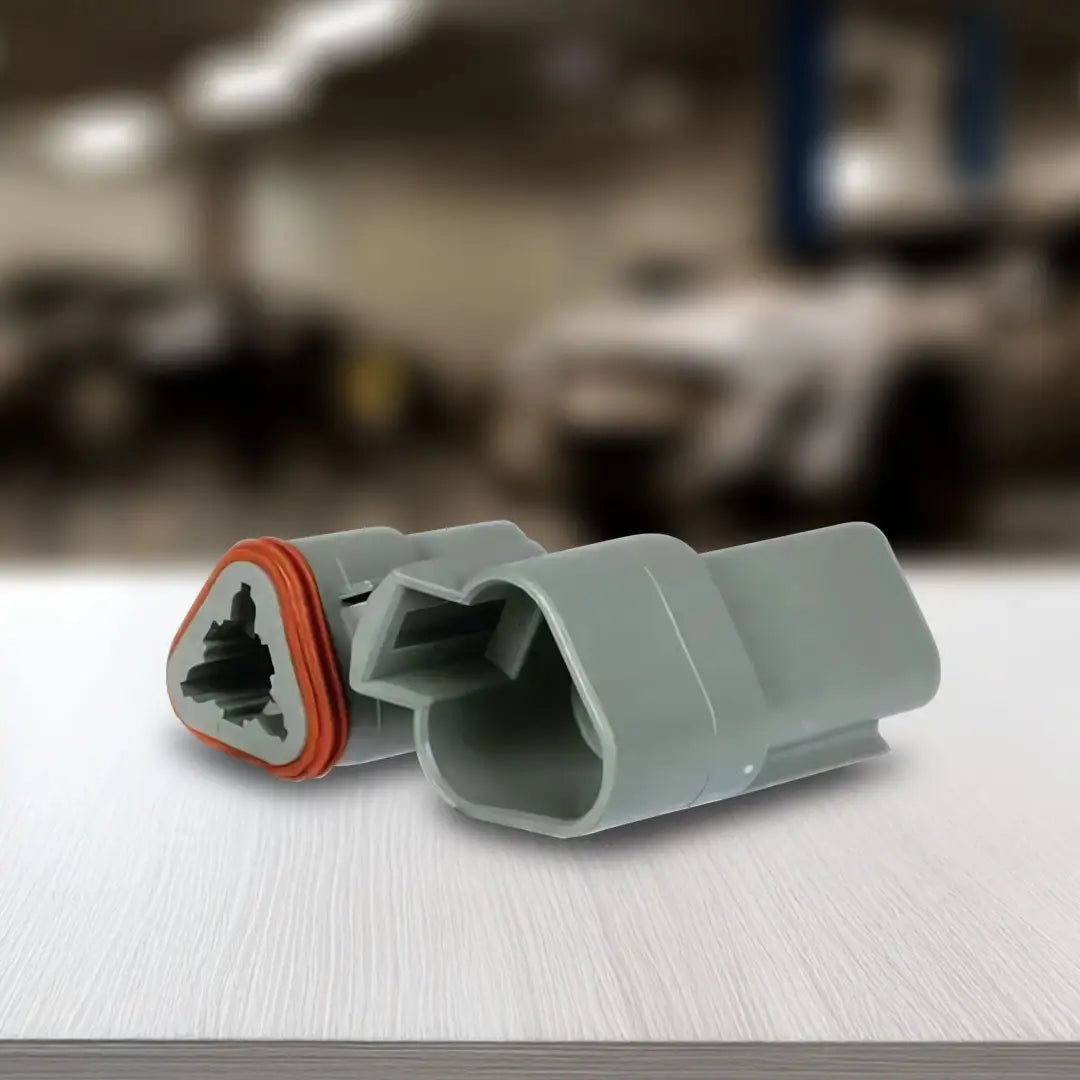

ACX2911 mated plug and receptacle on a white bench in a blurred workshop
ACX2911 mated plug and receptacle on a white bench in a blurred workshop

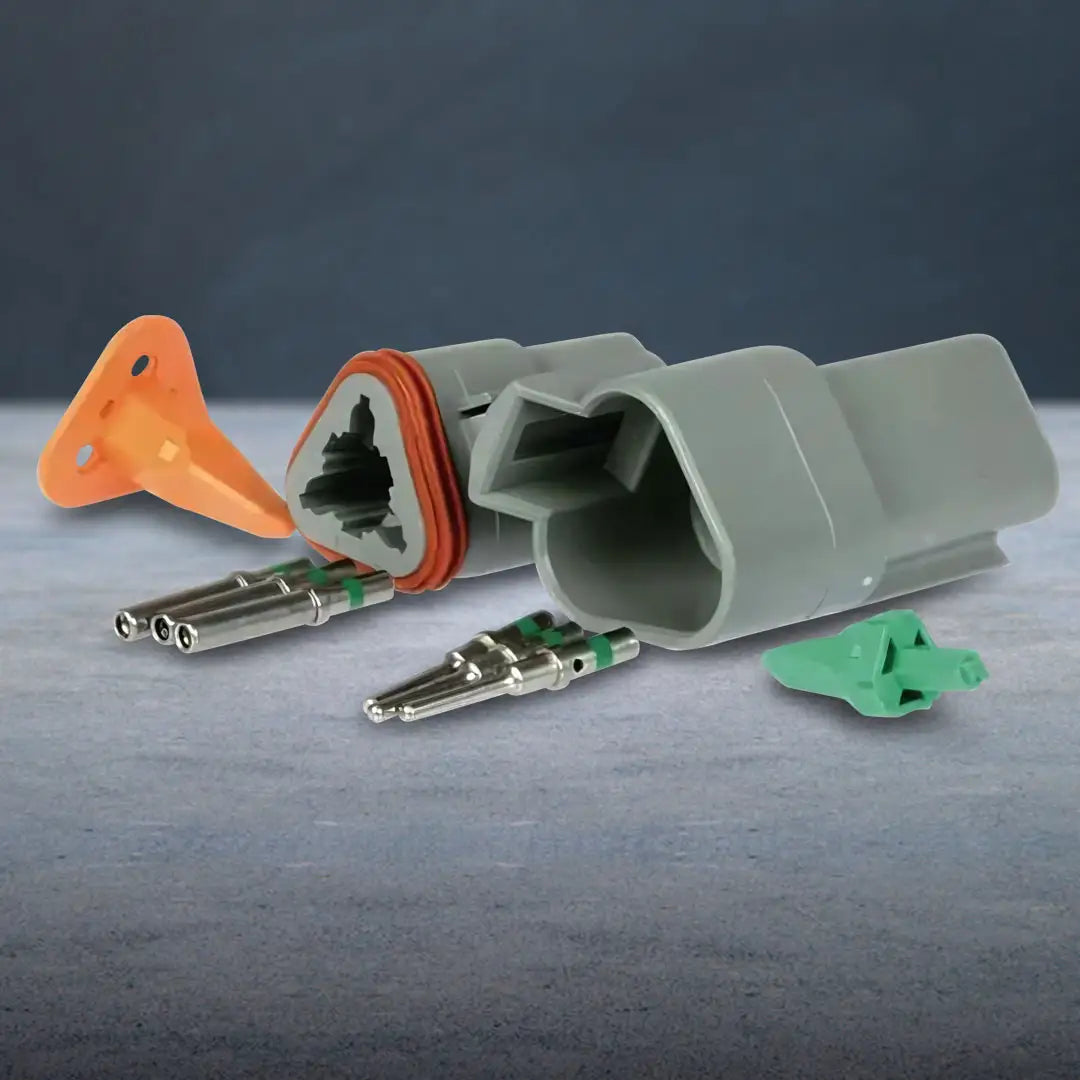

ACX2911 full kit on a grey concrete surface
ACX2911 full kit on a grey concrete surface

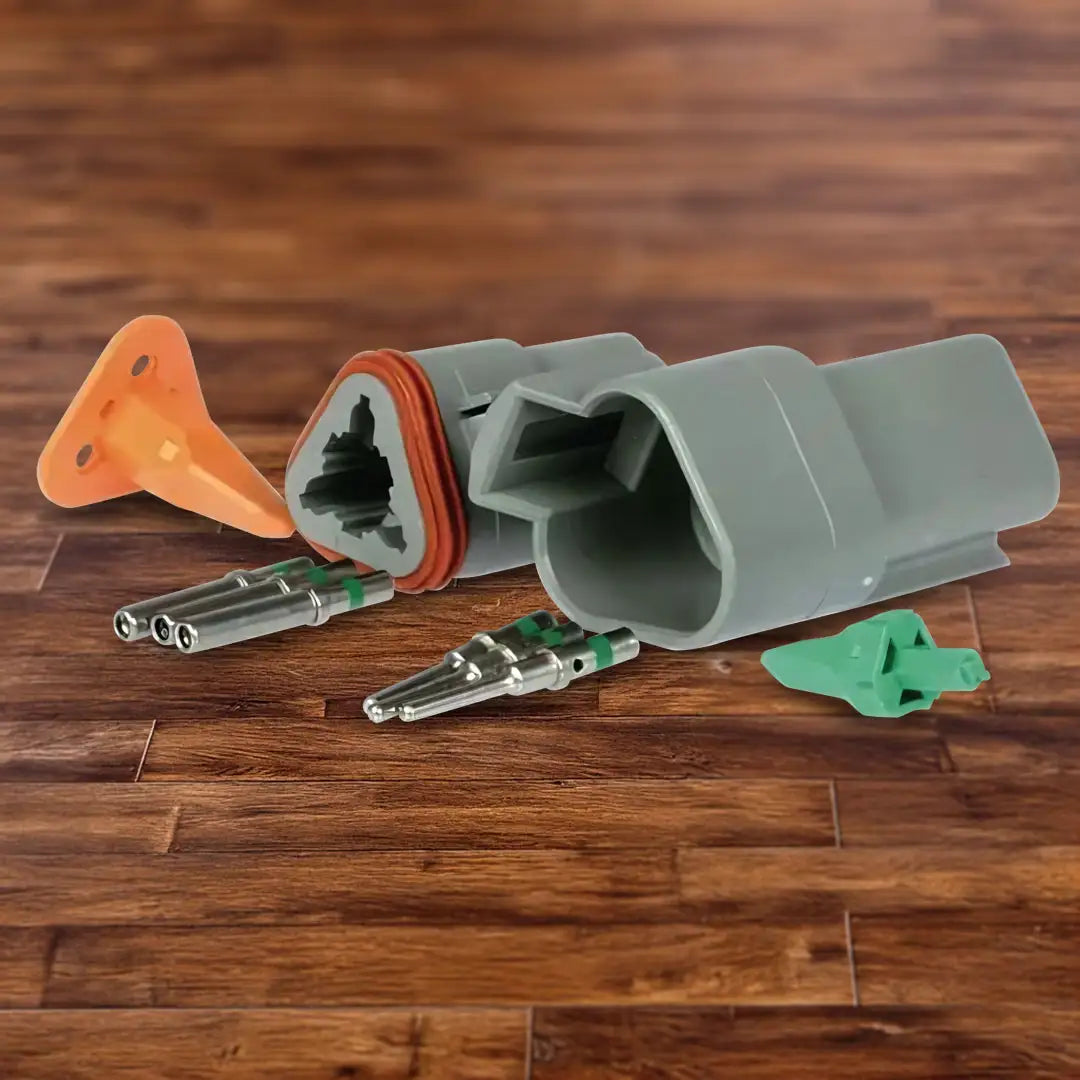

ACX2911 full kit on a timber floor
ACX2911 full kit on a timber floor
Click to open expanded view
DEUTSCH logo

Deutsch ACX2911 DT Series 3 Way Connector Kit, Size 16, 13A

SKU: ACX2911
Price
$22
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Deutsch ACX2911 kit with mated plug and receptacle, orange and green wedgelocks, pins and sockets

Deutsch ACX2911 DT Series 3 Way Connector Kit, Size 16, 13A

$22

Product features

The ACX2911 is a Deutsch DT series 3 way connector kit with a DT04-3P receptacle, a DT06-3S plug, both wedgelocks and three size 16 pins and sockets, rated 13A per circuit.

Three wires is the common count for trailer brake controllers, work lights with a switch feed, sensors and fridge leads. Deutsch DT plugs are widely used on machinery and trucks because the seals keep water and dust out of the joint.

In the kit

  • 1 x DT04-3P receptacle
  • 1 x DT06-3S plug
  • 1 x W3S wedgelock
  • 1 x W3P wedgelock
  • 3 x 0460-215-16141 pins
  • 3 x 0462-209-16141 sockets

Crimping

These are solid barrel terminals, and they need a Deutsch style crimp tool to hold properly. Push each crimped terminal in until it clicks, then fit the wedgelock to lock them in.

Specifications

Series Deutsch DT
Ways 3
Terminal size 16
Rating 13A per circuit
Pack 1 kit
Weight 0.02kg

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

Frequently asked questions

What wire size does it take?

The kit uses size 16 contacts. Check the terminal part number against your wire gauge before crimping.

Do I get both halves of the plug?

Yes. The kit has the DT04-3P receptacle and the DT06-3S plug, both wedgelocks, three pins and three sockets.

Can I crimp the terminals with pliers?

No. They are solid barrel terminals and need a Deutsch style crimp tool. Push each one in until it clicks, then fit the wedgelock.
