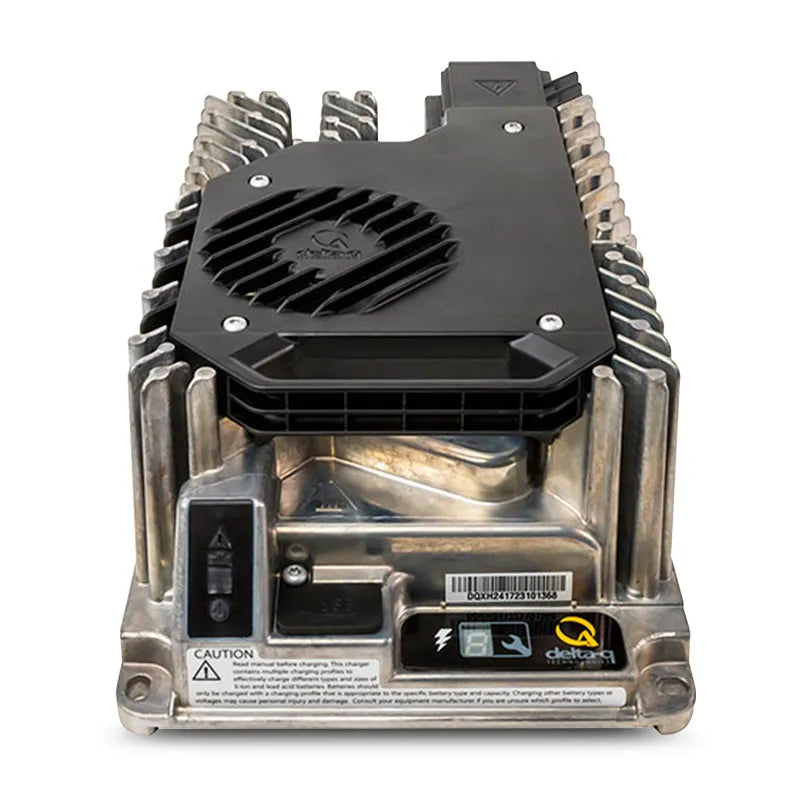

Delta-Q 941-0002 IC1200 36V/33.3A Industrial Battery Charger
Click to open expanded view
SKU: 9410002

Delta-Q 941-0002 IC1200 36V/33.3A Industrial Battery Charger

Price
$1,402
Buy now, pay later
  • image
  • image
  • image
In stock and ready for shipping
Linkimage
Product features

IC1200 Industrial Battery Charger

The IC1200 Battery Charger provides 1200 watts of DC output power and is available in three output voltages —24V, 36V and 48V for usage in applications such as lift trucks, floor cleaning machines, aerial work platforms, and electric scooters. Delta-Q intends to release higher voltage variants in the future to meet customer demand.

Specifications:

  • Weight (kg) 4.1 kg
  • Dimensions (mm) 335 x 179 x 105 mm
  • AC Input Connector IEC320 / C14 Universal AC Input (World Charger)
  • AC Input Voltage Range 85 – 270 VAC
  • Nominal AC Input Voltage 120 VAC / 230 VAC RMS
  • AC Input Frequency 50 / 60 Hz
  • Nominal DC Output Voltage 36 V
  • Maximum DC Output Current 33.3 A
  • Maximum DC Output Power 1200 W
  • DC Output Connector M6 threaded fasteners for ring terminals, Universal DC connections
  • Configuration BASE
