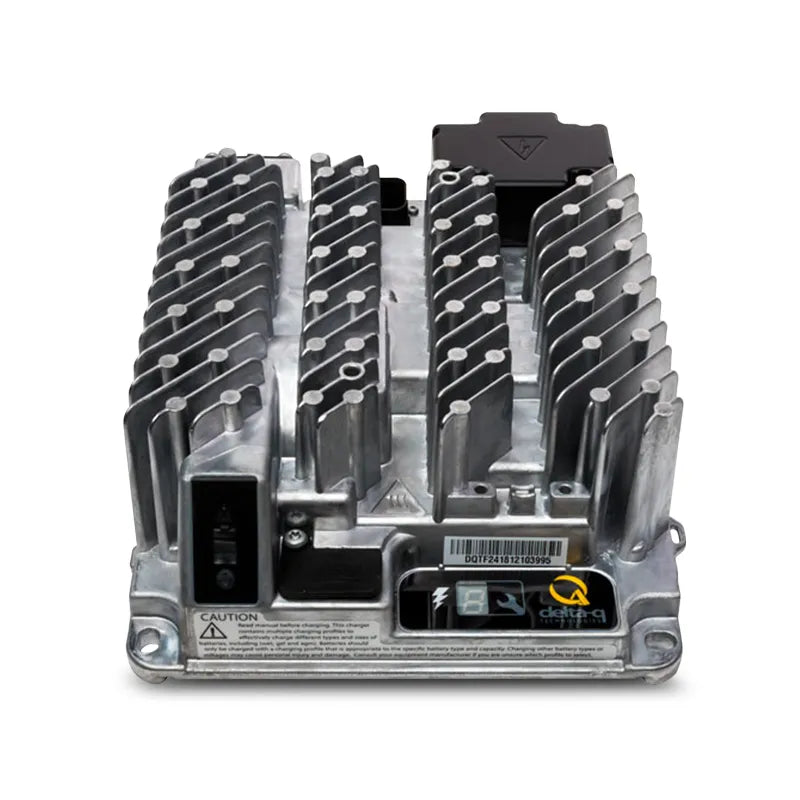

Delta-Q 940-0006 IC650 48V/13.5A Industrial Battery Charger CANBUS
Click to open expanded view
SKU: 9400006

Delta-Q 940-0006 IC650 48V/13.5A Industrial Battery Charger CANBUS

Sale price
$955.37
Regular price
$1,143
You save
16%
Buy now, pay later
  • image
  • image
  • image
In stock and ready for shipping
Linkimage
Product features

IC650 Industrial Battery Charger

The IC650 Battery Charger provides 650 watts of DC output power and is available in three output voltages —24V, 36V and 48V for usage in applications such as lift trucks, floor cleaning machines, aerial work platforms, and electric scooters. Delta-Q intends to release higher voltage variants in the future to meet customer demand.

Specifications:

  • Weight (kg) 2.4 kg
  • Dimensions (mm) 252 x 186 x 80 mm
  • AC Input Connector IEC320 / C14 Universal AC Input (World Charger)
  • AC Input Voltage Range 85 – 265 VAC (universal all models)
  • Nominal AC Input Voltage 120 VAC / 230 VAC RMS
  • AC Input Frequency 45 – 65 Hz
  • Nominal DC Output Voltage 48 V
  • Maximum DC Output Current 13.5 A
  • Maximum DC Output Power 650 W
  • DC Output Connector M6 threaded fasteners for ring terminals, Universal DC connections
  • Configuration COMM
