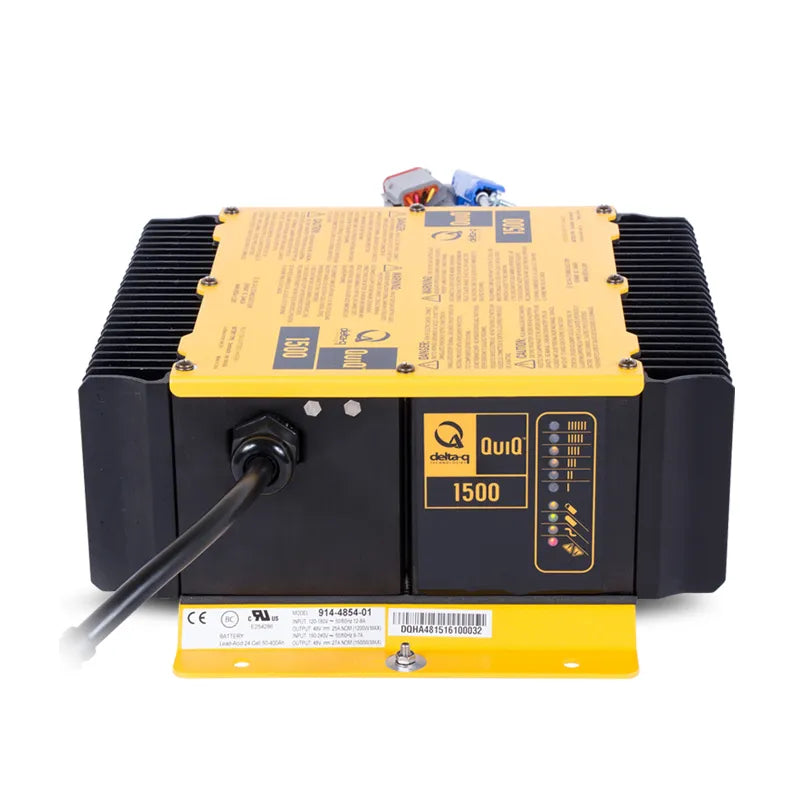

Delta-Q 914-4854 QuiQ HP1500 ICON 48V Industrial Battery Charger

QuiQ Industrial Battery Charger

QuiQ is designed with a wide input voltage range from 85 – 265 VAC, making it an ideal choice for any worldwide application. Power Factor Correction and 12A maximum current draw ensures the charger will work reliably from any power outlet in the world, even through surges and sags. Standardizing on a single universal model reduces component count, saving vehicle OEMs manufacturing and service inventory management costs.

Specifications:

• Dimensions 10.9 × 9.7 × 4.3 in
• Weight (kg) 5.0 kg
• Dimensions (mm) 280 x 246 x 110 mm
• Battery Type Lead Acid (Wet / AGM / GEL), Lithium Ion
• Enclosure IP66 (NEMA4)
• AC Input Connector IEC320 / C14 Universal AC Input (World Charger)
• AC Input Voltage Range 85 – 265 VAC (universal all models)
• Nominal AC Input Voltage 120 VAC / 230 VAC rms
• AC Input Frequency 45 – 65 Hz
• Nominal DC Output Voltage 24 V
• Maximum DC Output Current 30 A (240 V)
• Maximum DC Output Power 1500 W (240 V)
• DC Output Connector 2.5m (8.2') Anderson SB50 RED*
