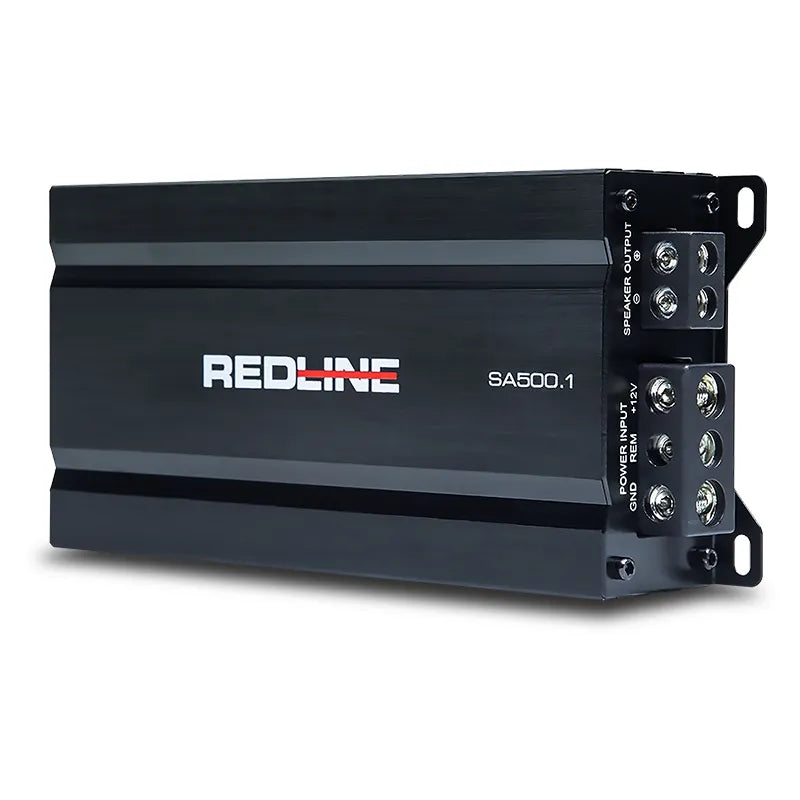

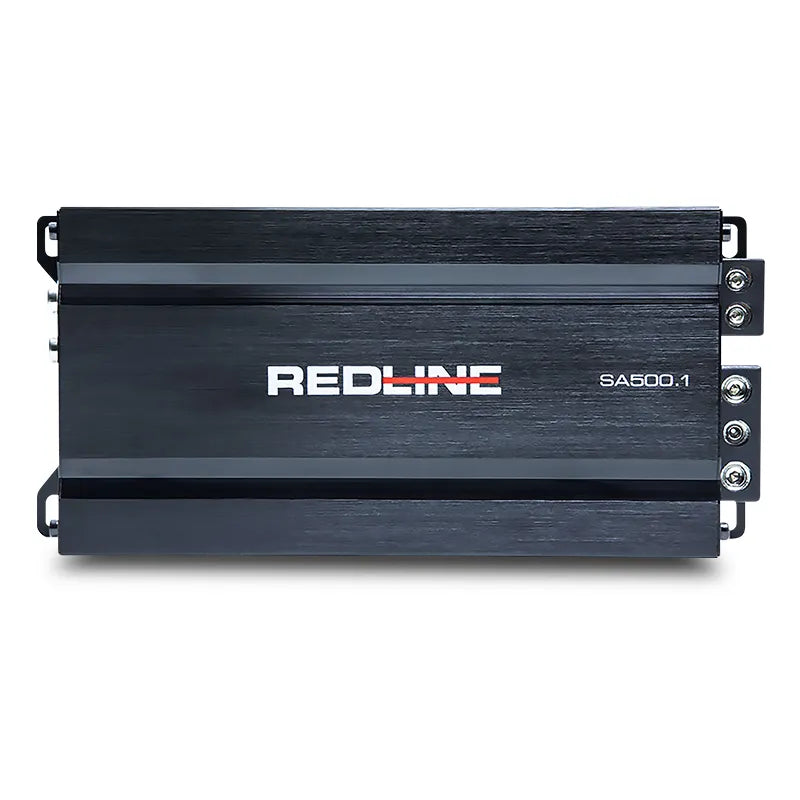

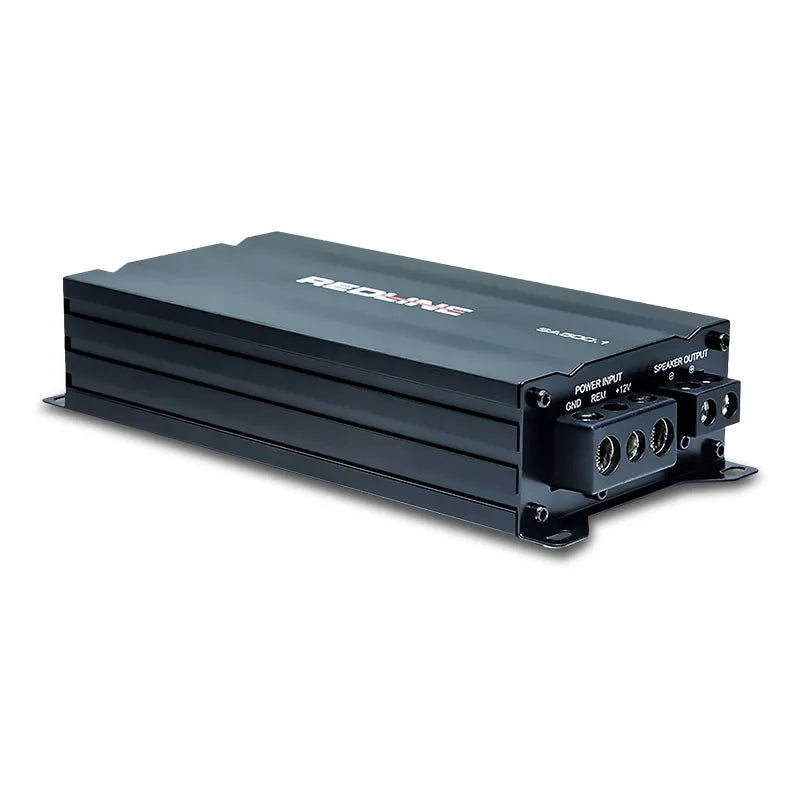

DD Audio DD-RL-SA500.1 1 x 500W Redline SA Series Monoblock Class-D Amplifier

Compact, Powerful & Efficient!

500W Subwoofer Monoblock Amplifier

Small space, big power, sizable savings. The RL-SA500.1 efficiently delivers the power to drive a DD AUDIO loaded enclosure or pair of RL-SW subwoofers. Bandpass crossovers and bass boost capabilities allow precise tuning of the sub stage while the included remote control knob adds the ability to make on the fly adjustments of the subwoofer volume.

With the ability to utilize either RCA Line Level or High Level inputs, the REDLINE SA Series amplifiers provide easy factory integration without the need for a line output converter or aftermarket head unit. The REDLINE SA Series amplifiers are equipped with set screw power and speaker terminals offer secure and reliable connections usually reserved for higher end amplifiers.

Features:

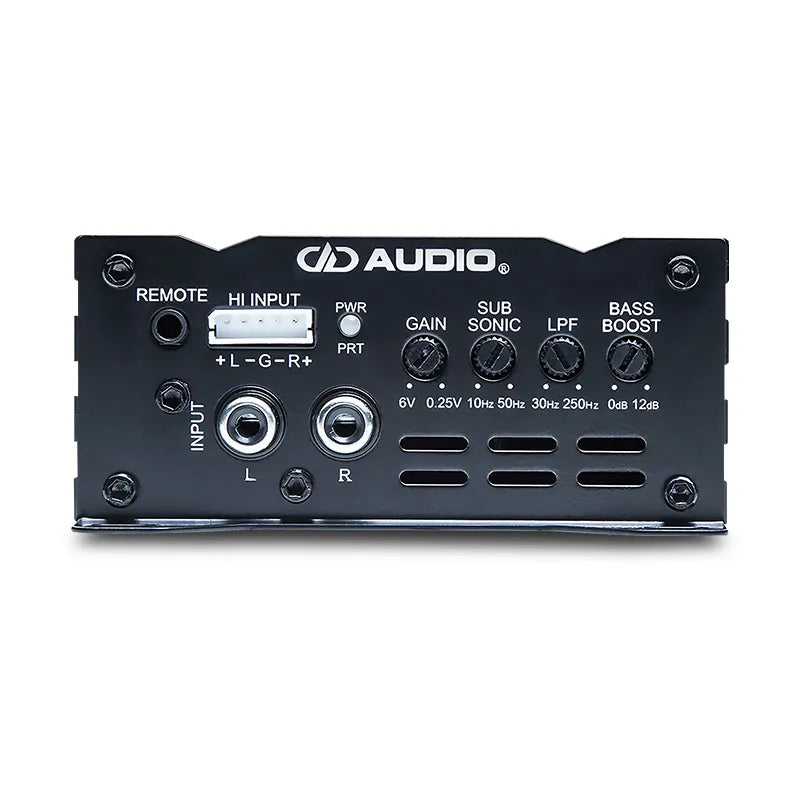

• Variable 12dB Crossovers
• Class D Topology
• Hi Level Inputs

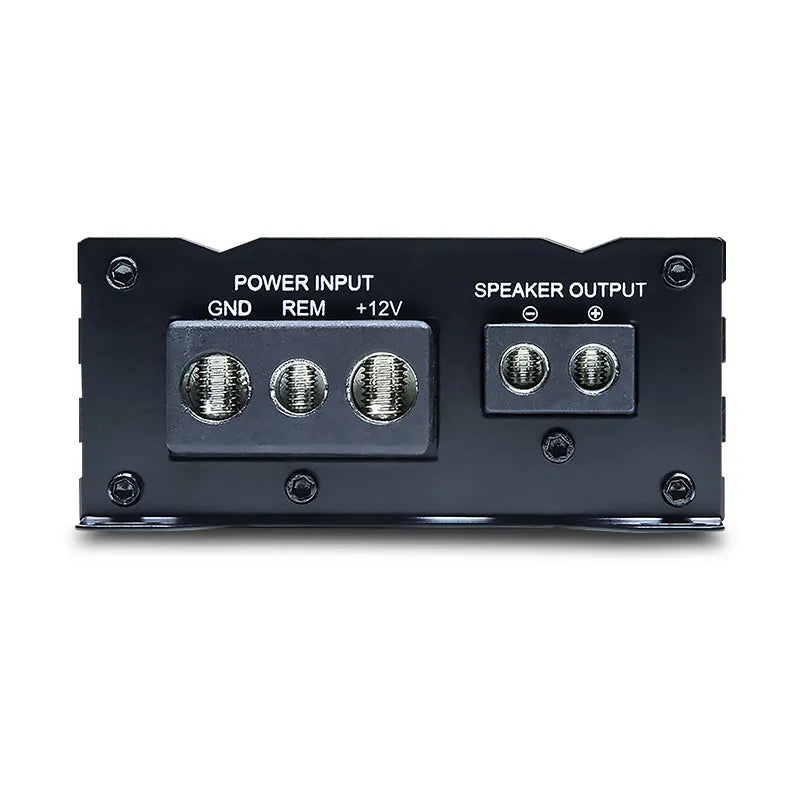

• Set Screw Power & Speaker Terminals
• 6dB Bass Boost

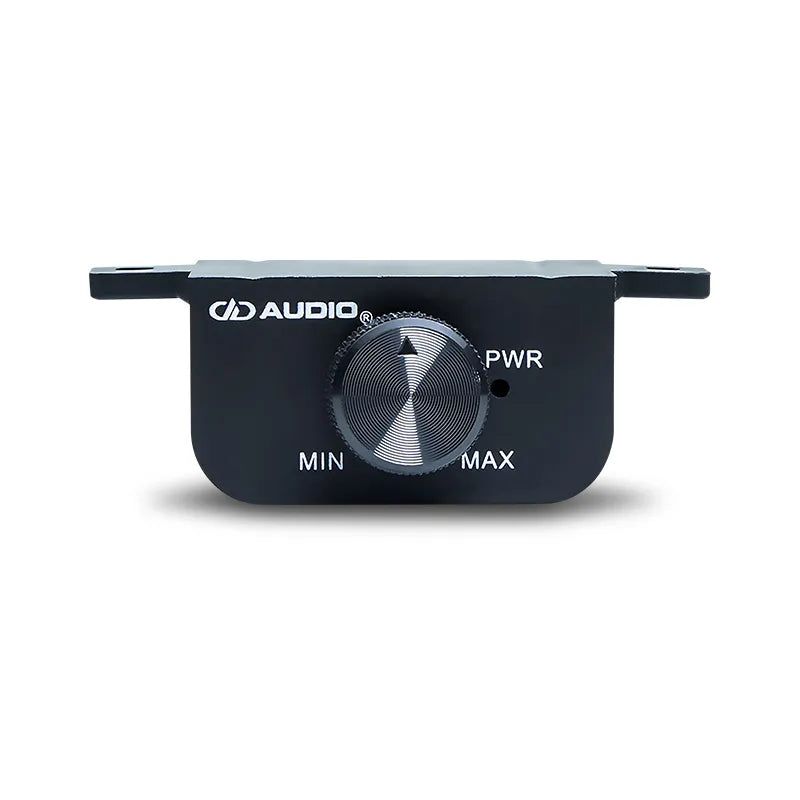

• Remote Control

Specifications:

• Class: D-Class Amplifier
• Operating Voltage: 9 - 16V
• Test Voltage: 14.4V
• Output Channels: 1CH
• Continuous Wattage:
  • @ 4 Ohm: 250W
  • @ 2 Ohm: 390W
  • @ 1 Ohm: 500W
• Dynamic Wattage: 1000W
• Max Current Draw: 50A
• RCA Input Sensitivity: 6V - 0.25V
• High Level Sensitivity: 20V - 1.1V
• S/N Ratio: 70dB
• Damping Factor: 10 - 250
• THD: 0.1%
• Boost Level: 12dB @ 45Hz
• Subsonic Filter: 10 - 50Hz
• Low Pass Filter: 35 -250Hz
• Remote Subwoofer Control: Yes
• Power Wire Gauge - In: 4
• Speaker Wire Gauge - Out: 12
• Dimensions: 180mm x 96mm x 43mm
• Weight: 2.20kg
