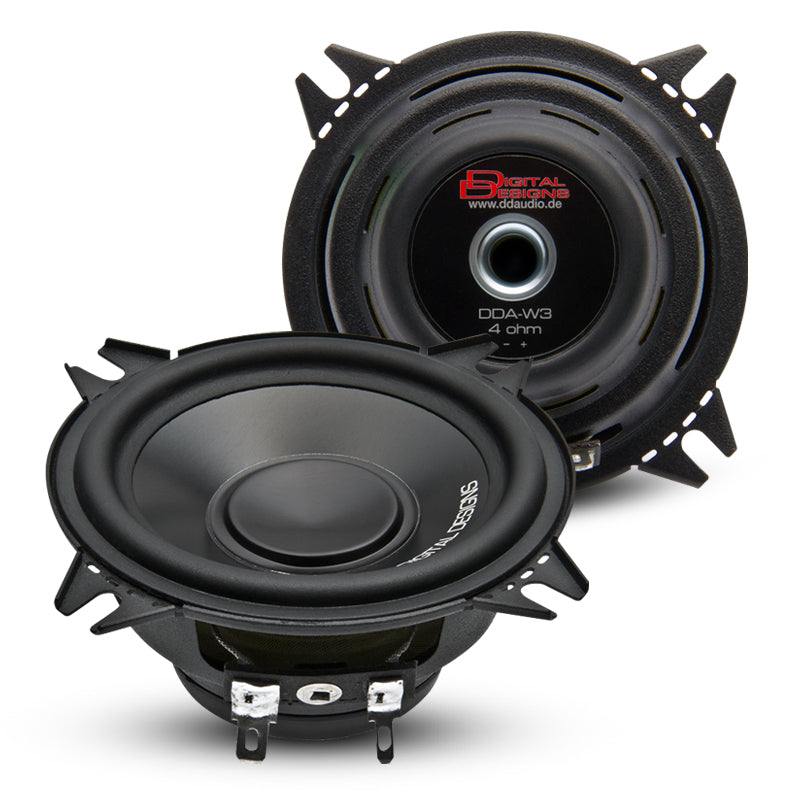

DD Audio DD-AW3 3" 100W RMS AW Series HQ Speakers

Mid-Woofers Represent the “State Of The Art” In Driver Technology

The machined motor structures with the distortion reducing effects of Faraday Rings are held to the tightest tolerances and provide a well damped magnetic field for the voice coil. The motor features dual neodymium magnets for high magnetic energy from the smallest possible footprint. Upper and lower venting are used to maximize heat dissipation.

Note: Marine Grade products are not waterproof, and submersion or excessive moisture exposure may result in product failure. DD Audio Marine Grade products are not certified for saltwater environments.

Product Features:

• The Suspension Was Optimized for Sharp Mid-Range and Extended Upper Frequency.
• The Coil Wire Is the Highest Temperature Available and Held with The Finest Adhesives.
• THe Coil Former Is Ventilated and The Wire Gauge/former Thickness Optimized to Reduce Moving Mass.
• The Adhesives from The Coil to Cone Are Bonded with Specialized.
• Hardened Material to Pass All Energy from The Coil to The Cone.
• The Cone Is Made from Lightweight Aluminum to Achieve Wide Bandwidth and Efficient Energy Transfer to The Air.

Specifications:

• Driver Size: 3"
• Watts RMS: 50-100
• VCD: 1
• Impedance: S4
• Frequency Response: Hz 100-22k
• Fs: Hz 103 Hz
• Qms: 3.03
• Qes: 0.43
• Qts: 0.38
• Vas Liters: 0.046
• dBSPL: 91
• Mounting Diameter: in 2 7/8
• Mounting Depth: in 1 1/2
• Shipping Weight: lbs 2
