DB Drive DX-S694 6x9 Inch 4 Way Coaxial Speakers 85W RMS

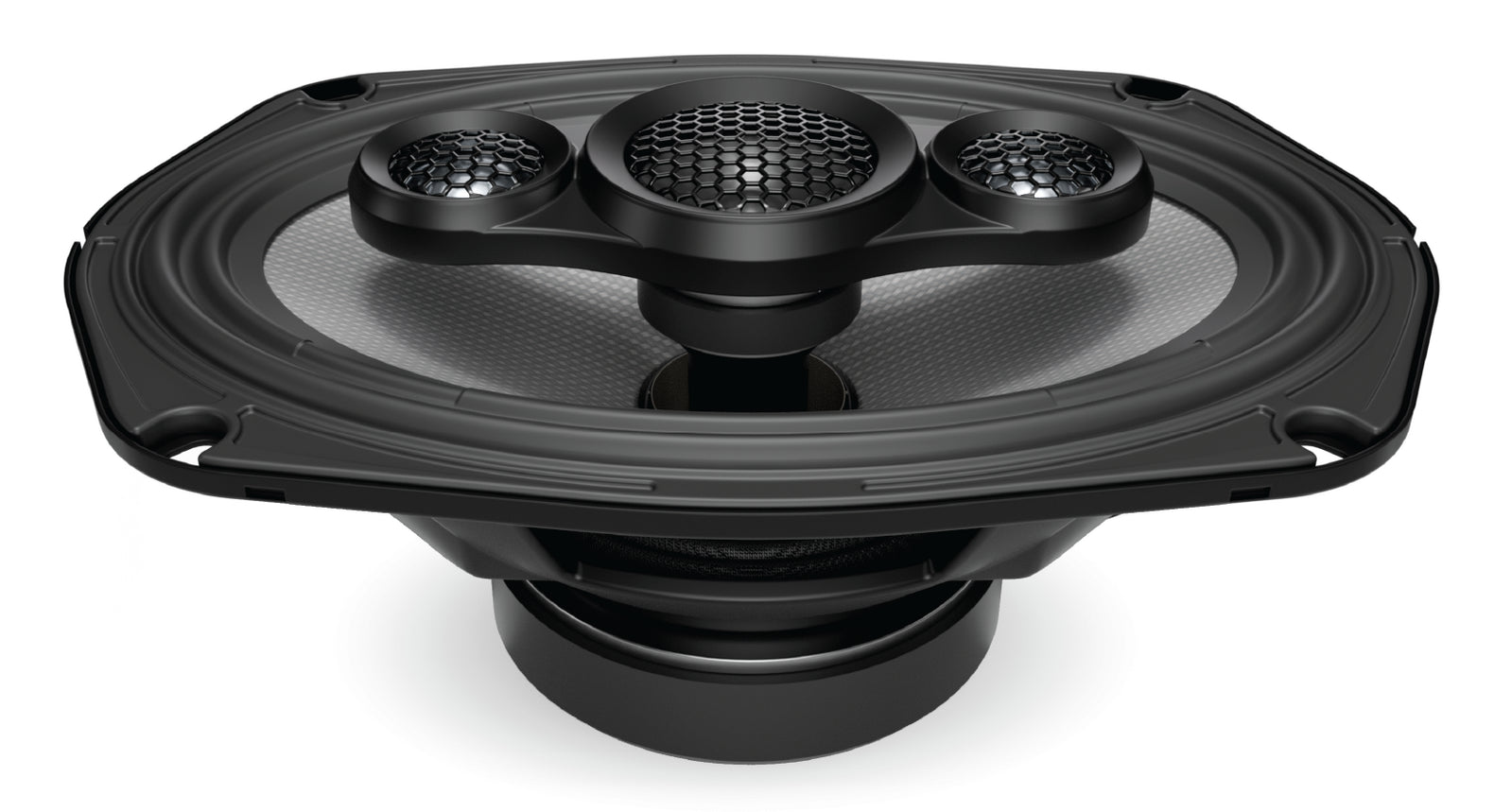

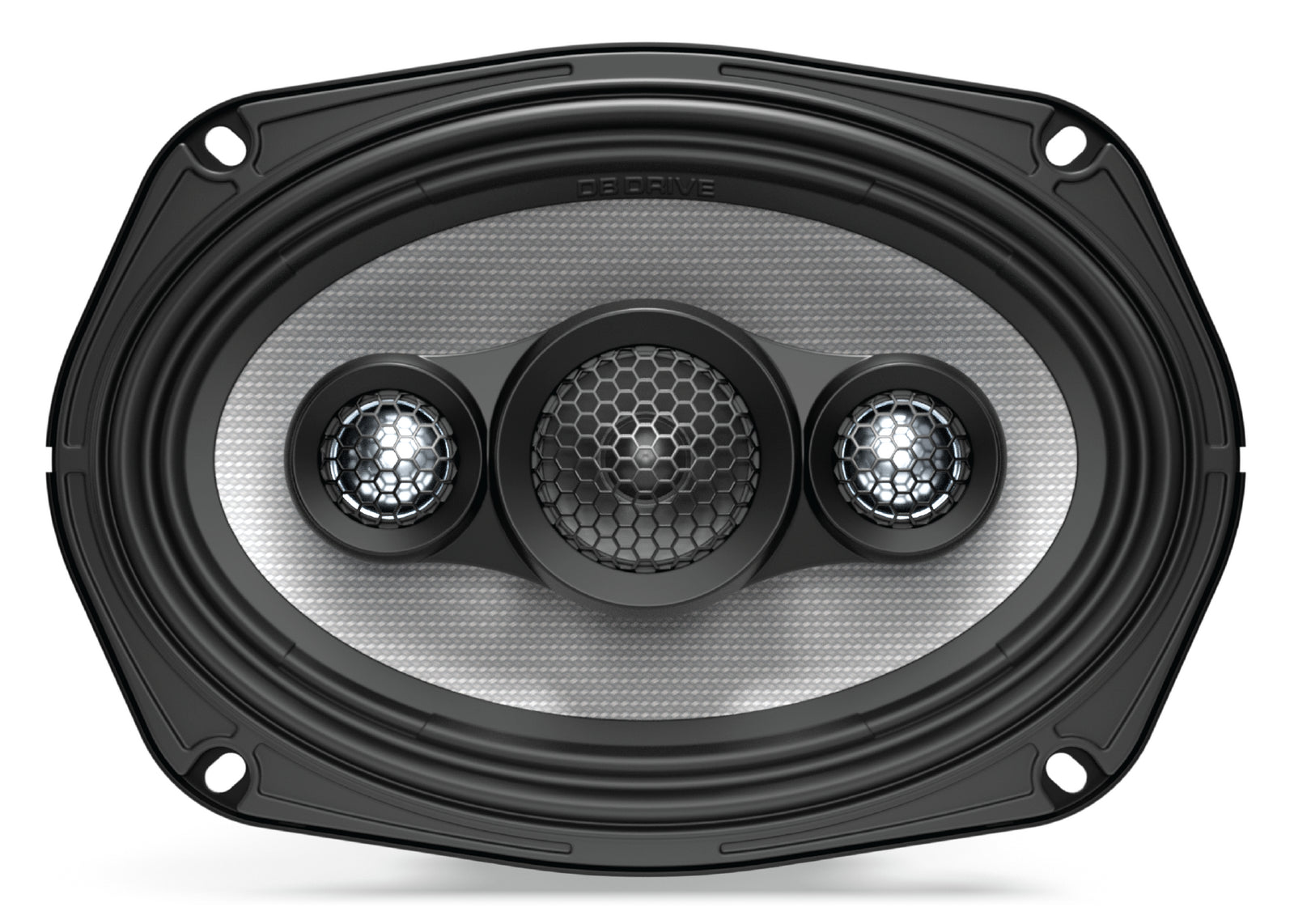

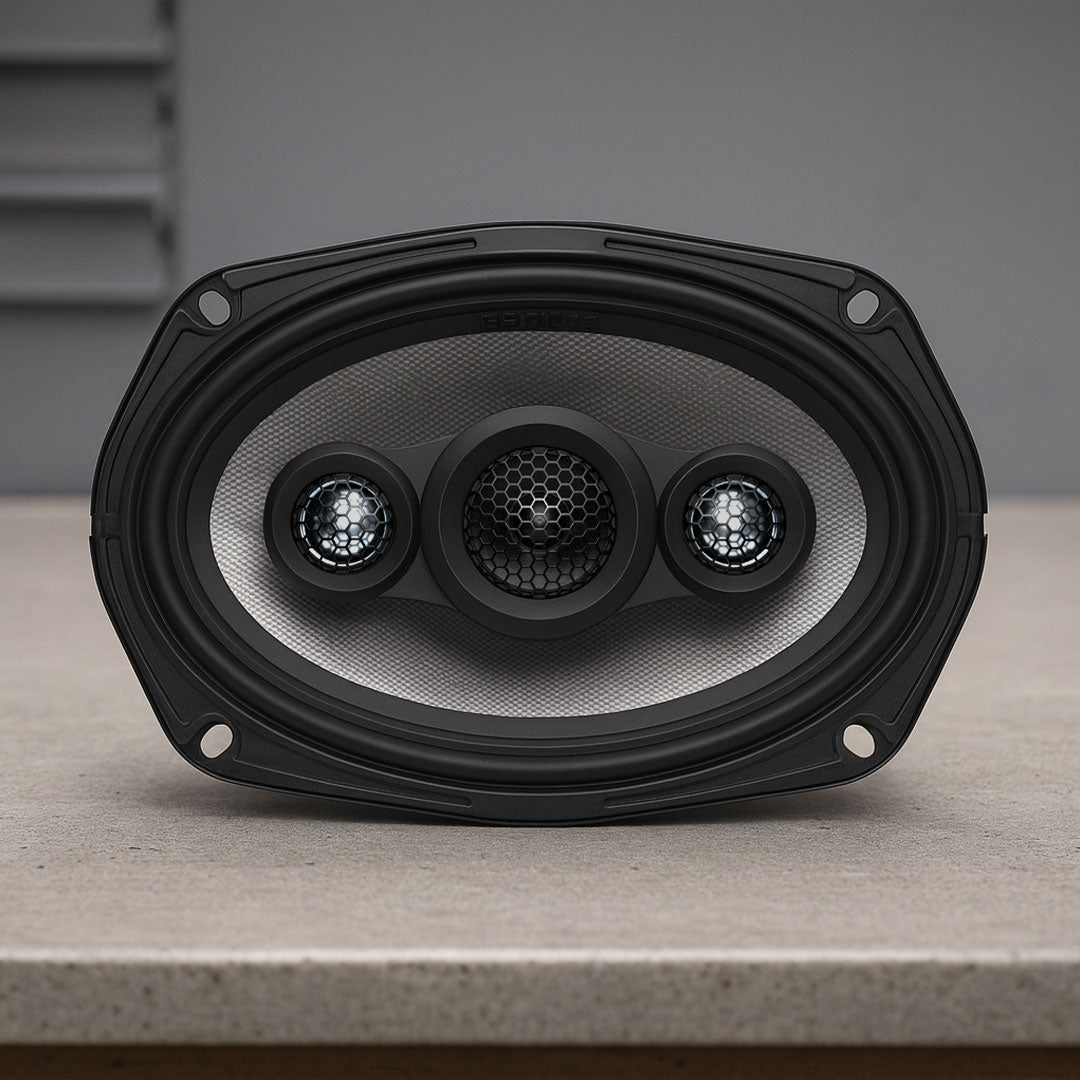

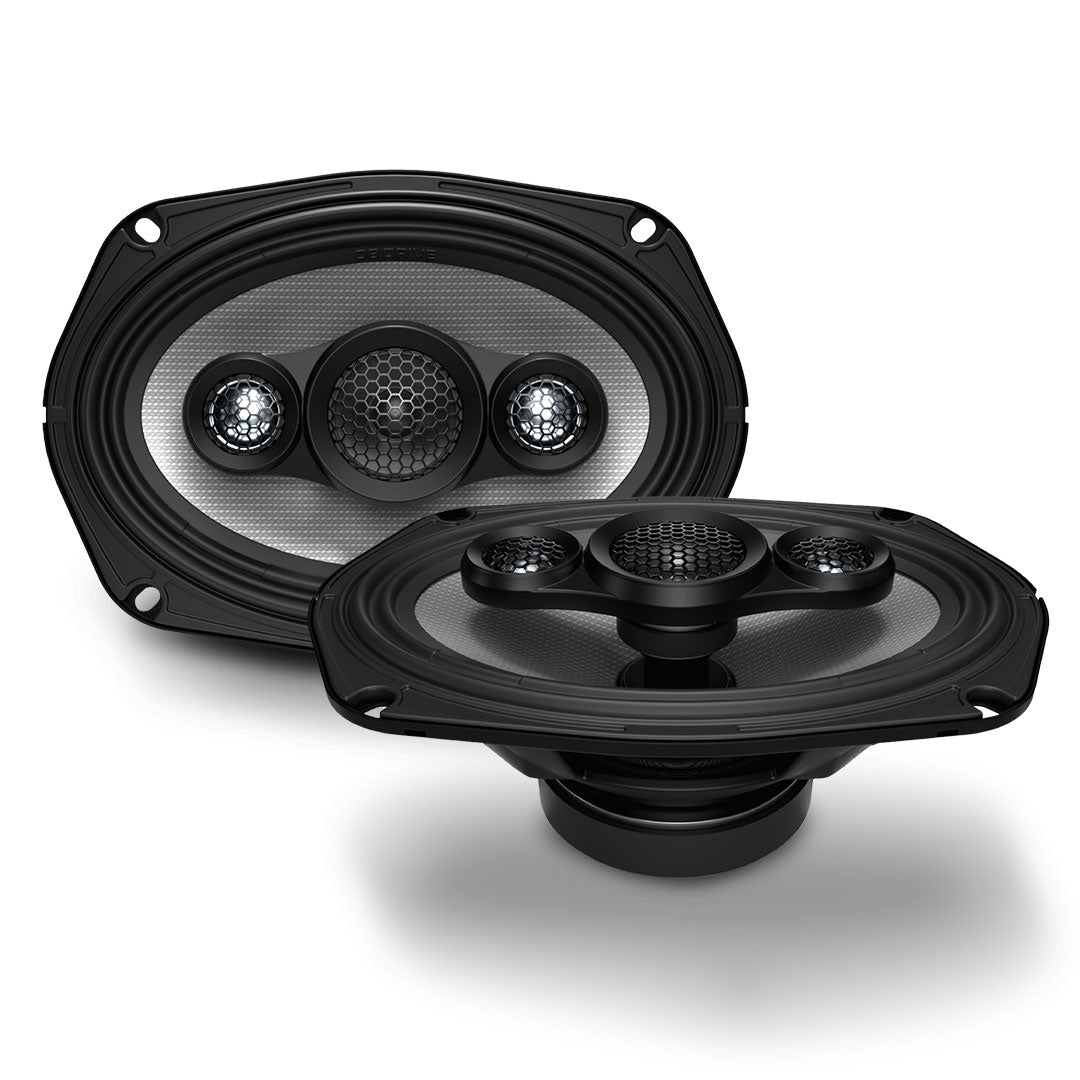

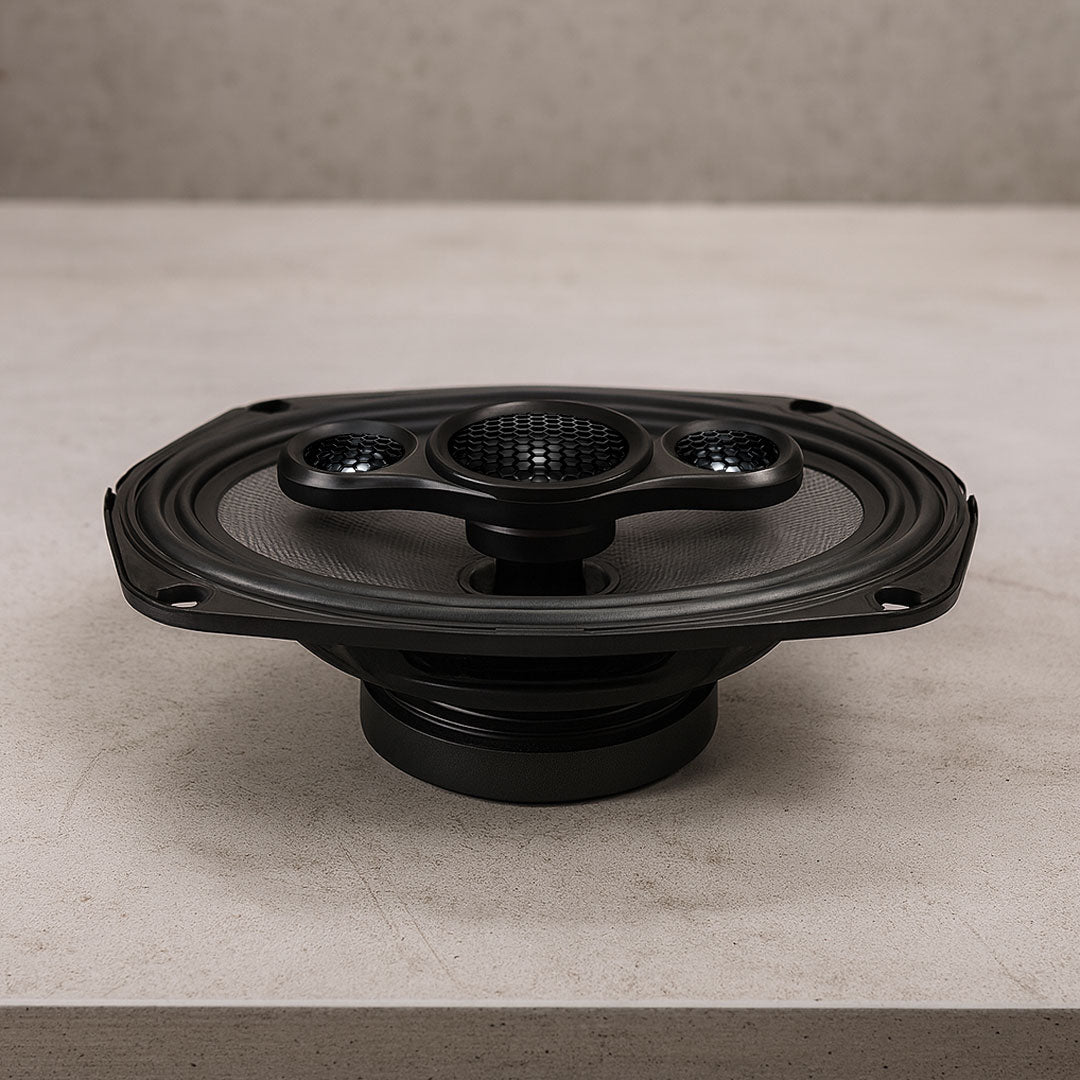

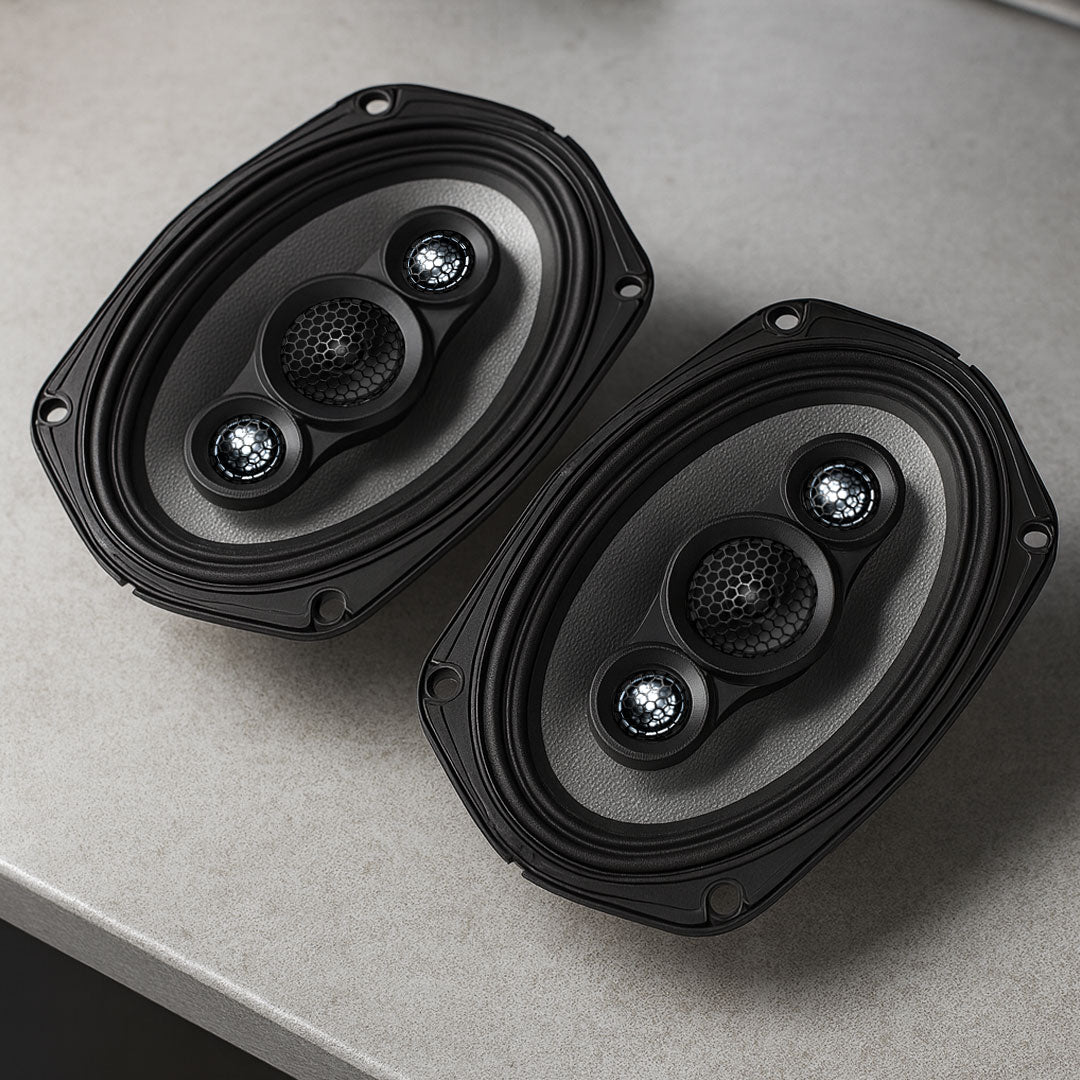

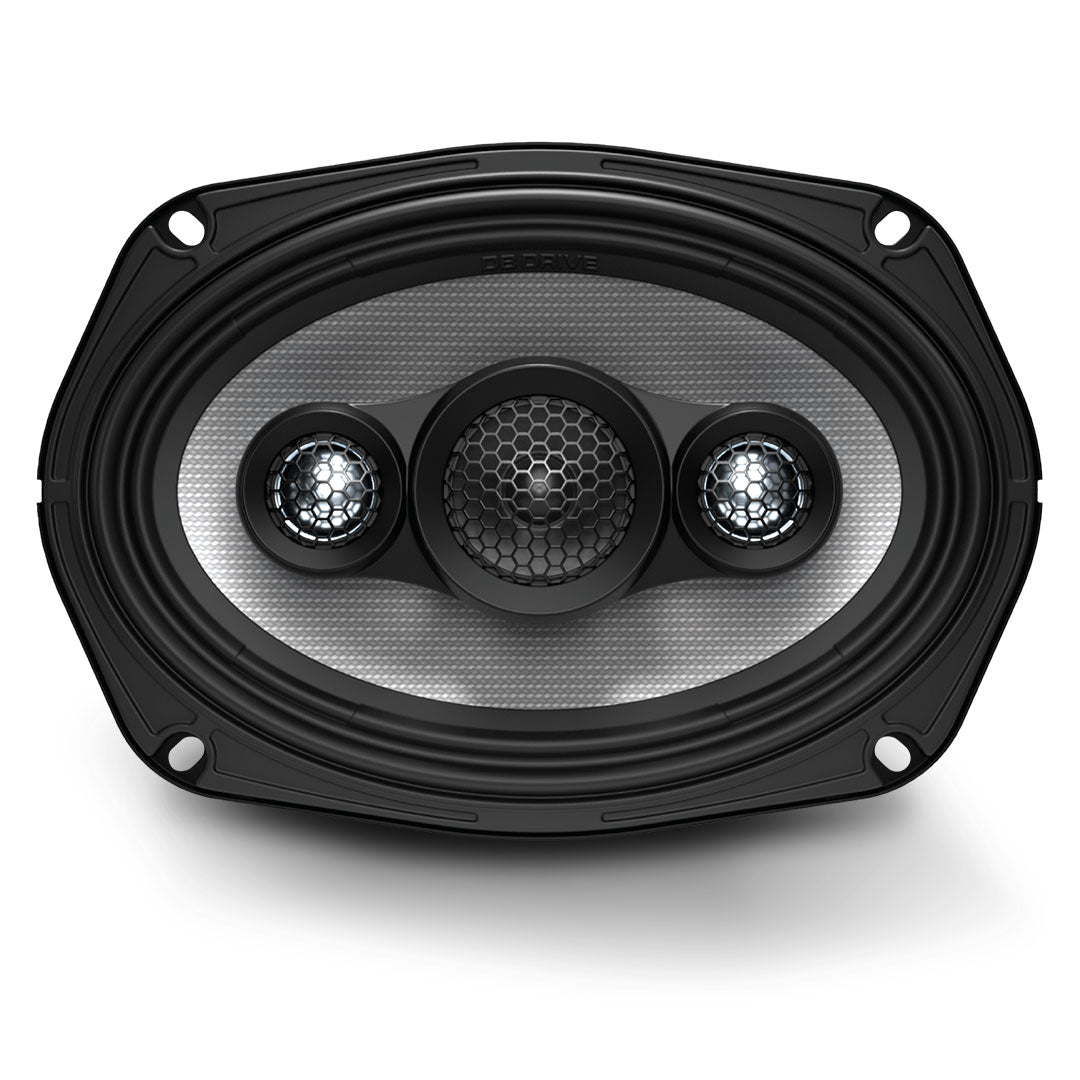

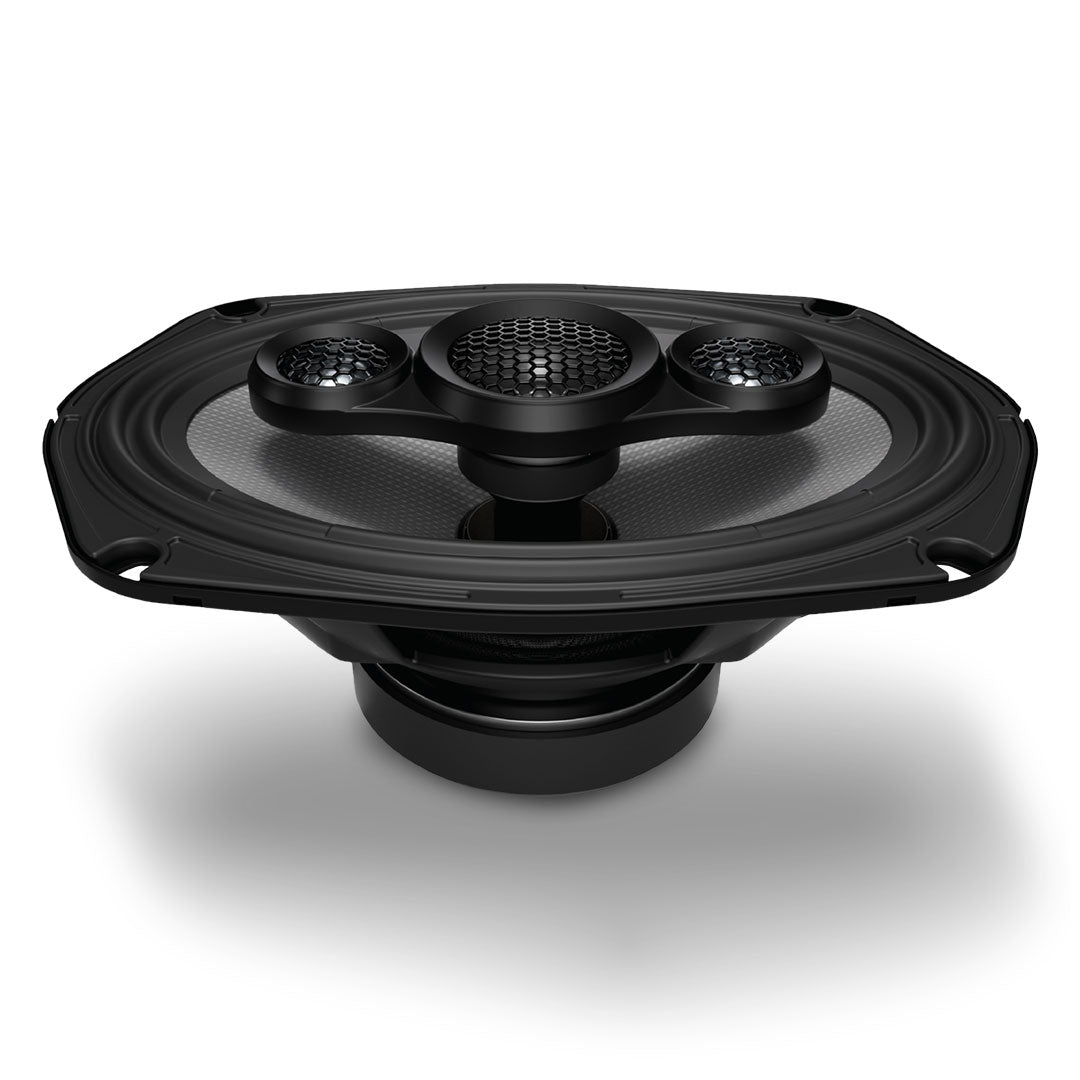

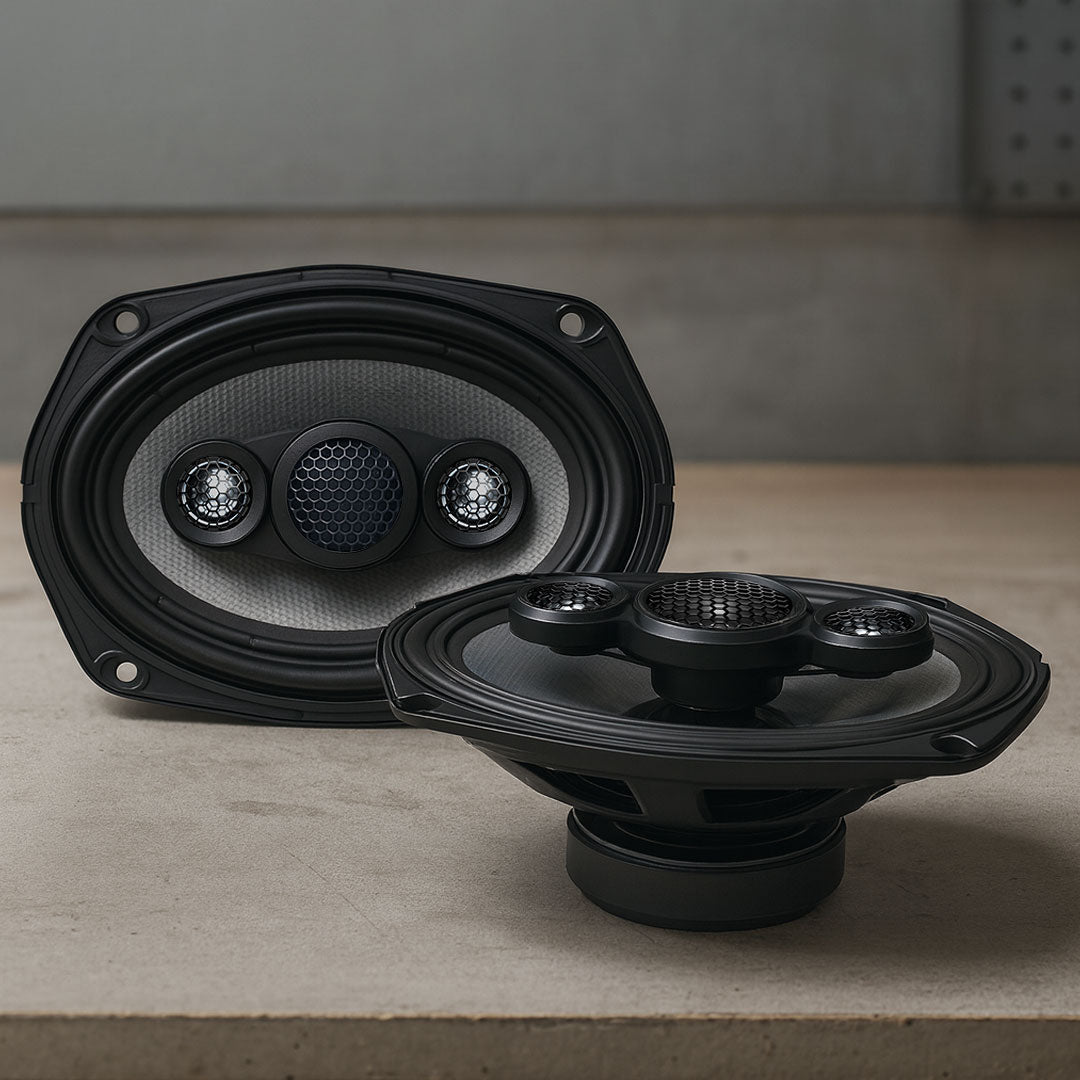

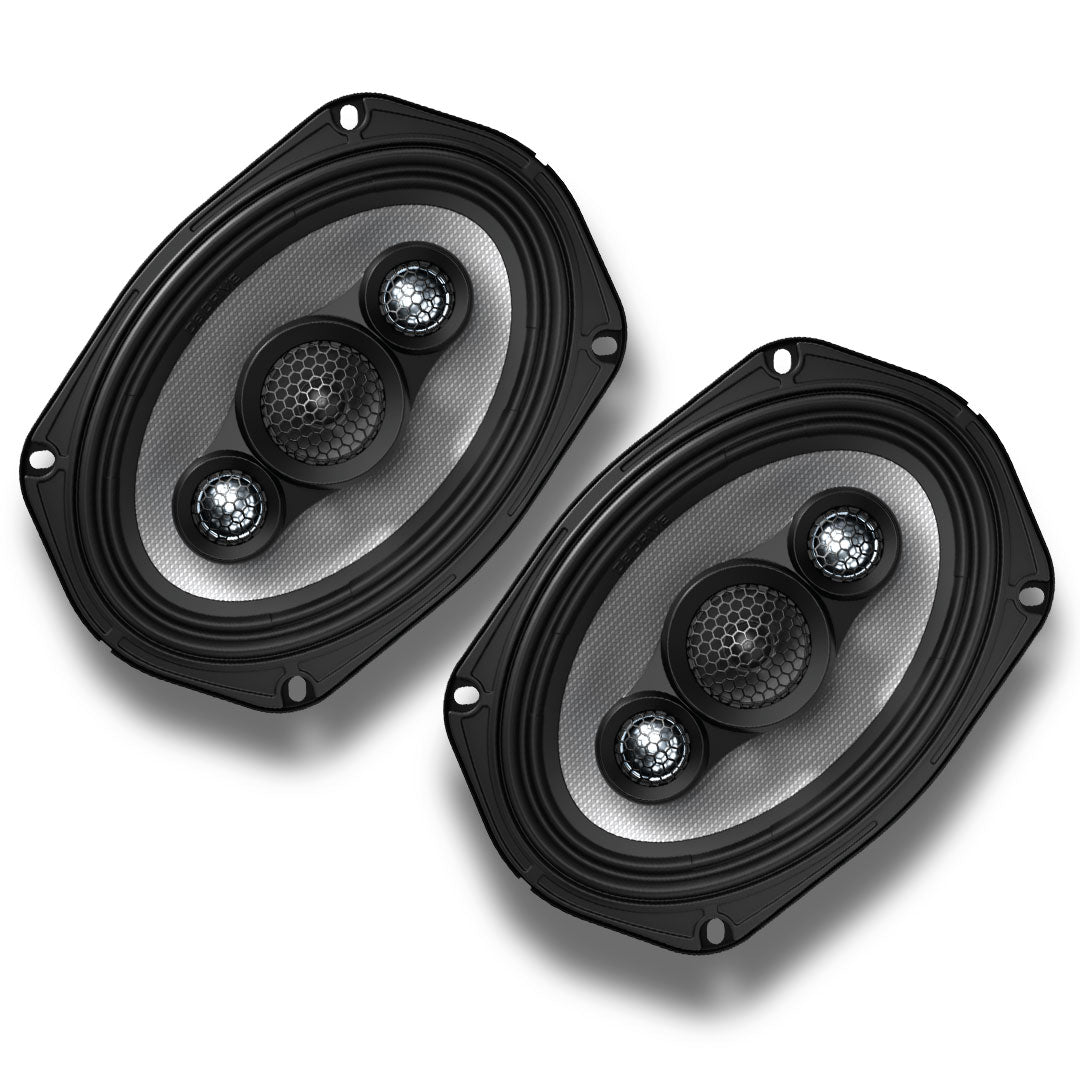

Rear deck 6x9s carry a lot of the sound in sedans and some utes. The DB Drive DX-S694 is a 4 Way 6x9 with dual 0.75 inch aluminium dome tweeters and a 2 inch PEI midrange mounted over the woofer.

High 96dB sensitivity means they play loud from factory power, and the woofer uses a 1.5 inch voice coil with a rubber surround.

Problems it solves

• Muffled vocals from the rear deck. A dedicated 2 inch midrange carries the voice range.
• Cheap baskets that buzz. A stamped steel basket damps unwanted vibration.
• Needing extra crossovers. A 6dB network is built in.

DX-S694 specifications

• Size: 6x9 inch, 4 Way coaxial
• Power: 85W nominal, 260W max
• Frequency response: 40Hz to 21kHz
• Impedance: 4 ohm
• Sensitivity: 96dB
• Tweeters: dual 0.75 inch aluminium dome
• Midrange: 2 inch PEI
• Woofer: injection moulded PP composite, rubber surround
• Voice coil: 1.5 inch
• Magnet: ferrite
• Crossover: onboard 6dB

Fitment and compatibility

Standard 6x9 factory locations; check depth before fitting.

What is in the box

Curious what ships with the DX-S694 pair? Send us a message first.

Install notes

Measure the depth under the rear deck before cutting anything.

An amplifier lets them use more of their power rating.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

DX-S694 FAQs

Do the DX-S694 need much power to get loud?

No, 96dB sensitivity makes good volume from little power.

What does the 4 Way design add over a 2 Way 6x9?

Dual tweeters and a dedicated midrange for more detail.

Are the DB Drive 6x9s 4 ohm?

Yes.

Will the DX-S694 drop into a factory 6x9 hole?

It is a standard 6x9 inch speaker needing 78.5mm of mounting depth and a 146 x 213.5mm cut out, so measure your spot before ordering.
