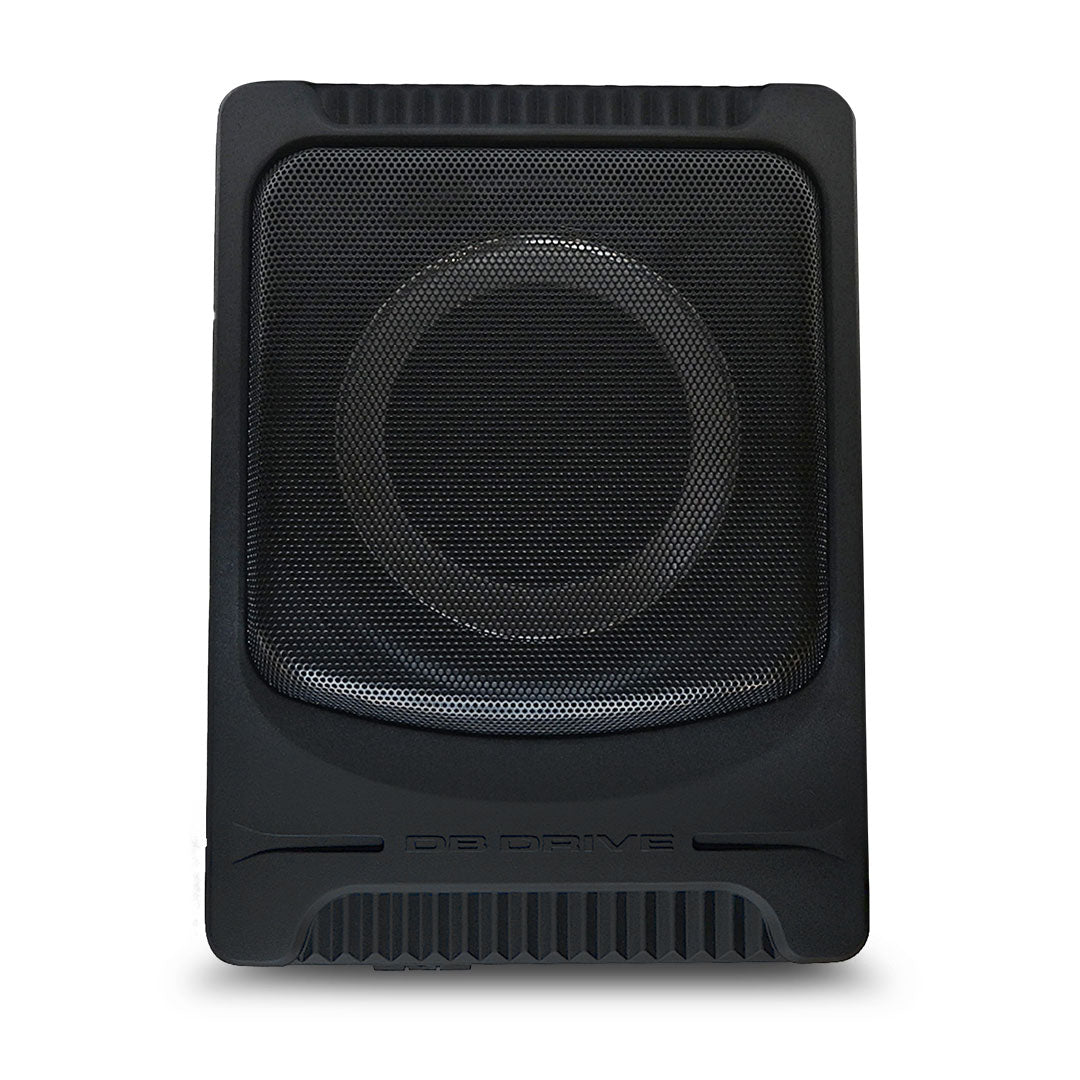

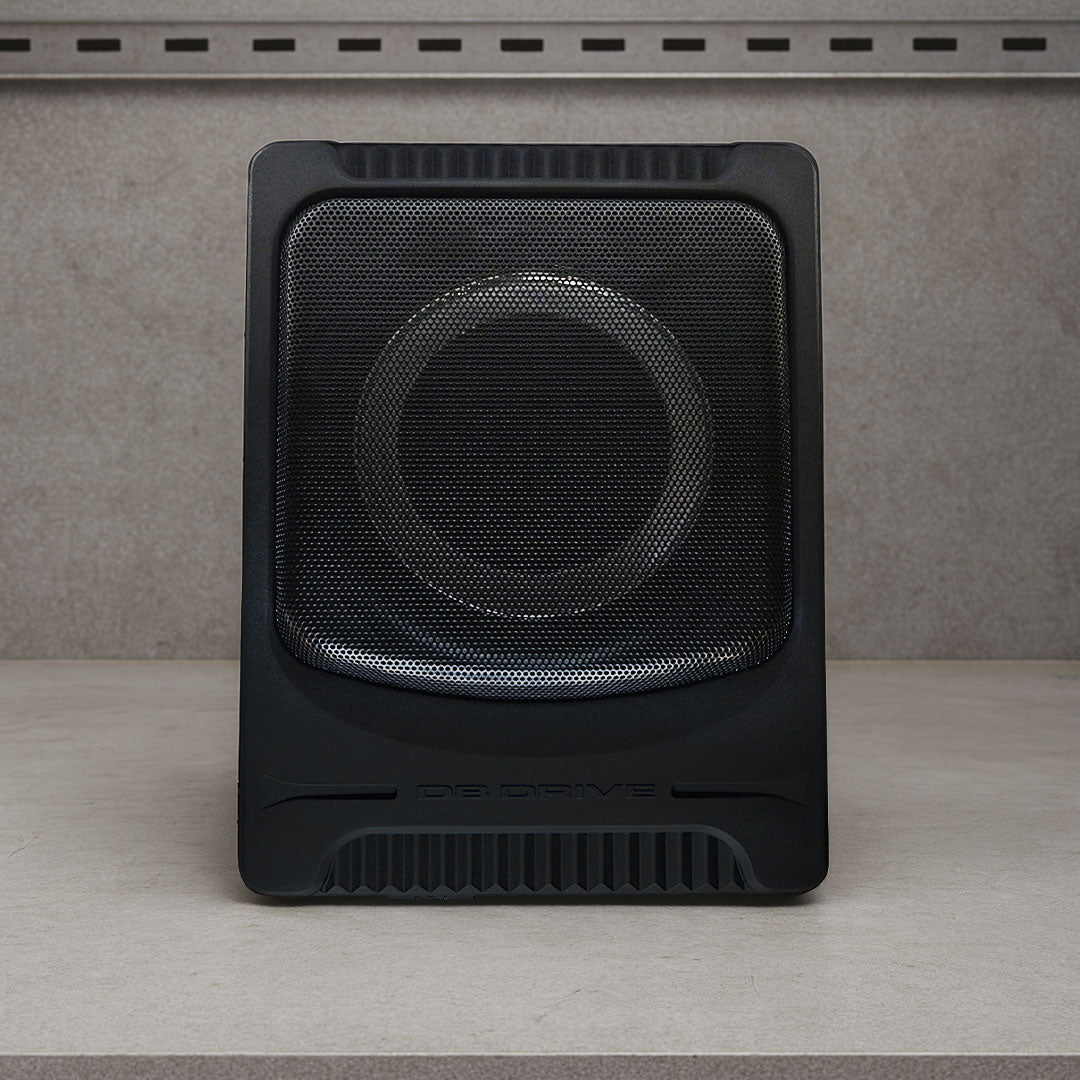

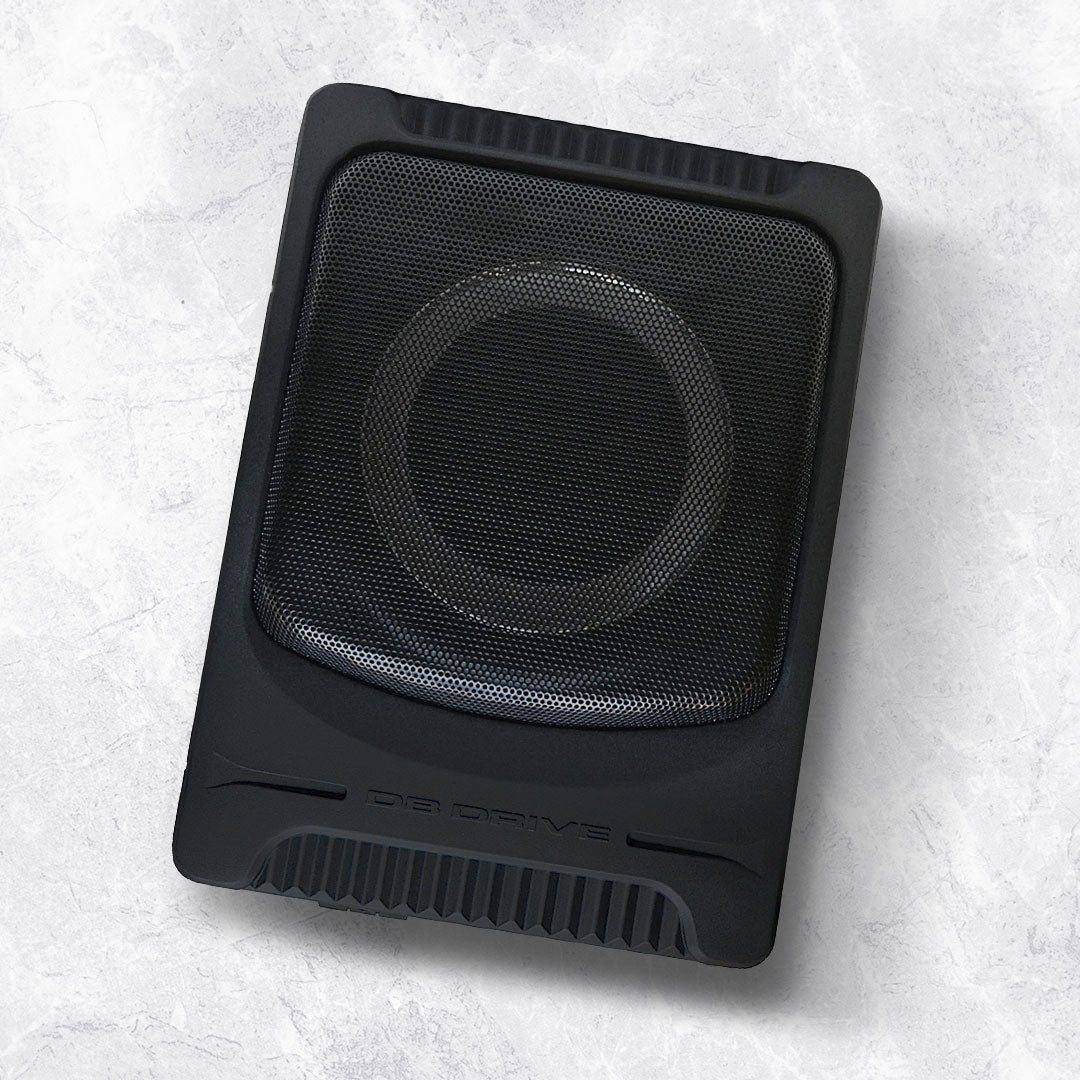

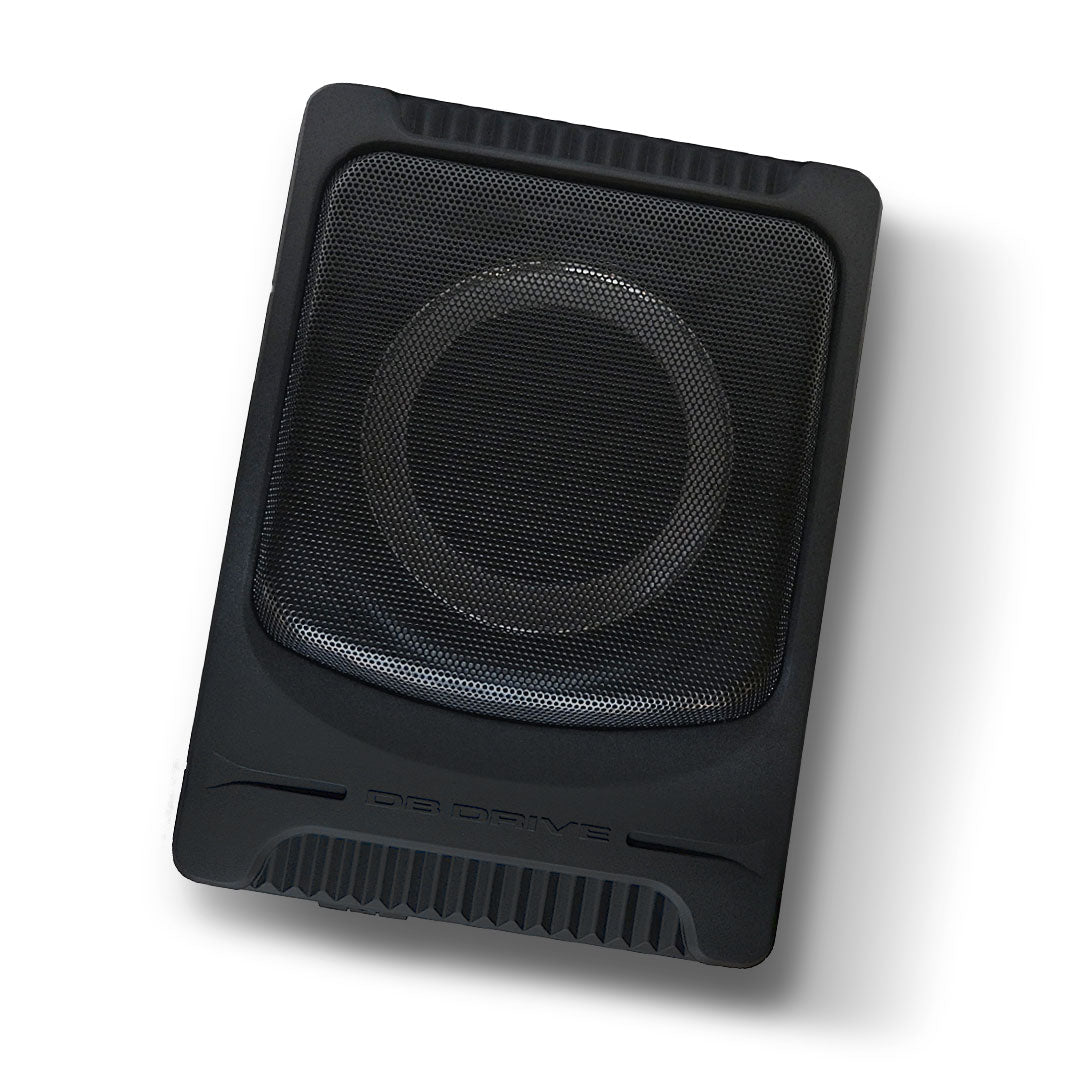

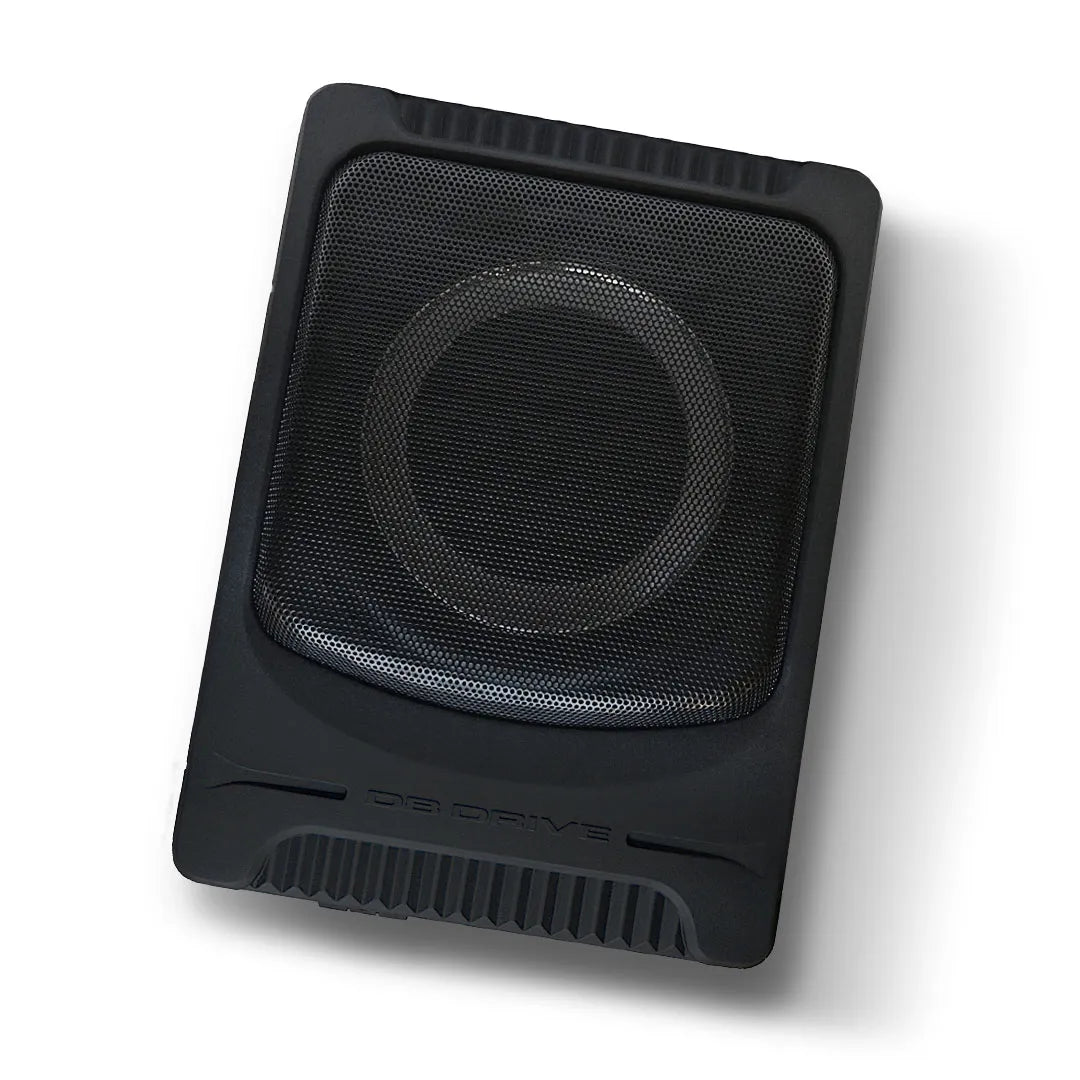

DB Drive DX-AS8 | Powered 8" Subwoofer

Compact powered 8" subwoofer designed for underseat installation to add powerful bass response without sacrificing vehicle space.

Product Overview

The DB Drive DX-AS8 Powered 8" Subwoofer delivers impressive bass performance in an ultra-compact, low-profile design perfect for underseat installation in any vehicle. This complete active subwoofer system combines an 8" driver with integrated 150W RMS Class AB amplifier, providing immediate bass enhancement without the complexity of separate amplifier and enclosure components.

The space-efficient design allows installation in tight locations while delivering substantial bass response from 20Hz to 150Hz. With automatic power sensing, remote level control, and versatile input options, the DX-AS8 integrates seamlessly with factory or aftermarket audio systems to transform your vehicle's sound with minimal installation complexity.

Key Specifications

• Integrated 8" subwoofer with built-in 150W RMS Class AB amplifier
• Ultra-compact dimensions: 270mm (L) x 200mm (W) x 78.6mm (H)
• Frequency response: 20Hz - 150Hz for deep bass reproduction
• High input sensitivity: 1V-18V accommodates any system
• Auto power sensing with audio detection
• Remote bass level control included
• Low and high level inputs for universal compatibility

• DOWNLOAD PRODUCT MANUAL: DX-AS8

Features & Benefits

Space-Efficient Underseat Design - Ultra-compact low profile (78.6mm height) fits perfectly under most vehicle seats without sacrificing passenger space or storage capacity, making it ideal for Australian vehicles where space is premium.

Complete Active System - Integrated 150W RMS Class AB amplifier with built-in subwoofer eliminates the need for separate amplifier components, providing immediate bass enhancement with simple plug-and-play installation convenience.

Universal Compatibility - High input sensitivity (1V-18V) with both low and high level inputs ensures compatibility with factory head units, aftermarket systems, and any audio configuration without additional interface components.

Professional Control Features - Auto power sensing, phase shift adjustment (0/180°), low pass filter, and remote bass control provide professional installation flexibility and user convenience for optimal bass tuning.

Advantages & Limitations

Advantages:

• Compact underseat design saves valuable vehicle space
• Complete active system with integrated amplifier
• Universal input compatibility (1V-18V sensitivity)
• Auto power sensing eliminates manual switching
• Remote bass control for easy adjustment
• Thermal and short circuit protection
• Multiple installation location options

Limitations:

• Single 8" driver may not match larger subwoofer systems
• Compact enclosure limits maximum SPL output
• Requires adequate ventilation for amplifier cooling
• Professional installation recommended for optimal performance

Technical Specs

• Configuration: Active (powered) 8" subwoofer system
• Amplifier: 150W RMS Class AB with integrated design
• Driver: 8" subwoofer optimized for compact enclosure
• Frequency response: 20Hz - 150Hz bass range
• Input sensitivity: 1V - 18V (high sensitivity)
• Inputs: Low and high level compatibility

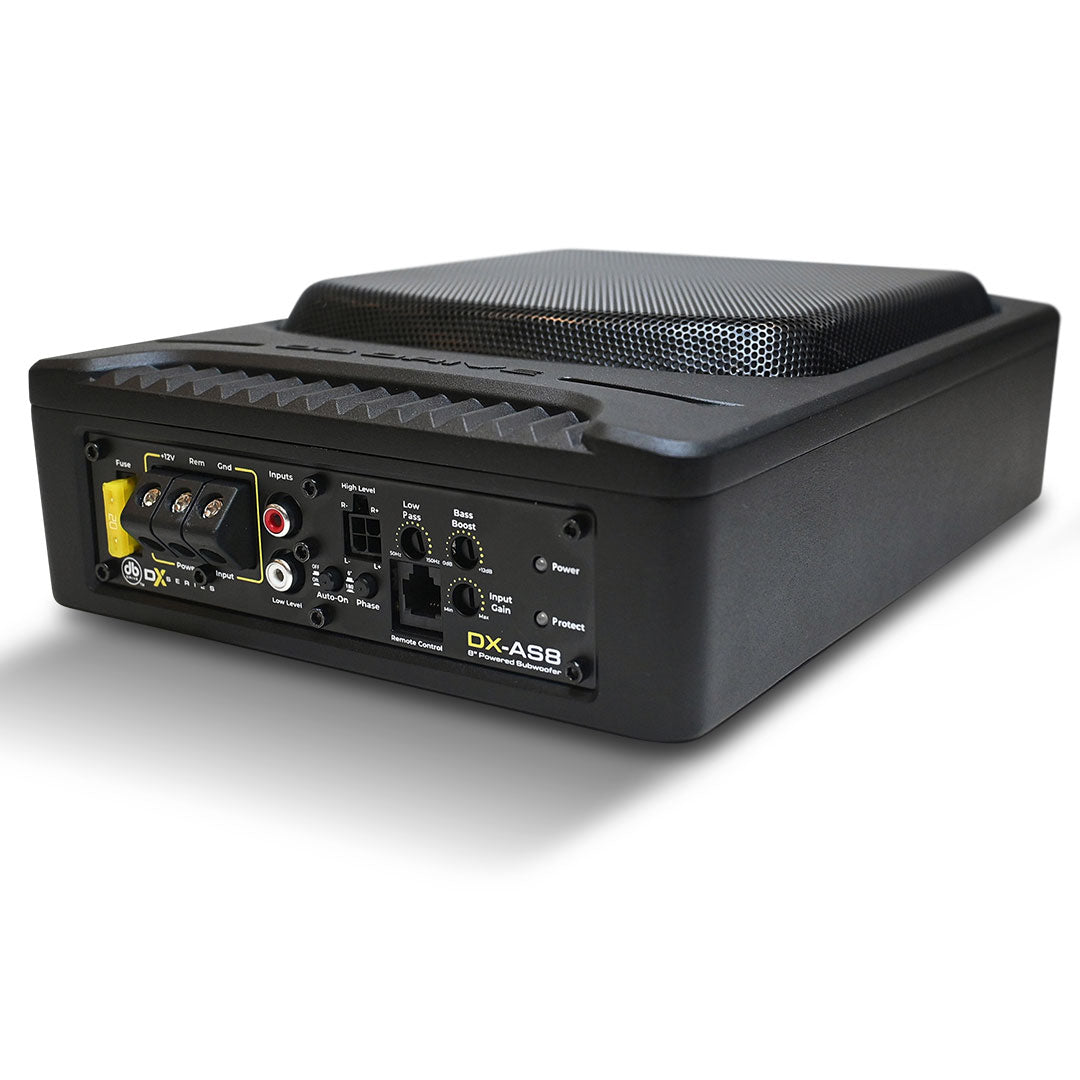

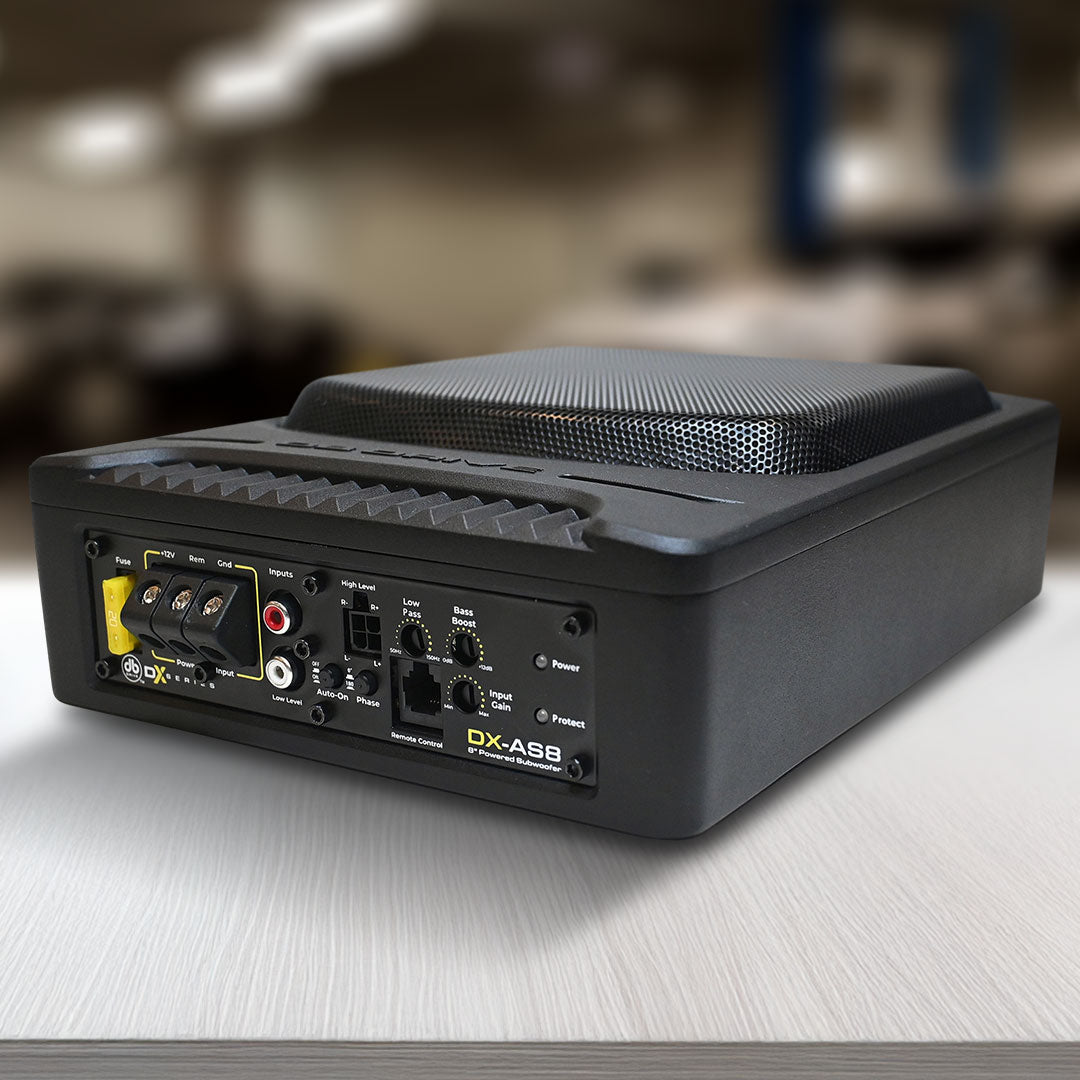

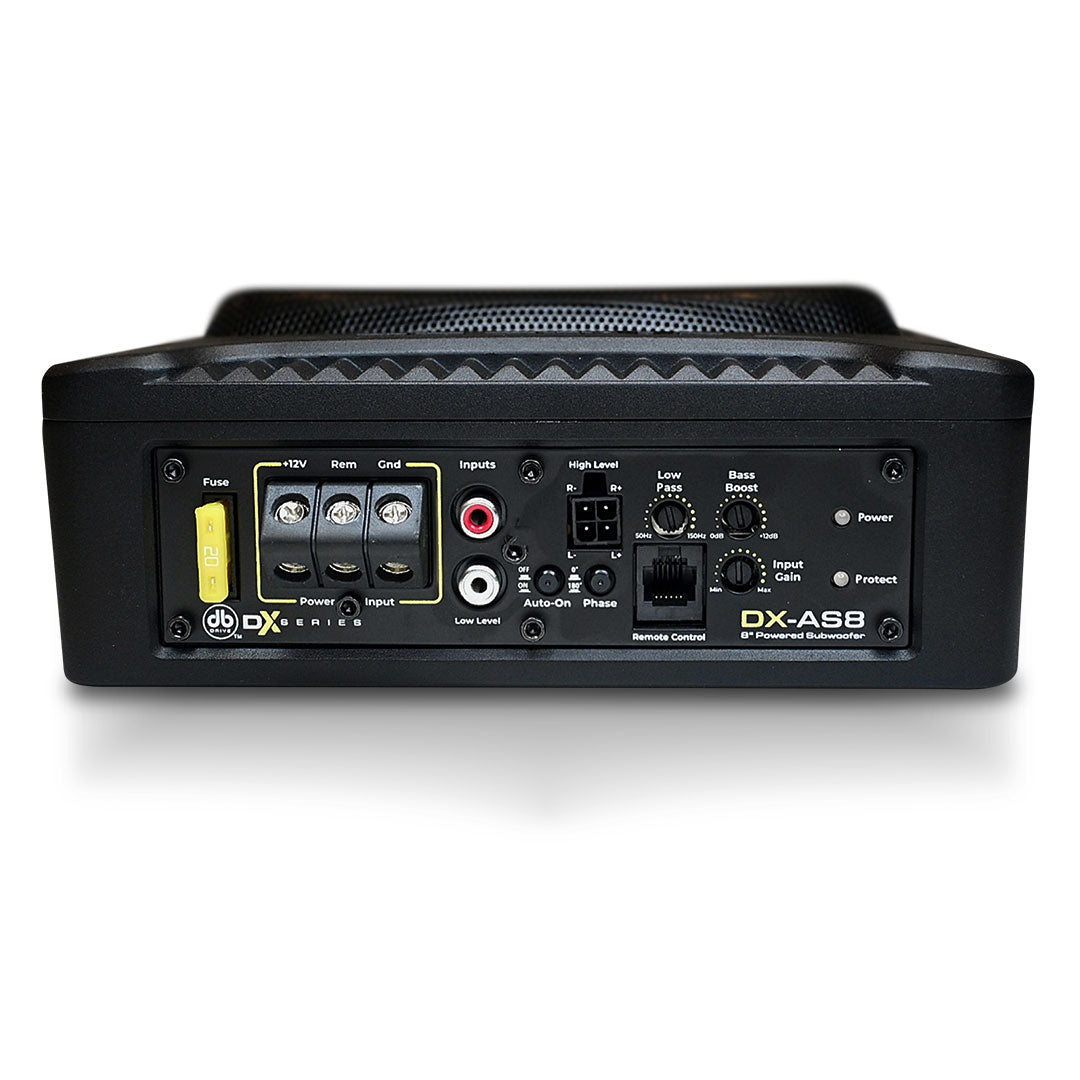

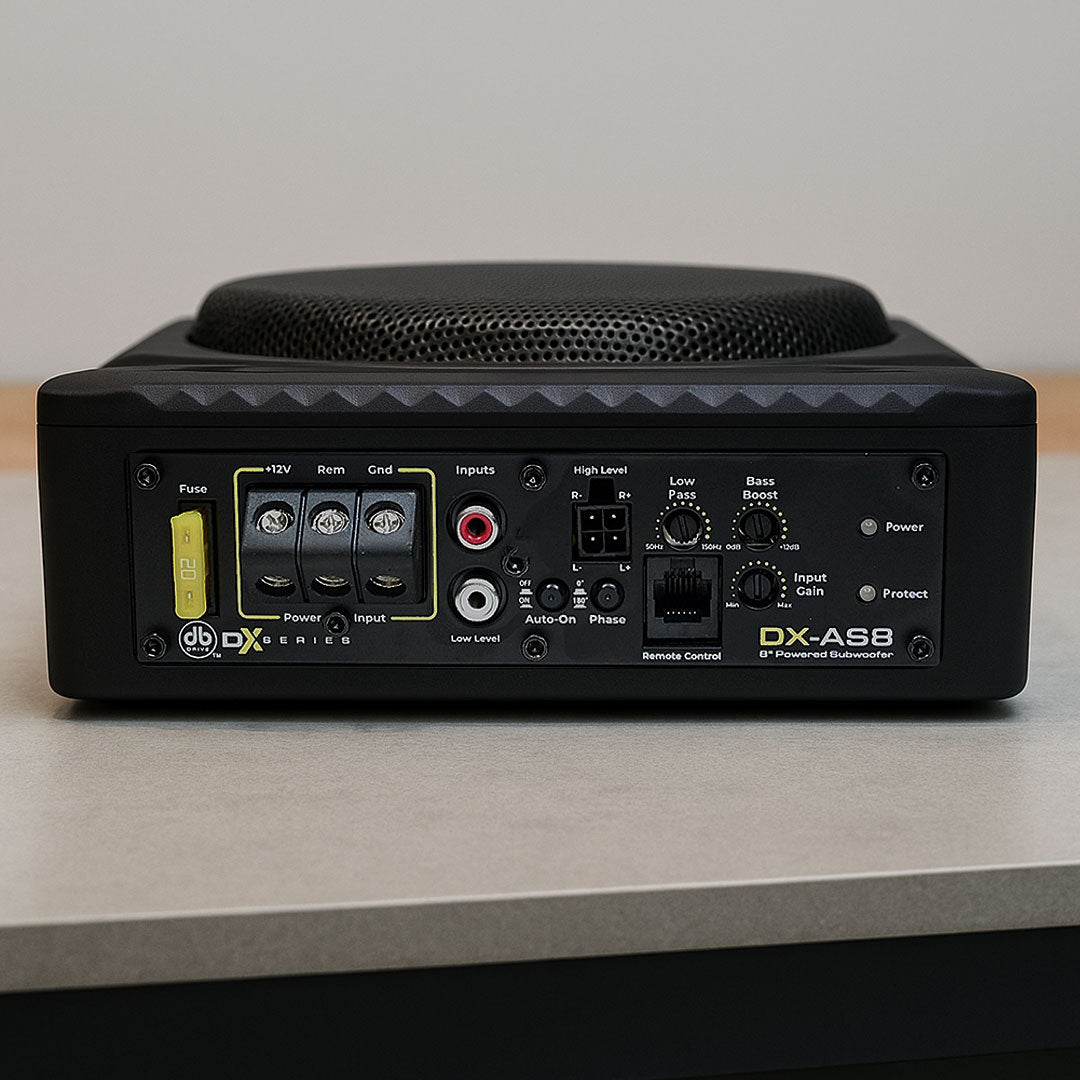

• Controls: Auto power on, phase shift, low pass filter, input gain
• Remote: Bass level control included
• Protection: Thermal and short circuit protection
• Dimensions: 270 x 200 x 78.6mm (L x W x H)
• Mounting: Underseat or custom installation

Frequently Asked Questions

Will this fit under my car seat? The ultra-low profile (78.6mm height) is designed to fit under most vehicle seats. Measure your available space to confirm clearance for this compact design.

Can I connect this to my factory stereo? Yes, the high input sensitivity (1V-18V) and dual input options ensure compatibility with factory head units, aftermarket systems, and amplified outputs.

Do I need additional amplifiers? No, the DX-AS8 is a complete active system with integrated 150W amplifier. Simply connect inputs and power for immediate bass enhancement.

Compatible With / Goes Well With

• Factory and aftermarket head units
• Car amplifiers and audio systems
• Professional car audio installation services
• Sound deadening materials for enhanced performance
• Additional DX-AS8 units for multiple location installation
• Remote bass control mounting accessories
