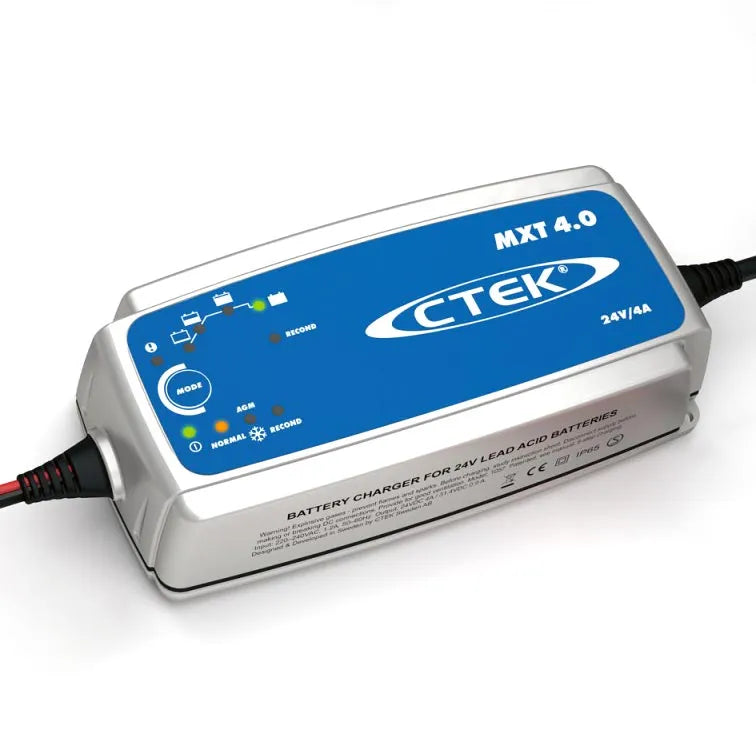

CTEK MXT4.0 24V 8-Step Battery Charger

CTEK 24V 8-Step Battery Charger: For 24V Batteries with Power Supply

The 8 step charger that’s ideal for smaller 24V batteries and maintenance charging for fleets with 24V vehicles.

The CTEK MXT4.0 is a cost effective 8 step charger that delivers 4A to 24V batteries from 8-100Ah and is suitable for maintenance charging up to 250Ah. It can also be used in applications such as back-up systems, piste machinery, industrial cleaning machinery and wheelchairs. The MXT 4.0 features battery diagnosis to establish whether your battery can receive and retain a charge, a Recond mode for restoring and reconditioning stratified and deeply discharged batteries, an optimised cold charging mode and an AGM battery charging mode. The charger also has a ‘Supply’ mode so it can be used as a power source.

CTEK MXT4.0 Features:

• Fully automatic ‘connect and forget’ 8 step charging
• Can be used as a power source
• Easy to read LED display
• Safe spark free operation
• Reverse polarity protected
• Short circuit proof

CTEK MXT4.0 Specifications:

• Battery capacity 8–250 Ah
• Charging category AC charging
• Back current drain* Corresponding to less than 1 Ah/month
• Back Current Drain, details *) Back current drain is the current that drains the battery if the charger is not connected to the mains. CTEK chargers have a very low back current.
• Battery voltage 24 V
• Battery chemistry Lead acid (AGM, GEL, EFB, MF, CaCa)
• Ambient operating temperature -20 ˚C to +50 ˚C
• Input 220–240 VAC, 50–60 Hz, 1.2 A
• Output 28.8/29.4/31.4 V, 4.0 A
• Start voltage 2.0 V
• Ripple** Less than 5 %
• Ripple, details **) The quality of the charging voltage and charging current is very important. A high current ripple heats up the battery which has an aging effect on the positive electrode. High voltage ripple could harm other equipment that is connected to the battery. CTEK battery chargers produce very clean voltage and current with low ripple.
• Battery types 24 V:; WET; MF; Ca/Ca; AGM; GEL
• Ingress protection IP65
• Dimensions (L x W x H) 191 x 89 x 48 mm
• Net weight (unit with cables) 0.8 kg
