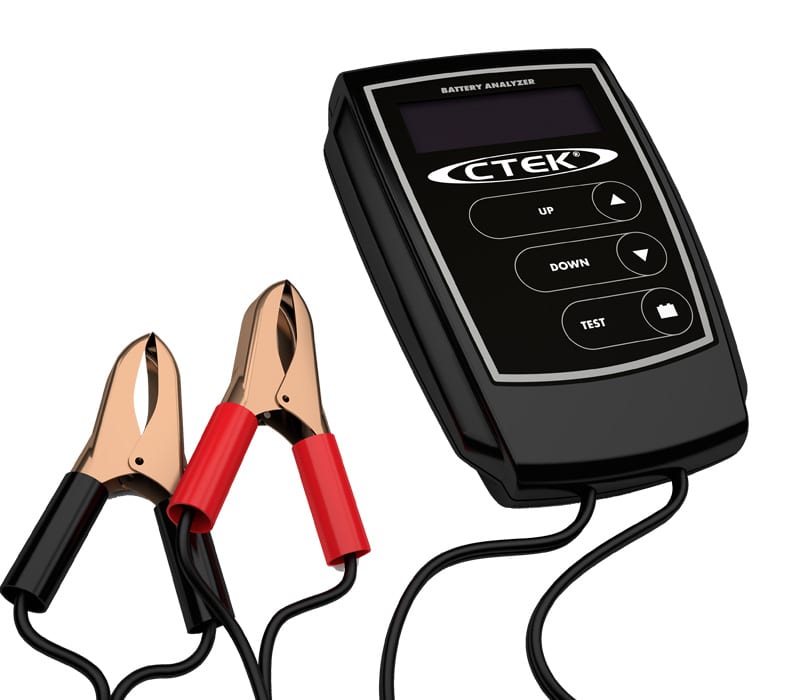

CTEK CTBATTERYANALYSER (56-925) - Battery Analyser 12V

CTEK CTBATTERYANALYSER (56-925) - Battery Analyser 12V

Professional-grade 12V battery testing solution providing instant battery health assessment and actionable diagnostics for all lead-acid battery types. The CTEK 12V Battery Analyzer utilizes patented testing technology to accurately evaluate battery condition in seconds, compatible with all types of 12V lead-acid batteries including Wet, Maintenance Free, Ca/Ca, Gel, and AGM batteries ranging from 200A to 1,200A Cold Cranking Amps capacity. This essential diagnostic tool eliminates guesswork in battery maintenance by delivering instant on-screen results advising whether battery requires charging, replacement, or is in good condition, preventing unexpected battery failures that interrupt holidays, work schedules, and daily transportation. Featuring user-friendly operation requiring simple attachment to battery terminals without disconnecting cables, intuitive on-screen instructions guiding testing process, and reverse polarity protection ensuring safe operation preventing user error and vehicle electronics damage. The patented testing methodology creates no battery loads, generates no heat or sparks during testing, making it completely safe for use on connected batteries in vehicles with sensitive electronic systems including modern cars, caravans, boats, and recreational vehicles. Ideal for automotive workshops, mobile mechanics, fleet maintenance operations, caravan owners, marine applications, and DIY enthusiasts requiring reliable battery diagnostics, this professional analyzer helps extend battery life through early detection of deterioration, prevents costly breakdowns by identifying weak batteries before failure, and provides confidence in battery condition before long trips or storage periods. Distributed by Bainbridge Technologies, Australia's leading power product experts with over 30 years of experience in DC power solutions, backed by comprehensive technical support and local warranty coverage ensuring reliable performance for professional and consumer applications demanding accurate battery health assessment.

Product Overview

The CTEK 12V Battery Analyzer is compatible with all types of 12V lead-acid batteries including Wet, Maintenance Free, Ca/Ca, Gel and AGM and can test batteries ranging in size from 200A to 1,200A. Stop dead batteries interrupting your holidays and see just how easy it is to enjoy more of the good times by watching our video on CTEK's 12V Battery Analyzer.

Key Benefits:

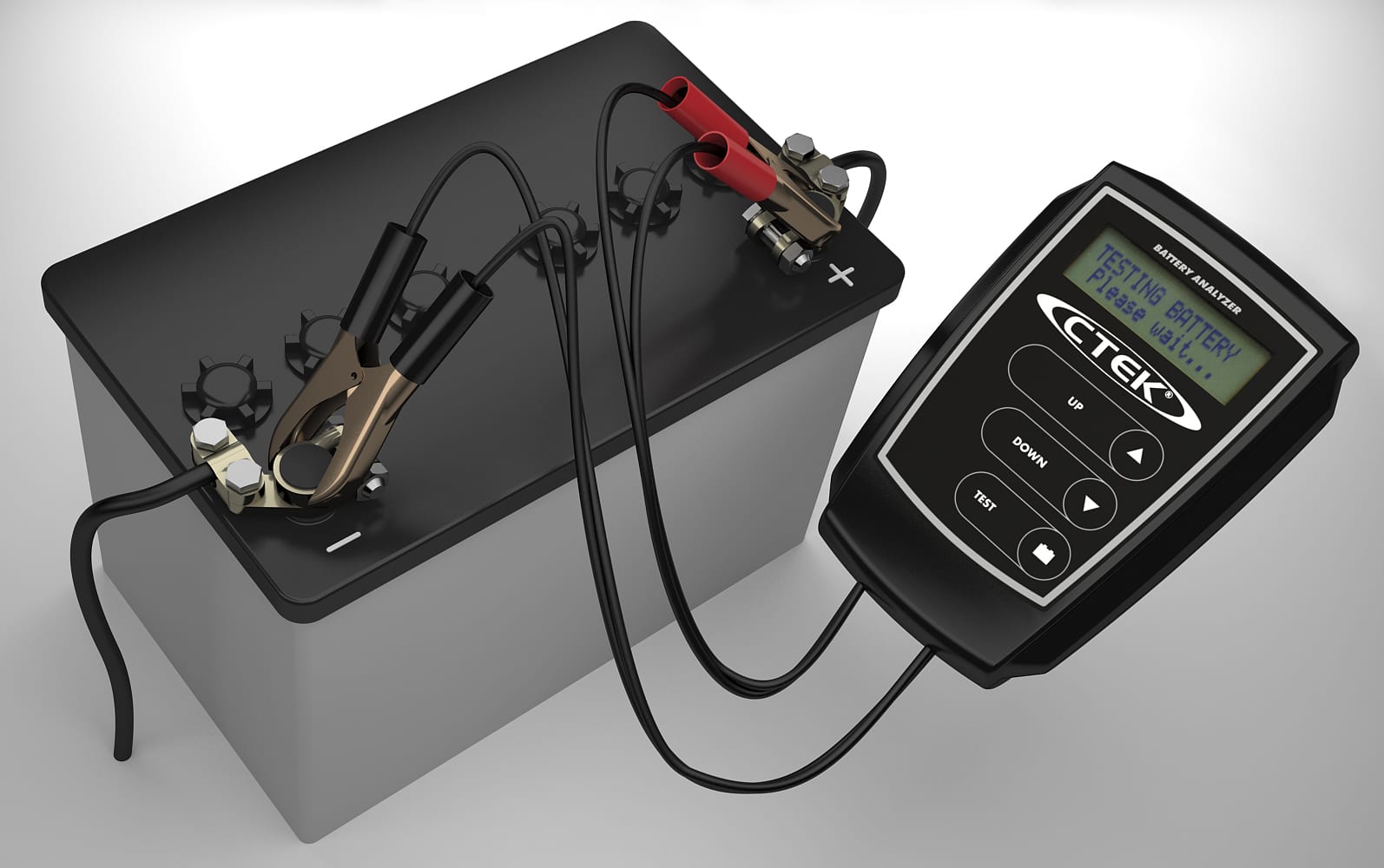

• CTEK Battery Analyzer is easy to use simply attach to battery, no need to disconnect, and follow the on screen instructions
• It tests the battery in seconds providing an instant on screen result which advises what action should be taken
• The patented technology used is safe for the user and vehicle electronics
• CTEK Battery Analyzer is reverse polarity protected, creates no battery loads, heat or sparks

Important Notes:

12V Lead-Acid Batteries Only: This analyzer is designed exclusively for 12V lead-acid battery systems including flooded/wet cell, maintenance-free, calcium-calcium (Ca/Ca), gel, and AGM types. Not compatible with 6V batteries, 24V systems, lithium batteries (LiFePO4, Li-ion), or nickel-based batteries (NiMH, NiCd). Testing incompatible battery types may produce inaccurate results or damage analyzer. For lithium battery testing, consult battery manufacturer for appropriate diagnostic equipment.

CCA Rating Range Requirements: Designed to test batteries rated 200A to 1,200A Cold Cranking Amps (CCA). Batteries below 200 CCA (small motorcycle, lawn equipment batteries) or above 1,200 CCA (heavy commercial truck batteries) may not test accurately. Verify battery's CCA rating (stamped on battery label) falls within supported range before testing. Most automotive, marine, caravan, and recreational vehicle batteries fall within this range.

Battery Must Have Minimum Charge: Analyzer requires battery to have sufficient voltage for accurate testing. Completely dead batteries (below approximately 9V) may not test reliably and should be charged before analysis. If analyzer displays error or cannot complete test, charge battery with appropriate charger (CTEK battery charger recommended) for several hours, then retest. Testing deeply discharged battery produces misleading results.

Surface Charge Must Be Removed: Batteries immediately after charging or vehicle operation have "surface charge" causing artificially high voltage readings. For accurate testing, allow battery to rest 2-4 hours after charging or disconnect battery and turn on headlights for 2 minutes to dissipate surface charge before testing. This ensures test results reflect true battery condition rather than temporary voltage elevation.

Results Guide Actions, Not Guarantee: Test results indicate battery's current condition and recommended action (good, recharge, replace). However, battery condition can deteriorate rapidly due to internal shorts, sulfation progression, or sudden failure. Passing test does not guarantee battery won't fail shortly after, particularly in extreme temperatures or high-load applications. Use test results as maintenance guide combined with battery age, vehicle symptoms, and seasonal considerations.

Key Features

Universal 12V Lead-Acid Compatibility - Tests all 12V lead-acid battery types including Wet/Flooded, Maintenance-Free, Calcium-Calcium (Ca/Ca), Gel, and AGM batteries.

Wide CCA Range Testing - Accurately analyzes batteries from 200A to 1,200A Cold Cranking Amps covering most automotive, marine, caravan, and RV applications.

Instant Test Results - Provides battery health assessment in seconds with clear on-screen display indicating battery condition and recommended action.

No Disconnection Required - Tests battery while connected in vehicle eliminating need to disconnect cables and risk losing vehicle settings or radio codes.

Intuitive On-Screen Instructions - User-friendly interface guides operator through testing process with step-by-step prompts ensuring accurate results.

Patented Testing Technology - CTEK's proprietary testing methodology delivers accurate battery condition assessment without damaging battery or vehicle electronics.

Reverse Polarity Protection - Automatic protection prevents damage if clamps accidentally connected to wrong terminals ensuring safe operation.

No Battery Load Testing - Non-invasive testing method creates no battery loads, generates no heat, produces no sparks ensuring safe operation on connected batteries.

Safe for Vehicle Electronics - Testing process completely safe for modern vehicles with sensitive electronic systems including ECUs, infotainment systems, and control modules.

Actionable Diagnostic Results - Clear recommendations indicating whether battery is good, requires charging, or needs replacement eliminating diagnostic guesswork.

Professional-Grade Accuracy - Reliable testing technology trusted by automotive professionals, fleet operators, and mobile mechanics for accurate battery assessment.

Prevents Unexpected Failures - Early detection of battery deterioration allows proactive replacement before stranding situations or inconvenient breakdowns.

Extends Battery Life - Regular testing identifies batteries requiring charging preventing deep discharge damage that reduces battery lifespan.

Pre-Trip Confidence - Test battery condition before holidays, long trips, or storage periods ensuring reliable starting when needed.

Workshop and Mobile Use - Compact design suitable for workshop diagnostic stations and mobile mechanic toolkits requiring portable battery testing.

CTEK Quality Engineering - Swedish-designed precision testing equipment from globally recognized battery charging and maintenance technology leader.

Bainbridge Technologies Support - Distributed by Australia's leading power product experts providing local technical support and warranty coverage.

Technical Specifications

Frequently Asked Questions

Q: How does this analyzer work and what does it actually test?

A: The CTEK Battery Analyzer uses patented conductance testing technology measuring battery's ability to conduct electrical current, which correlates directly to battery health and capacity. The test evaluates: (1) State of charge - current voltage level, (2) State of health - battery's capacity compared to original specifications, (3) CCA capability - ability to deliver cranking amps at cold temperatures, (4) Internal resistance - detecting sulfation, corrosion, and cell degradation. The analyzer sends small AC signal through battery measuring impedance/conductance, then compares results against expected values for battery's CCA rating. Results display as "Good" (battery healthy), "Recharge" (low charge but healthy), or "Replace" (deteriorated capacity requiring replacement). This non-invasive method is safe, accurate, and faster than traditional load testing.

Q: Can I test the battery without disconnecting it from my vehicle?

A: Yes, the CTEK Battery Analyzer is specifically designed to test batteries while connected in vehicle without disconnecting cables. This is major advantage over load testers requiring disconnection. The non-invasive testing creates no battery loads or electrical interference making it completely safe for modern vehicles with sensitive electronics. However, for most accurate results: (1) Turn off vehicle and all accessories, (2) Allow battery to rest 2-4 hours after driving or charging to dissipate surface charge, (3) Ensure battery terminals are clean and clamps make solid contact. Testing with vehicle off prevents alternator voltage and electrical loads from affecting results.

Q: What should I do if the analyzer says "Replace" but my battery is relatively new?

A: "Replace" indication on relatively new battery suggests: (1) Manufacturing defect - warranty claim may be possible if within warranty period, (2) Excessive deep discharge - leaving lights on, parasitic drain, or extended storage without maintenance charging damages batteries quickly, (3) Extreme temperature exposure - high heat accelerates battery degradation, (4) Vibration damage - loose battery hold-downs cause internal damage, (5) Incorrect battery type for application - AGM batteries required in some modern vehicles with start-stop systems. Before replacing: verify battery has been fully charged (low charge can cause false "replace" reading), clean terminals thoroughly, retest after proper charging. If still shows "replace," battery has likely suffered internal damage and should be replaced regardless of age.

Q: How often should I test my battery and when is testing most important?

A: Test frequency recommendations: (1) Seasonal testing - before summer and winter when temperature extremes stress batteries, (2) Pre-trip testing - before holidays, long road trips, or camping expeditions, (3) Monthly for older batteries - batteries over 3 years old benefit from monthly monitoring, (4) After warning signs - slow cranking, dimming lights, electrical issues, (5) Before storage - test and charge batteries before storing vehicles, caravans, or boats for extended periods. Most important testing times: late autumn (before winter cold reducing capacity), before long trips (preventing breakdowns away from home), and any time vehicle shows starting difficulties. Proactive testing prevents inconvenient failures and extends battery life through timely maintenance charging.

Q: Will this work on my AGM battery, gel battery, or modern car with start-stop system?

A: Yes, the CTEK Battery Analyzer is fully compatible with all 12V lead-acid battery types including conventional wet/flooded batteries, maintenance-free batteries, Calcium-Calcium (Ca/Ca) batteries, AGM (Absorbed Glass Mat) batteries used in modern vehicles with start-stop systems, and Gel batteries used in marine and deep-cycle applications. The analyzer automatically adapts testing parameters for different battery chemistries. It's particularly useful for AGM batteries in modern vehicles as these batteries are expensive and benefit from proactive condition monitoring. The analyzer accurately tests enhanced flooded batteries (EFB) and all AGM variants including spiral-wound types. However, it does NOT test lithium batteries (LiFePO4, Li-ion) which require different testing technology.
