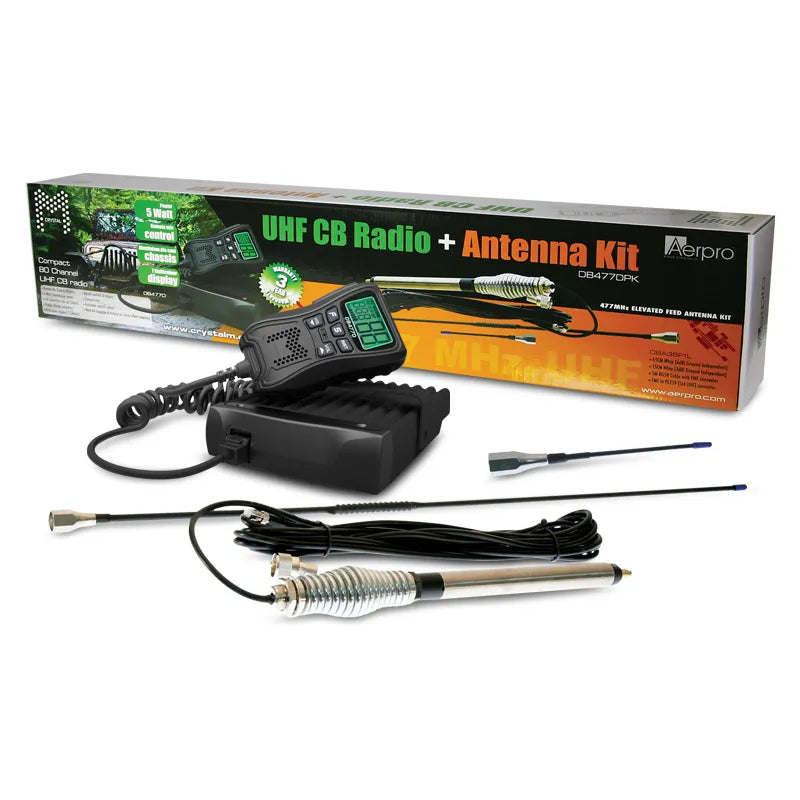

Crystal Mobile DB477DPK UHF CB Radio & Antenna Kit

Crystal Mobile DB477DPK: Combines a Crystal Mobile DB477D & Aerpro CBA36F1L Into One Convenient Pack!

UHF CB Radio + Antenna Kit
The Crystal Mobile DB477D 5W Compact In-Car UHF CB Radio with Remote Mic Control and Display has been designed in Australia for Australian Conditions. The display, speaker and control buttons are conveniently located in the handpiece and with the included 2m extension cable you can easily hide the main unit away under your dashboard or seat.

The unit features a full aluminium die cast chassis, 80 narrow band channels, large multi colour display and all the other features you would expect from a UHF. The UHF can mute out your factory stereo and allow the addition of an external speaker so even in the loudest of environments, you will never miss a call.

Aerpro CBA36F1L UHF antenna kit features a high-quality elevated feed and heavy-duty spring base combined with interchangeable 3dBi and 6dBi flexible masts giving the best of both worlds when it comes to UHF reception. With 5 meters of low-loss RG58 coaxial cable fitted and pre-wired with PL259 connector the CBA36F1L is ready to go straight from the pack.

The Aerpro CBA36F1L is suitable for use in various situations including hilly country, open highways or urban use and can be mounted on vehicle bull bars and guards using Aerpro UHF antenna mounting brackets.

Features:

• 5 Watt Power Output
• 80 Narrow Band Channels
• 12/24 Volts
• 3 Year Warranty
• Plug In Handpiece/Microphone With Large Display, Speaker and Control Buttons
• Aluminium Die Cast Chassis
• Automatic Squelch Control
• CTCSS Codes
• Duplex Range Extension
• Channel Scanning
• Large 7 Multi Colour Backlit Display
• Push Button Channel Select
• Mute Out (Capable of Muting Car Stereo)
• External Speaker Port
• 2M Extension Cable for Microphone
• Elevated Feed Antenna with Heavy Duty Spring Base
• Antenna Includes Both 3dBi and 6dBi Masts

Specifications:

• Crystal Mobile DB477D:
  • Frequency Range:
    • RX: 476.4250 ~ 477.4125MHz
    • TX: 476.4250 ~ 477.4125MHz
  • Number of Channels: Max. 80
  • Operation Mode: 8K5φF3E
  • Channel Spacing: 12.5kHz
  • Antenna Impendence: 50Ω
  • Working Temperature: –20℃ ~ 60℃
  • Power Supply: 13.8V DC±15% (11.7~15.8V)
  • Grounding Method: Negative Ground
  • Current Drain: Less Than 150mA On Standby, Less Than 350mA On Receive, Less Than 1.5A on Transmit
  • Frequency Stability: ±2.5ppm
  • Dimensions: (W x H x D) 112 x 30 x 155 mm (Dimensions Are Including Protrusions)
  • Weight: Approx. 0.8kg (Including Microphone)
  • Transmitter Rf Power Output: 5W
  • Spurious and Harmonics: 60dB
  • Adjacent Channel Power: 60dB
  • FM Noise: 40dB
  • Audio Distortion: Less Than 5%
  • Receiver Sensitivity EIA 12dB Sinad: 0.28μV
  • Adjacent Channel Selectivity: 60dB
  • Intermodulation: 60dB
  • Audio Output Impedance: 8Ω
  • Audio Output @ 8 Ω: 0.5W or Higher (10% Distortion)
• Aerpro CBA36F1L UHF Antenna Kit:
  • Frequency: 477MHz
  • Gain: 3dBi / 6dBi
  • Main Colour: Silver
  • Ground Independent: Yes
  • Elevated Feed: Yes
  • Total Length:
    • 3dBi Whip: 445mm
    • 6dBi Whip: 945mm
  • Mast Length:
    • 3dBi Whip: 150mm
    • 6dBi Whip: 650mm
  • Mast Width:
    • 3dBi Whip: 4mm
    • 6dBi Whip: 6.5mm
  • Mast Type:
    • 3dBi Whip: Soft Fibreglass Whip
    • 6dBi Whip: Solid Fiberglass Whip
  • Spring Type: Medium Duty Stainless Steel
  • Antenna Mounting Thread Size: 16mm
  • Mast Mounting Thread Size: 5/16"
  • Cable Type: RG58 Terminated with Female FME
  • Cable Length: 4.9 Metres (Approx.)
