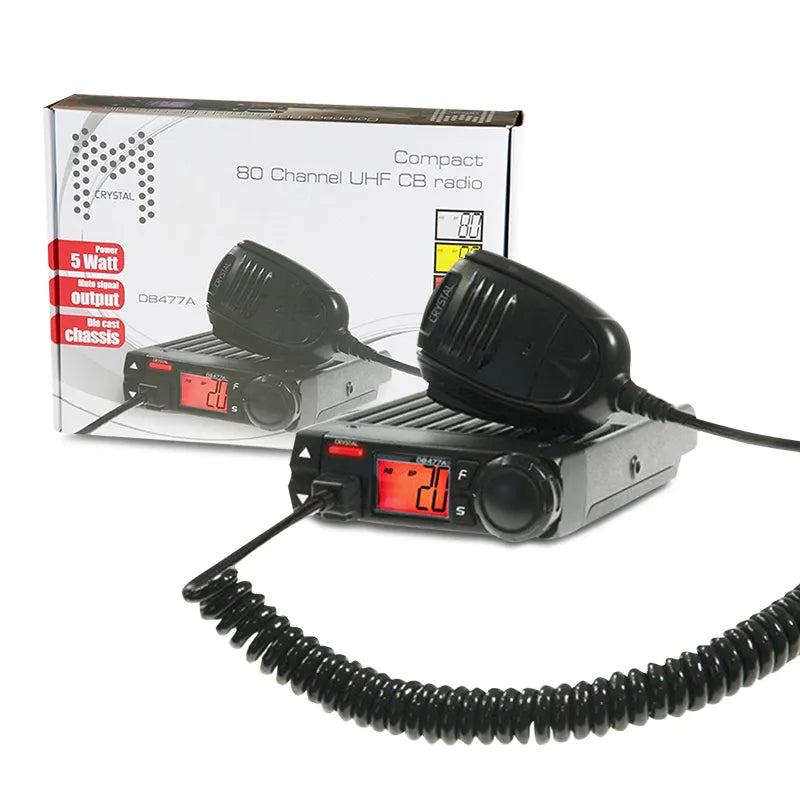

Crystal Mobile DB477A 5W Compact 80-Channel In-Car UHF CB Radio

Universal Mounting Bracket Allows For Easy Installation in Almost Any Vehicle!

5W Compact In-Car UHF CB Radio
The Crystal Mobile DB477A has been designed in Australia for Australian Conditions. The DB477A features a full aluminium die-cast chassis, 80 narrow band channels, a large multi-colour display, and all the other features you would expect from a top-quality UHF. The compact size along with the universal mounting bracket allows for easy installation in almost any vehicle, while its large multi-colour display and rotary channel select features make the radio very simple to use. The DB477A is capable of muting car stereo when receiving and the speaker output allows the addition of an external speaker so even in the loudest of environments, you will never miss a call.

Features:

• Compact Series
• 5 Watt Power Output
• 12 Volts
• 80 Narrow Band Channels
• Plug-In Handpiece/Microphone
• Aluminium Die Cast Chassis
• Automatic Squelch Control
• CTCSS Codes
• Duplex Range Extension
• Channel Scanning
• Large 7 Multi Colour Backlit Display
• Rotary Channel Select
• Mute Out (Capable of Muting Car Stereo)
• External Speaker Port
• 12V Only (Replacement Mic DB477ARM)

Specifications:

• Frequency Range:
  RX: 476.4250 ~ 477.4125MHz
  TX: 476.4250 ~ 477.4125MHz
• Number Of Channels: Max. 80
• Operation Mode: 8K5φF3E
• Channel Spacing: 12.5kHz
• Antenna Impedance: 50Ω
• Working Temperature: –20℃ ~ 60℃
• Power Supply: 13.8V DC±15% (11.7~15.8V)
• Grounding Method: Negative Ground
• Current Drain: Less Than 150mA On Standby, Less Than 350mA On Receive, Less Than 1.5A On Transmit
• Frequency Stability: ±2.5ppm
• Transmitter RF Power Output: 5Watts
• Spurious & Harmonics: 60dB
• Adjacent Channel Power: 60dB
• FM Noise: 40dB
• Audio Distortion: Less Than 5%
• Receiver Sensitivity EIA 12dB SINAD: 0.28μV
• Adjacent Channel Selectivity: 60dB
• Intermodulation: 60dB
• Audio Output Impedance: 8Ω
• Audio Output @ 8Ω: 0.5W or Higher (10% Distortion)
• Dimensions: (W x H x D) 112mm x 30mm x 155mm (Dimensions Are Including Protrusions)
• Packaging Type: Giftbox
• Weight: 0.80kg - Approx. (Including Microphone)
