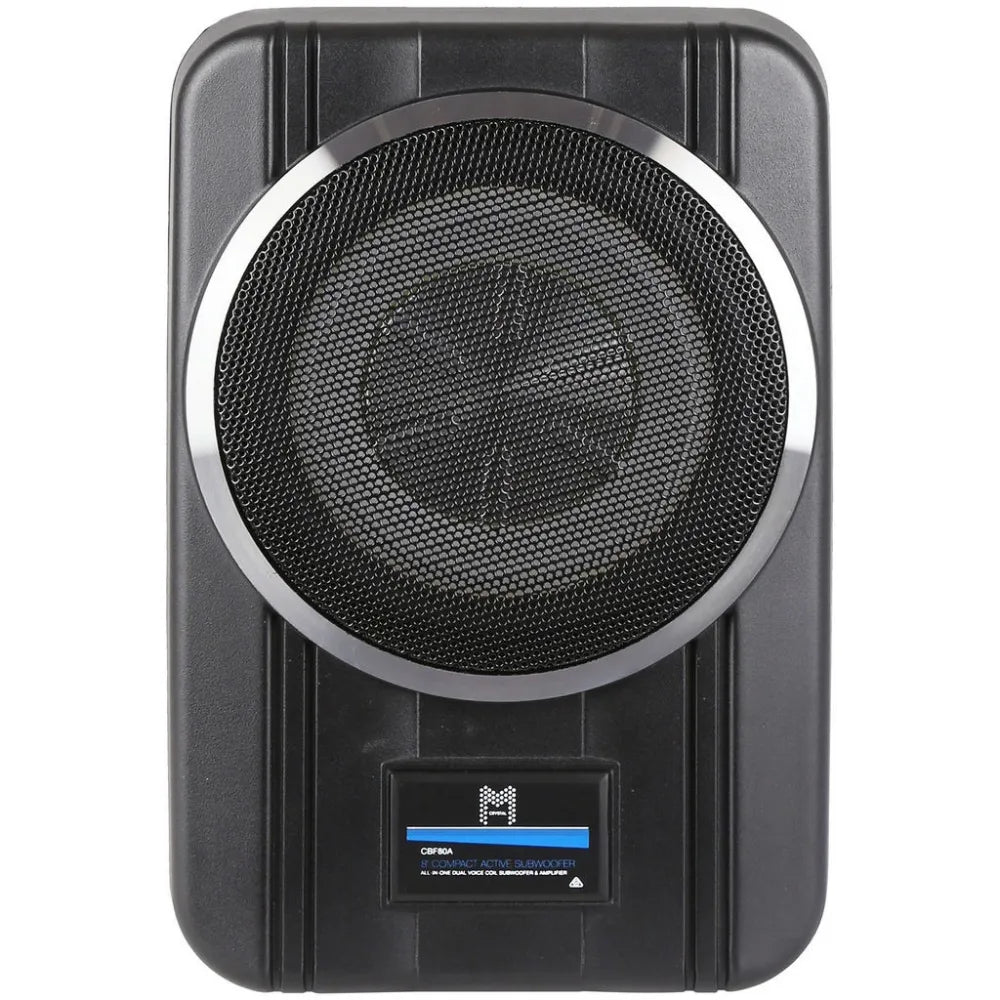

CBF80A subwoofer standing upright showing the grille
CBF80A subwoofer standing upright showing the grille

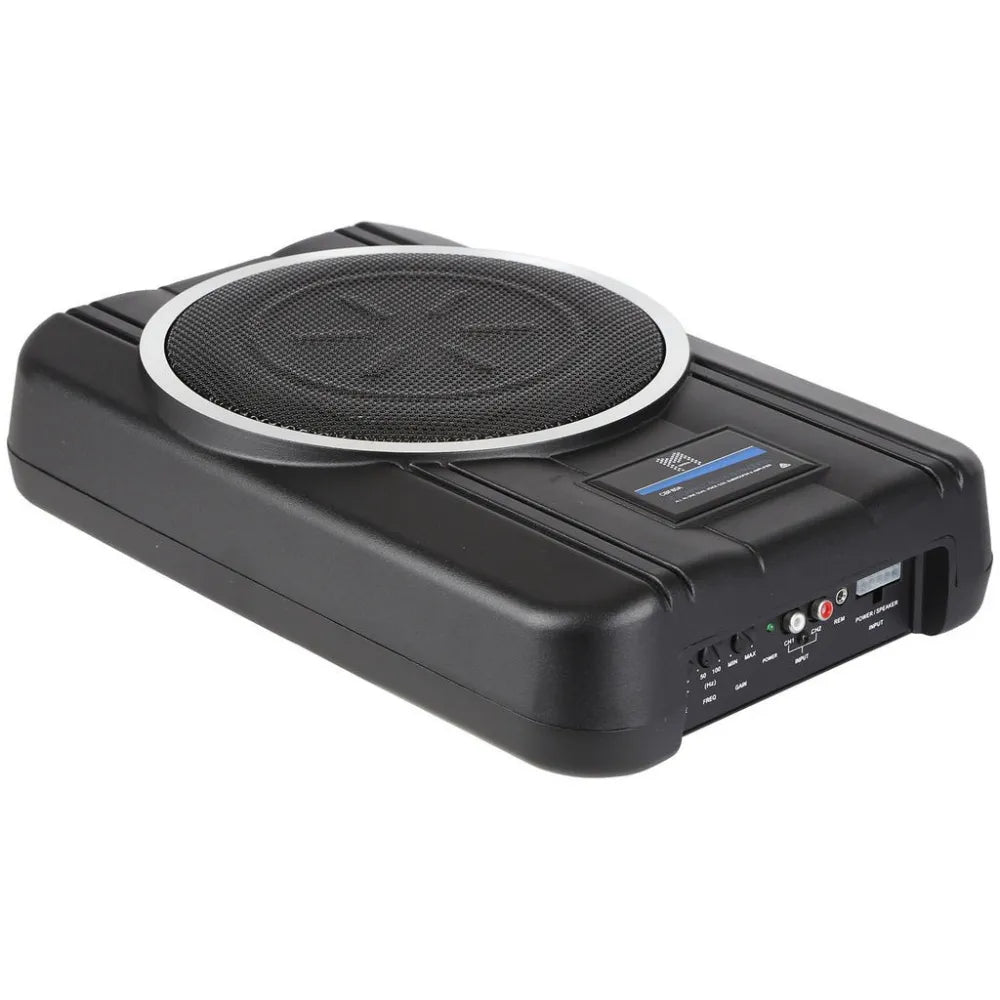

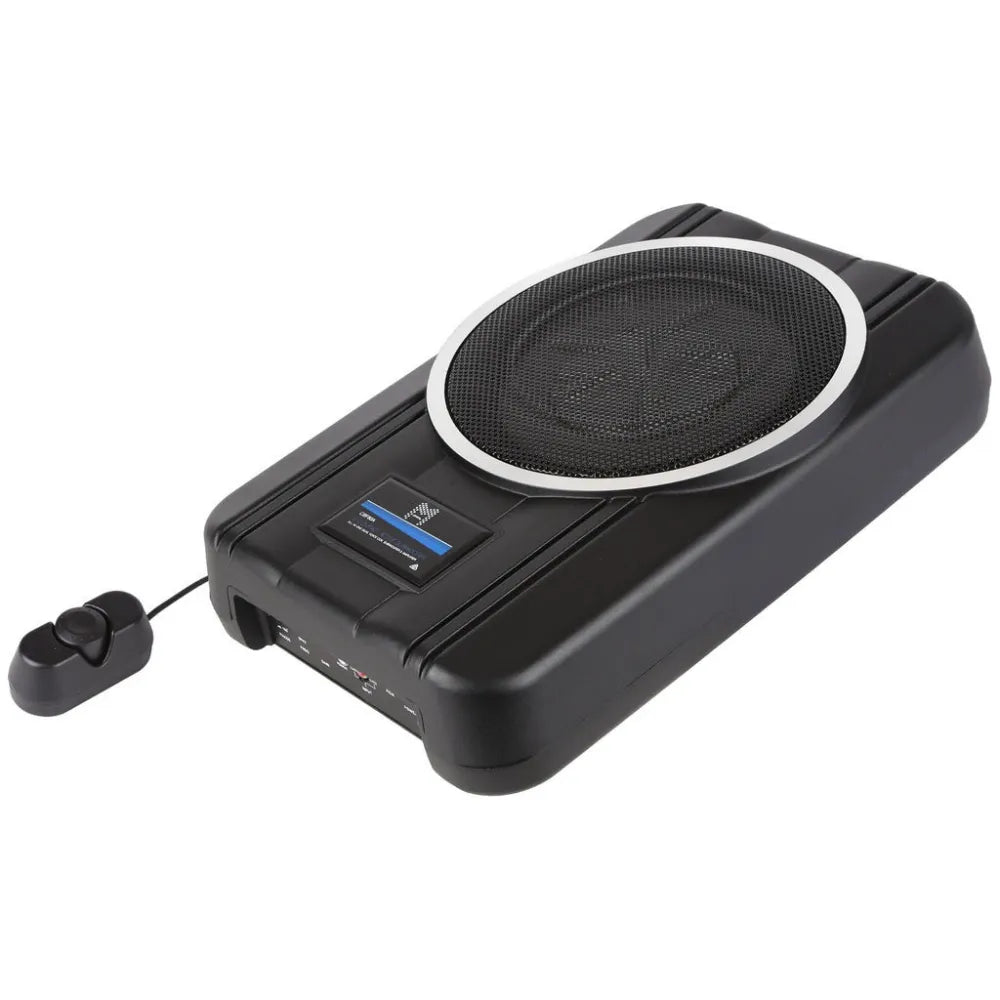

CBF80A angled view with the bass remote
CBF80A angled view with the bass remote
CBF80A flat on its base showing the top grille
CBF80A flat on its base showing the top grille

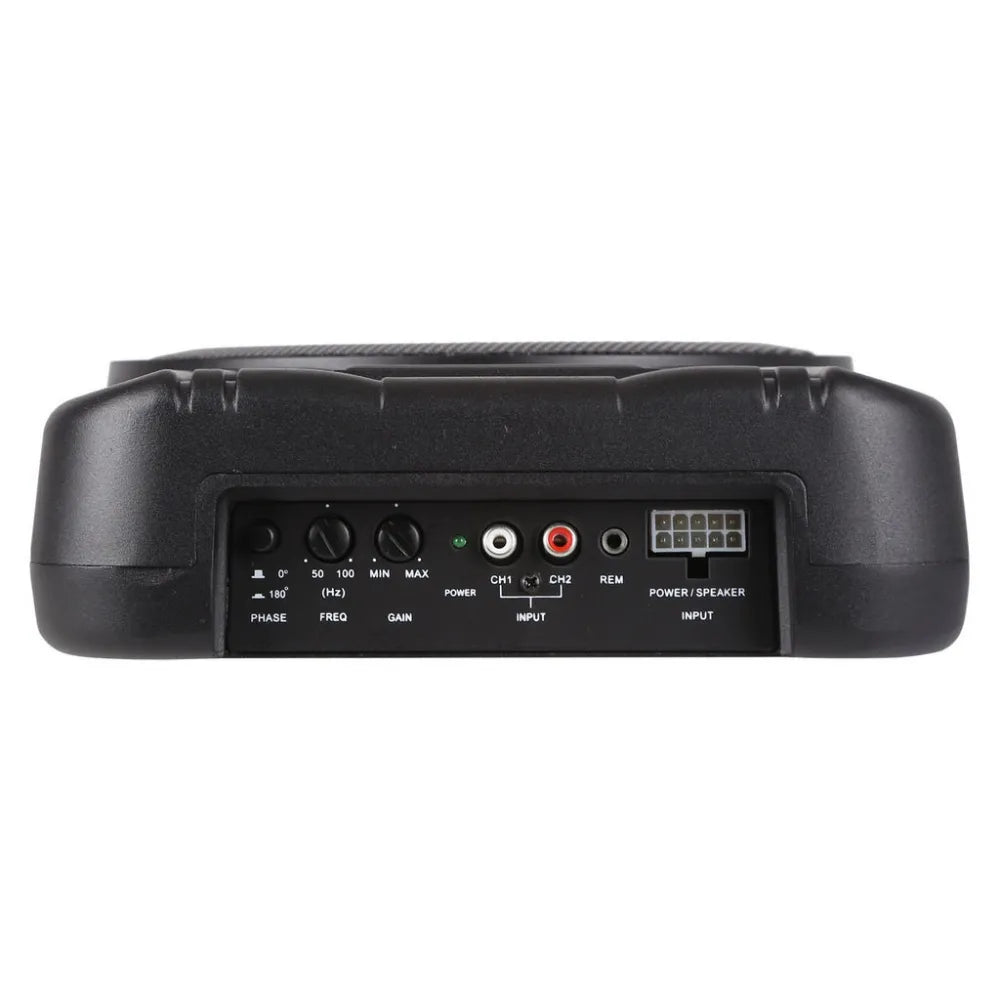

CBF80A end panel with inputs and controls
CBF80A end panel with inputs and controls

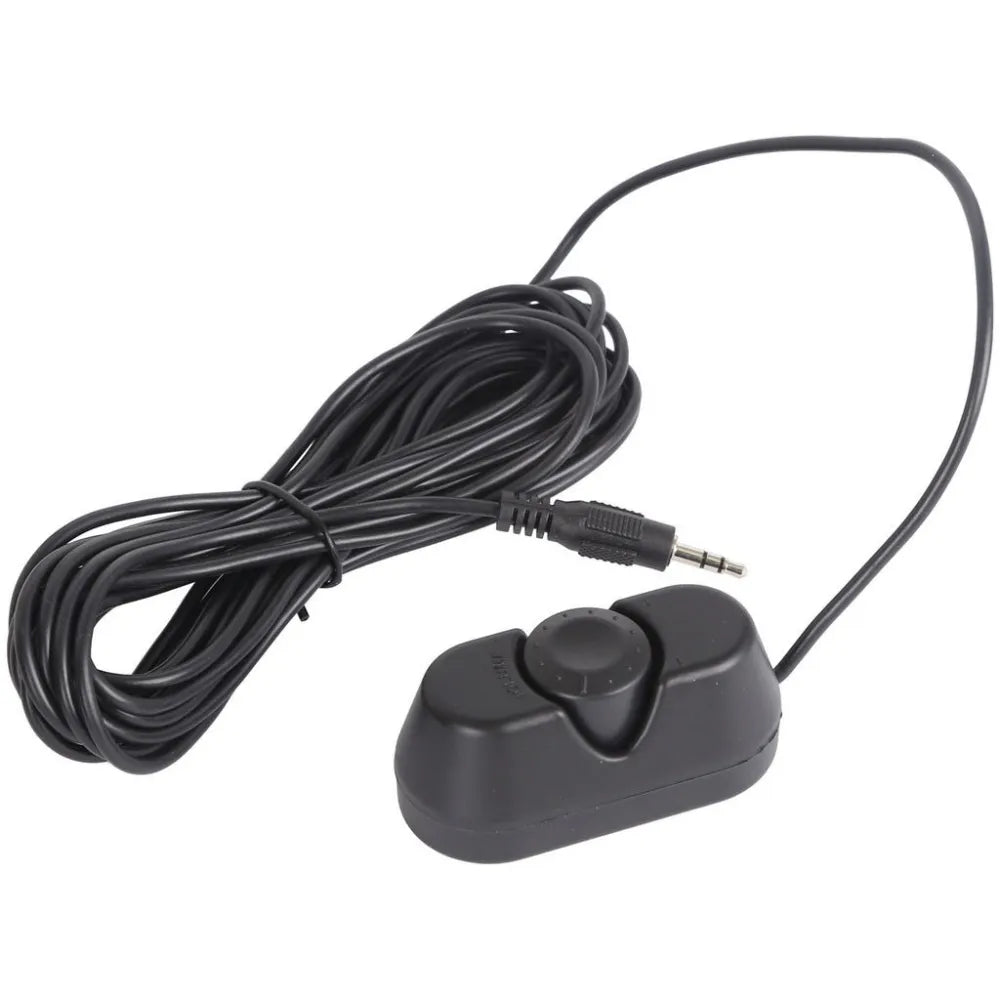

CBF80A wired bass remote with cable
CBF80A wired bass remote with cable
Click to open expanded view
CRYSTAL MOBILE logo

Crystal Mobile CBF80A 8" 150W Compact Active Underseat Powered Subwoofer

SKU: CBF80A
Price
$199
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
CBF80A subwoofer standing upright showing the grille

Crystal Mobile CBF80A 8" 150W Compact Active Underseat Powered Subwoofer

$199

Product features

Utes and small hatches have no boot space for a box sub, yet the factory system still sounds thin down low.

The CBF80A fits an 8 inch driver and a 150W amplifier into a 345 x 235 x 78 mm case that slides under a seat. It takes either RCA or speaker level input, and signal sensing turns it on with a factory head unit, so a separate amplifier and remote wire are not needed for OEM systems.

CBF80A features

  • 8 inch driver with 150W maximum built in amplifier
  • 345 x 235 x 78 mm case for under seat mounting
  • RCA and speaker level inputs
  • Signal sensing auto on and off for factory systems
  • Diecast aluminium chassis with protective grille
  • Wired bass level remote

Specifications

Subwoofer Size 8" (200mm)
Power Handling, Max 150W
Frequency 20 to 120Hz
Voice Coil Dual 2Ω
S/N(A) 90dB
Maximum Current Consumption 10A
RCA Input 80mV (RCA Leads Not Included)
Speaker Input 0.8V
Input Voltage 14.4V (11 to 15V)
Chassis Material Die Cast Aluminium
Phase Switch 0/180 Degree
Gain Control Yes

Fitment and compatibility

Measure under your seat for 78 mm of height clearance. RCA leads are needed for low level input and are not included.

What is in the box

The supplier copy names the sub, a remote and a power harness, but we have no manufacturer page to confirm it. Ask us to check before you order.

Install notes

Running power from the battery is the main job. Book with Albion Park Rail on (02) 4257 2636 and we can tap the factory speaker wiring for signal.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

Frequently asked questions

How powerful is the Crystal Mobile CBF80A?

150W maximum with an 8 inch driver.

Can it run from a factory head unit?

Yes, it has a speaker level input with signal sensing on and off.

Are RCA leads included?

No, they are needed only for low level input and are sold separately.

Will it fit under my seat?

It needs 345 x 235 x 78 mm of space. Tell us the vehicle and we will measure up.
