Crystal Mobile CBF100A 10 Inch 180W Compact Active Underseat Subwoofer

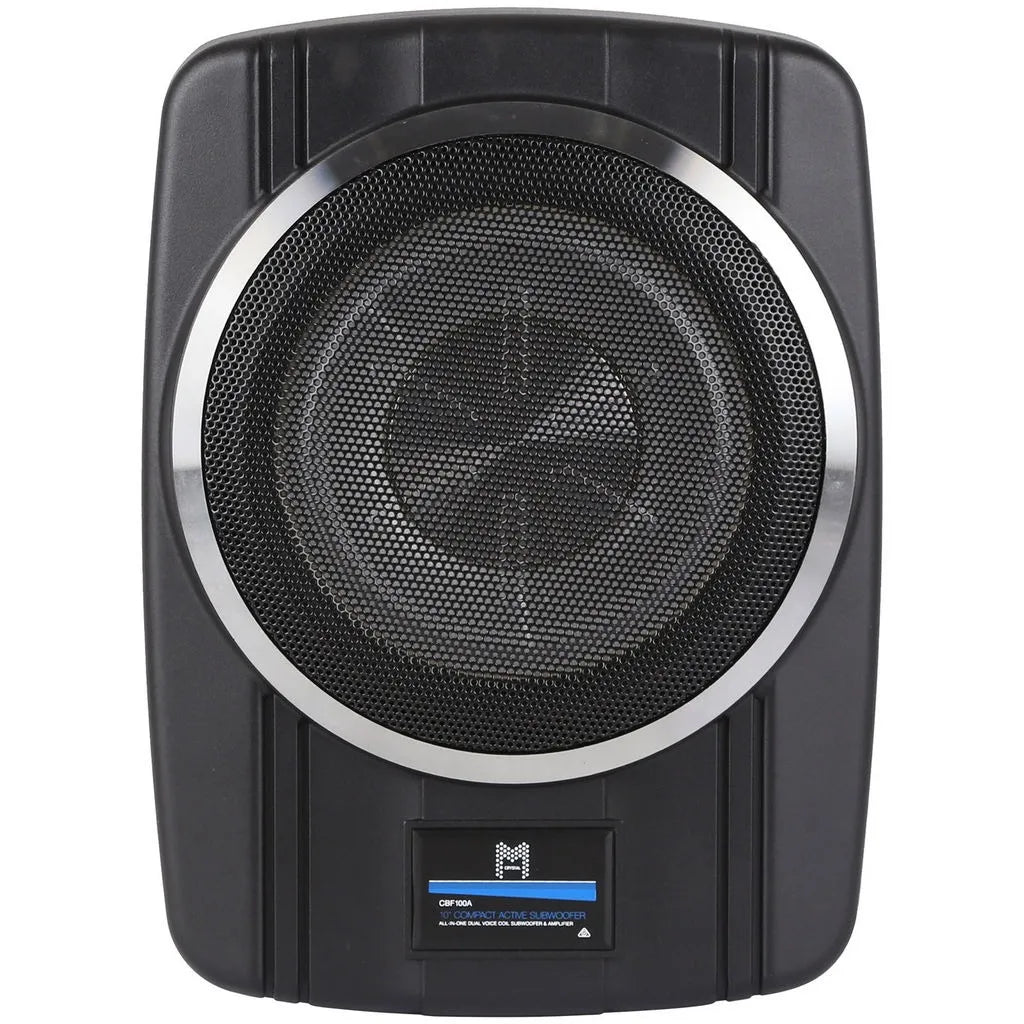

When there is no room for a box and a separate amp, an all in one powered sub is the answer. The Crystal Mobile CBF100A packs a 10 inch driver and a 180W amplifier into a die cast aluminium case only 90mm high.

At 360 x 279 x 90mm it fits under seats, behind seats or in storage compartments, and a bass remote comes in the box.

Problems it solves

• Factory head unit with no preamp outputs. High level speaker inputs connect to the original speaker wiring.
• Sub staying on with the ignition off. Signal sensing turns it on and off with the factory system.

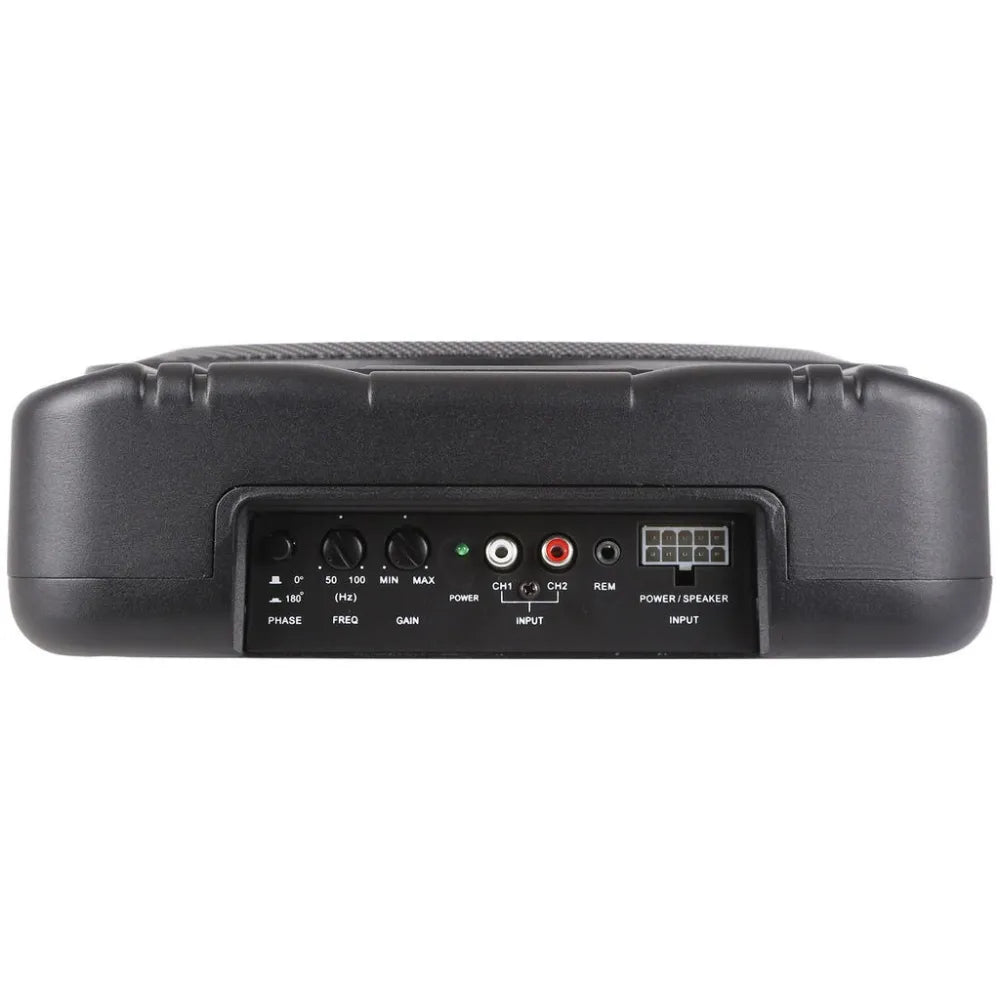

• Bass out of step with the door speakers. A 0 or 180 degree phase switch lines it up.

CBF100A specifications

• Driver: 10 inch, dual 2 ohm voice coil
• Maximum power: 180W
• Frequency: 20Hz to 120Hz
• Signal to noise: 95dB
• Maximum current: 10A
• RCA input: 80mV
• Speaker input: 0.8V
• Input voltage: 14.4V (11V to 15V)
• Chassis: die cast aluminium with grille
• Protection: thermal, short circuit and overload
• Dimensions: 360 x 279 x 90mm

Fitment and compatibility

Under or behind seats, or in storage compartments, with 360 x 279 x 90mm of space.

What is in the box

• Powered subwoofer
• Remote control
• Power wiring harness with high level input

Install notes

Buy RCA leads if you are connecting to a head unit with preamp outputs.

Fuse the power lead close to the battery.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

CBF100A FAQs

Are RCA leads supplied with the CBF100A?

No, they are needed only for an RCA connection and sold separately.

Can the CBF100A work with a factory stereo?

Yes, through its speaker level input and auto turn on.

How much current does the Crystal sub pull?

Up to 10A.
