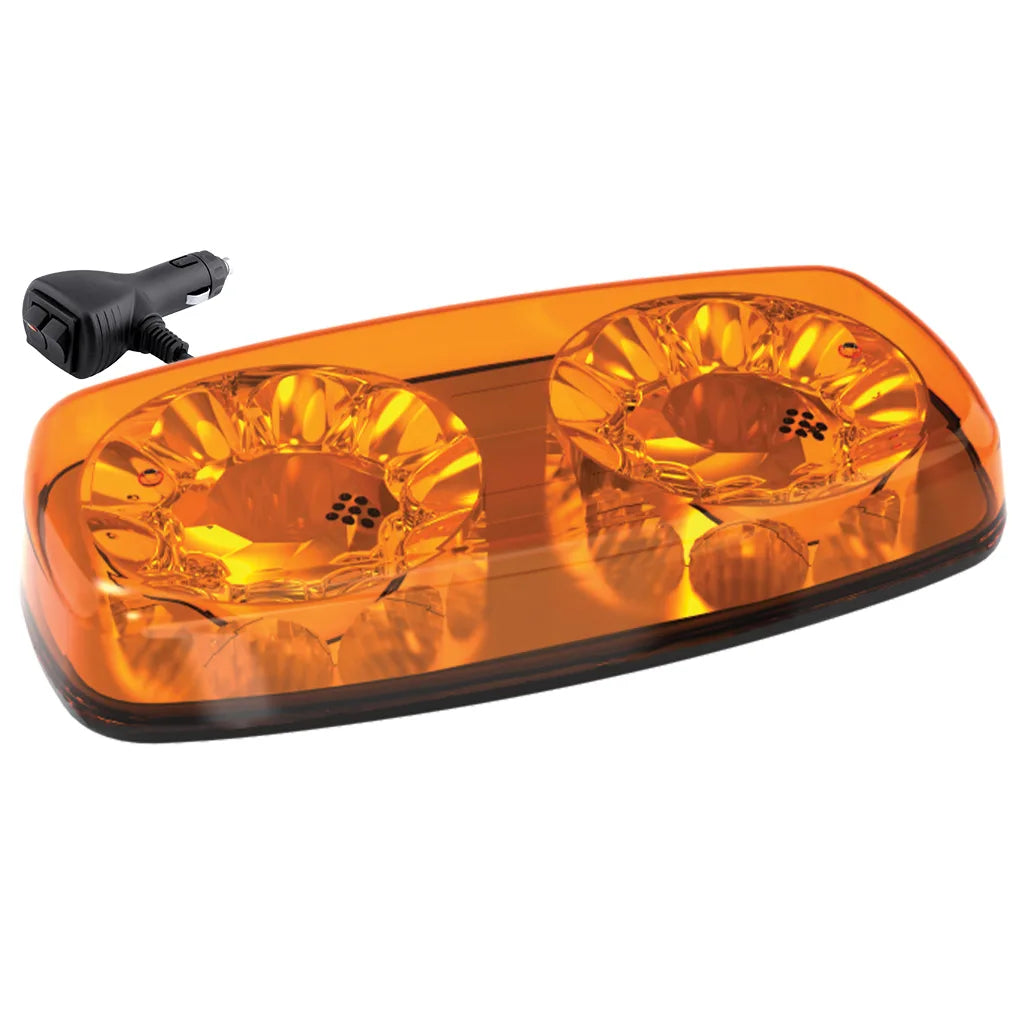

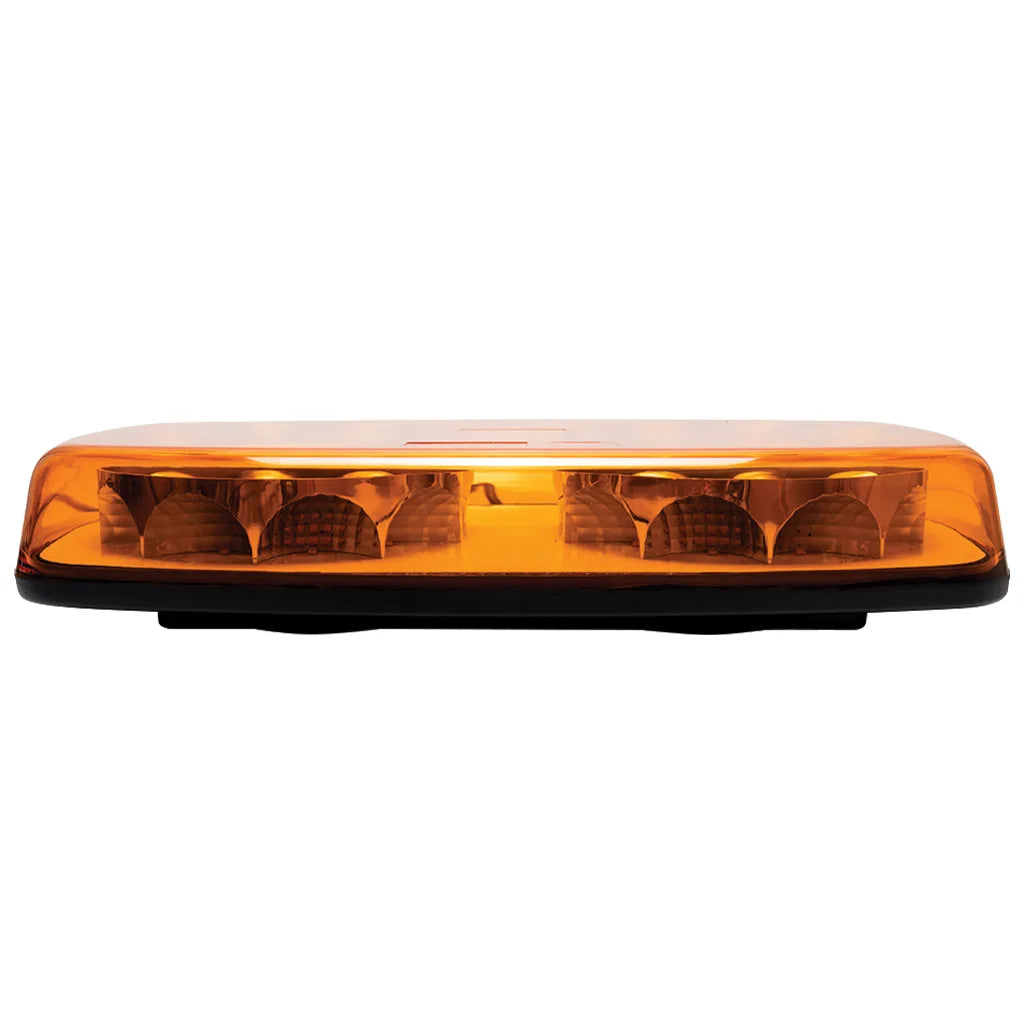

Crossfire LBAR30A 30cm Amber LED Bar Magnetic Mount 3.5m Cig Plug

Crossfire LBAR30A Mini 30cm Amber LED Bar with Magnetic Mount and 3.5m Cigarette Plug Lead

The Crossfire LBAR30A is a 30cm slimline amber LED bar beacon featuring 20 LEDs at 38W total, dual magnetic mount, seven selectable flash patterns, and a 3.5m cable with cigarette plug. Rated IP67, Class 1, and approved to ECE R65, ECE R10, and SAE J845, it operates across 12V and 24V and is suited to a wide range of warning light applications. A cigarette power lead is included.

Product overview

The LBAR30A delivers Class 1 amber warning light output from a compact 304.5mm length slimline bar format, making it suited to vehicles where a full-size light bar is not practical. The dual magnetic mount provides a secure and repositionable attachment to any flat metal surface, and the 3.5m cigarette plug lead allows quick power connection without hardwiring. Seven selectable LED flash patterns give the operator flexibility across different warning and signalling applications.

IP67 rating confirms full dust protection and temporary water immersion resistance. ECE R65 and SAE J845 Class 1 compliance confirms the LBAR30A meets the highest output classification for emergency and safety warning lights in its category. The operating temperature range of minus 40 to 60 degrees Celsius covers the full range of Australian conditions.

Features and benefits

20 LED 38W amber output: Twenty LEDs delivering 38W of amber warning light output at Class 1 intensity, meeting the highest output classification under ECE R65 and SAE J845 standards.

7 selectable flash patterns: Seven selectable LED flash patterns provide flexibility across different warning, signalling, and safety applications from a single unit.

Dual magnetic mount: Two magnetic feet provide a secure and repositionable attachment to any flat metal surface for tool-free installation and removal.

3.5m cigarette plug lead: The included 3.5m cable with cigarette plug allows quick power connection to any standard vehicle cigarette or accessory socket without hardwiring.

IP67 weatherproof rating: Full dust protection and temporary water immersion resistance for reliable outdoor performance in all weather conditions.

ECE R65, ECE R10, and SAE J845 Class 1 approved: Meets the highest output classification under both ECE R65 and SAE J845, confirming suitability for emergency and safety warning applications requiring maximum visibility.

12V and 24V compatibility: Operates across both 12V and 24V vehicle electrical systems, covering passenger vehicles, trucks, and heavy machinery.

Wide operating temperature range: Rated for operation from minus 40 to 60 degrees Celsius, covering the full range of Australian conditions from alpine cold to outback heat.

What's in the box

• 1 x LBAR30A amber LED bar
• 1 x Cigarette power lead

Technical specs

Frequently asked questions

Is the LBAR30A suitable for both 12V and 24V vehicles?
Yes. The LBAR30A operates across both 12V and 24V vehicle electrical systems, covering passenger vehicles, trucks, and heavy machinery.

Does the LBAR30A need to be hardwired or does it plug into a cigarette socket?
The LBAR30A includes a 3.5m cable with a cigarette plug for quick connection to a standard vehicle cigarette or accessory socket without hardwiring.

What compliance certifications does the LBAR30A hold?
The LBAR30A is approved to ECE R65, ECE R10, and SAE J845 Class 1, confirming it meets the highest output classification for emergency and safety warning lights in these standards.

How many flash patterns does the LBAR30A offer?
The LBAR30A offers seven selectable LED flash patterns for flexibility across different warning and signalling applications.

Is the LBAR30A magnetic mount removable and repositionable?
Yes. The dual magnetic mount allows the LBAR30A to be attached and removed from any flat metal surface without tools, making it easy to reposition between vehicles or applications.
