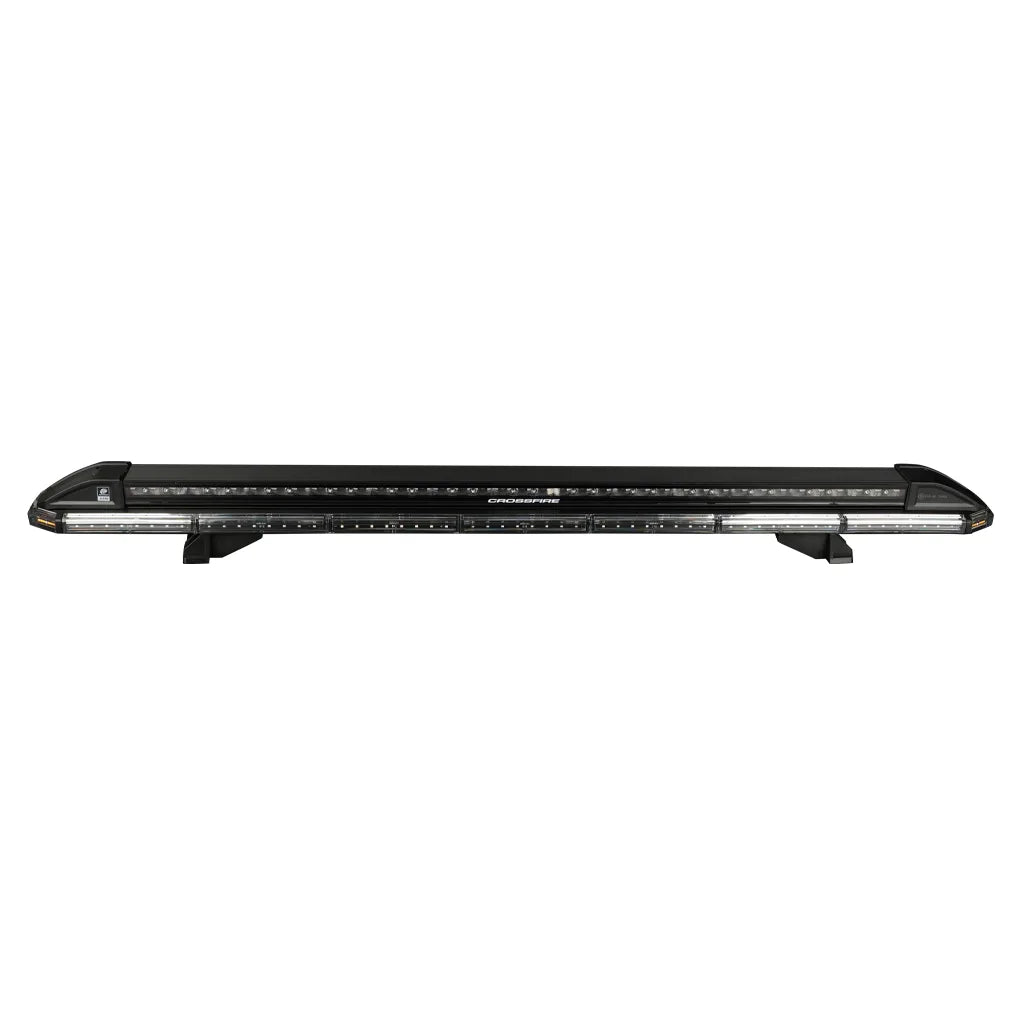

Crossfire DOUBLE48 48" Double Decker Warning Light Bar Class 2
Click to open expanded view

Crossfire DOUBLE48 48" Double Decker Warning Light Bar Class 2

SKU: DOUBLE48
Price
$1,745
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier and it usually dispatches within 3 to 7 business days.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Items we order in from a supplier usually dispatch within 3 to 7 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Crossfire DOUBLE48 48" Double Decker Warning Light Bar Class 2

Crossfire DOUBLE48 48" Double Decker Warning Light Bar Class 2

$1,745

Product features

Crossfire DOUBLE48 48 Inch Double Decker Warning Light Bar ECE R65 R10 SAE J845 Class 2 78W Amber Warning 90W Spot Signal Lights Stop Tail Brake Reverse Indicator 19 Flash Patterns Bracket Mount

The Crossfire DOUBLE48 is a 48-inch double decker warning light bar combining amber warning lights, spot lights, and signal lights in a single 1207mm unit. ECE R65, R10, and SAE J845 Class 2 approved. Bracket mount. Operates on 10-32V DC. Includes fixed mounting brackets, waterproof DT power cables, rubber pads, and mounting hardware.

Product overview

The DOUBLE48 is a multi-function 48-inch light bar integrating warning, spot, and signal lighting in one unit for truck, emergency, and commercial vehicle applications. The warning light section delivers 78W across 16 replaceable LED modules with 19 selectable flash patterns and Class 2 amber warning approval to ECE R65, R10, and SAE J845. The spot light section delivers 90W for forward illumination. The signal light section provides tail, brake, reverse, and dual indicator functions for full rear vehicle signalling from a single bar. Fixed mounting brackets, rubber pads, and waterproof DT power cables are included.

Features and benefits

Warning lights 78W, 16 replaceable LED modules, 19 flash patterns, Class 2 amber.

Spot lights 90W.

Signal lights tail lamp (1W), brake lamp (2W), reverse lamp (2.5W), indicator lamps (2.5W x 2).

ECE R65, R10, and SAE J845 Class 2 approved: Meets international standards for vehicle warning lights.

16 replaceable LED modules: Individual modules can be replaced without replacing the full bar.

19 selectable flash patterns.

Bracket mount.

10-32V DC.

Dimensions: 1207mm L x 110mm W x 62.5mm H (excluding bracket).

Includes fixed mounting brackets, waterproof DT power cables, rubber pads, and mounting hardware.

What's in the box

  • Crossfire DOUBLE48 light bar
  • Fixed mounting brackets
  • Waterproof DT power cables
  • Rubber pads
  • Mounting hardware

Technical specs

Specification Detail
SKU DOUBLE48
Brand Crossfire
Type Double decker warning light bar
Warning Light Output 78W
Warning LED Modules 16 x replaceable
Warning Flash Patterns 19
Warning Compliance ECE R65, R10, SAE J845 Class 2
Warning LED Colour Amber
Spot Light Output 90W
Signal Tail Lamp 1W
Signal Brake Lamp 2W
Signal Reverse Lamp 2.5W
Signal Indicator Lamps 2.5W x 2
Mount Type Bracket mount
Operating Voltage 10-32V DC
Dimensions 1207mm L x 110mm W x 62.5mm H (excl. bracket)

Frequently asked questions

Is the DOUBLE48 ECE R65 approved?

Yes. The warning light section of the DOUBLE48 holds ECE R65, R10, and SAE J845 Class 2 approval, confirming it meets international standards for amber vehicle warning lights.

What functions does the DOUBLE48 combine in one bar?

The DOUBLE48 combines amber warning lights (78W, 19 patterns), spot lights (90W), and signal lights including tail, brake, reverse, and indicator lamps in a single 48-inch light bar unit.

What are the replaceable LED modules on the DOUBLE48?

The warning light section uses 16 individual LED modules that can each be replaced independently, avoiding the need to replace the full bar when a section fails.

How many flash patterns does the DOUBLE48 warning light have?

The warning light section has 19 selectable flash patterns.

What is included with the DOUBLE48?

The DOUBLE48 includes fixed mounting brackets, waterproof DT power cables, rubber pads, and mounting hardware.
