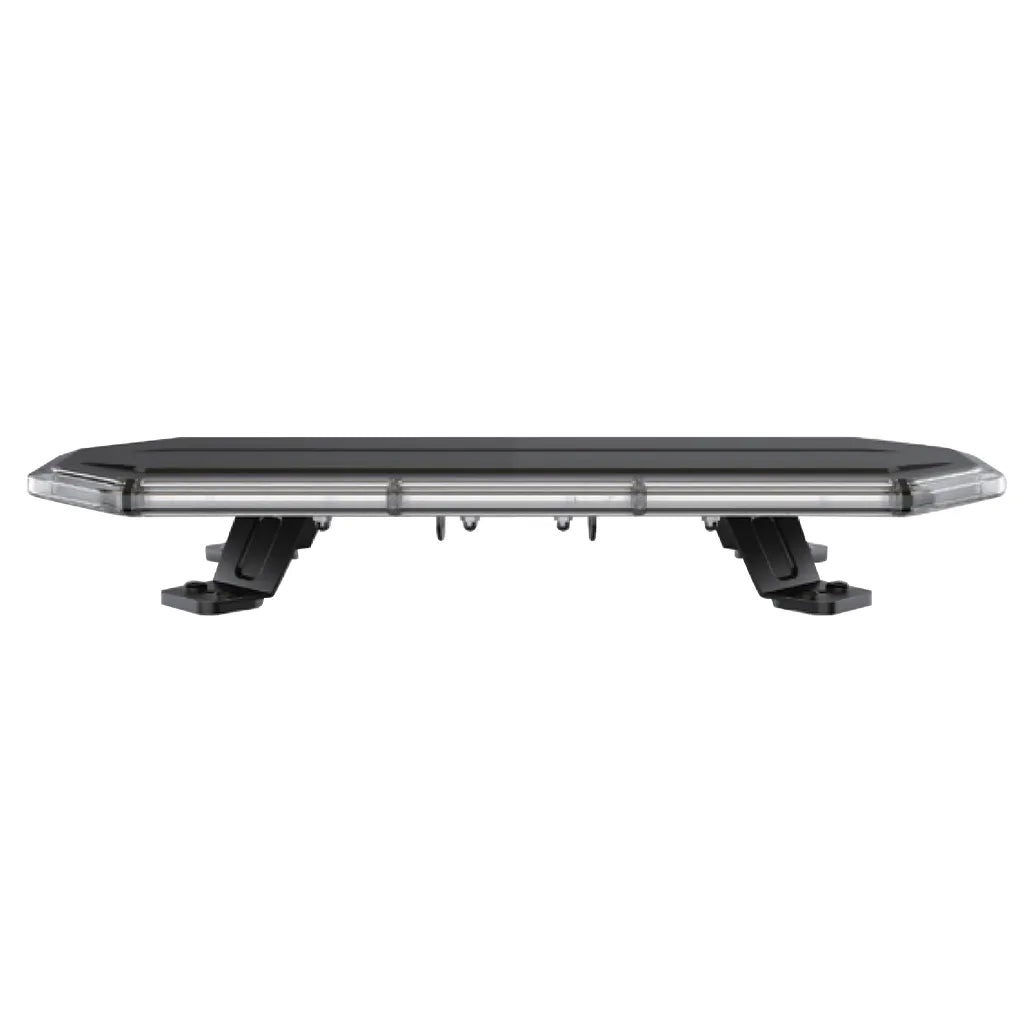

Crossfire BLADE24 108 LED 74W Amber Beacon Bar Magnetic 24 Inch
Crossfire BLADE24 108 LED 74W Amber Beacon Bar Magnetic 24 Inch
Click to open expanded view

Crossfire BLADE24 108 LED 74W Amber Beacon Bar Magnetic 24 Inch

SKU: BLADE24
Price
$629.95
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier and it usually dispatches within 3 to 7 business days.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Items we order in from a supplier usually dispatch within 3 to 7 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Crossfire BLADE24 108 LED 74W Amber Beacon Bar Magnetic 24 Inch

Crossfire BLADE24 108 LED 74W Amber Beacon Bar Magnetic 24 Inch

$629.95

Product features

Crossfire BLADE24 24 Inch Amber LED Warning Beacon Bar Magnetic and Suction Mount Adjustable Feet 108 LED 74W 14 Selectable Patterns ECE R65 R10 SAE J845 Class 1 IP67 3.5m Cigarette Power Lead 9-32V DC

The Crossfire BLADE24 is a 24-inch amber LED warning beacon bar with magnetic and suction mount and adjustable feet, 108 LEDs at 74W, and 14 selectable strobe patterns. ECE R65, R10, and SAE J845 Class 1 approved. IP67 dust and waterproof. 3.5m cig plug included. Operates on 9-32V DC across a temperature range of -40°C to 65°C. Dimensions: 610mm L x 218mm W x 245mm H.

Product overview

The BLADE24 is a high-output 24-inch LED beacon bar delivering 74W from 108 LEDs across a 610mm wide housing for wide-angle, high-intensity amber warning coverage. The magnetic and suction mount base with adjustable feet provides tool-free installation across different roof profiles without permanent fixings. Fourteen selectable strobe patterns give flexibility to match different site, regulatory, and application requirements. ECE R65, R10, and SAE J845 Class 1 certification confirms the BLADE24 meets the highest internationally recognised standards for vehicle warning beacons. The 3.5m cig plug connects directly to the vehicle's 12V or 24V outlet for immediate operation. IP67 waterproof and rated for -40°C to 65°C.

Features and benefits

ECE R65, R10, and SAE J845 Class 1 approved: Meets the highest international standards for vehicle warning beacons.

108 LED 74W amber strobe: High-intensity wide-angle amber warning output across a 24-inch bar format.

14 selectable strobe patterns: Maximum flexibility for different applications and regulatory requirements.

Magnetic and suction mount with adjustable feet: Tool-free installation across different roof profiles without permanent fixings.

3.5m cig plug: Connects directly to the vehicle's 12V or 24V outlet.

IP67 dust and waterproof.

9-32V DC: Compatible with 12V and 24V vehicle electrical systems.

Operating temperature: -40°C to 65°C.

Dimensions: 610mm L x 218mm W x 245mm H.

What's in the box

  • Crossfire BLADE24 beacon bar
  • 3.5m cig plug

Technical specs

Specification Detail
SKU BLADE24
Brand Crossfire
Type Amber LED warning beacon bar
LED Count 108
Power 74W
LED Colour Amber
Strobe Patterns 14 selectable
Mount Type Magnetic and suction with adjustable feet
Operating Voltage 9-32V DC
Waterproof Rating IP67
Compliance ECE R65, R10, SAE J845 Class 1
Connector 3.5MTR CIG. Power Lead
Operating Temperature -40°C to 65°C
Dimensions 610mm L x 218mm W x 245mm H

Frequently asked questions

Is the BLADE24 Class 1 approved?

Yes. The BLADE24 holds ECE R65, R10, and SAE J845 Class 1 approval, confirming it meets the highest international standards for vehicle warning beacons.

What are the adjustable feet on the BLADE24 for?

The adjustable feet allow the magnetic and suction base to be angled to suit different roof profiles and curvatures, ensuring a secure, flat contact with the mounting surface across a range of vehicle types.

Does the BLADE24 require permanent wiring?

No. The BLADE24 includes a 3.5m cig plug that connects to the vehicle's 12V or 24V outlet for immediate operation without permanent wiring.

How many strobe patterns does the BLADE24 have?

The BLADE24 has 14 selectable strobe patterns, providing the widest pattern selection in the Crossfire beacon range covered here.

What voltage does the BLADE24 operate on?

The BLADE24 operates on 9-32V DC, compatible with both 12V and 24V vehicle electrical systems.
