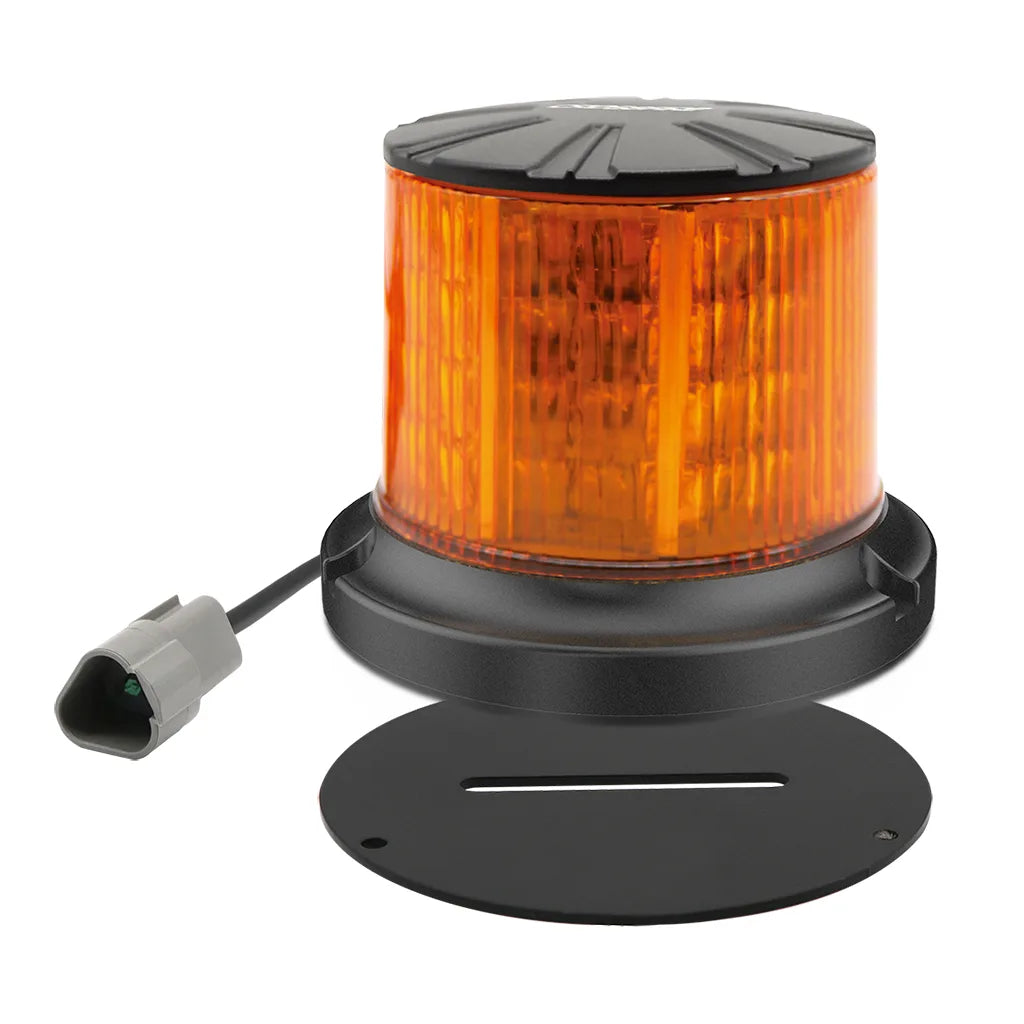

Crossfire B86S 64 LED 32W Amber Beacon Permanent Screw Mount
Crossfire B86S 64 LED 32W Amber Beacon Permanent Screw Mount
Click to open expanded view

Crossfire B86S 64 LED 32W Amber Beacon Permanent Screw Mount

SKU: B86S
Price
$169
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier and it usually dispatches within 3 to 7 business days.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Items we order in from a supplier usually dispatch within 3 to 7 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Crossfire B86S 64 LED 32W Amber Beacon Permanent Screw Mount

Crossfire B86S 64 LED 32W Amber Beacon Permanent Screw Mount

$169

Product features

Crossfire B86S Slimline Amber LED Warning Beacon Permanent Screw Mount 64 LED 32W 10 Selectable Patterns ECE R65 R10 SAE J845 Class 1 IP67 10-80V DC Alloy Mounting Plate 200mm Fly Lead Waterproof DT Connector

The Crossfire B86S is a slimline permanent screw-mount amber LED warning beacon with 64 LEDs at 32W and 10 selectable strobe patterns. ECE R65, R10, and SAE J845 Class 1 approved. IP67 dust and waterproof. 10-80V DC. 200mm fly lead with waterproof DT connector. Includes alloy mounting plate and 1m waterproof DT connector lead. Dimensions: 111.6mm W x 82mm H x 111.6mm D.

Product overview

The B86S is the permanent screw-mount version of the B86 series, sharing the same 64-LED 32W output and Class 1 approval as the B86M in a fixed-installation format. The 10-80V DC voltage range makes the B86S compatible with a wider range of vehicle electrical systems including 24V, 48V, and higher-voltage industrial and commercial applications beyond standard 12V and 24V vehicles. The alloy mounting plate provides a solid, rigid base for permanent roof or panel installation. The 200mm fly lead with waterproof DT connector and included 1m waterproof DT connector lead allow for clean, sealed wiring to the vehicle harness. IP67 waterproof and rated for -40°C to 65°C.

Features and benefits

ECE R65, R10, and SAE J845 Class 1 approved: Meets the highest international standards for vehicle warning beacons.

64 LED 32W amber strobe: High-output amber warning for maximum visibility.

10 selectable strobe patterns.

Permanent screw mount with alloy mounting plate: Rigid, fixed installation for vehicle panels or roof.

10-80V DC: Wide voltage range for 12V, 24V, 48V, and higher-voltage systems.

200mm fly lead with waterproof DT connector.

1m waterproof DT connector lead included.

IP67 dust and waterproof.

Operating temperature: -40°C to 65°C.

Dimensions: 111.6mm W x 82mm H x 111.6mm D.

What's in the box

  • Crossfire B86S beacon
  • Alloy mounting plate
  • 200mm fly lead with waterproof DT connector
  • 1m waterproof DT connector lead

Technical specs

Specification Detail
SKU B86S
Brand Crossfire
Type Amber LED warning beacon
LED Count 64
Power 32W
LED Colour Amber
Strobe Patterns 10 selectable
Mount Type Permanent screw mount
Operating Voltage 10-80V DC
Waterproof Rating IP67
Compliance ECE R65, R10, SAE J845 Class 1
Cable 200mm fly lead with waterproof DT connector
Operating Temperature -40°C to 65°C
Dimensions 111.6mm W x 82mm H x 111.6mm D
Included Alloy mounting plate, 1m waterproof DT connector lead

Frequently asked questions

Is the B86S Class 1 approved?

Yes. The B86S holds ECE R65, R10, and SAE J845 Class 1 approval, confirming it meets the highest international standards for vehicle warning beacons.

What is the difference between the B86S and the B86M?

The B86S has a permanent screw mount with alloy mounting plate, operates on 10-80V DC, and includes a 200mm fly lead with DT connector and a 1m DT connector lead. The B86M has a magnetic mount, operates on 10-30V DC, and includes a 3m cigarette power lead. Both share the same 64-LED 32W output, 10 selectable patterns, and Class 1 approval.

Why does the B86S have a 10-80V DC voltage range?

The wide 10-80V DC range makes the B86S compatible with 12V, 24V, 48V, and higher-voltage industrial and commercial vehicle electrical systems, covering a broader range of applications than standard 12-30V beacons.

What is included with the B86S?

The B86S includes the beacon unit, alloy mounting plate, 200mm fly lead with waterproof DT connector, and a 1m waterproof DT connector lead.

What voltage does the B86S operate on?

The B86S operates on 10-80V DC, compatible with 12V, 24V, 48V, and higher-voltage vehicle electrical systems.
