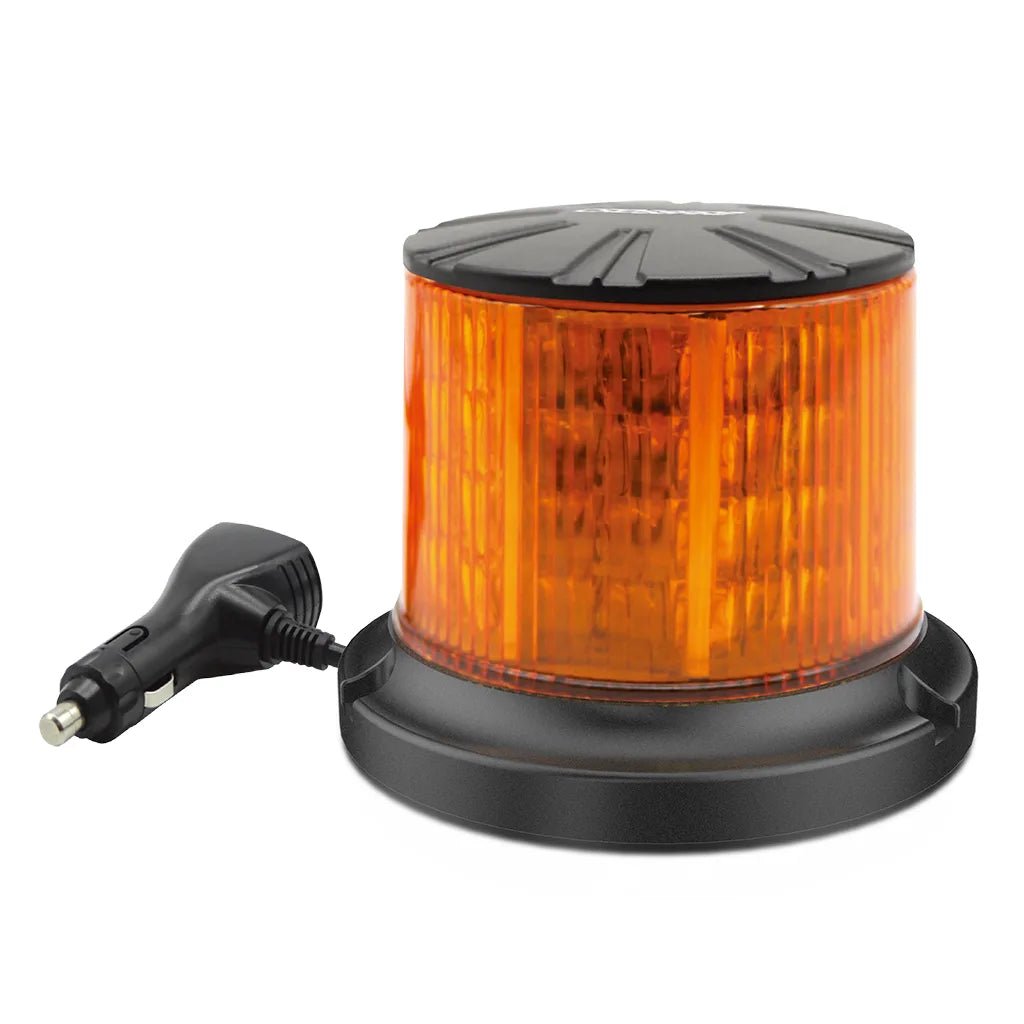

Crossfire B86M 64 LED 32W Amber Beacon Magnetic Mount Class 1
Crossfire B86M 64 LED 32W Amber Beacon Magnetic Mount Class 1
Click to open expanded view

Crossfire B86M 64 LED 32W Amber Beacon Magnetic Mount Class 1

SKU: B86M
Price
$169
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier and it usually dispatches within 3 to 7 business days.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Items we order in from a supplier usually dispatch within 3 to 7 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Crossfire B86M 64 LED 32W Amber Beacon Magnetic Mount Class 1

Crossfire B86M 64 LED 32W Amber Beacon Magnetic Mount Class 1

$169

Product features

Crossfire B86M Slimline Amber LED Warning Beacon Magnetic Mount 64 LED 32W 10 Selectable Patterns ECE R65 R10 SAE J845 Class 1 IP67 3m Cigarette Power Lead 10-30V DC

The Crossfire B86M is a slimline amber LED warning beacon with magnetic mount, 64 LEDs at 32W, and 10 selectable strobe patterns. ECE R65, R10, and SAE J845 Class 1 approved. IP67 dust and waterproof. 3m cigarette power lead included. Operates on 10-30V DC across a temperature range of -40°C to 65°C. Dimensions: 111.6mm W x 86.4mm H x 111.6mm D. Magnetic mount rated for use at speeds up to 100km/h on smooth surfaces.

Product overview

The B86M is a high-output slimline magnetic-mount beacon suited to applications requiring a Class 1 warning beacon without permanent installation. At 64 LEDs and 32W, it delivers significantly stronger output than smaller magnetic-mount options in the Crossfire range. ECE R65, R10, and SAE J845 Class 1 certification confirms the B86M meets the highest internationally recognised standards for vehicle warning beacons. The 3m cigarette power lead connects directly to the vehicle's 12V or 24V outlet for immediate operation without wiring. The magnetic base is rated for use up to 100km/h on smooth surfaces. 10 selectable strobe patterns, IP67 waterproof, and a working temperature range of -40°C to 65°C.

Features and benefits

ECE R65, R10, and SAE J845 Class 1 approved: Meets the highest international standards for vehicle warning beacons.

64 LED 32W amber strobe: High-output amber warning for maximum visibility.

10 selectable strobe patterns.

Magnetic mount: Tool-free installation, rated to 100km/h on smooth surfaces.

3m cigarette power lead included: Connects directly to the vehicle's 12V or 24V outlet.

IP67 dust and waterproof.

10-30V DC: Compatible with 12V and 24V vehicle electrical systems.

Operating temperature: -40°C to 65°C.

Dimensions: 111.6mm W x 86.4mm H x 111.6mm D.

What's in the box

  • Crossfire B86M beacon
  • 3m cigarette power lead

Technical specs

Specification Detail
SKU B86M
Brand Crossfire
Type Amber LED warning beacon
LED Count 64
Power 32W
LED Colour Amber
Strobe Patterns 10 selectable
Mount Type Magnetic
Magnetic Mount Speed Rating Up to 100km/h on smooth surfaces
Operating Voltage 10-30V DC
Waterproof Rating IP67
Compliance ECE R65, R10, SAE J845 Class 1
Cable 3m cigarette power lead
Operating Temperature -40°C to 65°C
Dimensions 111.6mm W x 86.4mm H x 111.6mm D

Frequently asked questions

Is the B86M Class 1 approved?

Yes. The B86M holds ECE R65, R10, and SAE J845 Class 1 approval, confirming it meets the highest international standards for vehicle warning beacons.

What is the speed rating for the magnetic mount on the B86M?

The magnetic mount on the B86M is rated for use at speeds up to 100km/h on smooth surfaces. It is not recommended for use on rough or unsealed surfaces at speed.

Does the B86M require permanent wiring?

No. The B86M includes a 3m cigarette power lead that connects to the vehicle's 12V or 24V outlet, allowing immediate operation without permanent wiring.

What is the difference between the B86M and the B120M?

The B86M has 64 LEDs at 32W, 10 selectable patterns, and measures 111.6mm x 86.4mm x 111.6mm. The B120M has 20 LEDs at 9W, 8 selectable patterns, and measures 130.5mm diameter x 120mm. Both have magnetic mounts with ECE R65/R10/SAE J845 Class 1 approval and IP67 rating. The B86M delivers significantly higher output.

What voltage does the B86M operate on?

The B86M operates on 10-30V DC, compatible with both 12V and 24V vehicle electrical systems.
