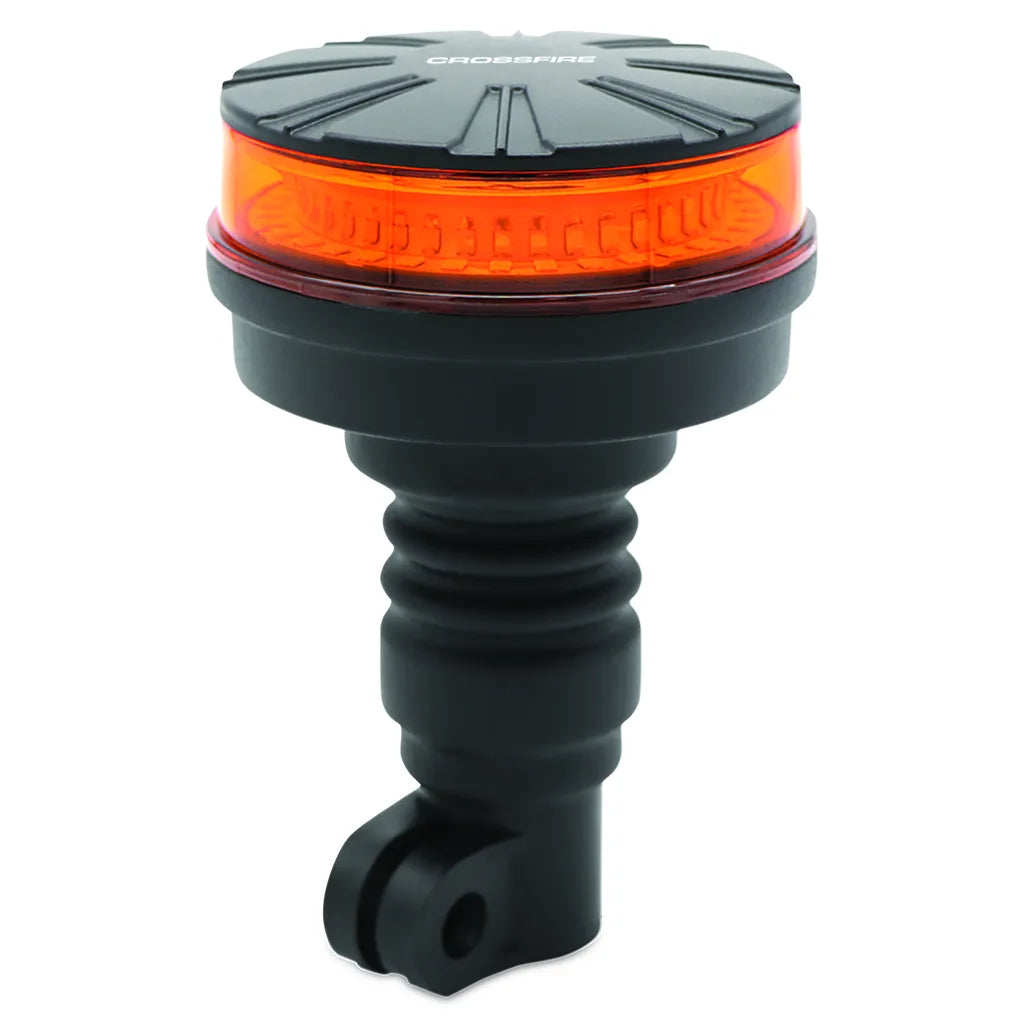

Crossfire B45P Super Slim 36 LED Amber Beacon Pole Mount Class 1
Crossfire B45P Super Slim 36 LED Amber Beacon Pole Mount Class 1
Click to open expanded view

Crossfire B45P Super Slim 36 LED Amber Beacon Pole Mount Class 1

SKU: B45P
Price
$169
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier and it usually dispatches within 3 to 7 business days.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Items we order in from a supplier usually dispatch within 3 to 7 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Crossfire B45P Super Slim 36 LED Amber Beacon Pole Mount Class 1

Crossfire B45P Super Slim 36 LED Amber Beacon Pole Mount Class 1

$169

Product features

Crossfire B45P Super Slimline Amber LED Warning Beacon Pole Mount 36 LED 18W 10 Selectable Patterns Die-Cast Alloy Chassis ECE R65 R10 SAE J845 Class 1 IP67 10-30V DC

The Crossfire B45P is a super slimline amber LED warning beacon with pole mount, 36 LEDs at 18W, and 10 selectable strobe patterns. Die-cast alloy chassis. ECE R65, R10, and SAE J845 Class 1 approved. IP67 dust and waterproof. Operates on 10-30V DC across a temperature range of -40°C to 65°C. Dimensions: 93mm W x 157mm H x 93mm D. Power and pole connection not included.

Product overview

The B45P is a super slimline pole-mount beacon built to Class 1 standard for demanding vehicle warning applications. ECE R65, R10, and SAE J845 Class 1 certification confirms the B45P meets the highest internationally recognised requirements for vehicle warning beacons. The 36-LED 18W array provides strong amber strobe output across 10 selectable patterns for flexibility across different site and application requirements. The die-cast alloy chassis is built for durability in tough outdoor and industrial environments, with IP67 waterproofing and a working temperature range of -40°C to 65°C. Pole mount design for permanent vehicle installation. Power cable and pole mounting connection are not included and must be sourced separately.

Features and benefits

ECE R65, R10, and SAE J845 Class 1 approved: Meets the highest international standards for vehicle warning beacons.

36 LED 18W amber strobe: High-output amber warning light for maximum visibility.

10 selectable strobe patterns: Flexible pattern selection for different applications and site requirements.

Die-cast alloy chassis: Durable construction for demanding outdoor and industrial environments.

Pole mount design: For permanent vehicle roof or cab installation.

IP67 dust and waterproof.

10-30V DC: Compatible with 12V and 24V vehicle electrical systems.

Operating temperature: -40°C to 65°C.

Dimensions: 93mm W x 157mm H x 93mm D.

Power and pole connection not included.

Technical specs

Specification Detail
SKU B45P
Brand Crossfire
Type Amber LED warning beacon
LED Count 36
Power 18W
LED Colour Amber
Strobe Patterns 10 selectable
Mount Type Pole mount
Chassis Die-cast alloy
Operating Voltage 10-30V DC
Waterproof Rating IP67
Compliance ECE R65, R10, SAE J845 Class 1
Operating Temperature -40°C to 65°C
Dimensions 93mm W x 157mm H x 93mm D
Included Beacon only
Not Included Power cable, pole connection

Frequently asked questions

Is the B45P Class 1 approved?

Yes. The B45P holds ECE R65, R10, and SAE J845 Class 1 approval, confirming it meets the highest international standards for vehicle warning beacons.

What is not included with the B45P?

The B45P is supplied as the beacon unit only. The power cable and pole mounting connection are not included and must be sourced separately. Contact us to confirm compatible mounting and wiring accessories.

How many strobe patterns does the B45P have?

The B45P has 10 selectable strobe patterns, allowing the pattern to be adjusted for different application requirements or site regulations.

What voltage does the B45P operate on?

The B45P operates on 10-30V DC, making it compatible with both 12V and 24V vehicle electrical systems.

What is the difference between the B45P and the B120M?

The B45P has a pole mount, 36 LEDs at 18W, 10 selectable patterns, and a die-cast alloy chassis at 93x157x93mm. The B120M has a magnetic and suction mount, 20 LEDs at 9W, 8 selectable patterns, and measures 130.5mm diameter x 120mm height. Choose the B45P for permanent pole-mount installation; choose the B120M for tool-free magnetic or suction mounting.
