ConnectPRO SWI-FD01 Radio Replacement Interface Suit Ford Various Models

Plug & Play ConnectPRO Radio Replacement Solution From Stinger Australia!

Ford Radio Replacement Interface
Make installation of your new aftermarket radio or infotainment system easy in select Ford vehicles with the Plug & Play ConnectPRO radio replacement solution from Stinger Australia.

The Radio Replacement Solution
There's nothing worse than losing your steering wheel control buttons when updating to the latest technology. The SWI-FD01 from ConnectPRO from Stinger Australia allows easy retention of steering wheel audio control buttons with your new aftermarket radio or infotainment system. Keep your eyes on the road and less time fumbling for the radio with ConnectPRO.

The Solid Connection
Each ConnectPRO radio replacement solution includes a Plug and Play interface for an easy and solid connection to your existing vehicle harness. No need to strip back wires or chop off connectors in your vehicle allowing re-installation of your factory radio if ever required.

Compatibility Notes

• Not compatible with vehicles that have ignition 12v in 40-PIN Radio Connector
• Does not retain an Amplified system
• Phone buttons cannot be retained in all vehicle models (If fitted)
• Voice Recognition (VR) Button feature not retained (If fitted)
• Multimedia Outputs (Reverse / Handbrake / VSS / Illumination) are only available if data is present on the vehicle network.
• Designed for use with major branded head units including Alpine, Clarion, Kenwood, JVC, Pioneer, Sony, Stinger plus more.

Features:

• Retains Factory-Fitted Steering Wheel Audio Buttons
• 'Nav' or Multimedia Outputs Including: Reverse Trigger, Park Brake, Speed Signal, and Illumination Output
• Suitable for vehicles with 40-PIN Quadlock

Specifications:

• Plug & Play: Yes – Factory Connector to Standard ISO Connector
• Retain Factory Steering Wheel Audio Controls: Yes – Will Retain Steering Wheel Audio Controls with Select Aftermarket Radios.
• Retain Factory Amplifier: No
• Retain Parking Sensors: No – If the vehicle OEM radio was generating the parking sensor tones. If parking sensors are not part of the factory radio, they should not be affected.
• Vehicle Plug Style: 40-PIN Quadlock Style Connector
• Application Notes: Suits models without 12V ignition wire in the vehicle 40-PIN Quadlock harness.

Vehicle Compatibility:

• Ford Fiesta 2006 - 2008 (WQ)
• Ford Focus (Incl. XR5) 2005 - 2007 (LS-LT)
• Ford Focus (Incl .XR5) 2008 - 2011 (LV)
• Ford Kuga 2011 - 2013 (1st Gen)
• Ford Mondeo 2007 - 2014 (MB - MC)
• Ford Transit 2007 - 2014 (VM)

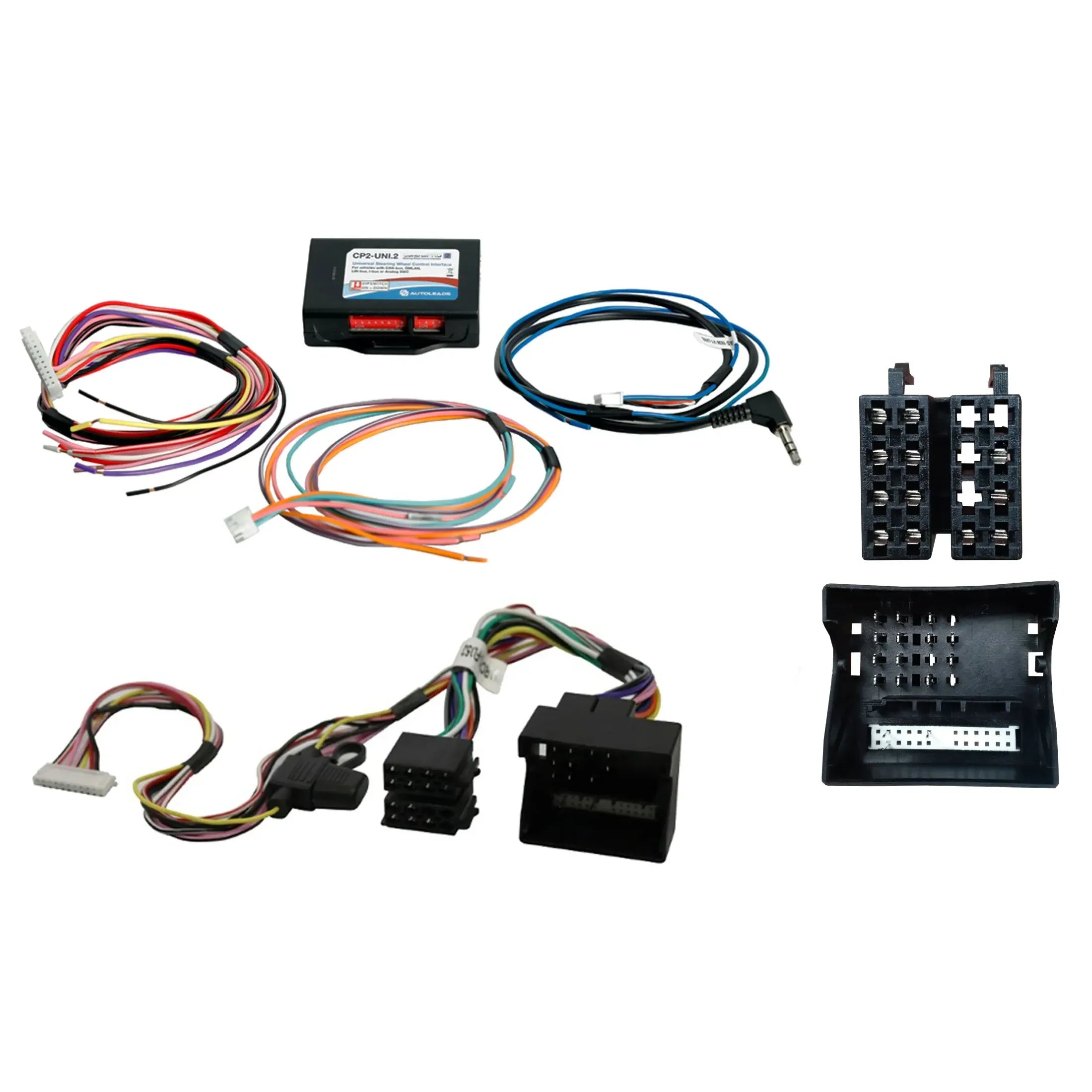

Kit Includes:

• Autoleads ControlPRO.2 CP2-UNI.2 Interface
• 40 PIN Quadlock Vehicle Plug & Play Harness
• Bare Wire CP2-UNI.2 Harness
• Instruction Manual
