Clutch Industries 4TSRF2538NXA VDJ1400 Clutch Kit + FW Suits Toyota

Increase the torque handling capability of your Clutch Direct upgraded 4x4.

TOYOTA LANDCRUISER (2007+) VDJ78 4.5 LTR V8 DIESEL, 1VD-FTV 4TERRAIN ULTIMATE PRO 1400NM W/ FLYWHEEL
Clutch Direct are proud to offer PHC clutch upgrades for your 4x4. Increase the torque handling capability of your Clutch Direct upgraded 4x4. Perfect for tuned and enhanced 4x4's, or even those who just want to push the limits off-road.
Improve the torque capacity of your V8 70 Series to a massive 1400NM with a pedal feel that is as light as factory!

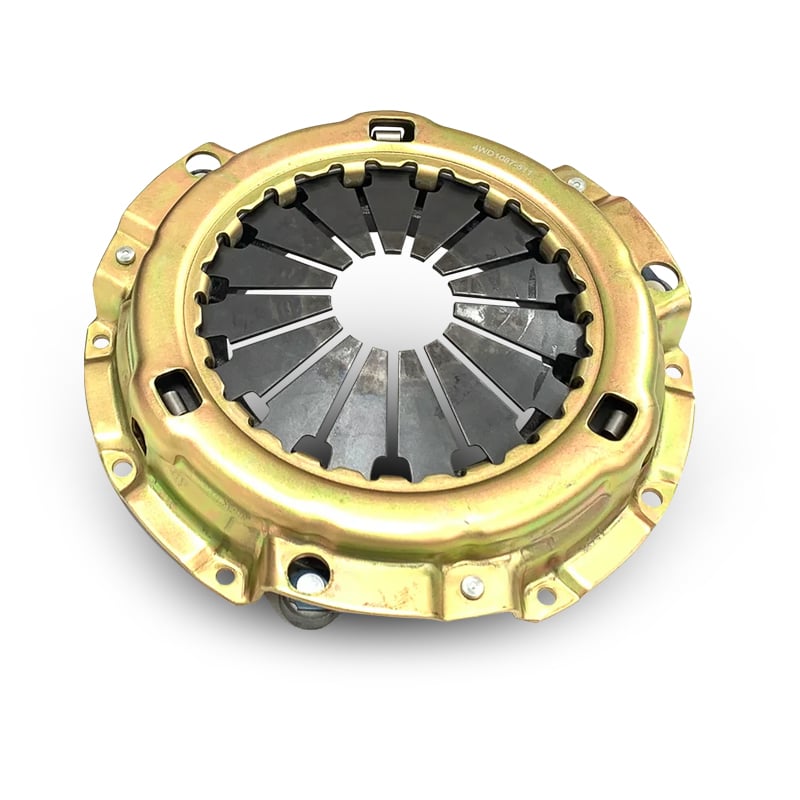

Patented 4 Terrain Off Road Cover Assembly:
4x4 systems need a higher torque capacity while retaining good pedal feel with fine modulation control. These characteristics inevitably increase heat which reduces service life. So the ideal 4x4 clutch system must also have improved heat dissipation. 4Terrain cover assemblies are in themselves high clamp load covers providing increased clamping force as compared to standard product. Also featuring the ER2 grooved cover which increase torque capacity while also increase heat dissipation.

Spheroidal Graphite Castings:
Approximately 300% stronger than a standard casting this material (sometimes referred to as an Anti Burst casting) not only increases strength by up to 3 times, it also improves heat dispersion.

Balanced Covers:
To insure that the clutch system performs at maximum efficiency and that no unwanted vibration is generated as the cover spins, all 4Terrain cover assemblies undergo a 2 stage balancing process.

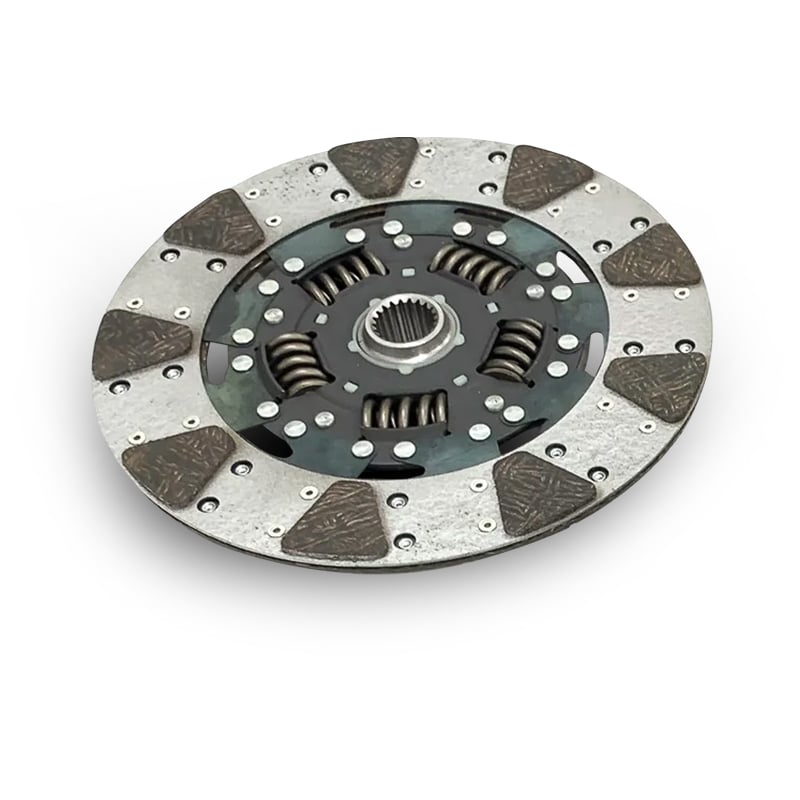

Heavy Duty Clutch Plate:
4Terrain Heavy Duty Clutch Kits feature an increase in organic friction material. These plates offer a 25% increase in friction material thickness compared with other clutch systems.

Features:

• Engine: 4.5 Ltr V8 Diesel, 1VD-FTV
• Series: VDJ78

Specifications:

• Clutch Plate Dimensions: 300 x 14T x 32.4
• Dual Mass Flywheel: Not Included
• Solid Flywheel: Included
• Concentric Slave Cylinder: Not Included
• Torque Capacity: Peak: 1400NM at Flywheel
• Flywheel Spec: Includes Solid Flywheel
• Spigot: RSB549
• Alignment: CAT211
• Length: 46
• Width: 36
• Height: 18

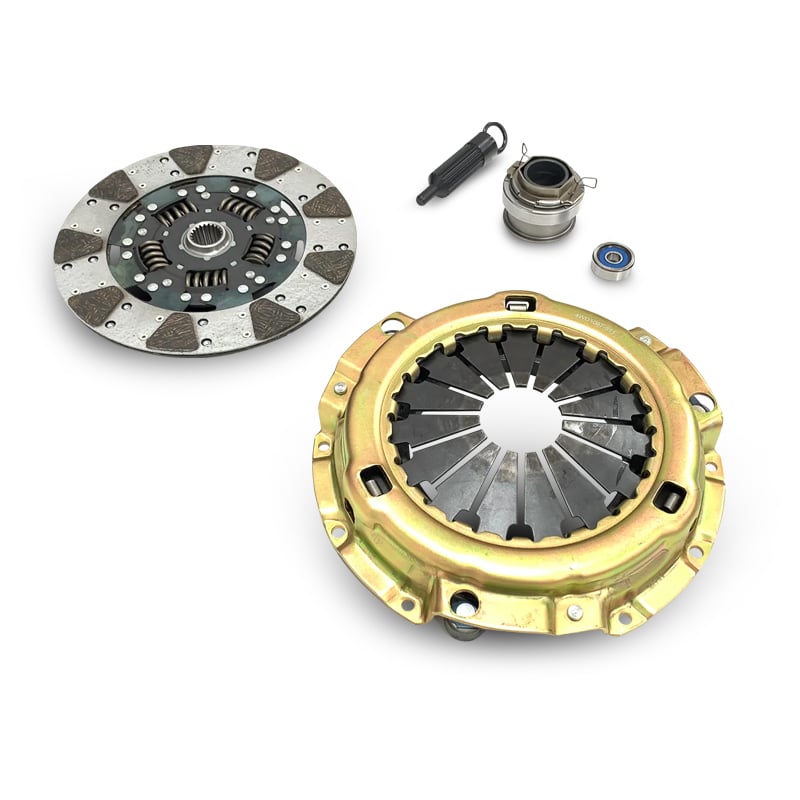

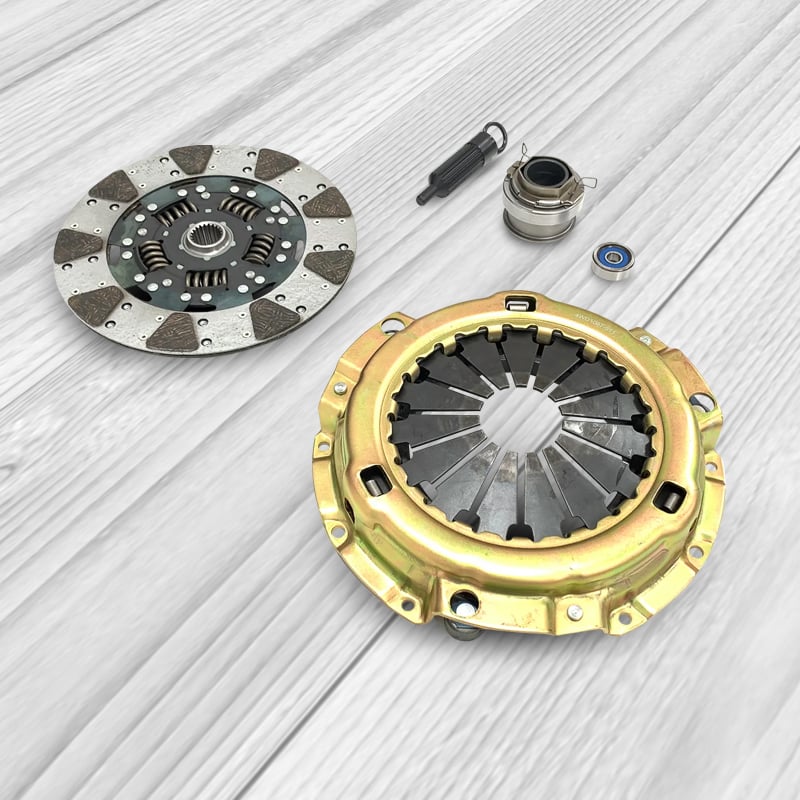

What's in The Box:

• 4 Terrain Er2 Heavy Duty Cover Assembly
• 4 Terrain Aramide Dual Friction
• High Torque
• Clutch Plate

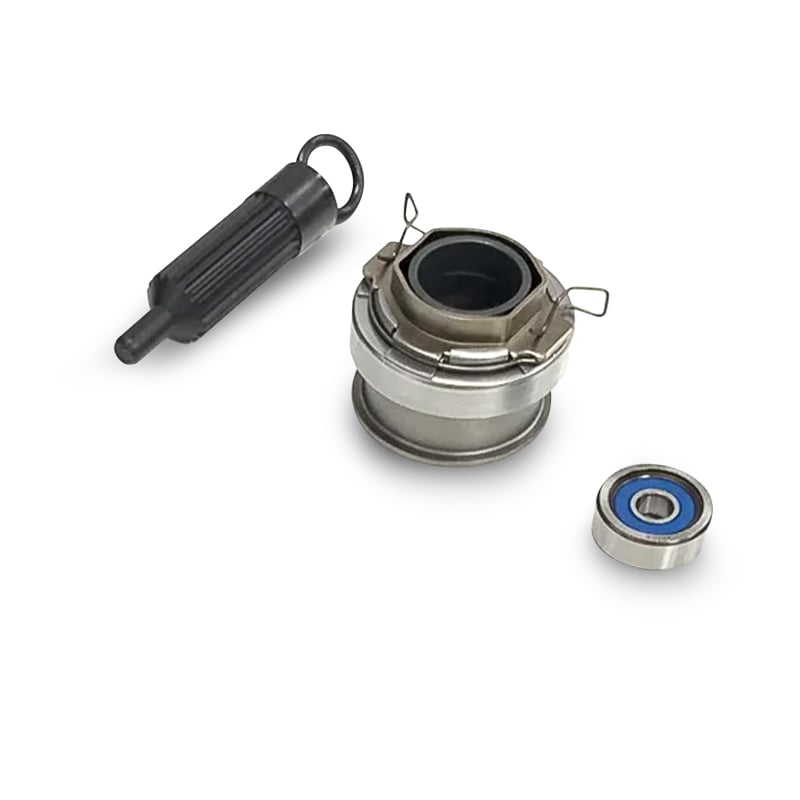

• Release Bearing
• Clutch Alignment Tool
• Spigot Bearing
