Clarion XH7110 850W XH Series Class-GH Monoblock Power Amplifier

SKU: XH7110
Price
$598
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

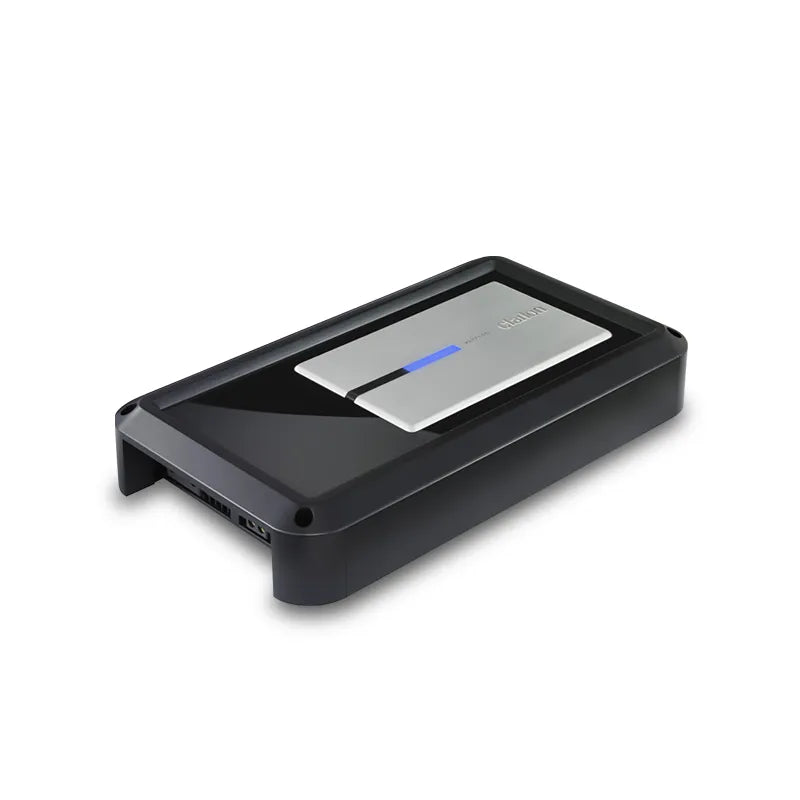

Clarion XH7110 XH Series monoblock amplifier

Clarion XH7110 850W XH Series Class-GH Monoblock Power Amplifier

Price
$598

Product features

Dependably Provide Full-Frequency Response With Low Distortion & Exceptional Signal-To-Noise Performance!

Circuit Design Achieves High-Quality Sound (XH Series)
Encompassing a host of high-quality components, Clarion’s amplifiers take your music to a whole new level. Featuring uncompromising resistance to magnetic noise, the circuit design used by Clarion’s amplifiers allows for easy subwoofer system configurations using its embedded high-pass and low-pass filters.

What’s more, Clarion’s high-grade, gold-plated block terminals offer low electrical and contact resistance for crystal-clear sound. These amps also boast 2-ohm stability for increased power and reliability when connected to speakers with 2-ohm loads. Put simply, Clarion offers a line of amplifiers that boast superior power and versatility.

MOS-FET Power Amplifier
There’s only one way for Clarion’s source units to deliver unyielding power output and linearity: MOS-FET amplification, or Metal Oxide Semiconductor Field Effect Transistor amplification. Smaller and more efficient than conventional power supplies, a MOS-FET amplification circuit delivers power with less distortion and zero On/Off switching noise.

This means you can crank up the volume or set it to easy listening. Either way, your sound will be crystal clear.

Gold-Plated RCA & Block Terminal
By utilizing gold-plated RCA and block terminals, Clarion’s amplifiers offer increased conductivity and low signal loss. Gold has an extremely low electrical resistance and low contact resistance, which helps to prevent voltage drops, noise, heating and other problems from occurring.

2-Ohm Stability
Utilizing this design for peak performance and unwavering reliability, Clarion’s amplifiers can drive lower impedance loads for increased power.

CEA 2006 Power Ratings
460W × 1 RMS <4Ω @14.4V ≤1% THD+N>, S/N 68dB (Ref: 1W into 4Ω)

Specifications:

  • Number of Channels: MONO
  • Maximum Power Output: 850W
  • MOS-FET Power Supply: Yes
  • Power @ 4-Ohm: 450W × 1
  • Power @ 2-Ohm: 850W × 1
  • Adjustable Low Pass Crossover: 30 ~ 250Hz
  • Adjustable Subsonic Filter: Off / 15 / 30Hz
  • Input Voltage Sensing: Yes
  • Precise Frequency Selector: Yes
  • Variable Bass Boost: 0-15dB @ 30-125Hz
  • 2-Ohm Mono Stable: Yes
  • 1-Ohm Mono Stable: Yes
  • Variable Bass Boost Control: Yes
  • Gold-Plated Connectors: RCA / Speaker / Power
  • Speaker Level Input: Yes
  • Dimensions: (W) 230mm × (H) 67mm × (D) 407mm
  • Weight: 5.20kg

Frequently Asked Questions

Quick answers to our most common customer questions.

How much power does the Clarion XH7110 make?
450W x 1 at 4 ohms and 850W x 1 at 2 ohms.
Is it 1 ohm stable?
Yes, the listing says it is 2 ohm and 1 ohm mono stable.
What crossover does it have?
An adjustable low pass crossover from 30 to 250Hz and a subsonic filter with off, 15 and 30Hz settings.
