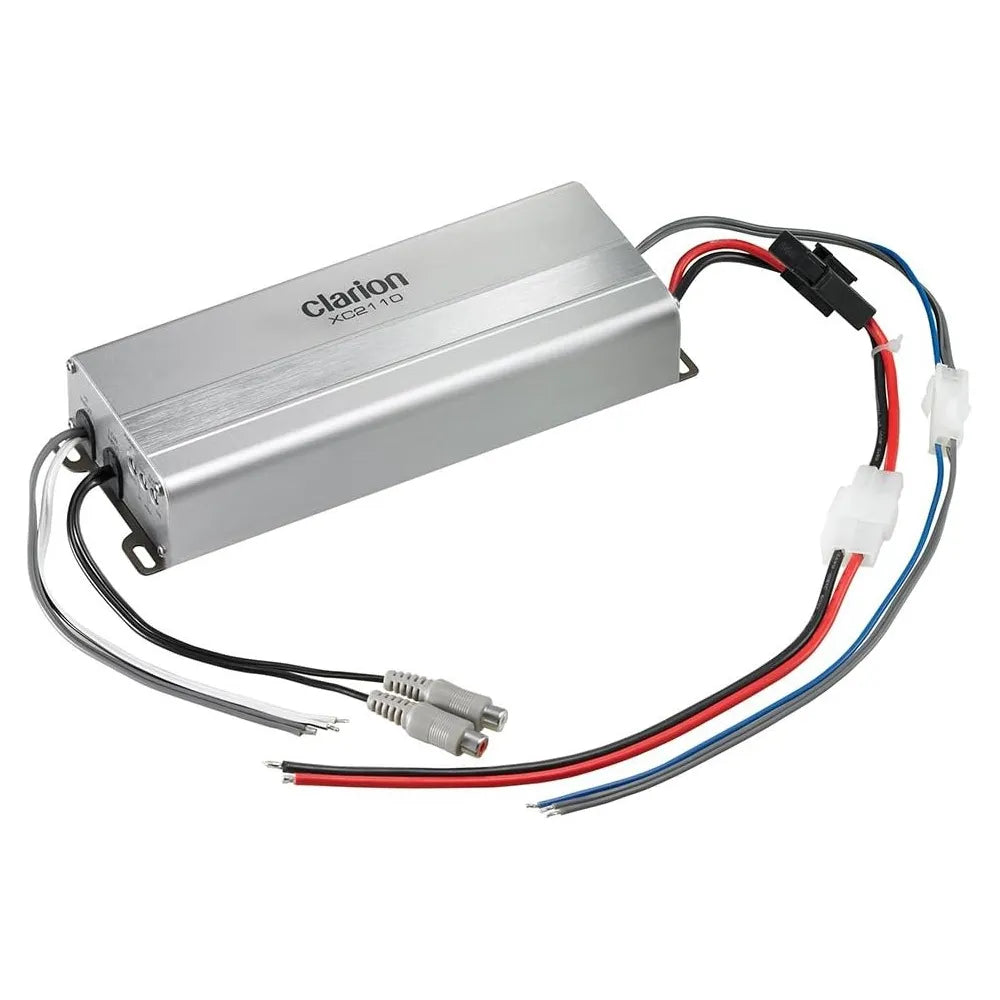

Clarion XC2110 400W Micro-Sized Mono Marine Digital Class-D Power Amplifier

Clarion XC2110: Built to Produce High Sound Quality & Withstand the Toughest Environments!

Micro-Sized Mono Class-D Amplifier
The Clarion XC2110 is a micro-sized amplifier that is so compact it can be mounted virtually anywhere, even behind most dashboards. This 1-channel mono amp delivers 300W RMS to a subwoofer. The amplifier is built to produce high sound quality and withstand the toughest environments. It features; efficient aluminium heatsinks, double-sided conformal coated PCB assembly, corrosion resistant nickel plated RCA, power and speaker connectors, and a circuit design that is resistant to magnetic noise which thereby minimises distortion.

Circuit Design Achieves High-Quality Sound
Clarion amplifiers feature uncompromising resistance to magnetic noise, thereby minimizing distortion, as well as high-quality terminals to offer low electrical and contact resistance. Easy subwoofer system configuration is possible with the embedded low-pass filters. The result is high-quality sound you can enjoy in a variety of systems.

Corrosion Resistant RCA & Connectors On All XC Series Amplifiers
By utilizing corrosion-resistant RCA and Connectors, XC series amplifiers offer improved durability and reliability in harsh environments. The XC series amplifiers are true marine amplifiers with efficient aluminum heatsinks and locking power terminals for harsh marine conditions.

MOS-FET Power Amplifier
There's only one way for Clarion’s main units to deliver unyielding power output and linearity: MOS-FET amplification, or Metal Oxide Semiconductor Field Effect Transistor amplification. Smaller and more efficient than conventional power supplies, a MOS-FET amplification circuit delivers power with less distortion and zero On/Off switching noise. This means you can crank up the volume or set it to easy listening. Either way, your sound will be crystal clear.

2-Ohm Stability
Utilizing this design for peak performance and unwavering reliability, Clarion’s amplifiers can drive lower impedance loads for increased power.

CEA 2006 Power Ratings:

• 300W × 1 RMS <2Ω @ ≤ 14.4V 1% THD+N>
• 200W × 1 RMS <4Ω @ ≤ 14.4V 1% THD+N>
• S/N ≧ 70dB (Ref: 1W Into 4Ω)

Features:

• 400 Watts of Maximum Power Output
• 300 Watts × 1 Continuous @ 2-Ohms
• 200 Watts × 1 Continuous @ 4-Ohms
• Double Side Conformal Coated PCB Assembly
• MOS-FET Power Supply
• 12dB/Oct. Low Pass Electronic Crossover. Variable 35 - 250Hz
• Variable Gain Control
• Turn-On/Off Muting Circuitry (Soft Mute)
• Ground Loop Isolation Input Circuit
• Corrosion Resistant Nickel Plated RCA, Power, and Speaker Connections
• RCA and High-Level Speaker Inputs

Specifications:

• Type: Marine Micro - Mono Amplifier
• Power Rating @ 4-Ohm: 200W × 1
• Power Rating @ 2-Ohm: 300W × 1
• Class Type: D
• Channels: 1
• MOS-FET Power Supply: Yes
• 2-Ohm Stable: Yes
• Selectable Bass Boost: 0-12dB @ 50Hz
• Adjustable 12db/Oct. Low Pass Crossover: Variable 35 - 250Hz
• Nickel Plated Connectors: RCA/ Speaker/ Power
• Dimensions: (W) 199.39mm × (H) 39.12mm × (D) 82.04mm
• Weight: 1.16kg
