Clarion FZ307AU Single DIN USB/AUX-IN/SD/MP3/WMA Mechless Audio Receiver With Built-In Bluetooth

Stay in Touch & Move to Music With Bluetooth®, Hands-Free Calling & Digital Media!

Single DIN Mechless Audio Receiver
The Clarion FZ307AU has a sleek sharp edgy design. It is packed full of features including; built-in Bluetooth for hands-free calls and wireless audio streaming, AM/FM tuner, MP3/WMA playback, and USB/SD/AUX inputs, the FZ307AU has it all. The sound quality is superb with a built-in 45w x 4 amplifier and beat EQ sound customisation. If more sound is desired, amplifiers can be added to the system via the 2V/6CH RCA outputs (Front, rear, and sub) with built-in low pass crossovers and subwoofer level control. The unit is OEM steering wheel remote-ready and also includes a wireless infrared remote control.

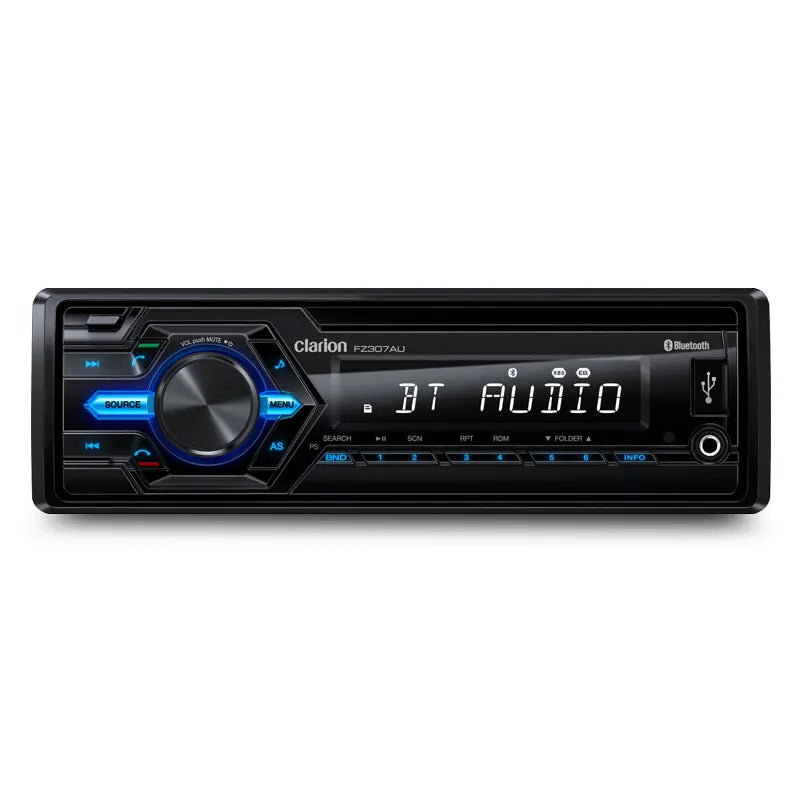

Sleek & Sharp Edgy Design on A Black Theme
The cool blue illumination provides a beautiful contrast against the piano black faceplate. The honeycomb pattern surrounding the volume knob gives the unit a sharp look.

Built-In Bluetooth® Hands-Free & Audio Streaming
FZ307AU’s built-in wireless Bluetooth interface supports HSP / HFP for hands-free operation. You can easily communicate with the outside world by listening to phone calls through the car’s audio system and talking through the embedded microphone. And with A2DP / AVRCP support, you can enjoy music streamed from your mobile phone.

Note: Please see our website for details of compatible Bluetooth mobile phones.

Multimedia Support Including iPhone®, MP3/WMA Compatible Front USB/SD Memory
Just connect your iPhone to the source unit’s USB port to access and play music through your car’s audio system. Music search is possible using the source unit’s controls. The front USB slot also supports playback of MP3 and WMA format audio files, so you can save your favourite music onto a USB or SD memory device and enjoy them in your car.

Features:

• Short Body Mechless Design
• Built-in Bluetooth for hands-free communication and wireless audio streaming
• Single Line High Visibility LCD
• Easy to Operate, Rotary Volume Control
• AM/FM Radio Tuner with 18xFM / 6xAM Presets
• MP3 & WMA Compatible with ID3-TAG Display
• Front USB for Audio Playback
• Direct iPod/iPhone Advanced Mode Control
• iPod/iPhone Search by Artists / Albums / Songs / Genres / Composers / Playlists
• SD Card Slot For MP3 / WMA Music Playback
• Front 3.5mm AUX Input with Sensitivity Adjustment
• Beat-EQ Sound Customisation (Bass-Boost, Impact, Excite, Custom)
• Built-In 45W x 4 Amplifier
• 2V/6CH RCA Output (Front + Rear + Subwoofer)
• Built-In Low Pass Crossovers
• Subwoofer Level Control
• OEM Steering Wheel Remote Ready
• Wireless Infrared Remote Control Included

Specifications:

Tuner:

• Frequency Bands:
  FM: (MHz) 0.05MHz Steps: 87.5 ~ 108
  MW: (kHz) 9 kHz Steps: 531 ~ 1,629
  FM Usable Sensitivity: 8dBf
  FM 50 dB Quieting Sensitivity: 17dBf
  FM Alternate Channel Selectivity: 60dB
  FM Stereo Separation @ 1 kHz: 30dB
  FM Stereo Freq. Resp. @ ±3 dB: 30 ~ 15,000Hz

Bluetooth®:

• Bluetooth Version: 3.0v
• Output Power: Mass Storage Class
• File System: Power Class 2
• USB Connection:
• USB Requirements: USB 1.1/2.0
• USB Class: Mass Storage Class
• File System: FAT 12/16/32
• MP3 Decoding: MPEG-1/2 Audio Layer-3
• WMA Decoding: Windows Media™ Audio

Audio:

• Power Output: 4 × 45W

General:

• Power Requirement: 14.4 DC (10.8 - 15.6V Allowable)
• Power Consumption: Less Than 15A
• Speaker Impedance: 4Ω (4Ω ~ 8Ω Allowable)
• Pre-Maximum Output Voltage: 2V / 10 kΩ
• Maximum Mounting Angle: 30°
• Dimension: (W) 188mm × (H) 57.8mm × (D) 196mm
• Remote Control: (W) 70mm × (H) 34mm × (D) 10mm
• Packaging Type: Giftbox
• Weight: 1.50kg
