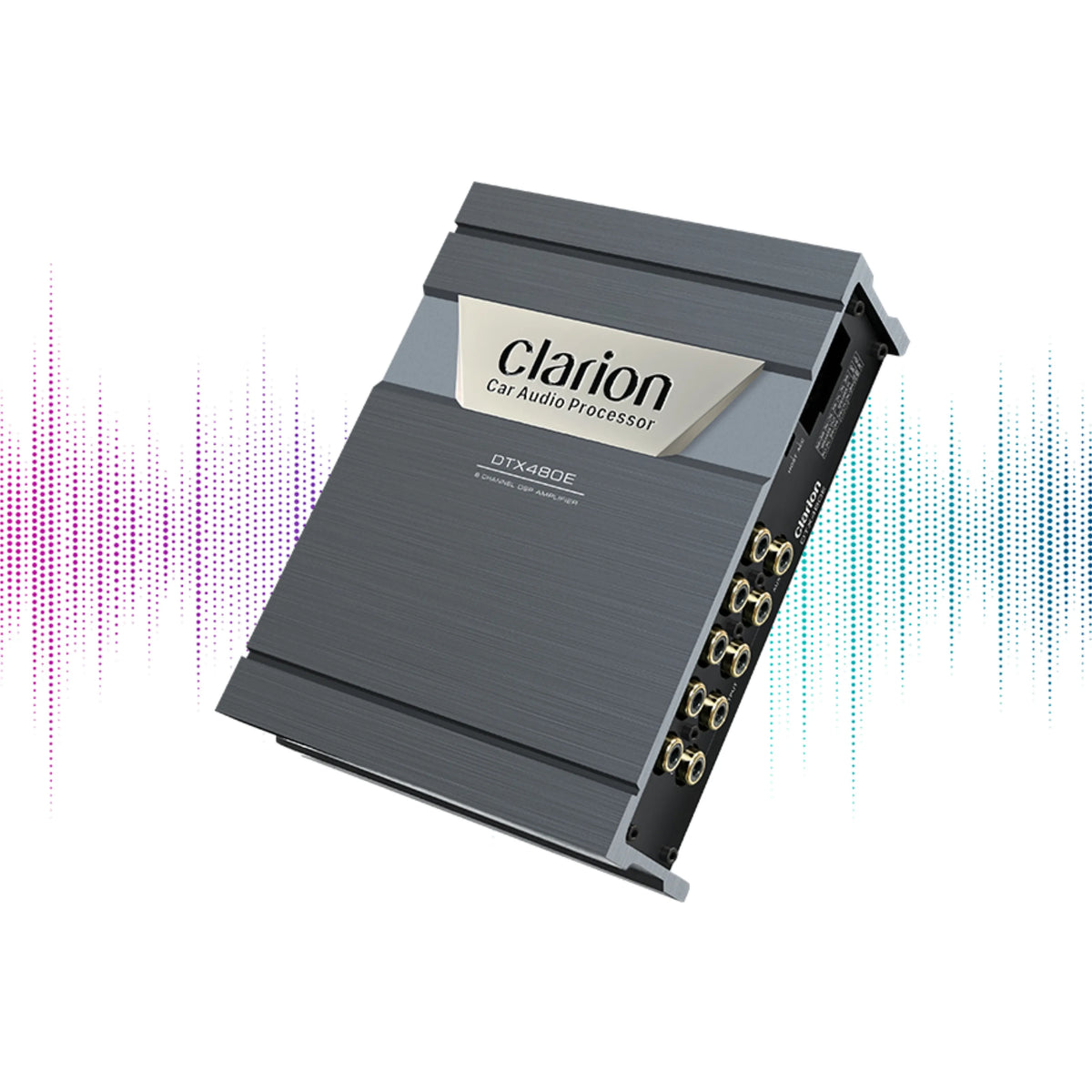

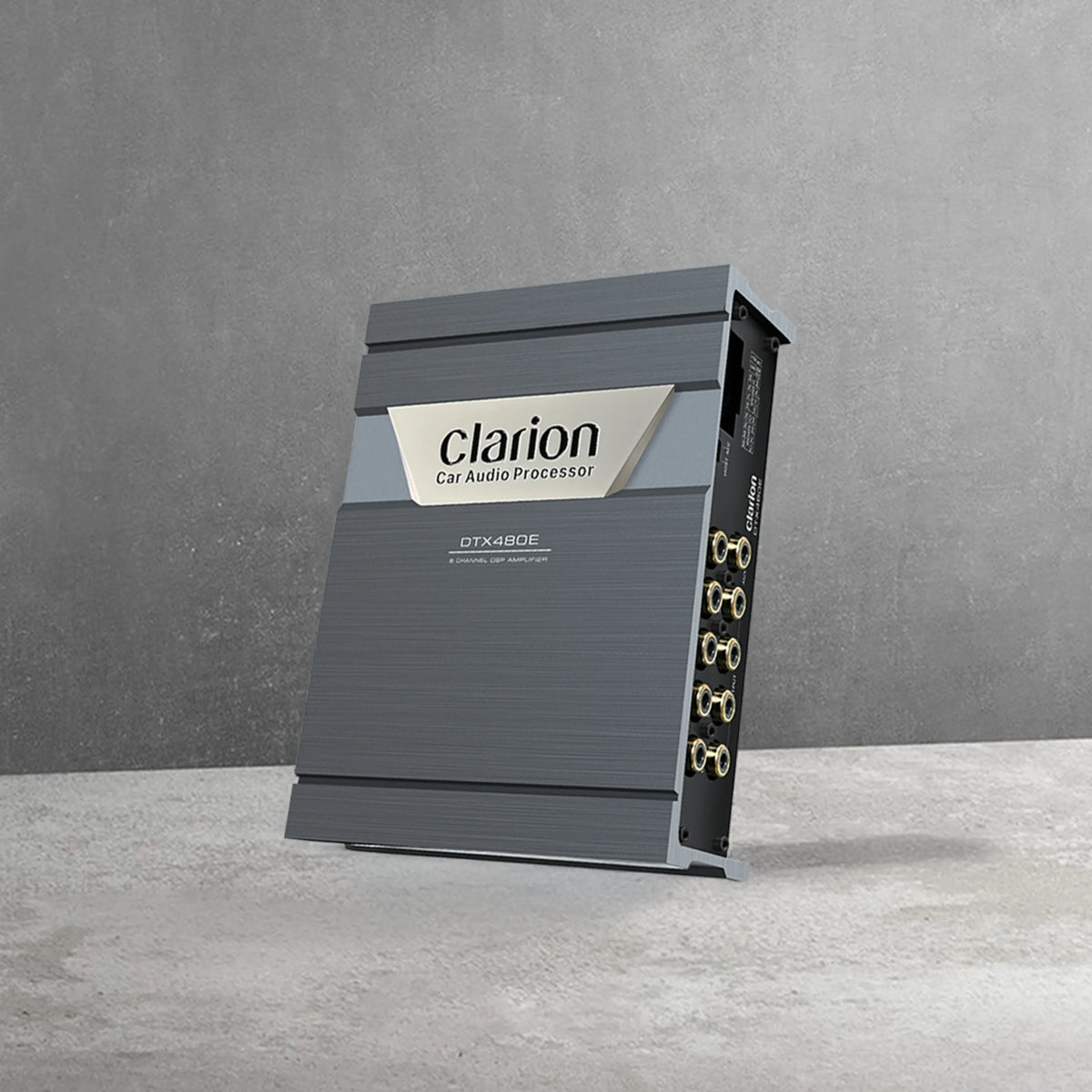

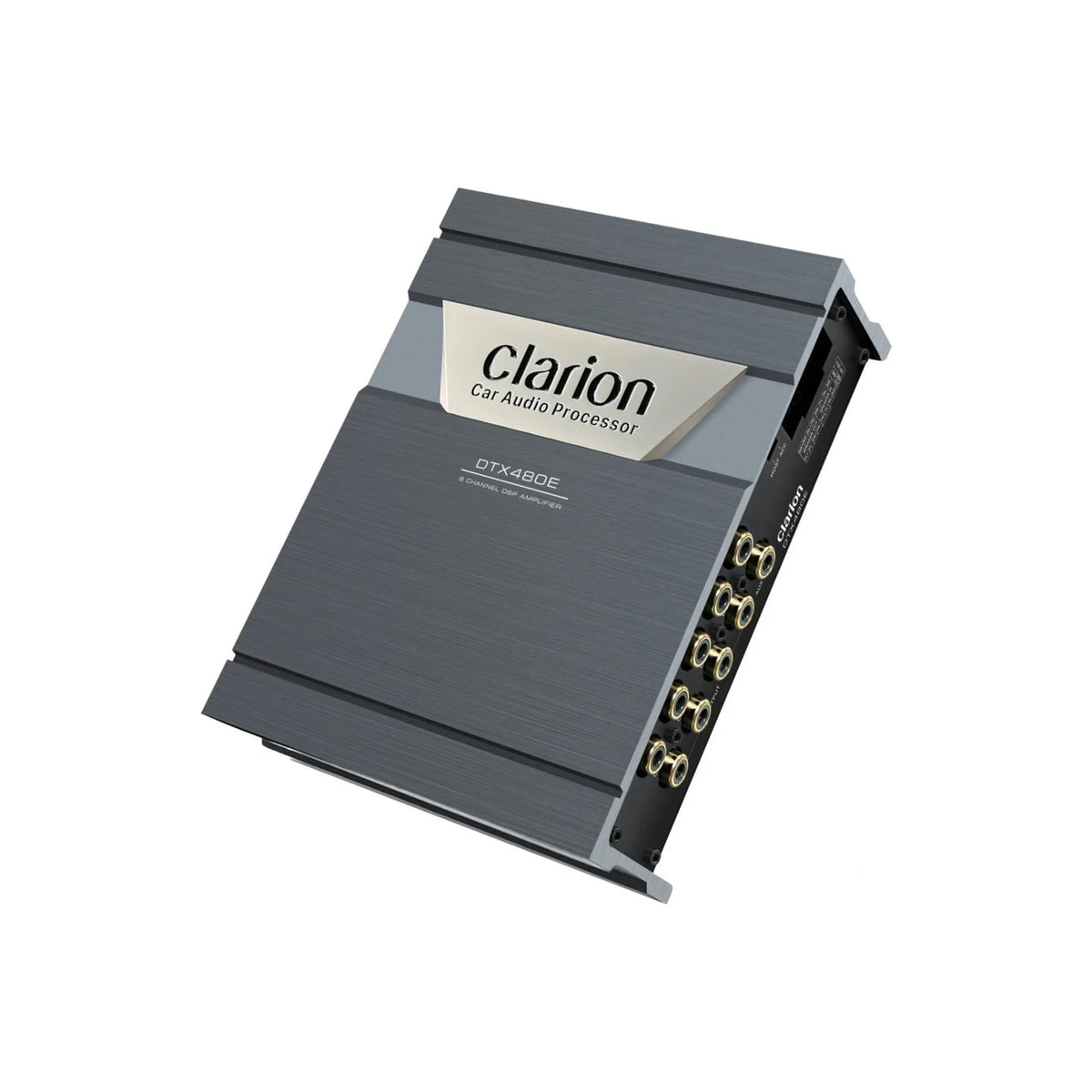

Clarion DTX480E 4-Channel 200W Amplifier with 8-Channel DSP

Versatile DSP amplifier with expanded input options for modern source integration

Product Overview

The Clarion DTX480E is an 8-channel digital signal processor and 4-channel Class A/B amplifier engineered for installations requiring maximum source flexibility. Delivering 200W maximum power (50W peak per channel), this unit distinguishes itself through comprehensive connectivity options including high-level inputs, AUX, USB-A, optical, and coaxial digital—enabling direct integration with factory systems, aftermarket head units, smartphones, USB drives, and digital audio devices without external adapters. The compact chassis (167mm × 131mm × 49mm, 1.10kg) houses professional-grade DSP processing with 31-band parametric EQ per channel, independent crossover filters with selectable topologies, and time alignment up to 10,000ms. With eight RCA outputs plus four high-level outputs, the DTX480E serves as both amplifier and system hub, powering front speakers directly while routing pre-amplified signals to external amplifiers for expanded configurations. The Class A/B architecture delivers exceptional sonic accuracy with 0.03% THD and 102dB dynamic range—matching the performance of much larger processors while fitting installations where space and source versatility are equally critical.

Key Specifications

• 8-channel DSP processor with 4-channel Class A/B amplification
• Maximum power output: 200W (50W peak per channel across CH1-4)
• 6 input types: 4 high-level (8-28Vpp) + AUX + optical/coaxial digital + USB-A (flash drive)
• 12 total outputs: 8 RCA (6Vpp max) + 4 high-level for flexible routing
• 31-band parametric EQ per channel: 20Hz-20kHz, Q value 0.429-16.052, ±20dB gain, 0.1dB resolution
• Independent high-pass/low-pass filters per channel: 20Hz-20kHz, 6-48dB/octave slopes
• Output delay: 0-10,000ms (346cm/136in) for time alignment
• Filter types: Linkwitz-Riley, Butterworth, Bessel
• Dynamic range >102dB, signal-to-noise ratio >98dB, THD 0.03%
• Operating temperature: -40°C to +60°C
• Operating voltage: DC 9-17V
• Compact dimensions: 167mm (L) × 131mm (W) × 49mm (H)
• Weight: 1.10kg (packaged)

Features & Benefits

USB-A input for direct flash drive playback eliminates the need for external media players or Bluetooth adapters, allowing direct playback of high-resolution FLAC, WAV, or MP3 files from USB storage—perfect for touring vehicles, work utes, or installations where the factory head unit lacks modern connectivity but you want access to lossless audio libraries.

Optical and coaxial digital inputs accept bit-perfect digital signals from compatible head units or portable DACs, bypassing analog conversion stages that introduce noise and preserving the full 102dB dynamic range from source to speaker—critical for revealing detail in high-resolution recordings that analog connections compress.

AUX input with wide voltage tolerance (1-6Vpp) accepts signals from virtually any portable device including smartphones, tablets, or portable music players without level-matching concerns, making this ideal for commercial vehicle applications where multiple drivers use different personal devices as audio sources.

Eight RCA pre-outputs enable complex system architectures including bi-amped front components, dedicated center channel, rear fill, and multiple subwoofer zones, with the DTX480E serving as the DSP brain while external amplifiers provide additional power where needed—maximizes flexibility without sacrificing the compact footprint.

Class A/B amplification with 0.03% THD delivers audiophile-grade sonic purity superior to Class D designs, with particular advantages in midrange clarity and vocal reproduction where the human ear is most sensitive—you'll hear subtle detail in acoustic instruments and vocal harmonics that gets masked by higher-distortion amplifier topologies.

10,000ms time alignment accommodates off-axis listening positions in dual-cab utes, vans, or right-hand-drive vehicles where asymmetric speaker placement requires phase correction to create convincing stereo imaging from the driver's seat despite physical speaker distances favoring the passenger side.

High-level inputs with signal sensing accept factory speaker-level outputs and automatically power the unit when audio is detected, eliminating complex remote wire routing in factory integration scenarios—particularly valuable in vehicles where accessing ignition-switched 12V requires extensive dashboard disassembly.

Extended temperature rating (-40°C to +60°C) ensures reliable operation in extreme Australian environments from alpine snowfields to outback desert conditions, plus the wide voltage tolerance (9-17V) maintains stable performance during engine cranking or alternator charging spikes common in 4WD electrical systems.

Technical Specs

• Amplifier type: Class A/B (all channels)
• Input channels: 6 types total (4 high-level @ 4.7Ω impedance + AUX/RCA @ 10kΩ + optical/coaxial digital + USB-A flash drive)
• Output channels: 12 total (8 RCA @ 20kΩ impedance + 4 high-level)
• Peak power output: 50W per channel (200W total maximum across CH1-4)
• Signal input range: RCA/AUX 1-6Vpp max, high-level 8-28Vpp max
• Signal output range: RCA 6Vpp max
• Equalizer: 31-band parametric per channel, 20Hz-20kHz (1Hz resolution), Q 0.429-16.052, ±20dB gain (0.1dB steps)
• Crossover filters: Linkwitz-Riley, Butterworth, Bessel types, 20Hz-20kHz (1Hz resolution), OFF/6/12/18/24/30/36/42/48dB per octave slopes
• Output phase: 0° or 180° selectable per channel
• Output delay: 0-10,000ms (0-346cm/0-136in)
• Frequency response: 20Hz-20kHz
• Total harmonic distortion: 0.03%
• Signal-to-noise ratio: >98dB (RCA)
• Dynamic range: >102dB
• Remote input: high-level sense or ACC start
• Remote output: +12V DC @ 100mA
• Standby power consumption: 0.1W
• Operating temperature: -40°C to +60°C
• Working voltage: DC 9-17V
• Dimensions: 167mm × 131mm × 49mm (L × W × H)
• Weight: 1.10kg (packaged)

Frequently Asked Questions

Can I play music directly from a USB stick?

Yes, the USB-A input accepts standard flash drives loaded with audio files (MP3, FLAC, WAV formats supported). This allows direct playback without a head unit or Bluetooth connection—ideal for work vehicles, hire cars, or installations where simple, reliable audio playback from personal libraries is required.

What's the difference between this and the DTX1001T?

The DTX480E adds USB, AUX, and digital optical/coaxial inputs (vs high-level only on DTX1001T) plus eight RCA outputs (vs two on DTX1001T). Both deliver 50W per channel with Class A/B amplification, but the DTX480E prioritizes source versatility while the DTX1001T is more compact (145mm vs 167mm).

Does the digital input improve sound quality?

When connected via optical or coaxial digital input from a compatible source, the DTX480E receives a pure digital signal that preserves the full 102dB dynamic range without analog conversion losses. Most noticeable in quiet passages and high-resolution recordings where noise floor matters.

Can this power front speakers and a subwoofer?

The DTX480E delivers 50W peak per channel—sufficient for front component speakers. For subwoofers, use the eight RCA outputs to feed an external mono block amplifier while the DTX480E handles DSP processing and powers front speakers directly, creating a versatile two-unit system.

Is laptop tuning software required?

Yes, the DTX480E uses Clarion's Windows-based tuning software (free download) via USB-to-serial adapter (not included). While electrical installation is straightforward, optimal DSP tuning benefits from measurement equipment (calibrated microphone, RTA software) for proper crossover, EQ, and time alignment setup.

Compatible With / Goes Well With

• Aftermarket component speaker systems (4" to 6.5" sizes for front stage)
• Factory audio system upgrades requiring versatile input options
• External mono block amplifiers for subwoofer power (fed via RCA pre-outs)
• USB flash drives loaded with high-resolution audio files (FLAC, WAV, MP3)
• Head units with digital optical/coaxial outputs for maximum signal quality
• Portable audio devices via AUX input (smartphones, tablets, portable players)
• Commercial vehicle applications requiring simple USB playback
• USB-to-serial adapters for laptop tuning connection
• 8-gauge or 10-gauge amplifier wiring kits for 200W power requirement
• Calibrated measurement microphones for professional DSP setup

Weight

1.10kg (packaged)
