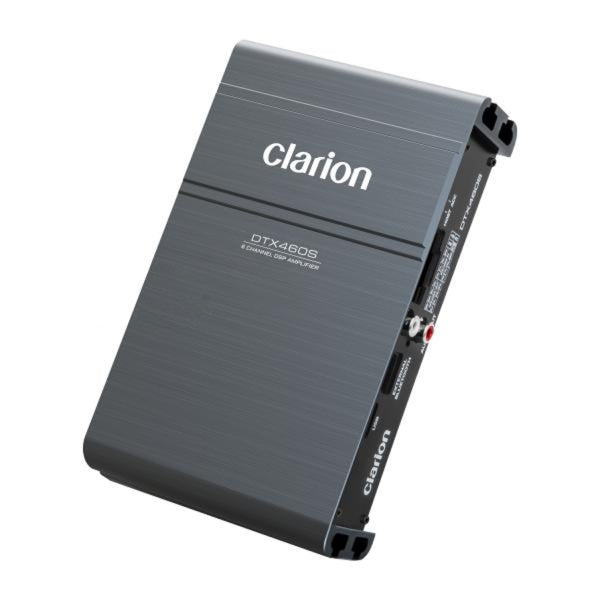

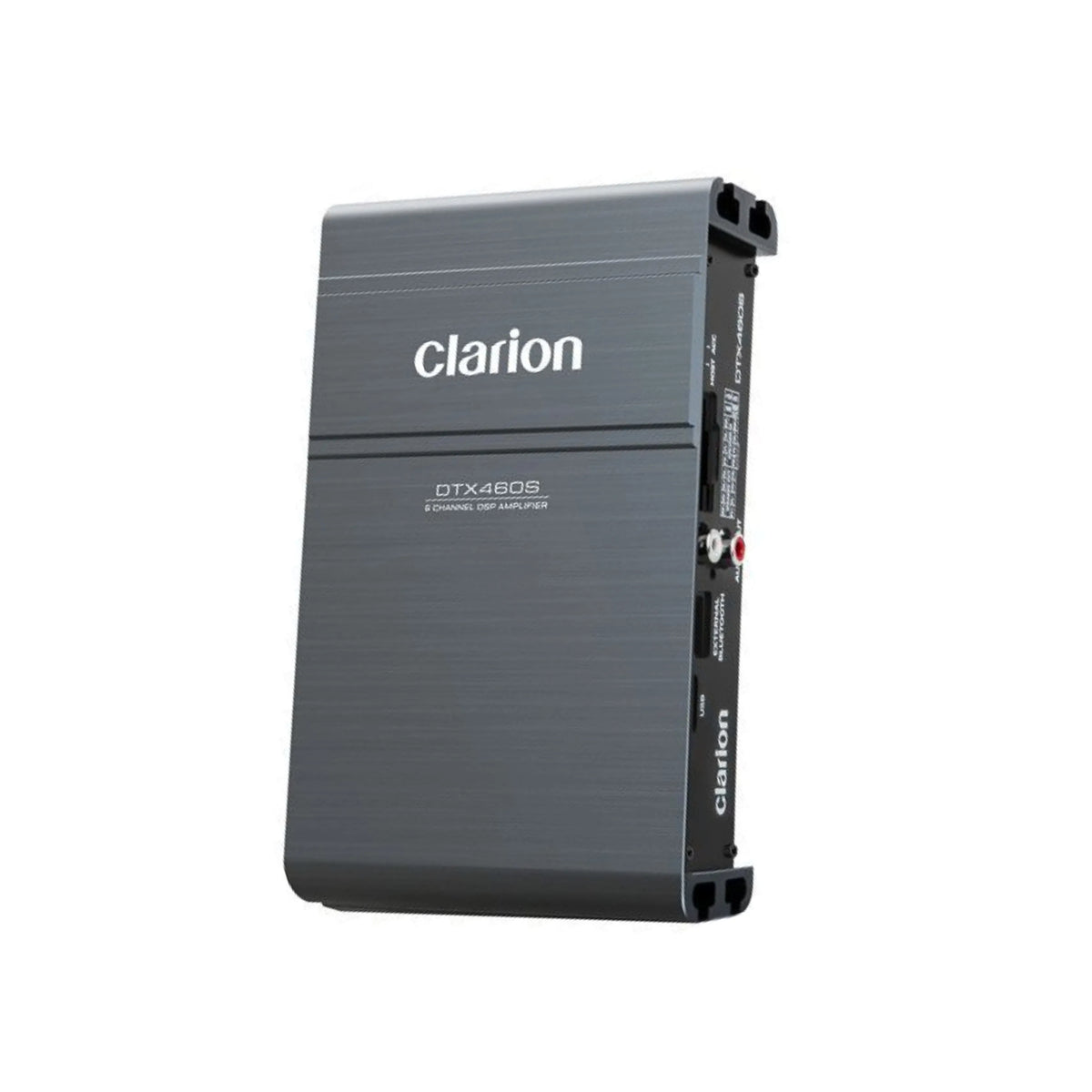

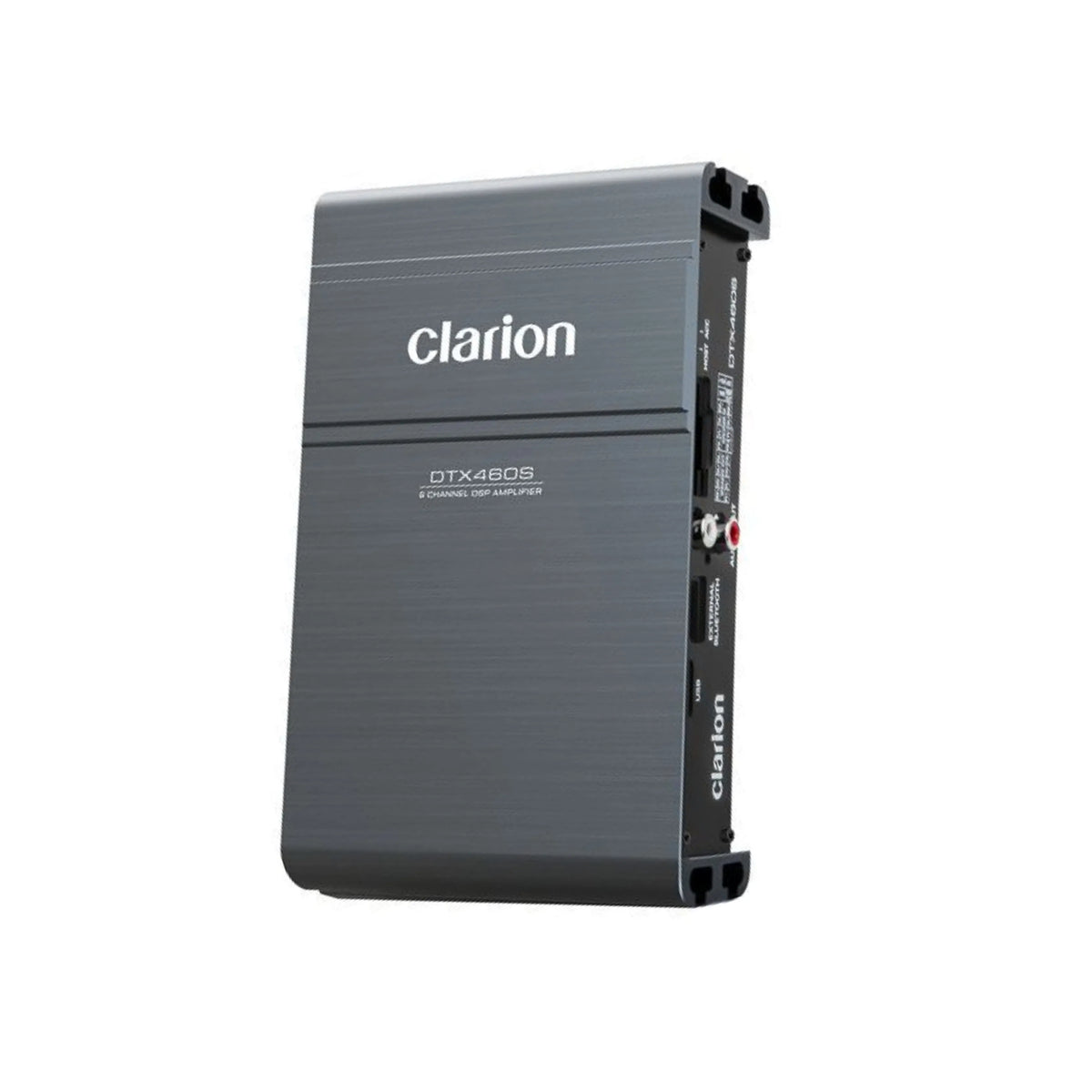

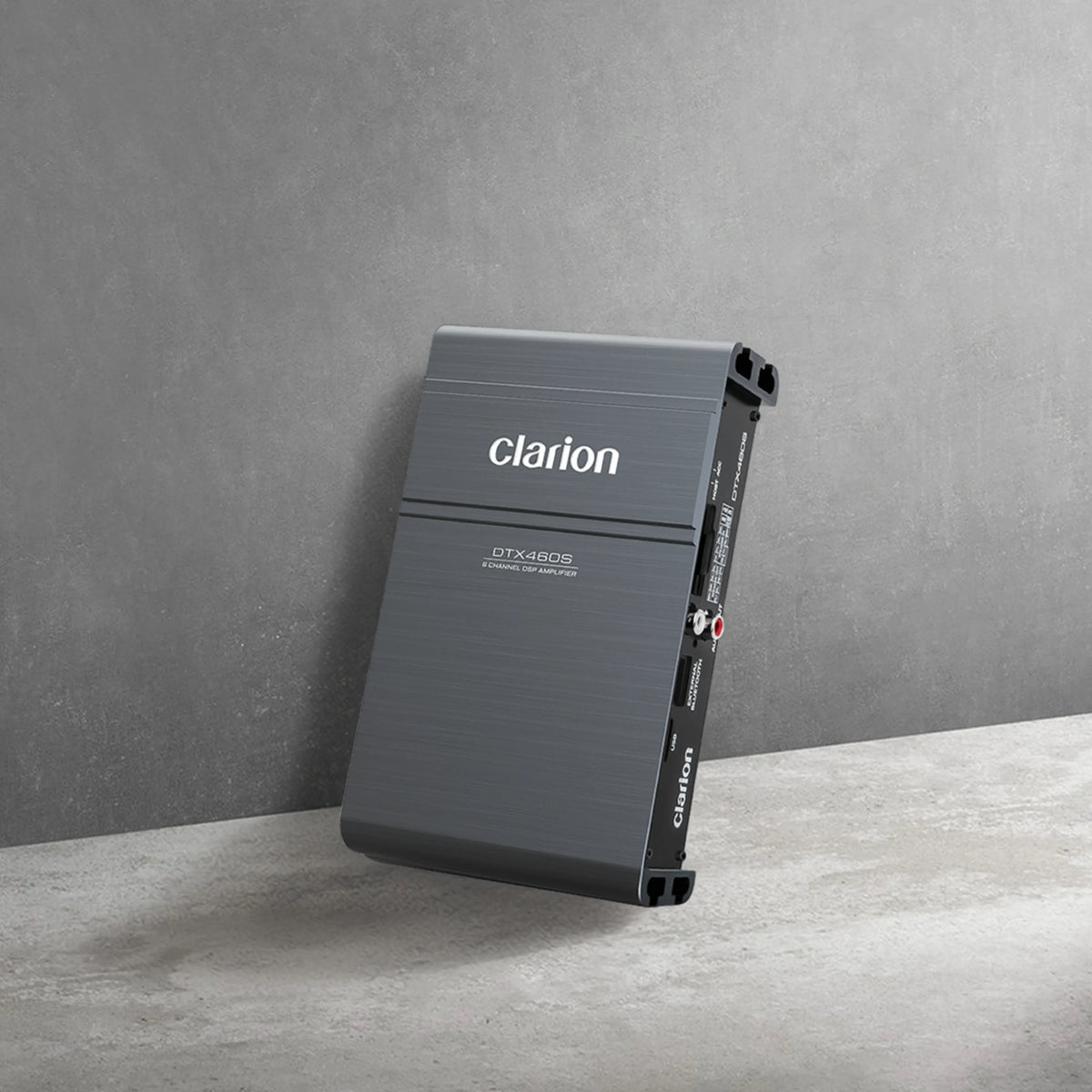

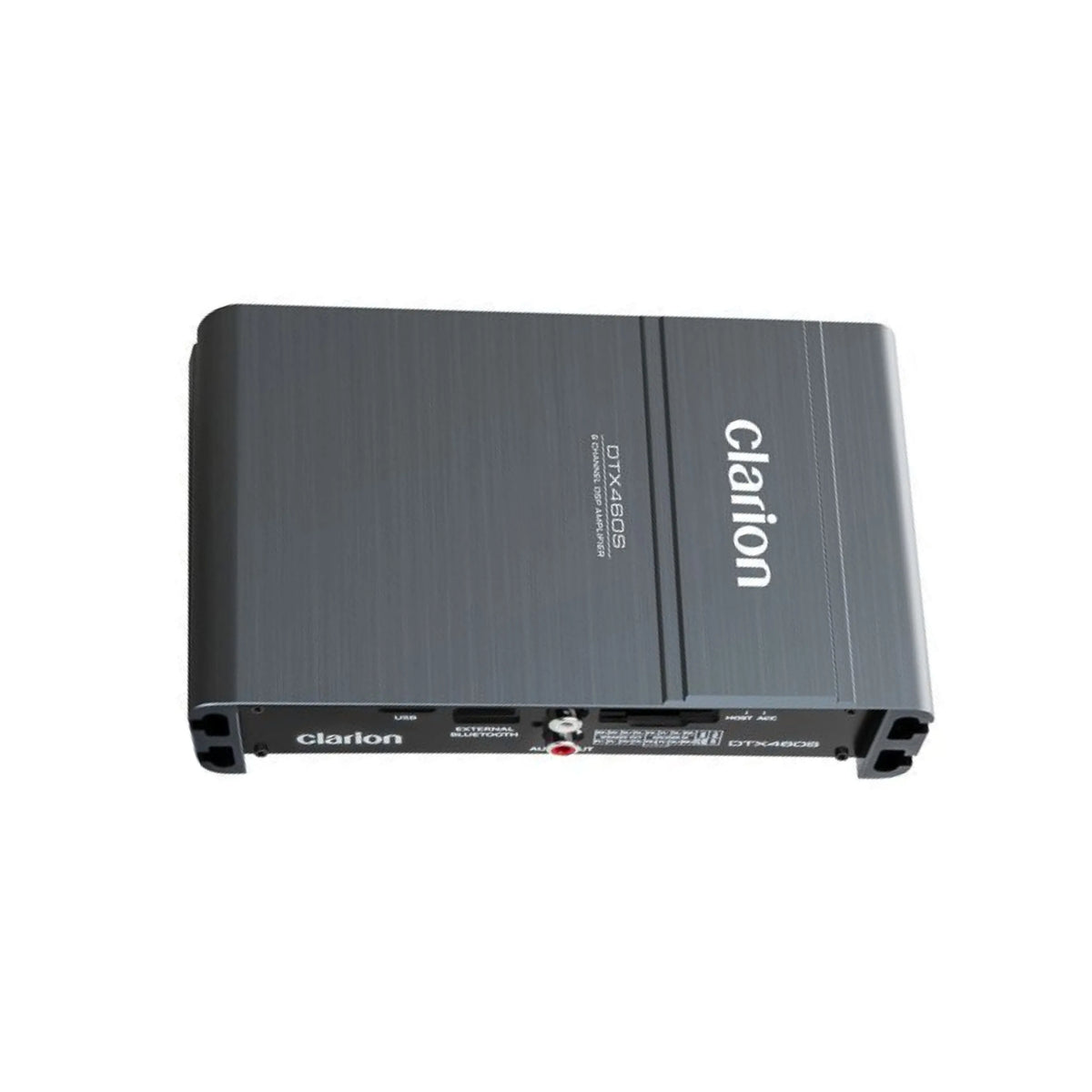

Clarion DTX460S 6-Channel DSP Car Amplifier with 31-Band EQ and High-Resolution Processing

Precision sound control in a compact form factor for factory and aftermarket audio system integration.

Product Overview

The Clarion DTX460S is a professional 6-channel DSP car amplifier engineered for audiophiles and installers who demand precise sound control without compromising vehicle space. This compact powerhouse combines high-level input compatibility with advanced digital signal processing, delivering 50W peak power across four channels with exceptional clarity. Featuring 192kHz/24-bit sampling, 31-band EQ, and sophisticated time alignment capabilities, the DTX460S transforms factory or aftermarket systems into precisely tuned audio environments. The Class A/B amplifier design prioritizes sound quality and accuracy, achieving remarkably low 0.015% total harmonic distortion while maintaining a compact 185×121×43mm footprint suitable for tight installation spaces.

Key Specifications

• Amplifier type: 6-channel DSP with Class A/B design
• Peak power output: 50W per channel (channels 1-4)
• Digital signal processing: 31-band parametric EQ
• Sampling rate: 192kHz/24-bit high-resolution audio
• Time alignment: 0-7.354ms adjustable output delay per channel
• Signal-to-noise ratio: >108dB for exceptional dynamic range
• Total harmonic distortion: 0.015% for transparent amplification
• Dimensions: 185mm L × 121mm W × 43mm H (compact installation)

Features & Benefits

Precision 31-Band Parametric EQ - Professional-grade 31-band equalization provides surgical control over your entire audio spectrum from 20Hz to 20kHz. Each band can be precisely adjusted to compensate for cabin acoustics, speaker characteristics, or personal preferences, allowing you to sculpt the perfect tonal balance for your specific vehicle environment.

High-Resolution 192kHz/24-Bit Processing - Studio-quality digital signal processing preserves every nuance of your music with exceptional accuracy. The 192kHz sampling rate and 24-bit depth ensure transparent audio handling without the digital artifacts common in lower-resolution processors, maintaining the integrity of high-quality source material.

Advanced Time Alignment - Individual channel output delay adjustment up to 7.354ms allows precise sound staging correction. Compensate for asymmetrical speaker placement and varying listener distances to create a perfectly centred soundstage, transforming your vehicle's cabin into an optimized listening environment regardless of seating position.

Exceptional Signal-to-Noise Ratio - With >108dB signal-to-noise ratio, the DTX460S delivers studio-quiet backgrounds that reveal subtle musical details often lost in typical car audio environments. The extraordinarily low noise floor allows dynamic recordings to breathe while maintaining clarity during quiet passages.

Factory System Integration - High-level input sensing enables seamless integration with factory head units, automatically detecting audio signal and powering on without additional trigger wires. This factory-friendly design simplifies installation in vehicles where low-level RCA outputs aren't available, making premium sound accessible in stock audio systems.

Compact Class A/B Design - Despite its powerful DSP capabilities, the DTX460S measures just 185×121×43mm, fitting easily under seats, behind panels, or in compact installation locations. The Class A/B topology balances sound quality and efficiency, delivering natural, transparent amplification without the heat and current demands of pure Class A designs.

Technical Specs

• Model: Clarion DTX460S
• Brand: Clarion
• Product type: 6-channel DSP car amplifier
• Amplifier topology: Class A/B
• Channel configuration: 6-channel output (4 channels amplified)

Power Output:

• Channels 1-4: 50W peak power per channel
• Total system power: 200W peak

Input Configuration:

• High-level inputs: 4-channel
• Input compatibility: Factory head unit or aftermarket receivers
• Auto turn-on: High-level sense, ACC start

Output Configuration:

• RCA outputs: 6-channel pre-amp outputs
• Output voltage: Line-level RCA

Digital Signal Processing:

• Equalizer: 31-band parametric EQ
• Sampling rate: 192kHz
• Bit depth: 24-bit
• Time alignment: 0-7.354ms adjustable delay per channel
• Frequency response: 20Hz - 20kHz

Audio Performance:

• Signal-to-noise ratio: >108dB (RCA)
• Total harmonic distortion: 0.015%
• Dynamic range: Exceptional (>108dB)

Power Requirements:

• Operating voltage: DC 9V-16V
• Remote turn-on: High-level sense or ACC trigger

Physical Specifications:

• Dimensions: 185mm (L) × 121mm (W) × 43mm (H)
• Weight: 0.9kg
• Mounting: Universal compact installation

Frequently Asked Questions

Can this amplifier work with my factory head unit Yes, the DTX460S features high-level inputs specifically designed for factory head unit integration. The auto turn-on function detects speaker-level signals, eliminating the need for low-level RCA connections or complex trigger wire installations.

What's the difference between Class A/B and Class D amplifiers Class A/B amplifiers like the DTX460S prioritize sound quality and natural tonal characteristics over maximum efficiency. They produce less heat than pure Class A designs while maintaining superior audio transparency compared to Class D switching amplifiers, making them ideal for critical listening applications.

How many speakers can I connect to this amplifier The DTX460S provides 6-channel RCA pre-amp outputs, allowing connection to external amplifiers for a complete 6-channel system. Channels 1-4 deliver 50W amplified power directly to speakers, while channels 5-6 function as signal-processed line outputs for subwoofer or additional amplification.

Do I need tuning software to adjust the DSP settings The DTX460S requires compatible tuning software and interface for accessing DSP functions including the 31-band EQ, time alignment, and crossover settings. Contact your installer or check Clarion documentation for specific tuning software requirements and compatibility.

Will this fit in tight installation spaces Yes, the compact 185×121×43mm dimensions make the DTX460S ideal for space-constrained installations. The small footprint fits easily under seats, behind trim panels, or in limited mounting locations where larger amplifiers won't accommodate.

Compatible With / Goes Well With

Recommended System Components:

• High-quality 6.5" or 8" component speaker systems
• Coaxial speakers for rear fill applications
• Compact powered subwoofers (connected via line outputs)
• External amplifiers (using channels 5-6 as pre-outs)
• Factory or aftermarket head units with speaker-level outputs

Installation Accessories:

• RCA cables (high-quality shielded for DSP connectivity)
• Speaker wire (appropriate gauge for power levels)
• Power distribution blocks (for multi-amp systems)
• Sound deadening material (maximizes DSP tuning effectiveness)
• Tuning laptop or tablet (for DSP configuration)
• Amplifier wiring kits (power, ground, remote)

System Configuration Suggestions:

• Front stage: Connect high-quality component speakers to channels 1-2
• Rear fill: Connect coaxial speakers to channels 3-4
• Subwoofer: Use channels 5-6 line outputs to external subwoofer amplifier
• Processing: Apply time alignment and EQ for optimal sound staging

Professional Tuning Recommendation: For optimal results, professional DSP tuning is recommended. The 31-band EQ and time alignment capabilities require acoustic measurement and expertise to maximize the DTX460S's potential for your specific vehicle acoustics.

Weight

Approximately 0.9kg
