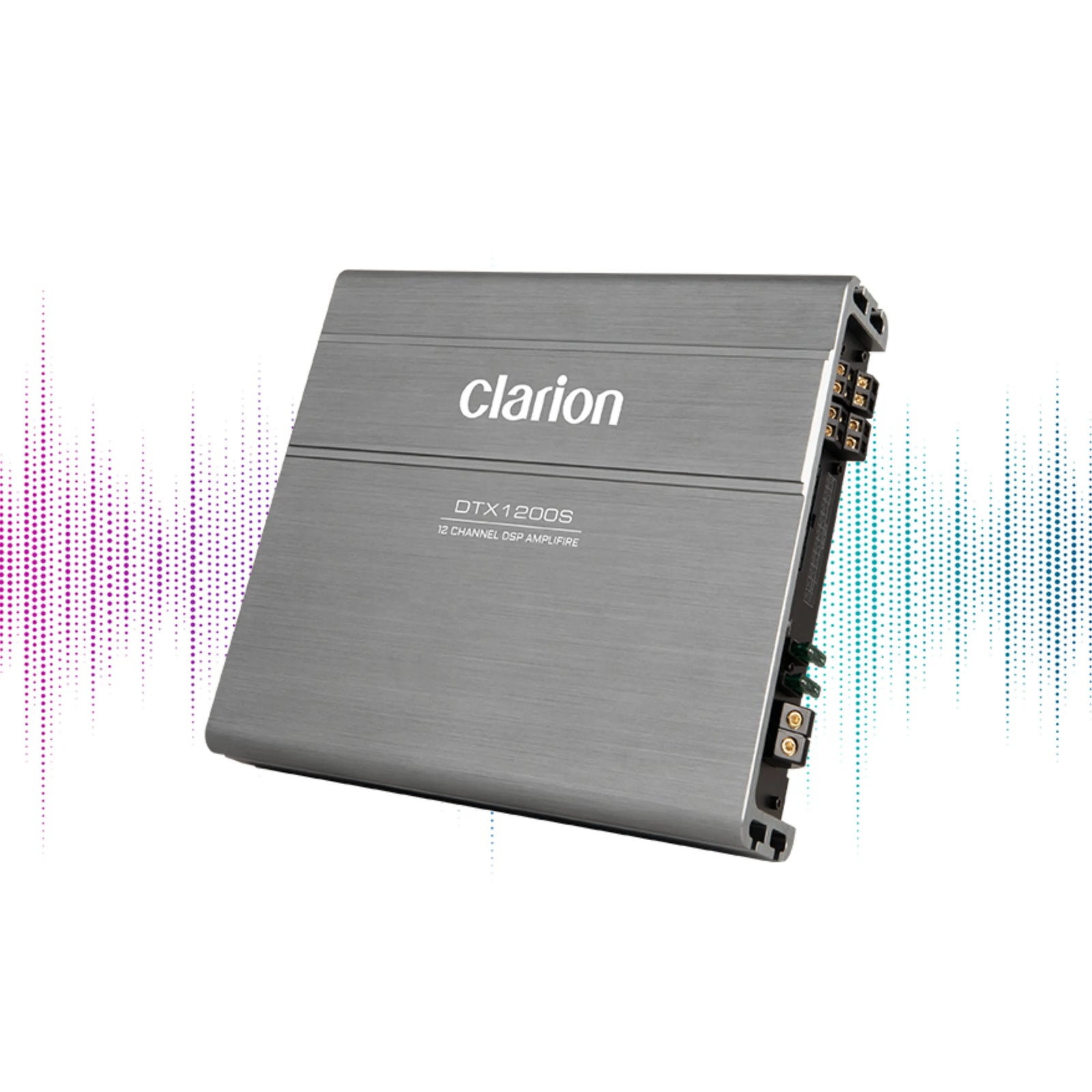

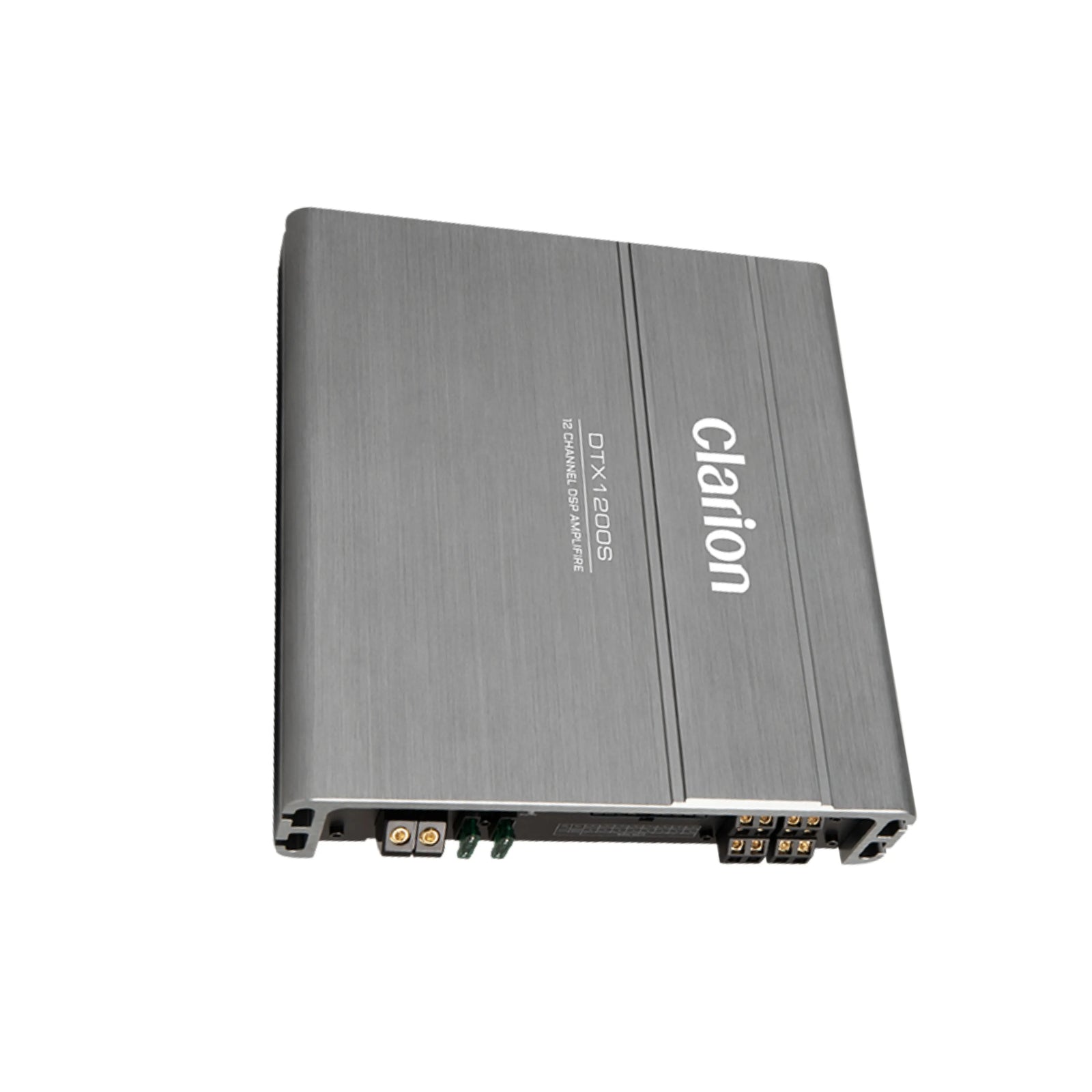

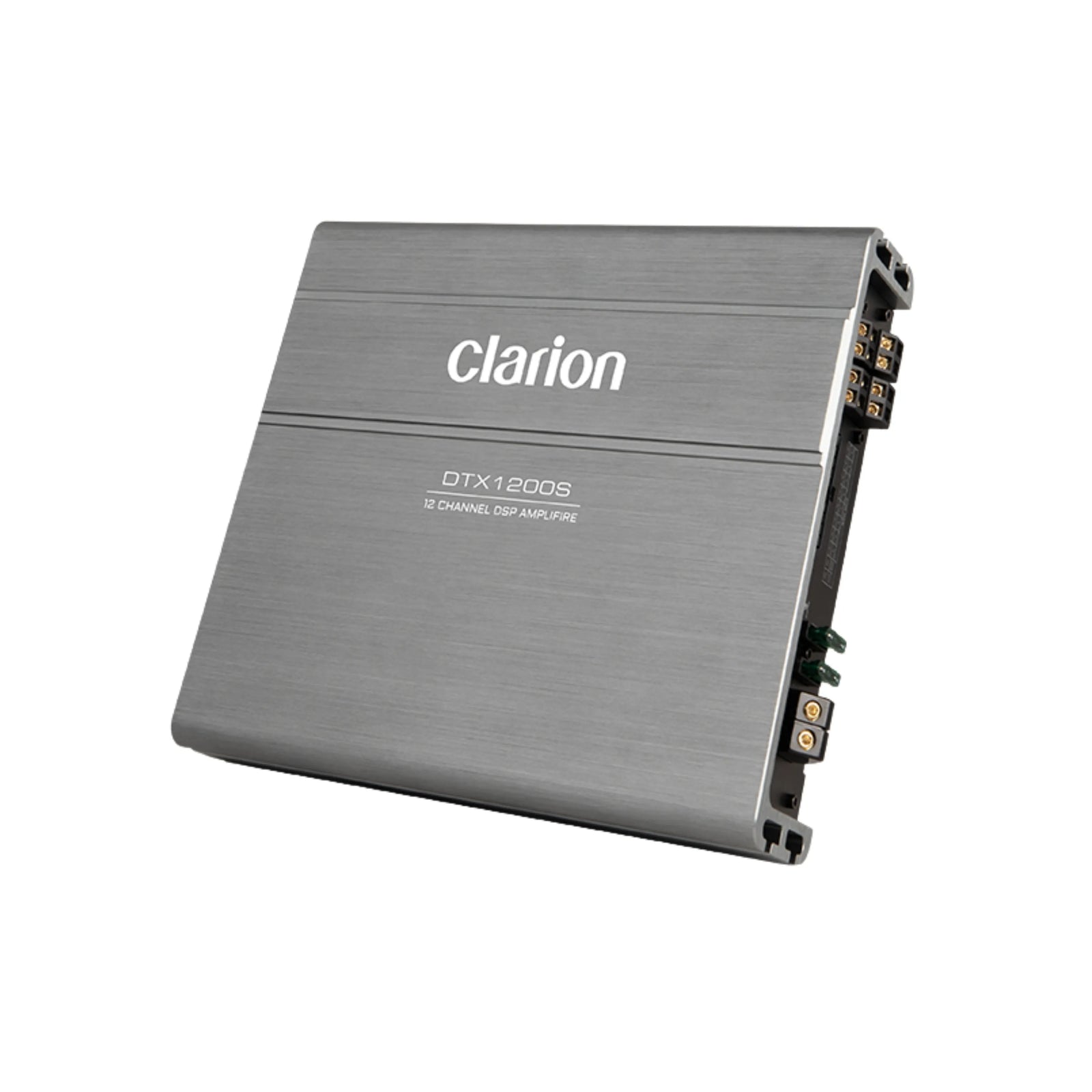

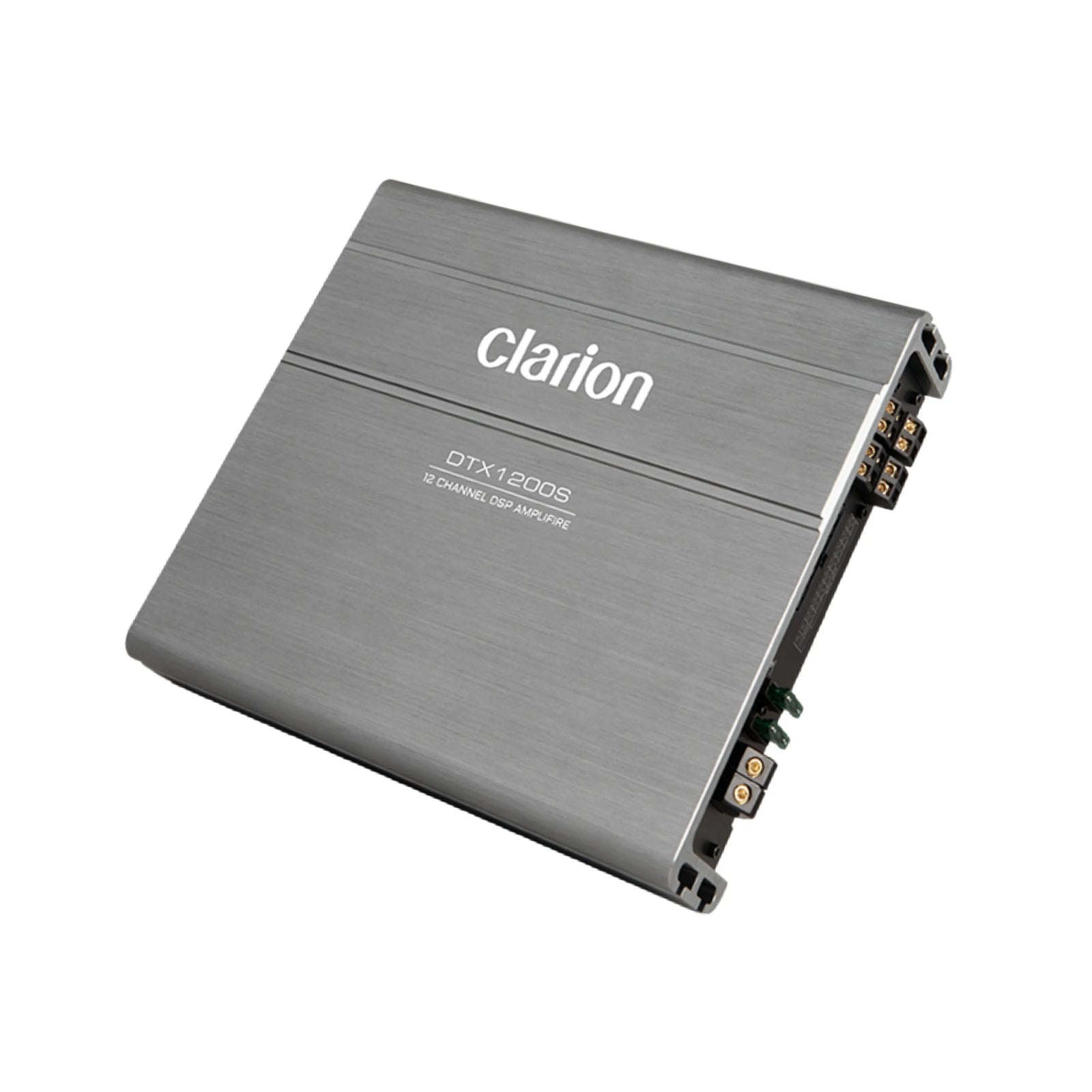

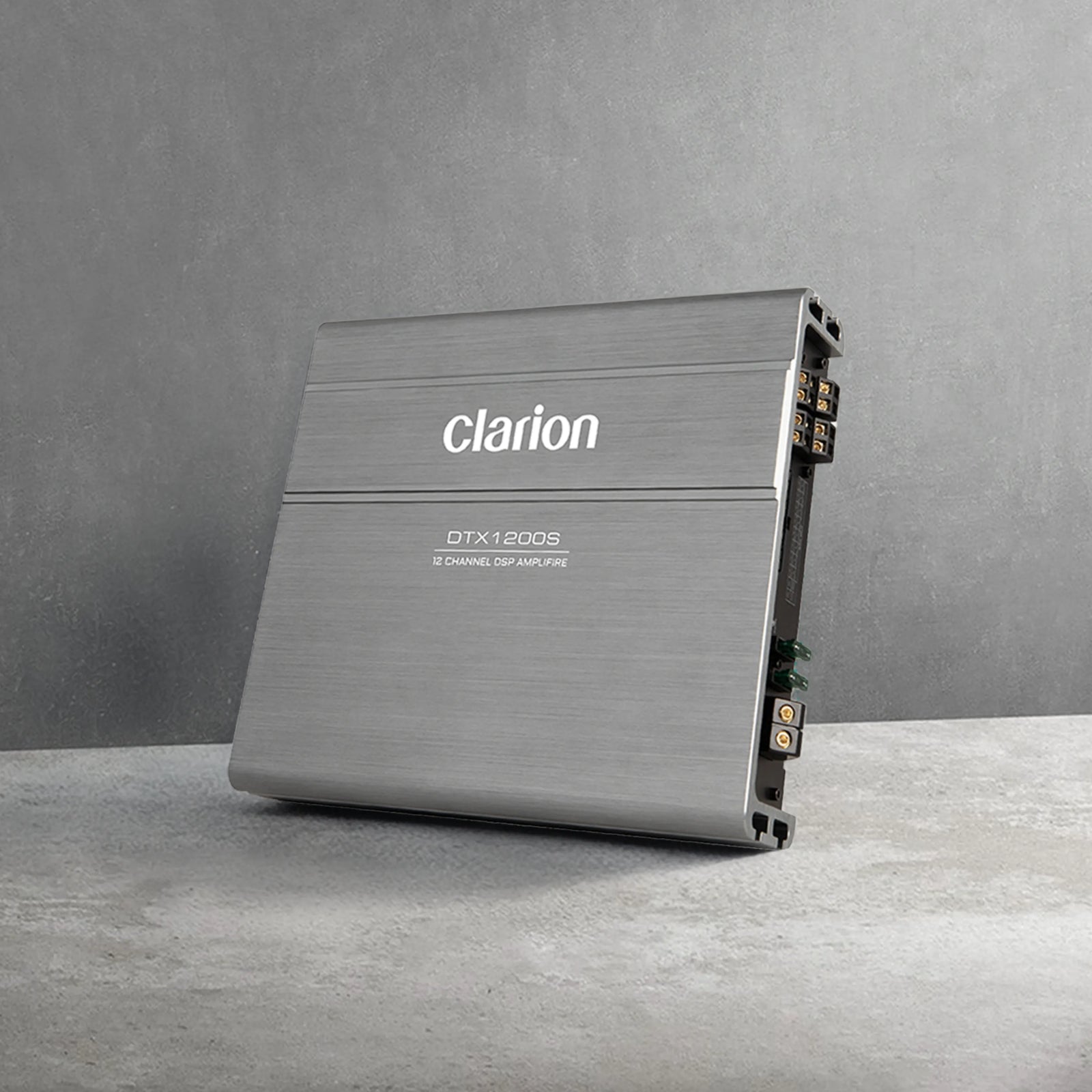

Clarion DTX1200S 12-Channel 1360W Amplifier with 12-Channel DSP

Flagship DSP amplifier with hybrid topology and dedicated high-power subwoofer channels

Product Overview

The Clarion DTX1200S is the pinnacle of Clarion's DSP amplifier range, combining 12-channel digital signal processing with hybrid Class A/B and Class D amplification to deliver 1360W maximum power across twelve independently controllable channels. Engineered for high-end custom installations requiring both sonic refinement and substantial output, this unit serves as the complete foundation for complex active systems including tri-amped front stages, dedicated center channels, rear fill, and powerful subwoofer arrays. The hybrid amplifier architecture uses Class A/B topology for channels 1-8 (70W peak each) to maintain sonic purity in midrange and high frequencies, while channels 9-12 leverage efficient Class D amplification delivering 200W peak each—specifically designed to drive subwoofers or high-demand midbass drivers. With 12 high-level inputs, 2 RCA inputs, plus optical and coaxial digital connectivity, the DTX1200S integrates seamlessly with any source. The 24 total outputs (12 RCA + 12 high-level) and comprehensive DSP featuring 31-band parametric EQ per channel, selectable crossover topologies, and 20,000ms time alignment provide the precision control demanded by competition-level installations and discerning audiophiles.

Key Specifications

• 12-channel DSP processor with 12-channel hybrid amplification (Class A/B + Class D)
• Maximum power output: 1360W (CH1-8: 70W peak each, CH9-12: 200W peak each)
• 14 input channels: 12 high-level (26-32Vpp max) + 2 RCA (7Vpp max) + optical/coaxial digital
• 24 total outputs: 12 RCA (7Vpp max) + 12 high-level (34-52Vpp max)
• 31-band parametric EQ per channel: 20Hz-20kHz, Q value 0.404-28.852, ±12dB gain, 0.1dB resolution
• Independent high-pass/low-pass filters per channel: 20Hz-20kHz, 6-48dB/octave slopes
• Output delay: 0-20,000ms (692cm/273in) for precise time alignment
• Filter types: Linkwitz-Riley, Butterworth, Bessel
• Signal-to-noise ratio >100dB, THD 0.05%, dynamic range >100dB
• Operating voltage: DC 9-16V
• Dimensions: 251mm (L) × 227mm (W) × 53mm (H)
• Weight: 3.54kg (packaged: 4.00kg)

Features & Benefits

Hybrid amplifier topology combines Class A/B circuitry for channels 1-8 with Class D for channels 9-12, delivering audiophile-grade sonic accuracy for front stage components while providing efficient high-power output for subwoofers—eliminating the need for external amplifiers in most installations.

Dedicated 200W subwoofer channels (CH9-12) deliver four times the power of standard channels, enabling single-unit control of dual subwoofer configurations, subwoofer arrays, or high-excursion midbass drivers without supplementary amplification—perfect for utes and SUVs where boot space is at a premium.

Twelve independent high-level inputs accept speaker-level signals from factory amplified systems across all channels, making this the ultimate solution for upgrading premium OEM audio in vehicles like Toyota Tundra, Ford F-150 Platinum, or Range Rover where retaining factory integration is essential while achieving aftermarket performance.

Full tri-amp capability allows complete active crossover control for 3-way front component systems (dedicated tweeter, midrange, and midbass channels per side) plus rear fill and subwoofers—all tuned independently with surgical precision using the 31-band parametric EQ per channel.

Digital input architecture via optical and coaxial connections preserves bit-perfect signal quality from high-resolution head units, eliminating analog conversion stages that introduce noise and reducing total harmonic distortion to the theoretical minimum of 0.05%—critical for revealing detail in reference recordings.

Extended time alignment (20,000ms) accommodates installations in large vehicles including motorhomes, buses, and marine applications where physical speaker distances exceed seven meters, enabling accurate phase correction and coherent soundstage reproduction despite extreme mounting limitations.

Twenty-four output channels (12 RCA + 12 high-level) support virtually unlimited system expansion—simultaneously power passive speakers directly while feeding pre-amplified signals to external mono blocks for subwoofers, or use high-level outputs for factory speaker retention alongside complete aftermarket front stage.

Six preset memory banks store complete DSP configurations including all EQ curves, crossover points, time alignment values, and gain structures—instantly switch between competition tuning, daily driver response, passenger-focused staging, or genre-specific profiles without laptop reconnection.

Technical Specs

• Amplifier type: Class A/B (CH1-8) + Class D (CH9-12) hybrid
• Input channels: 14 total (12 high-level @ 4.7Ω impedance + 2 RCA @ 10kΩ impedance + optical/coaxial digital)
• Output channels: 24 total (12 RCA @ 51Ω impedance + 12 high-level)
• Peak power output: CH1-8 @ 70W each, CH9-12 @ 200W each (1360W total maximum)
• Output signal gain range: -59.9dB to 0.0dB
• Equalizer: 31-band parametric per channel, 20Hz-20kHz (1Hz resolution), Q 0.404-28.852, ±12dB gain (0.1dB steps)
• Crossover filters: Linkwitz-Riley, Butterworth, Bessel types, 20Hz-20kHz (1Hz resolution), OFF/6/12/18/24/30/36/42/48dB per octave slopes
• Output phase: 0° or 180° selectable per channel
• Output delay: 0-20,000ms (0-692cm/0-273in)
• Signal input range: RCA 7Vpp max, high-level 26-32Vpp max
• Signal output range: RCA 7Vpp max, high-level 34Vpp (CH1-8)/52Vpp (CH9-12) max
• Frequency response: 20Hz-20kHz
• Total harmonic distortion: 0.05%
• Signal-to-noise ratio: >100dB (RCA)
• Dynamic range: >100dB
• Remote input: high-level sense or ACC start
• Remote output: +12V DC @ 200mA
• Standby power consumption: 0.1W
• Operating temperature: -20°C to +70°C
• Working voltage: DC 9-16V
• Dimensions: 251mm × 227mm × 53mm (L × W × H)
• Weight: 3.54kg (unit), 4.00kg (packaged)

Frequently Asked Questions

Can this power dual subwoofers and a full front stage?

Yes, channels 9-12 deliver 200W peak each—sufficient for dual 10-12" subwoofers (one or two channels per sub depending on configuration). Channels 1-8 power front components, center channel, and rear fill. The hybrid topology ensures clean midbass and highs while delivering serious low-end authority.

How does the Class A/B + D hybrid design improve sound quality?

Class A/B amplification on channels 1-8 provides lower distortion and better linearity for midrange and high frequencies where the human ear is most sensitive. Class D on channels 9-12 offers high efficiency and power for subwoofers where slight efficiency trade-offs are inaudible. You get audiophile sound quality with competition-level bass output.

What makes this different from the DTX810S?

The DTX1200S adds four high-power channels (200W vs 100W), uses hybrid Class A/B+D topology (vs all Class D), includes 12 high-level inputs (vs 8), and provides higher output voltage (52Vpp vs 38Vpp on sub channels). It's designed for larger systems requiring more channels and dedicated high-power subwoofer amplification.

Does this work with factory systems that have separate amplifiers?

Absolutely. The twelve high-level inputs accept signals from factory amplified systems across all channels. This makes it ideal for upgrading premium factory audio in vehicles like Lexus Mark Levinson, Harman Kardon BMW, or B&O Audi systems while retaining factory head unit integration.

Is laptop tuning software required for setup?

Yes, the DTX1200S requires Clarion's Windows-based tuning software for DSP programming. Connection uses a USB-to-serial adapter (not included). Given the complexity of 12-channel active systems, professional tuning with measurement equipment (calibrated microphone, RTA software) is strongly recommended for optimal results.

Compatible With / Goes Well With

• Premium 3-way component speaker systems for fully active front stage (dedicated tweeter, midrange, midbass channels)
• High-performance subwoofers (10" to 15" sizes, dual or quad configurations)
• Competition-grade compression drivers and horn tweeters for SPL applications
• Factory audio integration in premium vehicles (Lexus, BMW, Audi, Range Rover, Toyota Tundra, Ford F-150)
• External mono block amplifiers for supplementary subwoofer power (fed via RCA pre-outs)
• Head units with digital optical/coaxial outputs for maximum signal integrity
• Calibrated measurement microphones (UMIK-1, Dayton iMM-6, Audison bit Tune) for professional DSP calibration
• USB-to-serial adapters for laptop tuning connection
• High-current amplifier wiring kits (0-gauge or 2-gauge recommended for full 1360W potential)
• RCA distribution blocks and premium signal cables for expanded routing
