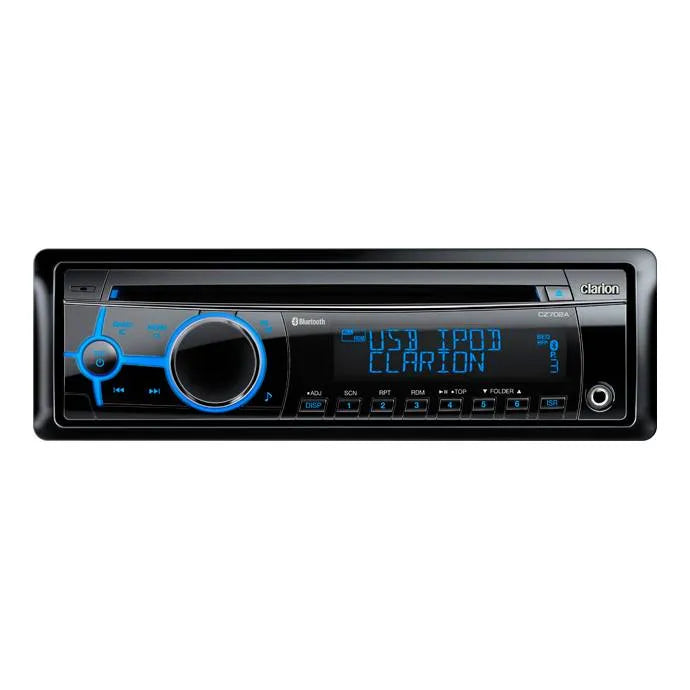

Clarion CZ702 Single DIN Stereo CD/USB/MP3/WMA/Bluetooth Receiver.

Enjoy Playing Music Stored on Your Phone with Bluetooth Audio Streaming!

Parrot Bluetooth® For Hands-Free, No-Fuss Phoning
Wide compatibility with mobile phones ensures that you’ll have maximum hands-free communication in your car, with the minimum of hassle. you can also enjoy playing music stored on your phone with Bluetooth audio streaming.

Superior iPod® & iPhone® Connectivity
Just connect your iPod or iPhone to the main unit’s USB port to access and play music through your car's audio system. Operate your iPod using main unit controls, including ABC Search, or use your iPod's control wheel for simple control.

Digital Time Alignment & More For Customising Sound
Digital Time Alignment makes the sound from each speaker reach the listener at the same time, for perfect audio imaging. And the 3-way crossover makes sure that each speaker receives an optimised signal.

Elements of Superb Sound
CZ702A is equipped with MOS-FET power amplifier for high quality output with minimal power consumption. Also in the mix for sound performance are Beat EQ for convenient equalisation, and HPF/LPF (High Pass/Low Pass filters) to output signals that better match your speakers.

Features:

• CD/ USB/ MP3/ WMA playback
• 728 variable colour lighting buttons and display
• Built-in Parrot Bluetooth interface (HFP, HSP, A2DP, AVRCP, PBAP)
• Built-in Microphone and external microphone ready with optional RCB199
• Digital radio ready (optional DAB302E)
• 3.5 mm audio auxiliary input (front)
• Rear USB port with iPod direct connect capabilities (optional CCA750 iPod interface cable)
• 4 × 50 W MOS-FET power amplifier
• Digital time alignment control and 3-way crossover
• Subwoofer level control
• Built-in Low pass / High pass filters
• Beat EQ Plus for sound adjustment
• 5V / 6-channel audio pre-out
• OEM steering wheel remote ready
• Wireless remote control included

Specifications:

Tuner Section:

• FM: (MHz) 0.05MHz Steps: 87.5 to 108
• AM: (kHz) 9 kHz Steps: 531 to 1,629
• FM Usable Sensitivity (dBf): 8
• FM 50 dB Quieting Sensitivity (dBf): 17
• FM Alternate Channel Selectivity (dB): 60
• FM Stereo Separation @1 kHz (dB): 30
• FM Stereo Freq. Resp. @ ±3 dB (Hz): 30 to 15,000

CD Section:

• S/N Ratio (dB): 94
• Frequency Response (Hz): 20 to 20,000
• Dynamic Range (dB): 94
• Harmonic Distortion (%): 0.1

Audio Section:

• Power Output (DIN45324, +B = 14.4 V): 4 × 25W

General:

• Power Consumption: Less Than: 15 A
• Speaker Impedance: 4Ω (4Ω to 8Ω allowable)
• Dimensions (W × H × D), mm: 188 × 58 × 190
• Remote Control (W × H × D), mm: 43 × 11 × 113
• Weight (kg): 1.4
