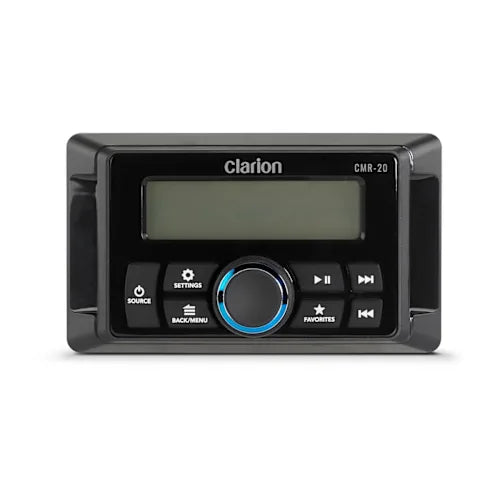

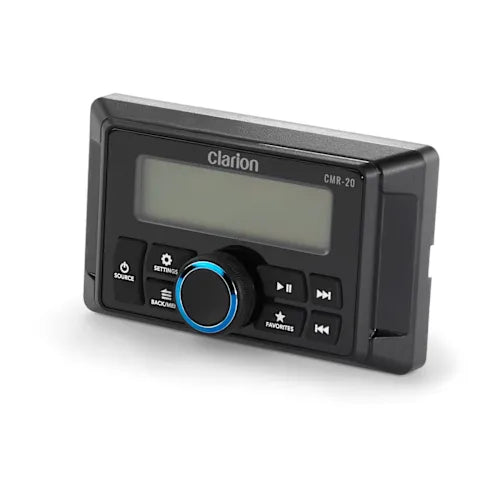

Clarion CMR-20 Marine Wired Remote With LCD Display

Clarion CMR-20 Marine Wired Remote - IP67 Waterproof Wired Remote Control with 60mm Monochrome LCD Display for Marine Audio Systems with Bluetooth Connectivity, USB Update Port, and Corrosion-Resistant Construction

Achieve convenient marine audio control with visual feedback using Clarion CMR-20 Marine Wired Remote—featuring 60mm (2.37") monochrome segmented TFT LCD backlit display providing clear visual information including track details, radio stations, source selection, and menu navigation, IP67 dust and water rating ensuring complete protection against saltwater spray, rain, and harsh marine environments when properly installed, compact dimensions (63mm x 108mm x 35mm) enabling flexible installation locations throughout vessel including helm stations, flybridge positions, or cockpit areas, wired connection providing reliable signal transmission without wireless interference or battery dependency, Bluetooth wireless range up to 22.8 meters (75 feet) enabling extended connectivity range for compatible devices, derived source compatibility supporting all audio sources and formats available through connected host marine head unit, multi-language interface with English language support ensuring straightforward operation and menu navigation, USB 2.0 port for software updates maintaining current firmware and feature enhancements, complete mounting hardware package including mounting bracket, four screws, and attached trim ring simplifying professional installation, corrosion-resistant marine-grade construction withstanding continuous exposure to saltwater, UV radiation, and extreme temperature fluctuations common in marine environments, optically bonded display eliminating air gaps between display layers improving readability in direct sunlight and reducing condensation issues, convenient remote operation enabling audio control with visual confirmation without accessing main head unit improving safety by minimizing driver distraction, versatile mounting capability for dash mounting, panel mounting, or console integration accommodating diverse vessel configurations, durable construction ensuring long-term reliability in demanding marine applications, integration with Clarion marine audio systems providing seamless control functionality with display feedback, comprehensive 1-year manufacturer warranty providing confidence in product quality and marine-specific engineering, and proven Clarion marine electronics expertise delivering reliable remote control solution with display functionality for recreational boats, fishing vessels, yacht installations, and commercial marine applications requiring convenient audio system operation with visual information from secondary locations.

Product Overview

Clarion Marine CMR-20 wired remote with LCD display provides convenient audio system control with visual feedback for marine environments. IP67 dust and water rating ensures complete protection when properly installed resisting saltwater spray, rain, and harsh weather conditions.

60mm monochrome segmented TFT LCD display with backlighting provides clear visual information including track details, radio stations, source selection, volume levels, and menu navigation. Optically bonded display construction eliminates air gaps improving readability in direct sunlight common in marine environments while reducing internal condensation issues.

Compact 63mm x 108mm footprint with 35mm depth enables installation in tight spaces and various vessel locations. Wired connection eliminates battery maintenance requirements and wireless signal interference concerns ensuring reliable operation in marine RF environments.

Bluetooth wireless range up to 22.8 meters (75 feet) provides extended connectivity capabilities. Derived source support enables control of all audio sources and formats available through connected Clarion marine head unit including AM/FM radio, USB media, Bluetooth streaming, and auxiliary inputs.

USB 2.0 port enables software updates maintaining current firmware versions and feature enhancements ensuring long-term compatibility and functionality. Complete mounting package includes mounting bracket, four screws, and attached trim ring facilitating professional installation.

Marine-grade construction resists corrosion from continuous saltwater exposure and UV degradation maintaining appearance and functionality throughout service life. Remote enables convenient audio control with visual confirmation from secondary vessel locations improving operational safety.

Key Features

60mm Monochrome LCD Display - Clear segmented TFT LCD backlit display provides visual information including track details, radio stations, source selection, volume levels, and menu navigation enabling informed audio control.

Optically Bonded Display - Advanced bonding technology eliminates air gaps between display layers improving readability in direct sunlight and reducing internal condensation issues common in marine environments.

IP67 Dust and Water Rating - Complete protection against dust ingress and temporary water immersion when properly installed ensuring reliable operation in harsh marine environments with saltwater spray and weather exposure.

Compact Marine-Grade Design - 63mm x 108mm x 35mm dimensions enable flexible installation in tight spaces throughout vessel including helm stations, flybridge positions, cockpit areas, or console locations.

Wired Connection Reliability - Hardwired connection eliminates wireless signal interference concerns and battery maintenance requirements providing consistent reliable operation in marine RF environments.

Extended Bluetooth Range - Bluetooth wireless connectivity up to 22.8 meters (75 feet) enables extended device pairing range for compatible smartphones and audio sources.

Derived Source Compatibility - Supports all audio sources and formats available through connected Clarion marine head unit including AM/FM radio, USB media, Bluetooth streaming, and auxiliary inputs.

USB Software Update Capability - USB 2.0 port enables firmware updates maintaining current software versions and feature enhancements ensuring long-term compatibility and functionality.

Corrosion-Resistant Construction - Marine-grade materials resist saltwater corrosion, UV degradation, and temperature extremes maintaining appearance and functionality in continuous marine exposure.

Complete Mounting Hardware - Includes mounting bracket, four screws, and attached trim ring simplifying installation and ensuring secure mounting in marine environments.

Multi-Language Interface - English language support with intuitive control layout and clear display information ensuring straightforward operation and menu navigation.

Enhanced Operational Safety - Enables audio control with visual confirmation from remote vessel locations minimizing driver distraction and improving safety by eliminating need to access main head unit during operation.

1-Year Manufacturer Warranty - Comprehensive warranty coverage provides confidence in product quality and long-term reliability backed by Clarion marine electronics expertise.

Technical Specifications

Package Contents:

• One marine wired remote with trim ring (attached)
• One mounting bracket
• Four screws

Frequently Asked Questions

Q: What is the difference between CMR-20 and CMR-10?

A: CMR-20 includes 60mm monochrome TFT LCD display providing visual feedback showing track information, radio stations, source selection, volume levels, and menu navigation. CMR-10 control-only remote without display. CMR-20 dimensions: 63mm x 108mm x 35mm, CMR-10: 60mm x 60mm x 66mm. CMR-20 includes USB 2.0 port for software updates, CMR-10 lacks update capability. Both feature IP67 rating, Bluetooth range 22.8m, wired connection, marine-grade construction. Choose CMR-20 for installations requiring visual information display, CMR-10 for compact control-only applications where main head unit display visible or visual feedback unnecessary.

Q: What Clarion marine head units are compatible with CMR-20?

A: CMR-20 compatible with Clarion marine head units featuring wired remote input capability and display output support. Verify specific head unit model includes remote connection port supporting wired remote with display functionality before purchase. Consult Clarion marine head unit specifications or product manual confirming CMR-20 compatibility. CMR-20 connects via dedicated remote cable (length determined by installation requirements—may be included with head unit or purchased separately). Not compatible with head units lacking wired remote capability or display output support—verify compatibility ensuring proper system integration and display functionality.

Q: Is CMR-20 display readable in direct sunlight?

A: Yes—CMR-20 features optically bonded monochrome TFT LCD display with backlighting optimized for marine environments. Optically bonded construction eliminates air gaps between display layers significantly improving readability in direct sunlight by reducing reflections and glare. Backlit display ensures visibility in low-light conditions during nighttime operation. Monochrome segmented display provides high contrast ratio maintaining readability across wide range of lighting conditions from full sunlight to nighttime darkness. Marine-optimized display design specifically addresses challenges of outdoor marine visibility requirements.

Q: Does CMR-20 require batteries?

A: No—CMR-20 wired remote powered through connection cable from host marine head unit eliminating battery requirements and associated maintenance. Wired power connection ensures consistent reliable operation without battery replacement concerns or power depletion issues. Benefits: no battery compartment requiring waterproof sealing, no battery disposal environmental concerns, continuous operation without power interruption, display backlight powered from head unit. Remote and display operate whenever host head unit powered on drawing minimal current from head unit power supply.

Q: Can CMR-20 software be updated?

A: Yes—CMR-20 includes USB 2.0 port specifically for software updates. Software updates maintain current firmware versions, add feature enhancements, improve compatibility, and address potential issues ensuring long-term functionality. Update procedure: download software update from Clarion website to USB drive, connect USB drive to CMR-20 USB port, follow on-screen update instructions. Updates typically provided by Clarion when new features released or improvements available. Check Clarion support website periodically for available updates. Note: USB port for software updates only—not for media playback or device charging.

Q: Is CMR-20 truly waterproof for marine use?

A: CMR-20 features IP67 dust and water rating when properly installed. IP67 rating provides: complete dust-tight protection preventing dust ingress, temporary immersion protection up to 1 meter depth for 30 minutes. Suitable for marine installations with saltwater spray, rain, and harsh weather exposure. Proper installation critical: ensure all cable connections sealed, mounting surface sealed preventing water intrusion behind remote, trim ring properly installed creating weather seal, follow installation instructions carefully. Not suitable for continuous submersion underwater. For exposed cockpit installations subject to heavy spray: verify proper sealing during installation. Marine-grade construction resists corrosion but regular freshwater rinsing recommended maintaining optimal appearance and display clarity.

Q: Where should CMR-20 be installed on a boat?

A: CMR-20 flexible installation locations throughout vessel: helm station (secondary control with display when main head unit located elsewhere), flybridge position (controlling lower helm head unit from upper station with visual feedback), cockpit area (convenient audio control with information display for entertainment areas), tower station (fishing tower remote control with display). Installation considerations: location accessible to operator with clear display viewing angle, mounting surface adequate thickness supporting secure installation, cable routing path from head unit to remote location, protection from direct heavy wave impact, display positioned avoiding direct glare when possible. 63mm x 108mm footprint accommodates console mounting. Use included mounting bracket ensuring proper installation alignment. For exposed locations: verify IP67 rating maintained through proper installation sealing.

Q: Can multiple CMR-20 remotes be connected to one head unit?

A: Multiple remote capability dependent on specific Clarion marine head unit model. Some Clarion marine head units support multiple wired remote connections enabling control with display from several vessel locations simultaneously. Consult head unit specifications or product manual confirming multi-remote support before purchasing multiple CMR-20 units. If head unit supports multiple remotes: verify proper connection method, ensure cable connections properly terminated and sealed, confirm all remotes display information correctly. For vessels requiring multiple control locations without multi-remote head unit support: consider mixed configuration using CMR-20 at primary secondary location and CMR-10 at additional locations if multi-remote supported.
