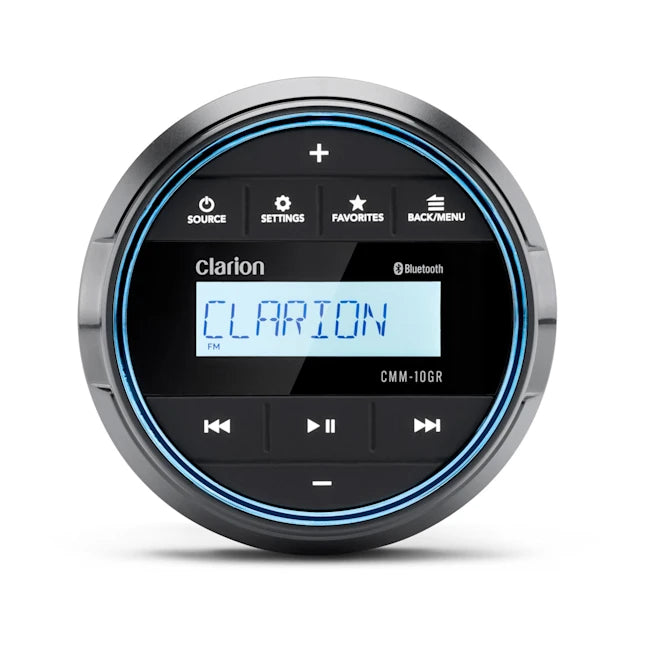

Clarion CMM-10GR front face with display and buttons
Clarion CMM-10GR front face with display and buttons

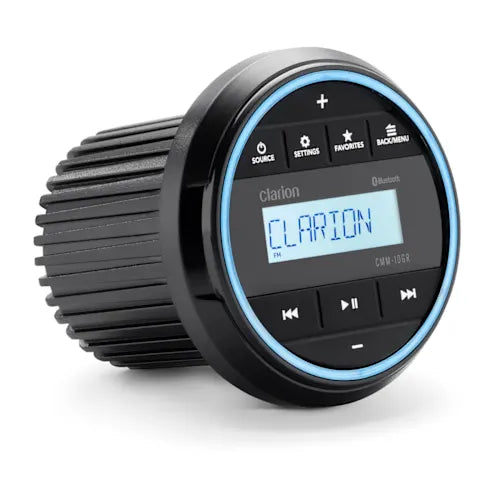

Unit angled, showing the rear housing
Unit angled, showing the rear housing

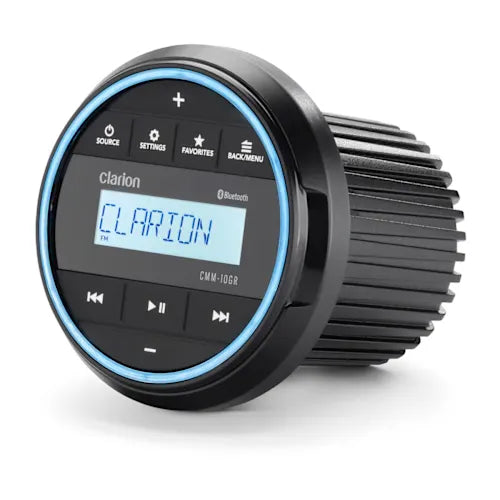

Unit at an angle with display lit
Unit at an angle with display lit
Click to open expanded view
CLARION logo

Clarion CMM-10GR Marine Gauge Hole Receiver with Bluetooth, USB and 2 Zones

SKU: CMM-10GR0100321900
Price
$299
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Not on our shelf right now. We order this one in from our supplier.
Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
Clarion CMM-10GR front face with display and buttons

Clarion CMM-10GR Marine Gauge Hole Receiver with Bluetooth, USB and 2 Zones

$299

Product features

Many boat helms have no room for a stereo but do have a spare gauge hole. The Clarion CMM-10GR is a marine receiver that fits a standard 3 inch gauge hole, with Bluetooth, USB, AM and FM and a built in 20W x 4 amplifier.

Two zones let you set the cockpit and cabin, or bow and stern, at different volumes, and the 53mm display is optically bonded for sunlight reading.

Problems it solves

  • Cutting a new hole in the dash. The square 102 x 102mm unit drops into an existing gauge opening.
  • Spray and salt. The front is IP66 when properly installed, with corrosion resistant construction.
  • Fogged screens on cold mornings. Optical bonding removes the air gap that collects condensation.

CMM-10GR specifications

  • Size: 102 x 102 x 80mm
  • Display: 53mm monochrome segmented, backlit, optically bonded
  • Rating: IP66 when properly installed
  • Amplifier: Class AB, 20W x 4 RMS at 14.4V, 4 ohm
  • Zones: 2, or zone 2 as a sub output
  • Bluetooth: up to 11m
  • USB: 2.0, MP3, WMA, FLAC and WAV, 1A charging
  • Tuner: AM and FM with RDS
  • Power: 10V to 16V DC, 15A max
  • Operating temperature: minus 20 to 60 degrees C
  • Part number: 010-03219-00

Fitment and compatibility

Boats with a standard 3 inch gauge hole and 80mm of space behind the panel.

What is in the box

  • Receiver with attached trim ring
  • Power and speaker harness
  • Mounting template
  • Four mounting screws

Install notes

Check there is 80mm of clearance behind the gauge panel.

Seal the trim ring to the panel and protect every connection from water.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

CMM-10GR FAQs

Can the CMM-10GR drive speakers by itself?

Yes, the built in amp runs four speakers across two zones.

Can I add a marine sub to the Clarion?

Yes, set zone 2 as a sub output to an external amp.

Will the CMM-10GR survive a hose down?

Its front is IP66 rated for strong water jets once installed, but it is not made to be submerged.

Frequently Asked Questions

Quick answers to our most common customer questions.

Do I need to cut a new hole?
No. The 102 x 102mm unit is made to drop into an existing gauge opening.
How much power does it make?
20W x 4 RMS at 14.4V into 4 ohms, class AB.
How many zones does it run?
2 zones, or zone 2 can be used as a sub output.
