CANM8 CANNECT C8PARKTONER Parking Sensor Retention Interface

Can Bus Interface that Provides Retention of Rear Factory Parking Sensors (Vehicle Dependent) When Installing an Aftermarket Radio

Parking Sensor Retention Interface

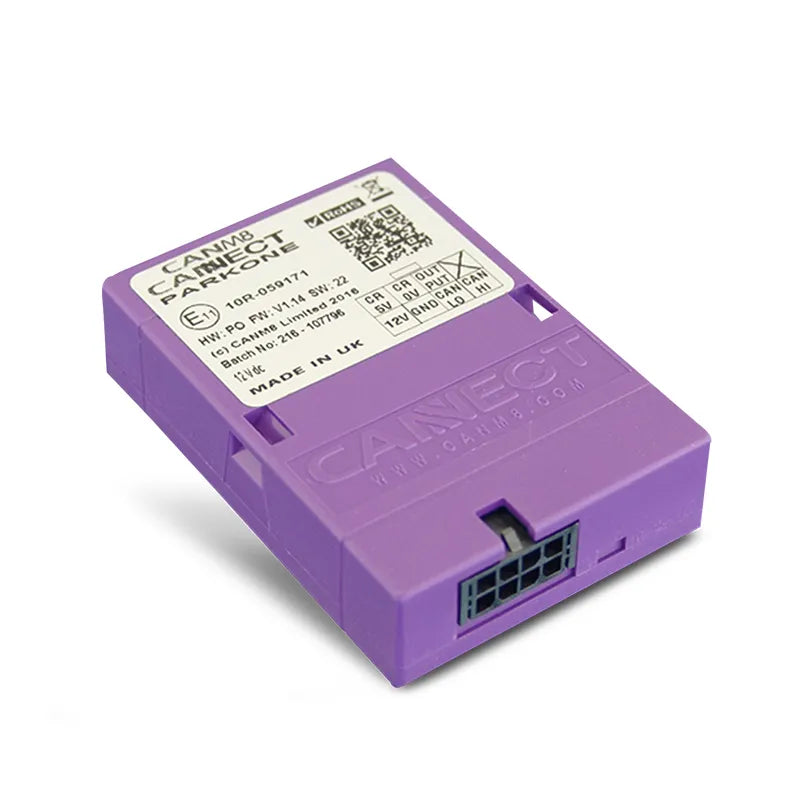

The CANM8 CANNECT PARKTONER is an ideal solution for use when replacing the OEM radio in the vehicle and wishing to keep the OEM rear parking sensors working.

Installation Details
The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and an earth connection. The interface incorporates a multi-function status LED, which indicates the correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.

Outputs:

• Reverse: 12v (1A Max) When Reverse Gear Is Selected.
• Piezo Output: 12v (1A Max) When Sensors Detect An Object.

LED Status Details:

• Flashing Red: Searching For CAN Information.
• Solid Red: CAN Data Received But Vehicle Not Yet Identified.
• Solid Green: Can Data Received & Vehicle Type Recognised.
• Flashing Green: Vehicle Speed Detected.

Wiring Harness Details:

• Red: Connect Via A 5A Fuse To A Permanent 12v Supply.
• Black: Connect To a Good Chassis Ground Point.
• White: CAN HI Connection - Vehicle CAN HI Wire.
• Blue: CAN LO Connection - Vehicle CAN LO Wire.
• Green: Piezo Buzzer Output Negative.
• Yellow: Rear Sensor Output Positive.
• Pink: Front Sensor Output Positive.
