CANM8 C8NECTTURNSIG CANNECT Indicator Trigger Output Interface

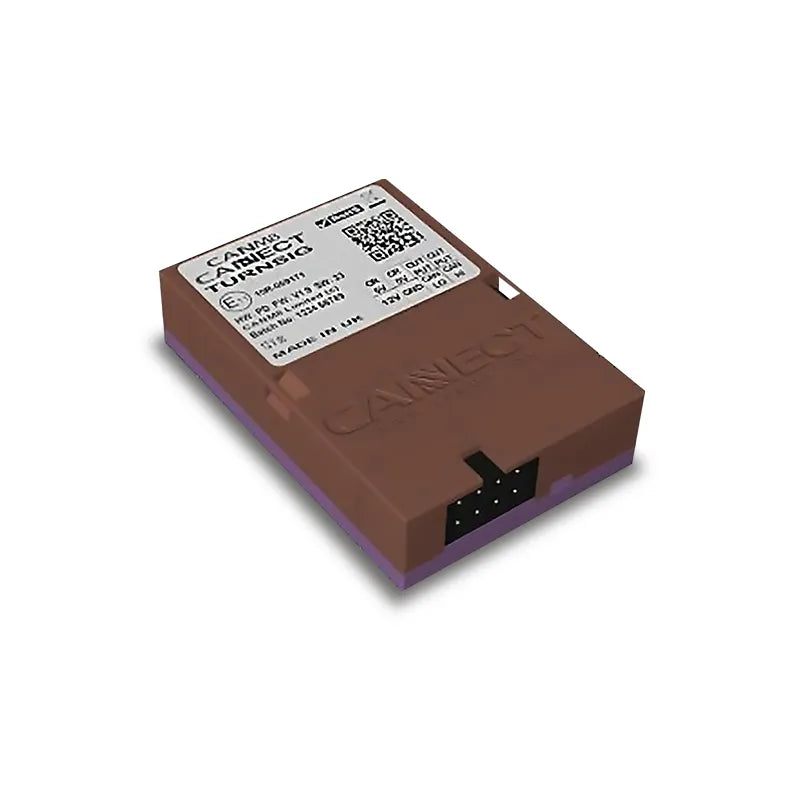

The CANM8 CANNECT TURNSIG is a CAN Bus interface that provides a smooth 12v output from both left and right indicators on vehicles which feature CAN Bus wiring.

Outputs:

• Left Indicator: 12v (1A max) when the left indicator is active.
• Right Indicator: 12v (1A max) when the right indicator is active.

Applications

The CANM8 CANNECT TURNSIG interface is ideal for connection with auxiliary equipment and telematics devices which require indicator activity information. Many telematics devices record a repeated “on/off” signal from the left and right indicators which can lead to large packets of unnecessary data being recorded. The CANM8 CANNECT TURNSIG interface will provide an output when the indicator is turned on and another when it is turned off, allowing for more concise data recording.

Installation Details

The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and an earth connection.

The interface incorporates a multi-function status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.

LED Status Details:

• Flashing Red: Searching for CAN information.
• Solid Red: CAN Data received but vehicle not yet identified.
• Solid Green: CAN Data received and vehicle type recognised.
• Flashing Green: Vehicle speed detected.

Wiring Harness Details:

• RED: Connect via a 5A fuse to a PERMANENT 12v supply.
• BLACK: Connect to a good chassis GROUND point.
• WHITE: CAN HI Connection : Vehicle CAN HI wire.
• BLUE: CAN LO Connection : Vehicle CAN LO wire.
• PURPLE: Right Indicator Output : 12v (1A max) when the right indicator is active.
• BROWN: Left Indicator Output : 12v (1A max) when the left indicator is active.

Specifications:

• Plug & Play: NO
• How Much Material Do I Get? - Material? Well its made from many materials including plastic, copper and more!

Vehicle Compatibility:

• Audi A3 (Incl S3) 2004 - 2013 (8p)
• Audi A3 (Incl S3) 2012 - 2019 (8v)
• Audi A4 (Incl S4) 2009 - 2015 (B8)
• Audi A5 (Incl S5) 2007 - 2011 (8t3 - 8f7 - 8ta)
• Audi A5 (Incl S5) 2016 - 2019 (F5)
• Audi A6 (Incl S6) 2011 - 2019 (4g)
• Audi A8 (Incl S8) 2011 - 2017 (4h)
• Audi Q5 2009 - 2016 (8r)
• Audi Q5 2017 - 2019 (Fy)
• Audi Q7 2006 - 2015 (4l)
• Audi Q7 2015 - 2019 (4m)
• Audi R8 2007 - 2015 (42)
• Audi Tt 2006 - 2014 (8j)
• Audi Tt 2014 - 2019 (Fv-8s)
• Bmw 1 Series (Incl M1) 2004 - 2013 (E81-E82-E87-E88)
• Bmw 2 Series 2015 - 2019 (F25)
• Bmw 3 Series (Incl M3) 2005 - 2014 (E90)
• Bmw 4 Series 2013 - 2019 (F32-F33)
• Bmw 5 Series (Incl M5) 2004 - 2011 (E60)
• Bmw 6 Series 2004 - 2011 (E63)
• Bmw 6 Series 2011 - 2019 (F12-F13)
• Bmw 7 Series 2001 - 2008 (E65-E66-E67-E68)
• Bmw 7 Series 2008 - 2013 (F01-F02)
• Bmw I3 2014 - 2019 (Io1)
• Bmw X1 2009 - 2015 (E84)
• Bmw X3 2011 - 2019 (F25)
• Bmw X5 2013 - 2019 (F15)
• Bmw X6 2008 - 2013 (E71)
• Bmw Z4 2009 - 2016 (E89)
• Citroen Berlingo 2008 - 2015 (Second Gen)
• Citroen C4 2004 - 2010 (First Gen)
• Citroen C5 2008 - 2013 (Rd-Td)
• Citroen Ds3 2009 - 2016 (First Gen)
• Fiat Ducato 2006 - 2012 (Third Gen)
• Fiat Ducato 2012 - 2014 (Third Gen)
• Fiat Ducato 2015 - 2018 (Fourth Gen)
• Ford Fiesta 2009 - 2016 (Ws-Wt-Wz)
• Ford Focus (Incl Xr5) 2012 - 2015 (Lw)
• Ford Focus (Incl Xr5) 2016 - 2019 (Lw)
• Ford Kuga 2013 - 2015 (2nd Gen)
• Ford Mondeo 2007 - 2014 (Mb - Mc)
• Ford Mondeo 2015 - 2019 (Md)
• Ford Ranger 2011 - 2015 (Px)
• Ford Ranger 2015 - 2019 (Px2-Px3)
• Ford Transit 2007 - 2014 (Vm)
• Ford Transit 2015 - 2017 (Vo)
• Ford Transit Custom 2013 - 2016 (Vn-Euro 5)
• Ford Transit Custom 2016 - 2017 (Vn-Euro 6)
• Ford Transit Custom 2018 - 2019 (Vn)
• Holden Astra Coupe 2015 - 2018 (Bk)
• Holden Astra Sedan 2017 - 2018 (Bl)
• Holden Astra Wagon 2016 - 2018 (Bk)
• Holden Barina 2000 - 2005 (Xc)
• Holden Barina 2006 - 2011 (Tk)
• Holden Barina 2012 - 2016 (Tm)
• Holden Barina 2017 - 2018 (Tm)
• Holden Captiva 5 (Incl Maxx) 2006 - 2015 (Cg)
• Holden Vectra 2003 - 2011 (Zc)
• Honda Crv 2012 - 2015 (Rm)
• Honda Crv 2015 - 2016 (Rm)
• Honda Crv 2017 - 2018 (Rw)
• Hyundai I30 2012 - 2016 (Gd-Gd2)
• Hyundai I30 2017 - 2021 (Pd)
• Hyundai Kona 2017 - 2018 (Os - Os2)
• Jeep Grand Cherokee 2012 - 2013 (Wk2)
• Jeep Grand Cherokee 2014 - 2020 (Wk2)
• Land Rover Discovery Iv 2010 - 2016 (L319)
• Land Rover Evoque 2011 - 2013 (L538)
• Land Rover Freelander Ii 2012 - 2014 (L359)
• Land Rover Range Rover Sport 2013 - 2015 (L494)
• Mazda 3 2013 - 2016 (Bm) - with Monochrome Display
• Mazda 3 2016 - 2018 (Bn)
• Mercedes a Class 2005 - 2007 (W169)
• Mercedes a Class 2007 - 2011 (W169)
• Mercedes a Class 2013 - 2016 (W176)
• Mercedes B Class 2005 - 2007 (W245)
• Mercedes B Class 2007 - 2011 (W245)
• Mercedes C Class 2008 - 2011 (W204)
• Mercedes C Class 2011 - 2014 (W204)
• Mercedes C Class 2014 - 2019 (W205)
• Mercedes G Class 2006 - 2012 (W463)
• Mercedes M Class 2005 - 2011 (W164)
• Mercedes Sprinter 2007 - 2018 (W906)
• Mercedes Vito (Inc Viano or Valente) 2007 - 2015 (W639)
• Mercedes Vito (Inc Viano or Valente) 2015 - 2019 (W447)
• Mitsubishi Asx 2010 - 2013 (Xa)
• Mitsubishi Asx 2013 - 2019 (Xb - Xc)
• Mitsubishi Lancer (Inc Evolution) 2007 - 2013 (Cj)
• Mitsubishi Lancer (Inc Evolution) 2014 - 2018 (Cf)
• Mitsubishi Outlander 2007 - 2012 (Zg-Zh)
• Mitsubishi Outlander 2013 - 2018 (Zj-Zk)
• Mitsubishi Pajero 2006 - 2015 (Ns-Nt-Nw)
• Mitsubishi Pajero 2015 - 2021 (Nt-Nx)
• Nissan Cube 1998 - 2016 (Z11 - Z12)
• Nissan Micra 2003 - 2009 (K12)
• Nissan Micra 2010 - 2014 (K13)
• Nissan Micra 2015 - 2016 (K13)
• Nissan Pulsar 2013 - 2016 (C12)
• Nissan Xtrail 2014 - 2017 (T32)
• Nissan Xtrail 2014 - 2017 (T32) with 360 Degree Camera System
• Nissan Xtrail 2018 - 2019 (T32)
• Nissan Xtrail 2018 - 2019 (T32) with 360 Degree Camera System
• Peugeot 207 2006 - 2011 (A7)
• Peugeot 208 2012 - 2014 (A99)
• Peugeot 3008 2009 - 2015 (T8)
• Peugeot 308 2007 - 2014 (T7)
• Peugeot 308 2015 - 2016 (T9)
• Peugeot 4007 2009 - 2011 (No Chassis Code)
• Peugeot 4008 2010 - 2014 (No Chassis Code)
• Peugeot 508 2011 - 2014 (No Chassis Code)
• Peugeot Rcz 2010 - 2015 (No Chassis Code)
• Renault Clio 2006 - 2011 (X85)
• Renault Clio 2012 - 2014 (X85)
• Renault Laguna 2007 - 2011 (Iii (B91))
• Renault Megane 2002 - 2006 (Ii (X64))
• Renault Megane 2007 - 2009 (Ii (B84))
• Renault Megane 2010 - 2011 (Iii (B95 - B35))
• Renault Megane 2012 - 2013 (Iii (B95 - B35))
• Renault Scenic 2005 - 2011 (Ii (J84 Phase 1 - 2))
• Renault Trafic 2015 - 2018 (X82)
• Skoda Octavia 2013 - 2019 (Ne - 5e)
• Subaru Forester 2013 - 2014 (Sj)
• Subaru Forester 2015 - 2018 (Sj)
• Subaru Impreza (Inc Wrx) 2012 - 2014 (Gp-Gj)
• Subaru Impreza (Inc Wrx) 2015 - 2016 (Gp-Gj)
• Subaru Xv 2012 - 2014 (Gp)
• Subaru Xv 2015 - 2016 (Gp Facelift)
• Subaru Xv 2017 - 2021 (Gt)
• Suzuki Swift 2011 - 2016 (Fz)
• Suzuki Swift 2017 - 2020 (Az)
• Suzuki Sx4 (Incl S-Cross) 2014 - 2016 (Gya)
• Suzuki Vitara 2015 - 2016 (Ly)
• Toyota 86 2012 - 2017 (Pre-Facelift)
• Toyota 86 2017 - 2020 (Post-Facelift)
• Toyota Avensis Verso 2005 - 2010 (Acm20 - Acm21r Series)
• Volkswagen Crafter 2007 - 2017 (2e - 2f Series)
• Volkswagen Crafter 2017 - 2018 (Sy Series)
• Volkswagen Golf (Incl Gti) 2005 - 2013 (Mk 5 - Mk 6 (5k Series))
• Volkswagen Golf (Incl Gti) 2014 - 2018 (Mk 7 (5g Series))
• Volkswagen Passat 2005 - 2014 (B6 - B7 Series)
• Volkswagen Polo 2014 - 2017 (6c)
• Volkswagen Touareg 2011 - 2018 (7p)
• Volkswagen Transporter (Incl Multivan or Caravelle) 2015 - 2019 (T6 Series)
• Volvo Xc70 2003 - 2007 (2nd Generation)
• Volvo Xc90 2002 - 2014 (1st Generation)
