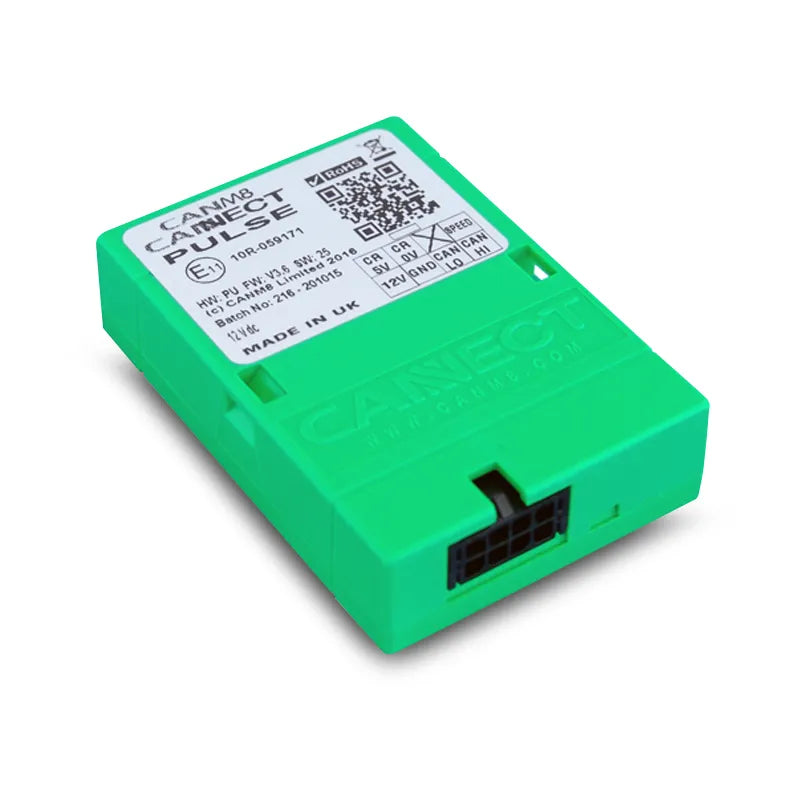

CANM8 C8NECTPULSE CANNECT Speed Pulse Output Interface
Click to open expanded view
CANM8 logo

CANM8 C8NECTPULSE CANNECT Speed Pulse Output Interface

SKU: C8NECTPULSE
Price
$214.95
Buy now, pay later
  • image
  • image
  • image

Shipping information

We offer fast and reliable shipping options to ensure that your order arrives in a timely manner. Our dedicated team works diligently to process and ship your items as quickly as possible.

Here are some key points to note about our shipping policy:

Standard Shipping

  • Frankies offers a $15.95 flat rate for Australia-wide shipping, no matter how many items you order. Some larger or heavier items may incur an additional fee, which will be communicated to you when your order is processed.
  • While we endeavour to dispatch all orders promptly, please be advised that due to the current national fuel shortages in Australia and the resulting pressure on logistics networks, order processing and dispatch may take up to 7 business days. We are not liable for delays caused by third-party freight carriers or fuel-related logistical disruptions. By placing an order, you acknowledge that delivery timeframes may be extended beyond our standard estimates during this period.

Estimated delivery times:

  • WA, NT, and TAS: currently experiencing longer shipping times
  • Holiday periods (e.g. Christmas): deliveries may be delayed due to increased freight volumes

Express Shipping

  • Express shipping is available and calculated based on your delivery location, as well as the size and weight of your order. To receive an accurate quote, please contact our Albion Park Rail store and request an "express shipping quote." Our team will promptly assist with pricing and availability. Payment for express shipping can be securely arranged over the phone.

Share this product

Share Post Pin E-mail

Product features

Ideal for Use when Installing Navigation Systems, Taxi Meters & Many Other Systems that Require Vehicle Speed Sensing

CANM8 CANNECT Pulse
CAN Bus Interface designed to provide a universal solution for installing after market electronic products that require a speed signal to vehicles which feature CAN Bus wiring.

Installations
The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN HI & CAN LO) along with a connection to a permanent, fused 12v power supply and an earth connection.

The CANM8-PULSE interface senses vehicle speed via the CAN Bus and provides a 12v square pulsed output at approximately 1 pulse per 1 MPH. The interface incorporates a multi-function miniature status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.

LED Status:

  • Flashing Red: Searching For CAN Information
  • Solid Red: CAN Data Received But Vehicle Type Not Identified Yet.
  • Solid Green: CAN Data Received & Vehicle Type Recognised.
  • Flashing Green: Vehicle Speed Detected.

Wiring Installation Details:

  • White – CAN HI
  • Blue – CAN LO
  • Black – 0V
  • Red – 12V
  • Green – 12V Speed Pulse Output
