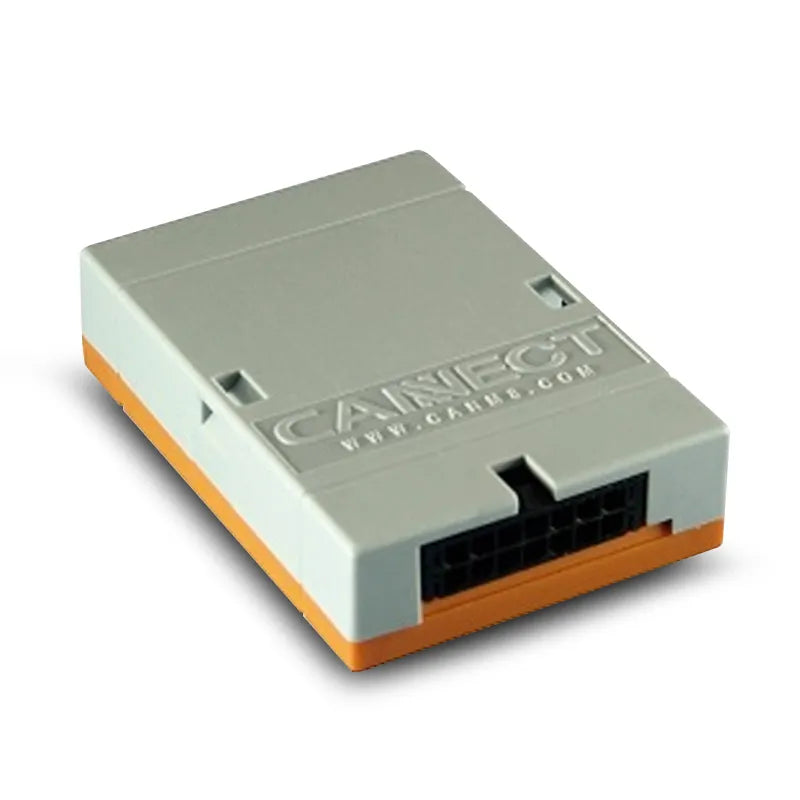

CANM8 C8NECTAV3 CANNECT AV3 3x Multi Output Interface

Designed to Provide a Universal Solution for Installing Aftermarket Electronic Products

CANM8 CANNECT AV3 Interface
This is ideal for installing AV screens when replacing original equipment audio systems. The interface features a mini wiring connector, which unplugs to allow easy installation. There are 2 connections to the vehicle CAN Bus wiring (CAN Hi & CAN Lo) along with a connection to a permanent, fused 12v power supply and an earth connection.

The interface incorporates a multi-function status LED, which indicates correct connection to the CAN system, CAN activity present and confirmation that the CAN identity has been recognised.

Interface Features 3 Outputs:

• Ignition On
• Reverse
• Park Brake

LED Status:

• Flashing Red: Searching for CAN information
• Solid Red: CAN data received but vehicle not yet identified
• Solid Green: CAN data received & vehicle type recognised

Wiring Harness Details:

• White – CAN HI
• Blue – CAN LO
• Red – 12V
• Black – 0V
• Purple – Ignition (12v)
• Brown – Reverse (12v)
• Pink – Park Brake (0v)
