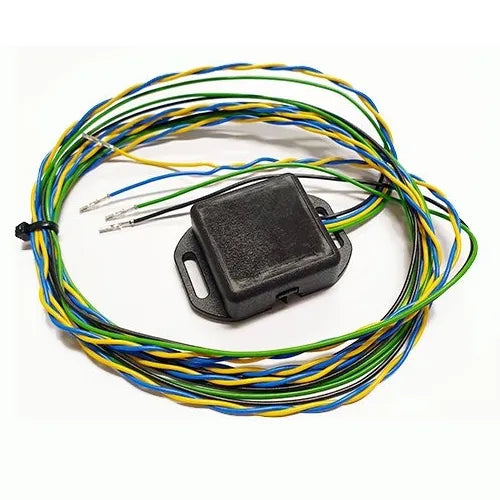

CANM8 C8CONRED5 5V Contact-Less Reader

Utilising the Contact-Less Reader With the CANM8-CANNECT is Easy!

Contact-Less Reader - 5V
Allows the CAN-Bus interface to read vehicle CAN-Bus data without any actual metal-to-metal connection between the interface and the vehicle CAN-Bus. The Contact-Less Reader option allows the CAN-Bus interface to read vehicle CAN-Bus data without any actual metal-to-metal connection between the interface and the vehicle CAN-Bus. The reader is secured around a section of the vehicle CAN Bus wiring and data is read by an induction method, thus protecting any manufacturer’s warranty. This version of our Contact-Less reader works on 5V and is directly compatible with our CANNECT Range of Interfaces.

If you are installing one of our CANNECT Products, and wish to purchase a contactless reader to work with it, then this is the product for you. The readers feature a strong locking clamp to retain their position around the CAN wiring. The CAN wiring must first be straightened for a short distance and the HI-LO wires identified and placed into the corresponding channels of the reader before the reader housing can be closed over the wiring.

CANM8-CANNECT Direct Compatibility
Utilising the Contact-Less reader with the CANM8-CANNECT is easy. Most of the CANM8-CANNECT product range is directly compatible with contactless readers. A 5V power connection is provided in the CANNECT interface harness connector that is designed to power the reader and the readers are supplied with pre-terminated wires.

Simply remove the CAN-HI and LO connection wires from the CANNECT interface harness and fit the HI and LO connection wires from the reader into the same connector positions. Click the reader power wires into the corresponding powering positions and the interface is ready to install on the vehicle. The Bi-Colour LED at the base of the CANNECT interface confirms CAN data reception.

Specifications:

• Power Connection: 5V
• Compatibility: CANNECT Range Interfaces
