Calibre ELITE 7WL 6.8 Inch Wireless CP AA Receiver

Calibre ELITE 7WL 6.8 Inch Wireless CP AA Receiver

Transform your factory system with ultra high power 2Ω stable amplification, wireless smartphone connectivity, and a brilliant 6.8-inch high-resolution display designed for the ultimate driving experience.

Product Overview

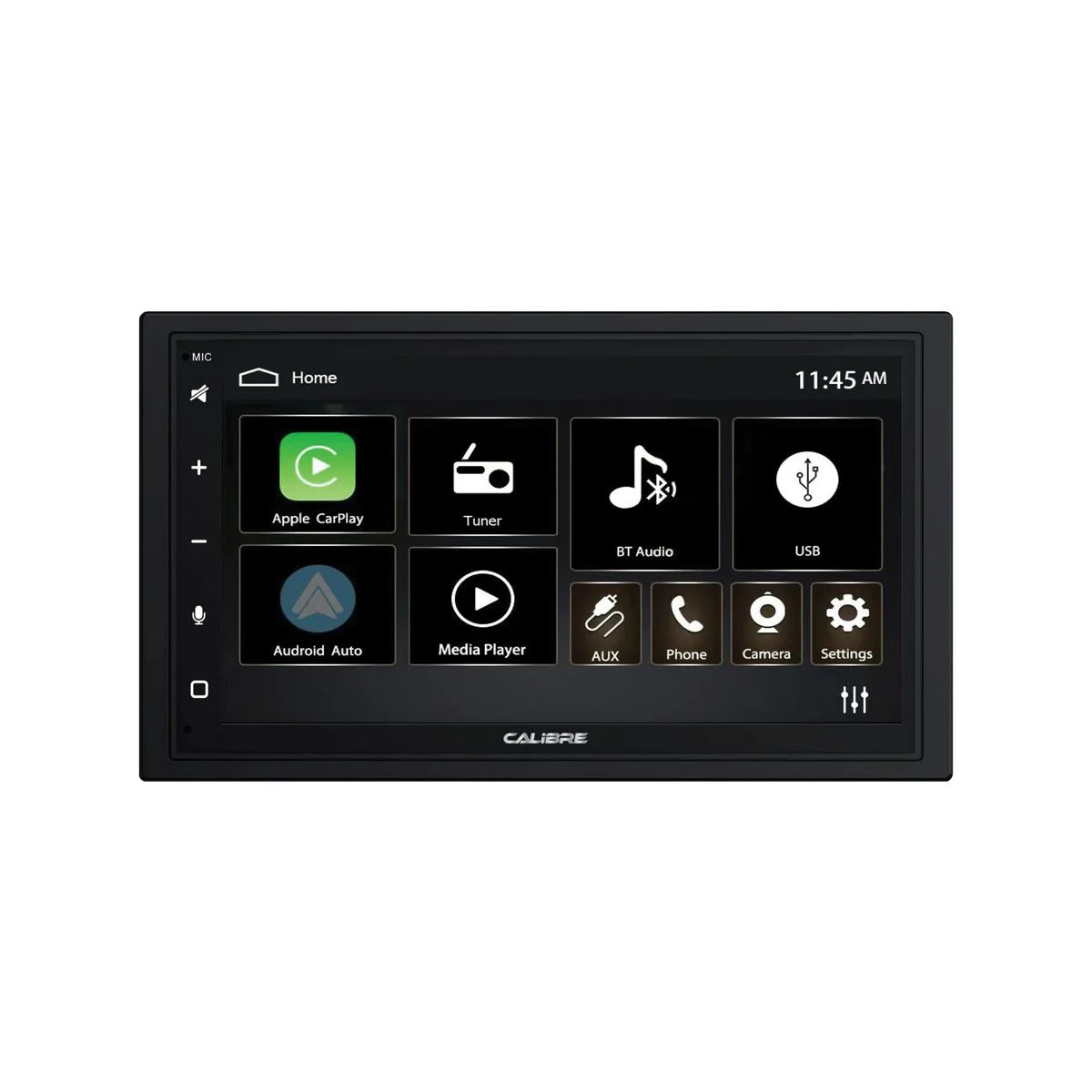

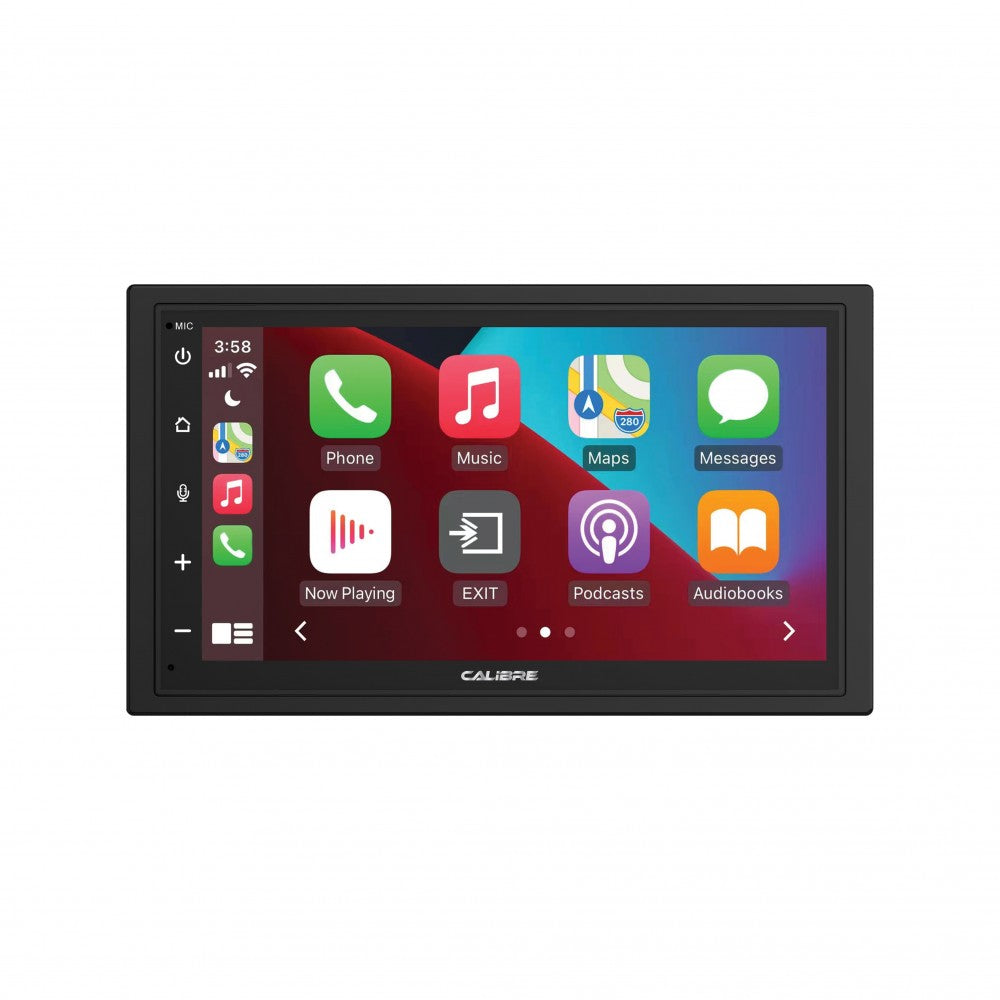

The Calibre ELITE 7WL is a premium 6.8-inch multimedia receiver loaded with advanced features designed to enhance your entertainment experience. Offering both wireless and wired Apple CarPlay® and Android Auto™, this model delivers seamless smartphone integration without the cable clutter. The high-resolution 1024x600 capacitive touchscreen provides crystal-clear visuals and responsive touch control, while dual camera inputs enable comprehensive parking assistance with both front and rear camera connectivity. What sets the ELITE 7WL apart is its ultra high power amplification with 2Ω stable output, delivering 4x72W maximum power at 2Ω and 4x48W at 4Ω – significantly more powerful than standard receivers. The ability to connect two phones simultaneously via Bluetooth ensures both driver and passenger stay connected, while the built-in WiFi enables wireless smartphone connectivity. With programmable steering wheel controls, comprehensive multimedia format support, and professional-grade audio tuning options including 10-band EQ and time alignment, the ELITE 7WL provides a powerful upgrade to your factory system with premium features typically found in higher-end installations.

Features & Benefits

The ELITE 7WL combines powerful amplification with smart connectivity features to deliver exceptional in-car entertainment. The wireless Apple CarPlay and Android Auto capability eliminates cable hassles while providing full access to navigation, music, messaging, and hands-free calling through your smartphone. The 6.8-inch 1024x600 high-resolution capacitive touchscreen offers excellent visibility and smooth, responsive touch operation for effortless control. The ultra high power 2Ω stable amplification is a standout feature, delivering 4x72W maximum output at 2Ω impedance – perfect for driving aftermarket speakers efficiently without an external amplifier. The selectable max 2% THD limiter and internal amp on/off function provide flexibility for various system configurations. Dual camera inputs supporting both PAL and NTSC formats allow you to connect both front and rear cameras for complete parking assistance coverage. The professional audio tuning options include a 10-band equalizer for precise sound shaping, high-pass filters for front and rear outputs (OFF/50/80/120/160Hz), low-pass filter for subwoofer output (OFF/20/30/40/50/60/80Hz), and time alignment for front, rear, and subwoofer channels to create optimal sound staging. The ELITE RDS AM/FM tuner with 18 FM and 12 AM presets ensures comprehensive radio reception, while the built-in WiFi and dual USB 2.0 ports (one dedicated for media, one for CarPlay/Android Auto) provide versatile connectivity options. Programmable steering wheel controls allow you to retain factory button functionality for safe, convenient operation.

Technical Specifications

Compatible With

The Calibre ELITE 7WL is designed for universal ISO 2-DIN installation and fits most vehicles with standard double DIN dashboard openings. The 170.5mm x 97mm face panel fits perfectly into standard 2-DIN spaces. Compatible with both wired and wireless Apple CarPlay (iPhone 5 and later with iOS 7.1 or higher) and Android Auto (Android 5.0 Lollipop and later). The 2Ω stable amplification makes it ideal for aftermarket speakers with 2-8 ohm impedance, delivering exceptional power without requiring an external amplifier for most applications. Works seamlessly with aftermarket backup cameras supporting PAL or NTSC formats for both front and rear camera installations. The 4V RCA pre-outs allow connection to external amplifiers for system expansion, while the dual subwoofer RCA outputs enable flexible bass system configurations. Pairs perfectly with steering wheel control interfaces to retain factory button functionality through the programmable SWC feature. The internal amplifier can be switched off when using external amplification, making this unit versatile for both powered and pre-amp applications. Compatible with active subwoofers using the dedicated low-pass filtered sub outputs.

Frequently Asked Questions

Q: Does the Calibre ELITE 7WL support wireless Apple CarPlay and Android Auto?
A: Yes, the ELITE 7WL supports both wireless and wired Apple CarPlay and Android Auto connectivity. The built-in WiFi enables wireless connection to your compatible smartphone, eliminating the need for cables while maintaining full functionality for navigation, music, and calls.

Q: What does 2Ω stable amplification mean and why is it important?
A: The ELITE 7WL's 2Ω stable amplification means it can safely deliver power to speakers with impedance as low as 2 ohms, outputting 4x72W maximum power at 2Ω. This is significantly more powerful than standard headunits limited to 4Ω, allowing you to drive aftermarket speakers much more efficiently without needing an external amplifier.

Q: Can I connect both front and rear cameras to this headunit?
A: Yes, the ELITE 7WL features dual camera inputs that support both front and rear cameras. Both inputs are compatible with PAL and NTSC format cameras, providing comprehensive visibility for parking assistance and maneuvering.

Q: Will this work with my factory steering wheel controls?
A: Yes, the ELITE 7WL features programmable steering wheel control functionality. When paired with an appropriate vehicle-specific steering wheel control interface, you can retain and program your factory steering wheel buttons to control headunit functions like volume, track skip, and source selection.

Q: Can I turn off the internal amplifier to use external amplifiers?
A: Yes, the ELITE 7WL features a switchable internal amplifier that can be turned on or off. This allows you to use the unit as a pre-amp source when connecting to external amplifiers, with 4V RCA pre-outs providing clean signal output for high-quality system expansion.
