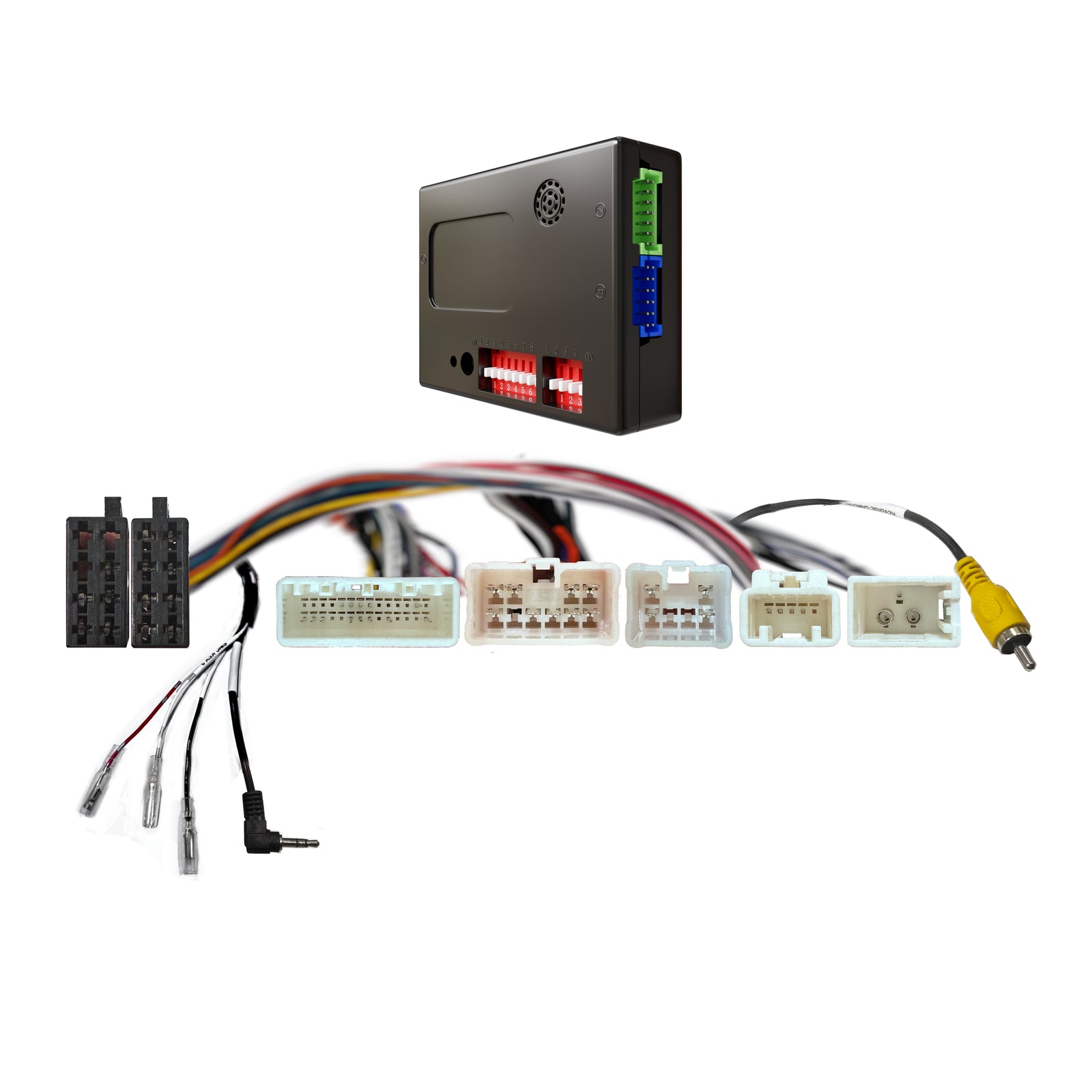

CAC HSR6K2 control module above the Subaru harness with camera and antenna leads
CAC HSR6K2 control module above the Subaru harness with camera and antenna leads
Click to open expanded view

CAC HSR6K2 Subaru Harman Kardon Harness with SWC, Camera and Antenna Retention

SKU: HSR6K2
Price
$399.99
Inc. GST. Most orders ship Australia wide for a flat $15.95. Larger or heavier items may cost more.
Buy now, pay later
  • image
  • image
  • image

Shipping information

Australia wide flat rate shipping is $15.95. Larger or heavier items may cost more; we will confirm when your order is processed. In stock items are dispatched within 1 to 2 business days. Report transit damage within 24 hours with photos so we can lodge a freight claim.

Share this product

Share Post Pin E-mail
CAC HSR6K2 control module above the Subaru harness with camera and antenna leads

CAC HSR6K2 Subaru Harman Kardon Harness with SWC, Camera and Antenna Retention

$399.99

Product features

Quick answer

The CAC HSR6K2 is a plug in harness for Subaru models with the factory Harman Kardon system, letting you fit an aftermarket stereo.

It keeps the steering wheel buttons, the front, side and rear cameras and the factory antenna, and works with Alpine, JVC, Kenwood, Nakamichi, Pioneer and Sony units.

Problems it solves

  • A Harman Kardon Subaru that goes quiet with a standard harness. This one is matched to the amplified system.
  • Losing the side and front cameras. All three camera feeds are retained.
  • An antenna plug that will not fit the new stereo. An adaptor is included.

Specifications

  • Vehicles: Forester 2018 on, Impreza 2017 on, Liberty 2018 to 2020, Outback 2018 to 2020, WRX 2019 to 2021, XV 2017 on
  • System: factory Harman Kardon
  • Retains: steering controls, front, side and rear cameras, antenna
  • Interface: CSR2A module
  • Stereos: Alpine, JVC, Kenwood, Nakamichi, Pioneer, Sony and others

Fitment and compatibility

Car Audio Connect lists Dash 1 and 2 for Forester, Impreza, Liberty, Outback and XV, and Dash 1 for the WRX. Your car must have the Harman Kardon system.

What is in the box

HSR6K2 harness with CSR2A steering control module, camera retention leads and antenna adaptor.

Install notes

On a WRX with a 7 inch Pioneer, set dip switch 14 off and 23 on, choose without adapter and Korean, then learn the wheel buttons on the stereo.

Warranty

This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the HSR6K2

Will the HSR6K2 suit a Subaru without Harman Kardon?

No. It is for cars with the factory Harman Kardon system. Your car must have the Harman Kardon system.

Does the HSR6K2 keep the side camera?

Yes. Front, side and rear cameras are all retained. HSR6K2 harness with CSR2A steering control module, camera retention leads and antenna adaptor.

How do I set up the HSR6K2 with a Pioneer in a WRX?

Dip 14 off and 23 on, pick without adapter and Korean, then learn the buttons. On a WRX with a 7 inch Pioneer, set dip switch 14 off and 23 on, choose without adapter and Korean, then learn the wheel buttons on the stereo.
