CAC F9TY37K1 9 Inch Fascia Kit Compatible with Toyota Hilux 2012-2014 Auto A/C

CAC F9TY37K1 9 Inch Fascia Kit Compatible with Toyota Hilux 2012-2014 Auto A/C

Complete 9 inch fascia integration kit for Toyota Hilux 2012-2014 with automatic air conditioning enabling large-screen aftermarket head unit installation while retaining steering wheel controls, factory reverse camera, and USB connection. The Car Audio Connect CAC F9TY37K1 fascia kit is specifically designed for Toyota Hilux 2012-2013 Dash 3 and 2014 Dash 1 models with automatic air conditioning providing OEM-style professional mounting solution for universal trapezoid 9 inch aftermarket head units with comprehensive plug-and-play connection to factory wiring systems. This integration kit includes steering wheel control harness, factory camera retention adapter, USB adapter, and radio antenna adapter enabling essential functionality preservation during head unit upgrades. Compatible with Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems, and aftermarket Android stereos featuring universal trapezoid mounting format, this versatile fascia kit eliminates complex installation modifications through direct plug-and-play connection enabling professional OEM-style appearance.

Product Overview

Car Audio Connect CAC 9 Inch Fascia Kit is designed to suit a range of vehicles. Upgrade your head unit with OEM style. Plug and Play connect directly to factory wiring with easy installation.

Important Installation Requirements:

Suits universal trapezoid 9 inch stereo only. Work with Alpine AW409S, AX809, Pioneer DMH-AP6650BT, Nakamichi Canbus System. Feature retention will depend on the radio model.

Suit Headunit:

• Alpine AW409S, AX809
• Kenwood DMX80AXS
• Pioneer DMH-AP6650BT
• Nakamichi Android Stereo
• Aftermarket Android Stereo

Compatible With:

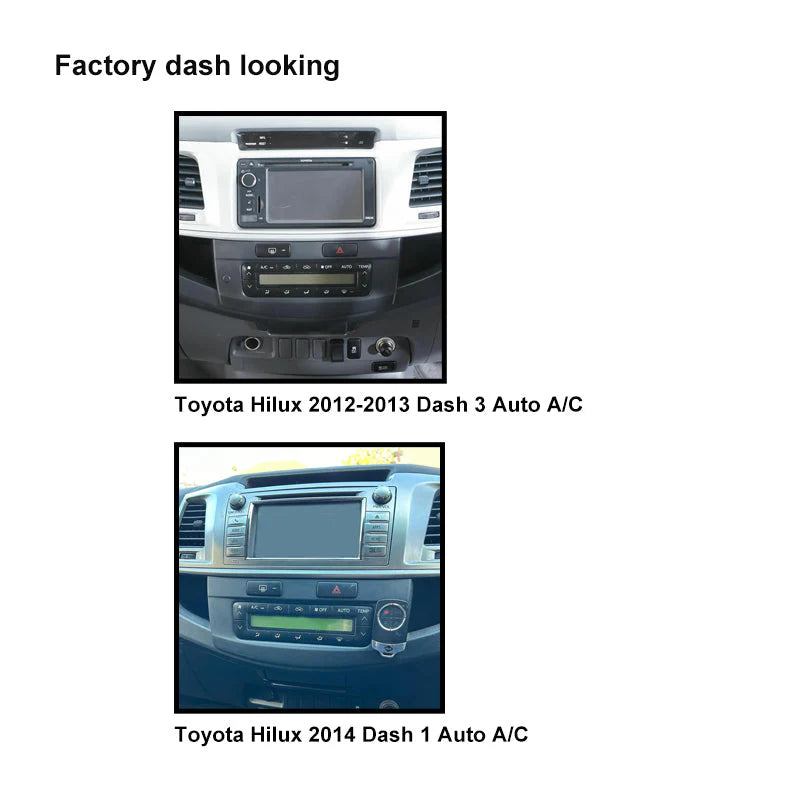

• Toyota Hilux 2012-2013 Dash 3 Auto A/C
• Toyota Hilux 2014 Dash 1 Auto A/C

Important Notes:

Universal Trapezoid Format Required: Designed ONLY for universal trapezoid 9" head units, not standard DIN sizes or 10" units.

Auto A/C Specific: For Toyota Hilux 2012-2014 models with automatic air conditioning (climate control). Not compatible with manual A/C systems.

Dash Configuration Specific: Compatible with 2012-2013 Dash 3 and 2014 Dash 1 configurations. Verify your model year and dash type before ordering.

Feature Retention Depends on Head Unit: Canbus-equipped head units offer best feature retention capabilities.

Reverse Camera Retention (Selected Models): Camera retention available for vehicles equipped with factory reverse cameras.

USB Retention (Selected Models): Factory USB connection retained for selected models.

Head Unit NOT Included: Fascia kit with harness only, head unit sold separately.

Key Features

2012-2014 Auto A/C Specific Design: Fits Toyota Hilux 2012-2013 Dash 3 and 2014 Dash 1 with automatic air conditioning.

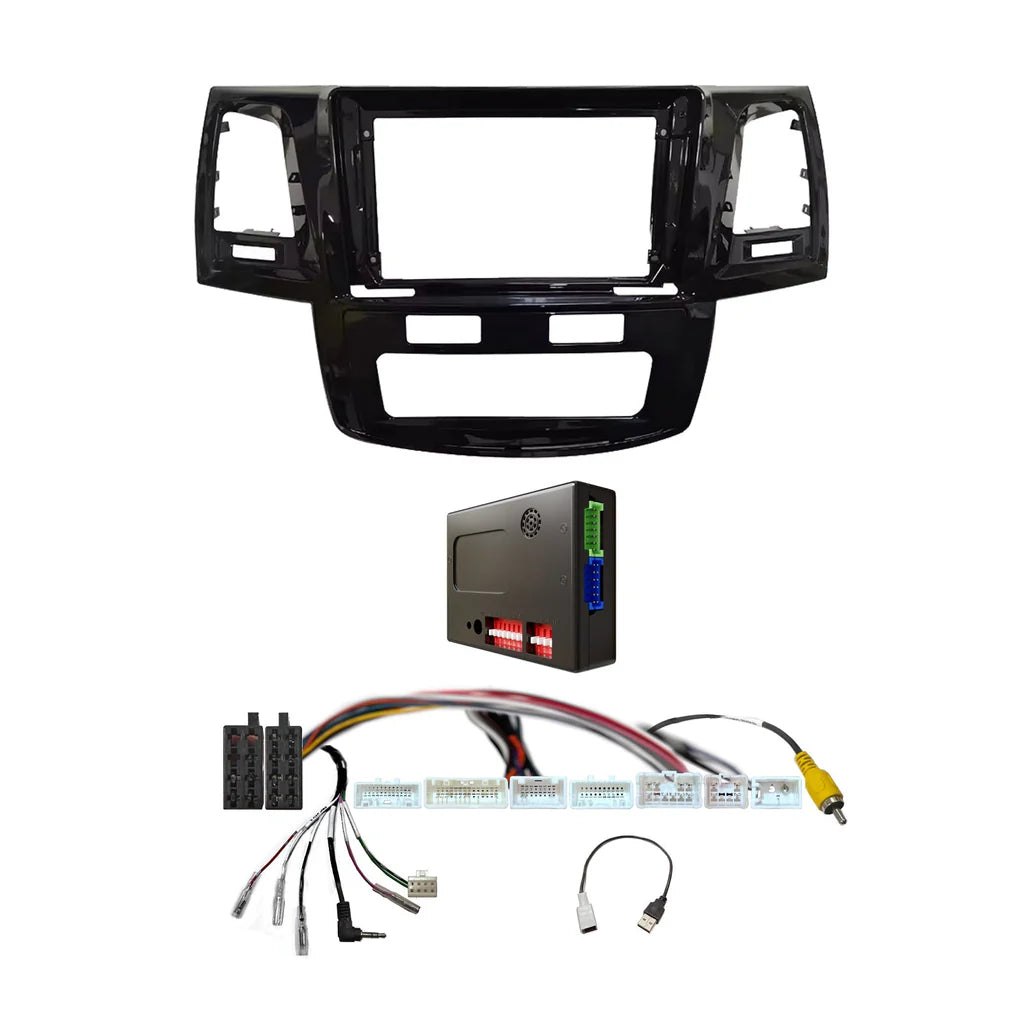

Complete Integration Kit: Includes fascia panel, steering wheel control harness, camera retention adapter, USB adapter, and antenna adapter.

Steering Wheel Control Retention: Retains full factory steering wheel control functionality.

Reverse Camera Retention: Maintains factory reverse camera functionality (selected models with factory cameras).

Factory USB Retention: Retains factory USB connection (selected models).

Factory Antenna Adapter: Includes antenna adapter for proper FM/AM radio reception.

OEM-Style Professional Appearance: Matches factory dashboard contours and finish.

Universal Trapezoid Head Unit Compatible: For Alpine, Kenwood, Pioneer, Nakamichi, and aftermarket Android stereos.

Plug-and-Play Installation: Direct connection to factory wiring without cutting or splicing.

Technical Specifications

Frequently Asked Questions

Q: Does this fascia kit include the aftermarket head unit, or do I need to purchase it separately?

A: This is a fascia kit with wiring harness only - the aftermarket head unit is NOT included and must be purchased separately. Choose from compatible Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems, or aftermarket Android stereos featuring universal trapezoid 9 inch mounting format. Note that this kit is designed for 9 inch head units only, not 10 inch units. The fascia kit provides the mounting solution and comprehensive wiring integration to install your chosen aftermarket head unit in your Toyota Hilux 2012-2014 with automatic air conditioning.

Q: How do I know if my Hilux has automatic air conditioning or manual A/C?

A: Automatic air conditioning (climate control) systems have digital displays showing temperature settings and automatically maintain set temperatures. Manual air conditioning systems use rotary dials or slider controls. This F9TY37K1 fascia kit is designed specifically for automatic A/C systems only. If your Hilux has manual air conditioning (rotary dials), you will need the F9TY39K1 fascia kit instead. Contact Frankie's Auto Electrics for verification assistance if uncertain.

Q: What dash types are compatible with this fascia kit?

A: This fascia kit is compatible with Toyota Hilux 2012-2013 Dash 3 configuration and Toyota Hilux 2014 Dash 1 configuration, both with automatic air conditioning. Different model years and dash configurations may require different fascia kits. To verify your dash type, contact Frankie's Auto Electrics with your vehicle's year, trim level, and VIN for accurate compatibility confirmation.

Q: Will this kit retain my factory reverse camera?

A: This fascia kit includes a camera retention adapter for vehicles equipped with factory reverse cameras. If your Toyota Hilux 2012-2014 came with a factory reverse camera, this kit will retain that functionality by converting the factory camera signal to work with your aftermarket head unit's camera input. The camera retention feature only works if your vehicle has a factory-installed reverse camera. If your vehicle does not have a factory camera, you can install an aftermarket reverse camera system separately, as all compatible head units include reverse camera inputs.

Q: Can I still use my factory USB port after installing an aftermarket head unit?

A: Yes, this kit includes a USB adapter that retains factory USB connection functionality for selected models. The USB retention allows you to continue using your factory USB port for charging and data connectivity. USB functionality depends on both your vehicle's factory equipment and your selected aftermarket head unit's USB integration capabilities.

Q: Will my steering wheel controls work with an aftermarket head unit?

A: Yes, this fascia kit includes a steering wheel control harness that retains full factory steering wheel control functionality. Most modern aftermarket head units (Alpine, Kenwood, Pioneer, Nakamichi) feature automatic SWC detection and will recognize steering wheel button presses immediately after installation with no programming required. Some head units may require brief manual SWC learning where you press each steering wheel button to assign functions.

Q: Can I use a 10 inch head unit with this fascia kit?

A: No, this fascia kit is designed specifically for universal trapezoid 9 inch head units only. It will NOT accommodate 10 inch head units. The mounting aperture and fascia dimensions are specifically sized for 9 inch screens. If you require a 10 inch head unit installation, you will need a different fascia kit designed for 10 inch mounting. Verify your chosen head unit is a 9 inch universal trapezoid format before purchase.
