CAC F9MA8K 9 Inch Fascia Kit Compatible with Mazda 6 2008-2009 2010-2012

Direct-fit 9" head unit upgrade for Mazda 6 GH series (2008-2012) with complete steering wheel control and factory Bose system retention.

Product Overview

The Car Audio Connect F9MA8K fascia kit delivers seamless 9-inch aftermarket head unit integration for Mazda 6 GH series vehicles spanning 2008 through 2012 model years. This comprehensive installation package includes a precision-engineered fascia panel designed to match the Mazda 6's premium interior aesthetics, a steering wheel control interface harness that preserves all factory buttons including the Bluetooth function, and a factory antenna adapter for maintained AM/FM reception. Designed for plug-and-play installation, the kit works directly with factory Bose amplified systems without requiring bypass harnesses or signal converters—preserving the sophisticated audio tuning Mazda engineers developed for the GH platform. Compatible with Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems, and other universal trapezoid 9" aftermarket head units. The kit accommodates both early (2008-2009) and updated (2010-2012) dashboard configurations within the GH series, though dash variations should be verified before ordering.

Key Specifications

• Fits Mazda 6 GH series (2008, 2009, 2010, 2011, 2012 model years)
• Universal trapezoid 9" head unit mounting—not vehicle-specific head units
• Includes integrated steering wheel control (SWC) retention harness with Bluetooth button functionality
• Factory radio antenna adapter included for AM/FM reception
• Compatible with factory Bose amplified audio systems (no bypass required)
• Plug-and-play installation—connects directly to factory wiring
• Accommodates 2008-2009 and 2010-2012 dashboard configurations
• Feature retention dependent on aftermarket head unit capabilities

Features & Benefits

Complete GH Series Coverage: Engineered to fit both early (2008-2009) and updated (2010-2012) Mazda 6 GH series dashboards with a single fascia design. This eliminates the confusion of multiple part numbers and reduces inventory requirements for workshops servicing the complete GH generation—though dash verification is recommended as minor trim variations exist across production years.

Premium Steering Wheel Control Retention: Maintains full functionality of Mazda 6's multifunction steering wheel controls including volume, track navigation, source selection, and critically, the dedicated Bluetooth call button. This preserves the driver-focused ergonomics Mazda developed for the GH platform, where steering wheel controls are positioned for minimal distraction during spirited driving or highway cruising.

Bose System Direct Integration: Works seamlessly with factory Bose amplified systems without requiring bypass harnesses or line-output converters. This preserves the Mazda 6's carefully tuned acoustic signature and prevents the significant power loss that occurs when disconnecting factory amplification—maintaining the premium audio experience expected in this executive sedan segment.

OEM-Quality Dashboard Integration: Precision-molded fascia matches the Mazda 6 GH's sophisticated interior design language, maintaining the premium appearance that defines this platform. The trapezoid 9" format integrates with the driver-oriented dashboard architecture without the aftermarket "add-on" look that compromises cabin aesthetics in executive vehicles where interior quality directly impacts resale value.

Multi-Brand Head Unit Compatibility: Verified compatibility with Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, and Nakamichi Android systems provides flexibility when selecting modern features like wireless CarPlay, Android Auto, or high-resolution audio playback. This compatibility range reduces installation risk when upgrading from aging factory navigation systems or base audio units common in GH series vehicles.

Simplified Installation Package: Complete harness set eliminates the need for multiple vendor orders or compatibility verification across different component suppliers. Everything required for steering wheel control retention and antenna function arrives in one package—reducing installation time and preventing the project delays that occur when discovering missing components mid-installation.

Technical Specs

• Vehicle application: Mazda 6 GH (2008-2012, both early and updated dashboard configurations)
• Head unit format: Universal trapezoid 9" only (not Mazda-specific units)
• Fascia construction: ABS plastic with OEM-matched texture and finish
• Included harnesses: Steering wheel control interface, antenna adapter
• Feature retention: SWC (all buttons including BT), factory antenna, Bose amplifier compatibility
• Installation method: Plug-and-play to factory connectors
• Compatible head unit models: Alpine AW409S/AX809, Kenwood DMX80AXS, Pioneer DMH-AP6650BT, Nakamichi Android systems, universal 9" Android head units
• Dashboard compatibility: 2008-2009 and 2010-2012 configurations (verify dash layout before ordering)

Frequently Asked Questions

Does this fit 2013+ Mazda 6 models?
No, this kit is engineered specifically for the GH series (2008-2012). The 2013+ GJ series uses completely different dashboard architecture requiring separate fascia kits due to Mazda's major platform redesign.

Will my factory reverse camera still work?
Camera retention depends entirely on your chosen aftermarket head unit's input capabilities, not the fascia kit. Select a head unit with composite or AV input for factory camera compatibility—particularly important for 2010-2012 models where reverse cameras were more common.

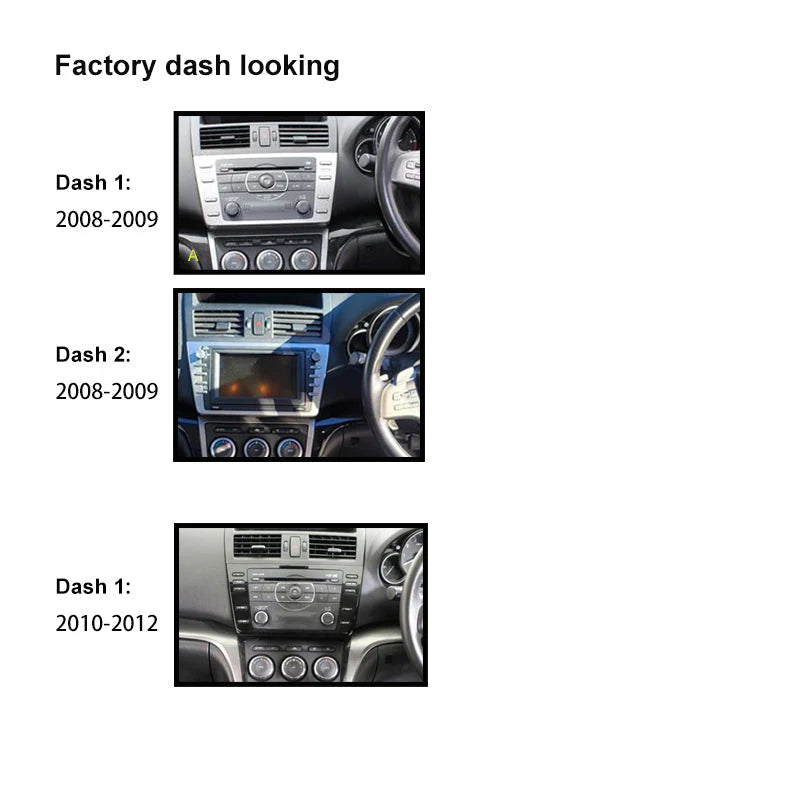

What's the difference between 2008-2009 and 2010-2012 fitment?
The kit accommodates both dashboard configurations within the GH series, though minor trim variations may exist. We recommend verifying your specific dashboard layout against our product images or contacting us for confirmation before ordering.

Do I need additional harnesses for Bose systems?
No. The kit includes Bose amplifier compatibility—no bypass harnesses or signal converters required. However, verify your chosen head unit provides speaker-level outputs or preamp outputs as needed for proper Bose system integration.

Can I install this myself or do I need a professional?
The plug-and-play design suits confident DIY installers with basic hand tools. However, Mazda 6 GH series dashboard removal requires careful trim clip management and knowledge of hidden fastener locations—professional installation recommended if unfamiliar with Mazda interior work or if your vehicle has factory navigation that requires additional wiring considerations.

Compatible With / Goes Well With

Verified Compatible Head Units:

• Alpine AW409S (9" Android Auto/CarPlay receiver)
• Alpine AX809 (9" multimedia receiver)
• Kenwood DMX80AXS (9" wireless CarPlay/Android Auto)
• Pioneer DMH-AP6650BT (9" multimedia receiver)
• Nakamichi Android Canbus systems
• Universal 9" trapezoid Android head units

Installation Accessories (sold separately):

• Trim removal tool kit (recommended for safe dashboard panel removal)
• Additional wiring harnesses if bypassing factory Bose amplifier
• Antenna extension cables for relocated head units
• Reverse camera retention harnesses (for 2010-2012 models with factory cameras)

Caution: This kit is designed for universal trapezoid 9" aftermarket head units only. Always verify head unit dimensions and your specific Mazda 6 dashboard configuration before purchase—the GH series had minor trim variations across production years. Check dashboard photos or contact us for fitment confirmation.
