Product features

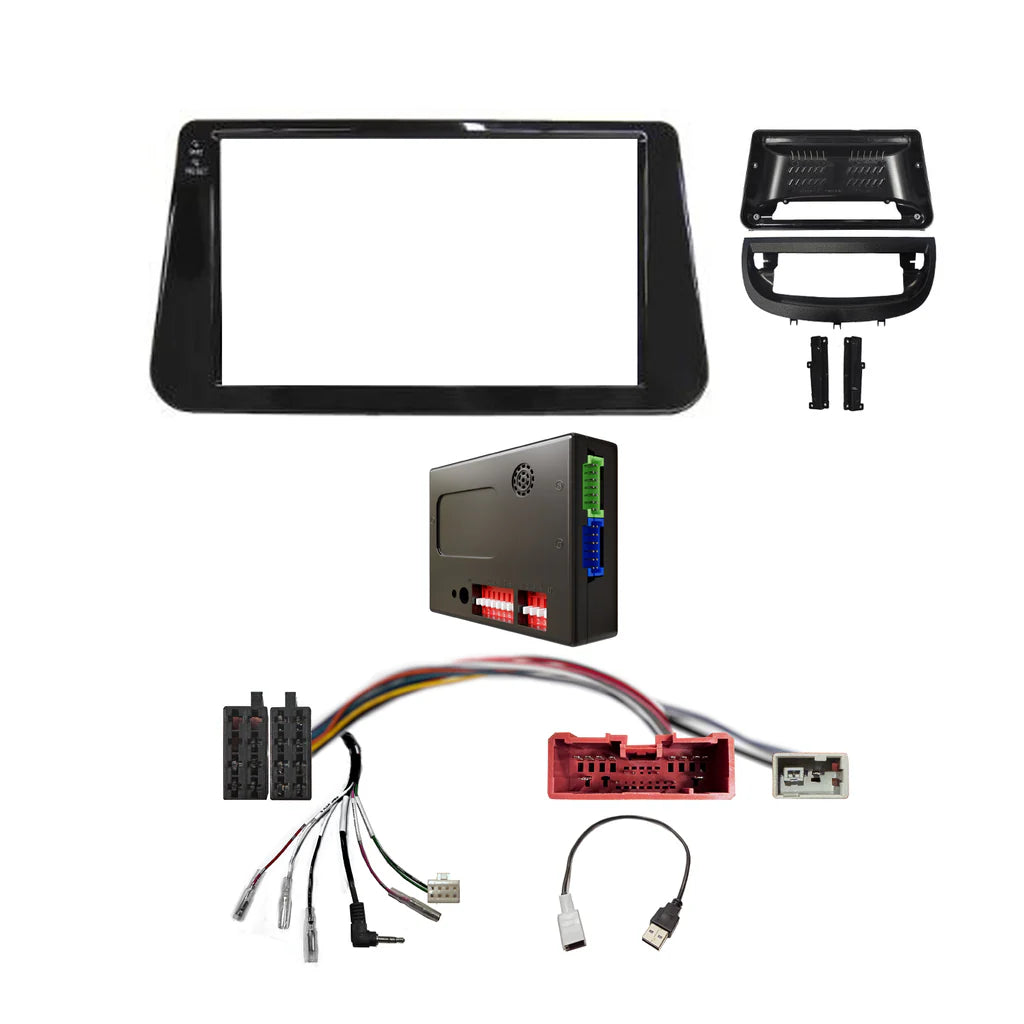

CAC F9MA7K1 9 Inch Fascia Kit for Mazda 3 2013+ Dash 1

Complete 9 inch fascia integration kit for Mazda 3 2013+ Dash 1 enabling large-screen aftermarket head unit installation with full steering wheel control retention, factory USB connectivity, and Bluetooth button functionality. The Car Audio Connect CAC F9MA7K1 fascia kit is specifically designed for Mazda 3 2013+ Dash 1 models providing OEM-style professional mounting solution for universal trapezoid 9 inch aftermarket head units with seamless plug-and-play connection to factory wiring systems. This comprehensive integration kit includes steering wheel control harness, USB adapter, and radio antenna adapter ensuring essential functionality during head unit upgrades. Compatible with Alpine AW409S/AX809, Pioneer DMH-AP6650BT, Nakamichi Android systems, and aftermarket Android stereos featuring universal trapezoid mounting format, this versatile fascia kit eliminates complex installation modifications through direct plug-and-play connection enabling professional OEM-style appearance with full steering wheel control retention, factory USB port functionality, and Bluetooth button operation for factory-equipped Bose amplified audio systems with separate HEXT3 adapter.

Product Overview

Car Audio Connect CAC 9 Inch Fascia Kit is designed to suit a range of vehicles. Upgrade your head unit with OEM style. Plug and Play connect directly to factory wiring with easy installation.

Important Installation Requirements:

Suits universal trapezoid 9 inch stereo only. Works with Alpine AW409S, AX809, Pioneer DMH-AP6650BT, Nakamichi Canbus System. Feature retention will depend on the radio model.

Dash 1 Configuration Compatibility:

This kit is specifically engineered for Mazda 3 2013+ vehicles with Dash 1 configuration. Dash configuration determines factory wiring architecture and feature compatibility. Verify your vehicle's dash configuration before purchase to ensure proper fitment and feature retention.

Factory Bose Amplified System Compatibility:

This kit is compatible with factory Bose amplified systems when used with separate HEXT3 adapter (must be ordered separately). The HEXT3 adapter enables proper signal integration with factory Bose amplification ensuring optimal audio performance during aftermarket head unit installation.

Features & Benefits

Complete Integration Solution for Mazda 3 2013+ Dash 1

Professional-grade fascia kit engineered specifically for Mazda 3 2013+ Dash 1 models delivering seamless aftermarket head unit integration with OEM-style appearance and comprehensive feature retention. The universal trapezoid 9 inch mounting format accommodates popular aftermarket systems from Alpine, Pioneer, and Nakamichi platforms ensuring versatile compatibility across leading head unit manufacturers while maintaining factory dash configuration requirements.

Full Steering Wheel Control Retention with Bluetooth Button

Advanced steering wheel control harness maintains complete factory steering wheel button functionality including volume control, track navigation, source selection, and factory Bluetooth button operation. This comprehensive SWC integration ensures convenient driver-focused control without compromising safety or ergonomics during aftermarket head unit operation across all compatible Alpine, Pioneer, and Nakamichi systems with Canbus-equipped models offering enhanced feature mapping.

Factory USB Port Retention for Device Connectivity

Integrated USB adapter maintains factory USB port functionality enabling direct device connection for charging smartphones, tablets, and portable media players. This factory USB retention ensures convenient device connectivity maintaining original equipment convenience while upgrading to modern aftermarket head unit technology with touchscreen navigation, smartphone integration, and advanced multimedia capabilities.

Factory Bose Amplified System Compatible

Designed for compatibility with factory Bose amplified audio systems when paired with separate HEXT3 adapter enabling proper signal integration and optimal audio performance. This compatibility ensures factory amplification investment protection while upgrading to modern aftermarket head unit technology without sacrificing premium factory audio quality or system performance.

Plug-and-Play Installation with Factory Antenna Retention

Streamlined installation process eliminates complex wiring modifications through direct plug-and-play connection to factory harnesses. Included factory radio antenna adapter maintains AM/FM reception quality ensuring uninterrupted access to broadcast radio stations during aftermarket head unit operation without signal degradation or reception issues across all compatible head unit platforms.

Premium OEM-Style Appearance

Precision-engineered fascia panel delivers factory-finished appearance seamlessly integrating with Mazda 3 dashboard aesthetics. Professional-grade construction ensures secure mounting, clean panel gaps, and long-term durability maintaining original equipment quality standards throughout aftermarket head unit installation in Dash 1 configuration vehicles.

Technical Specifications

Specification Details
Product Code F9MA7K1
Brand Car Audio Connect (CAC)
Product Type 9 Inch Fascia Kit with Integration Harness
Fascia Size Universal Trapezoid 9 inch
Compatible Vehicles Mazda 3 2013+ Dash 1
Dash Configuration Dash 1 (verify vehicle dash type before purchase)
Steering Wheel Controls Full retention including BT button
USB Retention Factory USB port functionality retained
Factory Amplifier Compatibility Bose amplified systems (requires separate HEXT3 adapter)
Antenna Adapter Factory radio antenna adapter included
Installation Method Plug-and-play direct connection
Compatible Head Unit Brands Alpine, Pioneer, Nakamichi, Aftermarket Android
Recommended Head Units Alpine AW409S/AX809, Pioneer DMH-AP6650BT, Nakamichi Android systems
Feature Retention Level Depends on head unit model (Canbus systems offer enhanced retention)
Mounting Format Universal trapezoid 9 inch stereo format
Harness Included Steering wheel control harness, USB adapter, antenna adapter
Finish OEM-style professional finish
Country of Origin Designed for Australian market compliance

Compatible With

Vehicle Application:

  • Mazda 3 2013+ Dash 1 Configuration (All variants)

Compatible Head Unit Systems:

  • Alpine AW409S, Alpine AX809
  • Pioneer DMH-AP6650BT
  • Nakamichi Android Stereo Systems
  • Aftermarket Android Stereo Systems (Universal trapezoid 9 inch format)

Required Additional Adapter for Bose Systems:

  • HEXT3 Adapter (must be ordered separately for factory Bose amplified systems)

Important Compatibility Notes:

  • This kit is specifically designed for Dash 1 configuration vehicles
  • Verify your vehicle's dash configuration before purchase
  • Feature retention capabilities depend on selected head unit model
  • Canbus-equipped systems from Alpine, Pioneer, and Nakamichi offer the most comprehensive feature integration

Frequently Asked Questions

Q: Does this kit retain factory steering wheel controls and the factory USB port?

Yes, the CAC F9MA7K1 includes both a steering wheel control harness and USB adapter that retain full factory steering wheel button functionality (including volume control, track navigation, source selection, and the factory Bluetooth button) as well as factory USB port functionality for device charging and connectivity. Full feature retention is maintained with compatible Alpine, Pioneer, and Nakamichi head units.

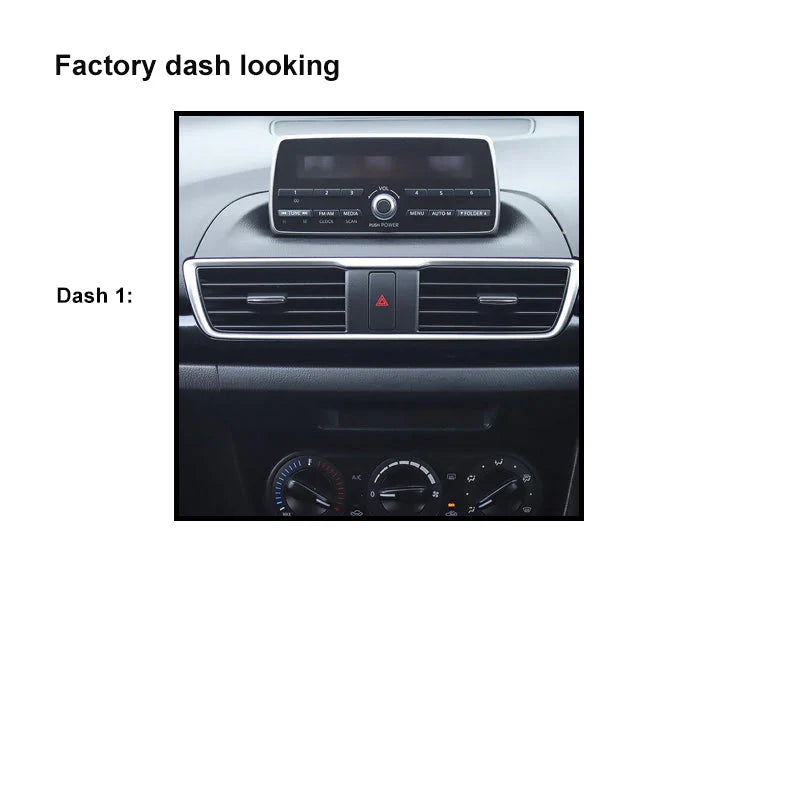

Q: What is Dash 1 configuration and how do I know if my Mazda 3 has it?

Dash 1 refers to the factory wiring and dashboard configuration used in certain Mazda 3 2013+ vehicles. Dash configuration determines harness compatibility and feature retention. To verify your vehicle's dash configuration, check the factory radio removal area, consult your vehicle documentation, or contact us at Frankie's Auto Electrics with your VIN for confirmation before purchase to ensure proper fitment.

Q: Is this fascia kit compatible with factory Bose amplified audio systems?

Yes, this kit is compatible with factory Bose amplified systems when used with the separate HEXT3 adapter (must be ordered separately). The HEXT3 adapter enables proper signal integration between your aftermarket head unit and the factory Bose amplification system ensuring optimal audio performance and protecting your factory amplification investment during head unit upgrades.

Q: What size and type of aftermarket head units will fit this fascia kit?

This fascia kit is designed specifically for universal trapezoid 9 inch aftermarket head units. Compatible systems include Alpine AW409S/AX809, Pioneer DMH-AP6650BT, Nakamichi Android stereos, and other aftermarket Android systems featuring the universal trapezoid 9 inch mounting format. Verify your head unit dimensions before purchase to ensure proper fitment with Dash 1 configuration.

Q: Does installation require cutting factory wiring or dashboard modifications?

No, the CAC F9MA7K1 features plug-and-play installation with direct connection to factory wiring harnesses eliminating the need for cutting factory wires or dashboard modifications. The included steering wheel control harness, USB adapter, and antenna adapter connect directly to factory connectors ensuring straightforward installation while maintaining the ability to return to factory configuration if needed.
