Product features

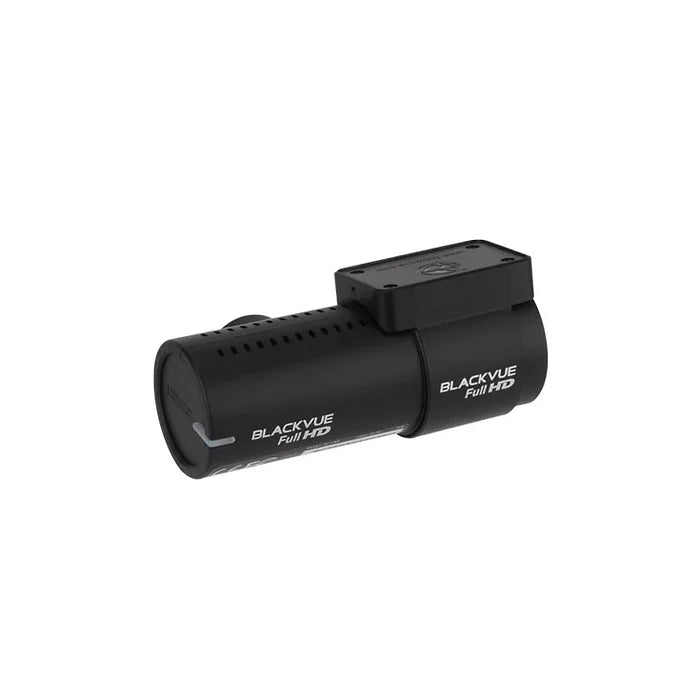

BlackVue RC1-300F Standard Full HD Rear Camera

Whether you are adding rear coverage to your BlackVue dash camera system or replacing an existing rear unit, the RC1-300F delivers Full HD 1080p recording in a compact, purpose-designed rear camera for the DR590X Series.

Product Overview

The RC1-300F is BlackVue's standard Full HD rear camera, designed specifically for use with the DR590X 2CH and DR590X Plus 2CH dash camera models. Capturing footage at 1920 x 1080 resolution at 30 frames per second via an analogue connection, it provides clear rear-view recording to complement the front-facing main unit. The RC1-300F comes supplied with a mounting bracket. Note that the rear camera cable is not included with this model and must be sourced separately. For a complete two-channel recording setup, the appropriate BlackVue coaxial cable is required to connect the RC1-300F to the main dash camera unit. 2-year warranty.

Features & Benefits

Full HD 1080p Recording: Captures rear footage at 1920 x 1080 resolution at 30 frames per second, matching the rear recording capability of the DR590X 2CH and DR590X Plus 2CH systems for consistent front and rear video quality.

Compact, Purpose-Designed Form Factor: At 67.4mm wide and 25mm long, the RC1-300F is a slim, discreet unit suited for mounting on the rear windscreen without obstructing the driver's view or drawing attention.

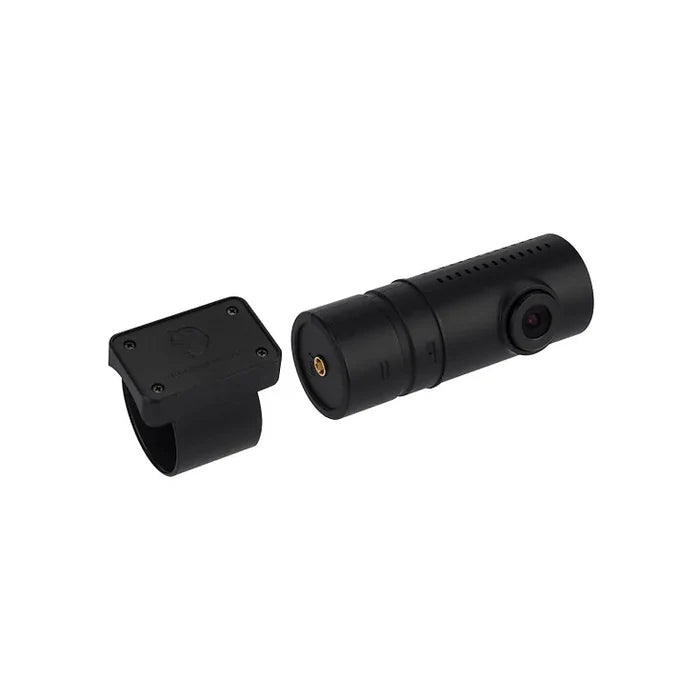

Includes Mounting Bracket: A mounting bracket is included in the box for secure rear windscreen installation.

Analogue Connection: The RC1-300F uses an analogue connection type, compatible with the DR590X 2CH and DR590X Plus 2CH coaxial cable input.

2-Year Warranty: Backed by a 2-year manufacturer warranty.

Technical Specs

Specification Detail
SKU RC1-300F
Camera Type Rear Camera
Resolution Full HD (1920 x 1080) @ 30fps
Connection Type Analog
Dimensions W 67.4 mm x L 25 mm
Weight 21g
Included in Box Mounting Bracket
Cable Included No (rear camera cable not included)
Warranty 2 Years

Compatible With

Compatible Model Configuration
DR590X 2CH only
DR590X Plus 2CH only

This rear camera is not compatible with single-channel DR590X variants. Verify that the main dash camera unit is the 2-channel configuration before purchase.

Goes Well With

The RC1-300F is designed as a direct addition to or replacement for the rear camera in a DR590X 2CH or DR590X Plus 2CH recording system. A BlackVue coaxial rear camera cable is required to connect the RC1-300F to the main unit and must be purchased separately, as it is not included with this model. For BlackVue dash camera models outside the DR590X Series, refer to the full BlackVue rear camera range including the RC110F-C, RC1-C, RC200, RC3-2K, and RC3-4K to confirm the correct compatibility.

Frequently Asked Questions

Does the RC1-300F include a cable?

No. Unlike other BlackVue rear cameras that include a 6-metre coaxial cable, the RC1-300F includes a mounting bracket only. The rear camera cable must be sourced separately. Confirm the correct cable part number for the DR590X 2CH or DR590X Plus 2CH with the supplier before purchase.

Which dash camera models is the RC1-300F compatible with?

The RC1-300F is compatible with the BlackVue DR590X 2CH and DR590X Plus 2CH only. It is not compatible with single-channel DR590X variants or other BlackVue models. For other BlackVue dash cameras, a different rear camera model will be required.

What resolution does the RC1-300F record at?

The RC1-300F records at Full HD 1920 x 1080 resolution at 30 frames per second, providing clear rear-view footage to complement the front-facing recording of the DR590X 2CH system.

Can the RC1-300F be used as a replacement for a damaged or lost rear camera?

Yes. The RC1-300F is suitable for use as a replacement rear camera for the DR590X 2CH and DR590X Plus 2CH systems. Ensure a compatible coaxial cable is available for the connection, as the RC1-300F does not include one.

Is the RC1-300F compatible with BlackVue ELITE models?

No. BlackVue ELITE models require the RC3-4K or RC3-2K rear cameras, which are specific to select ELITE models only. The RC1-300F is designed exclusively for the DR590X 2CH and DR590X Plus 2CH.
