BlackVue DR770X-BX-PRO-512 DR770X Box Pro 512GB Up To 3-Channel Full HD Stealth Dash Cam System

BlackVue DR770X-BX-PRO-512 DR770X Box Pro 512GB Up To 3-Channel Full HD Stealth Dash Cam System

Combining stealth and security, the BlackVue DR770X Box Pro pairs a compact front camera with a hidden recording unit, delivering Full HD Sony STARVIS footage across every channel and the flexibility to expand to a complete three-camera system.

Product Overview

The DR770X-BX-PRO is BlackVue's modular Box Pro dash cam system, designed for drivers who want powerful, discreet recording with the ability to build out their coverage over time. The system ships as a base single-camera setup and can be expanded with up to two additional cameras — including a standard rear camera, waterproof external rear camera (IP69K-rated for trucks and heavy vehicles), or infrared interior camera with a 180-degree ultra-wide angle for cabin coverage.

Every camera features a Sony STARVIS CMOS sensor for outstanding low-light performance with 15% improved low-light sensitivity. The front camera records at Full HD 60FPS, while rear and interior channels record at Full HD 30FPS. The secure main recording unit installs out of sight, protecting hardware and footage from tampering.

The 512GB BlackVue microSD card in this SKU is the highest-capacity DR770X-BX-PRO configuration available at FAE, providing maximum on-card retention for fleet applications, heavy vehicles running continuous three-channel recording, or any operator requiring extended footage retention across multiple days without manual card management.

What's in the Box

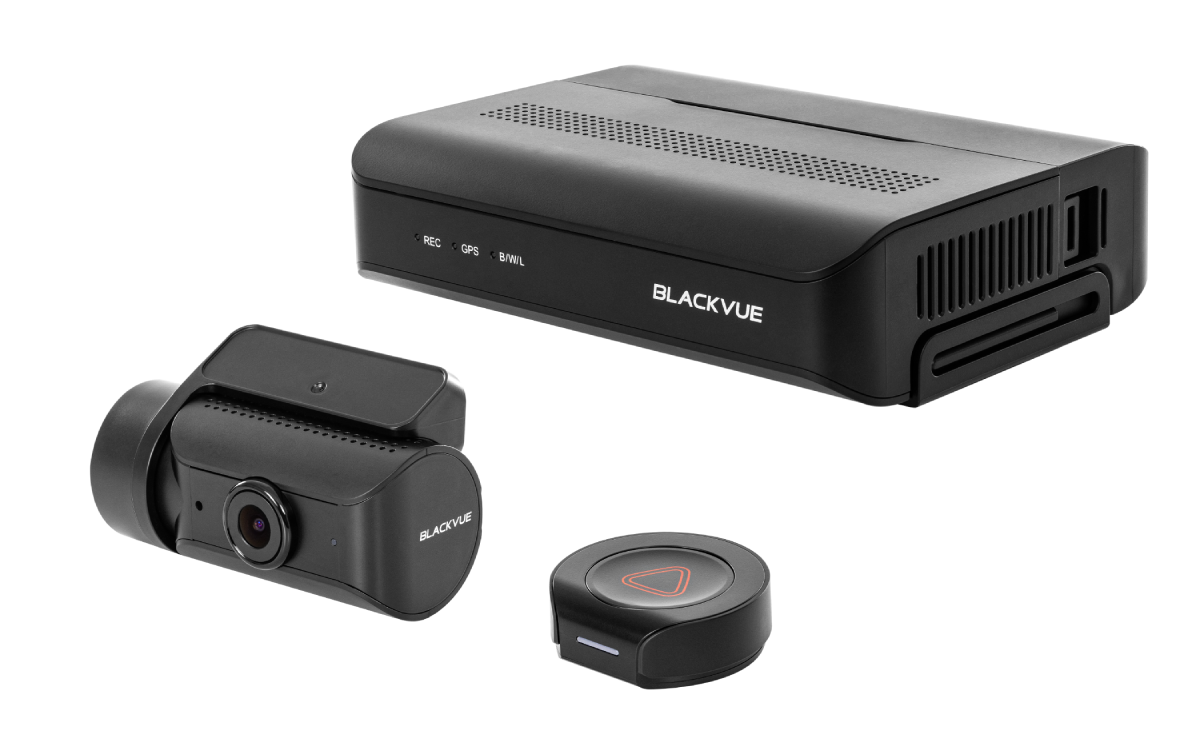

• DR770X Box Pro Main Unit
• Front Camera (FC1)
• SOS Button (EB-1)
• External GPS
• 512GB BlackVue microSD Card
• microSD Card Reader
• BlackVue Hardwiring Kit
• 12V Power Cable (3-pole)
• 1x Coaxial Connection Cable
• Hex Wrench
• Screws
• Cable Clips (2 per camera)
• Mounting Bracket Tape
• Velcro Mounting Strips
• Tape Pry Tool
• Quick Start Guide

Rear Camera, Rear IR Camera, and Rear External Camera are optional and sold separately.

Features & Benefits

Every camera in the DR770X-BX-PRO system is equipped with a Sony STARVIS CMOS sensor delivering approximately 2.1MP resolution with back-illuminated sensor technology for high sensitivity and wide dynamic range across all lighting conditions.

The front camera records at Full HD 1920x1080 at 60FPS for smooth motion rendering and sharper detail. Rear and interior cameras record at Full HD 30FPS. The modular design supports any combination of two additional cameras — rear, waterproof external rear (IP69K), or IR interior with 180-degree ultra-wide angle lens and 940nm infrared LEDs for automatic night vision inside the cabin.

The secure main recording unit installs out of sight. The SOS button triggers manual event recording on demand. Intelligent Parking Mode with buffered recording captures footage from the seconds before and after any triggered event. BlackVue Cloud support via built-in Wi-Fi or optional LTE (CM100G, sold separately) enables remote live view, video backup, and push notifications. The included external GPS provides speed and location overlay.

At 512GB, this configuration is the strongest choice for operators who need maximum footage retention — covering extended multi-day recording across all three channels with parking mode active, without needing to back up or clear the card between service periods.

Technical Specs

Goes Well With

• BlackVue RC1 Rear Camera to add Full HD rear coverage to the base system
• BlackVue RC1-IR Interior IR Camera for 180-degree cabin surveillance with automatic night vision
• BlackVue ERC1 Waterproof Rear External Camera for trucks and heavy vehicle applications
• BlackVue CM100G LTE Module for always-on cloud connectivity and remote live view
• BlackVue B-130A Dedicated Battery Pack for extended parking mode recording

Frequently Asked Questions

Does the DR770X-BX-PRO come with rear or interior cameras included?

The base system includes the main recording unit and front camera only. The rear camera, interior IR camera, and waterproof external rear camera are optional and sold separately. The system supports up to two additional cameras simultaneously for a full three-channel setup.

What additional cameras are compatible with the DR770X-BX-PRO?

The system is compatible with the BlackVue RC1 standard rear camera, RC1-IR infrared interior camera, and ERC1 waterproof external rear camera. Any combination of two from these options can be added to complete a three-channel setup.

Who benefits most from the 512GB configuration?

The 512GB card is the strongest choice for fleet operators, rideshare or commercial drivers, and heavy vehicle applications running continuous three-channel recording with overnight parking mode. At 512GB, footage from multiple days across all active channels is retained on card simultaneously, eliminating the need to manually back up or clear storage between shifts or service periods.

Does the DR770X-BX-PRO support cloud features without the LTE module?

Yes. When connected to a Wi-Fi hotspot, the DR770X-BX-PRO can access BlackVue Cloud features including live view, video backup, and push notifications. The optional CM100G LTE module enables always-on cloud connectivity including while parked.

Why is a supercapacitor better than a battery in a dashcam?

A supercapacitor provides short-term power for safe recording shutdown on sudden power loss, without the degradation risk that lithium batteries face at high temperatures. In Australian conditions where a parked vehicle's interior can reach extreme heat, a supercapacitor-based design provides more reliable long-term performance.
