BlackVue DR770X-2CH-TR-64 Dual Channel Full HD Cloud Dashcam With 64GB MicroSD Card

Ideal For Trucks, Vans & Commercial Vehicles!

DR770X Commercial 2-Channel Truck

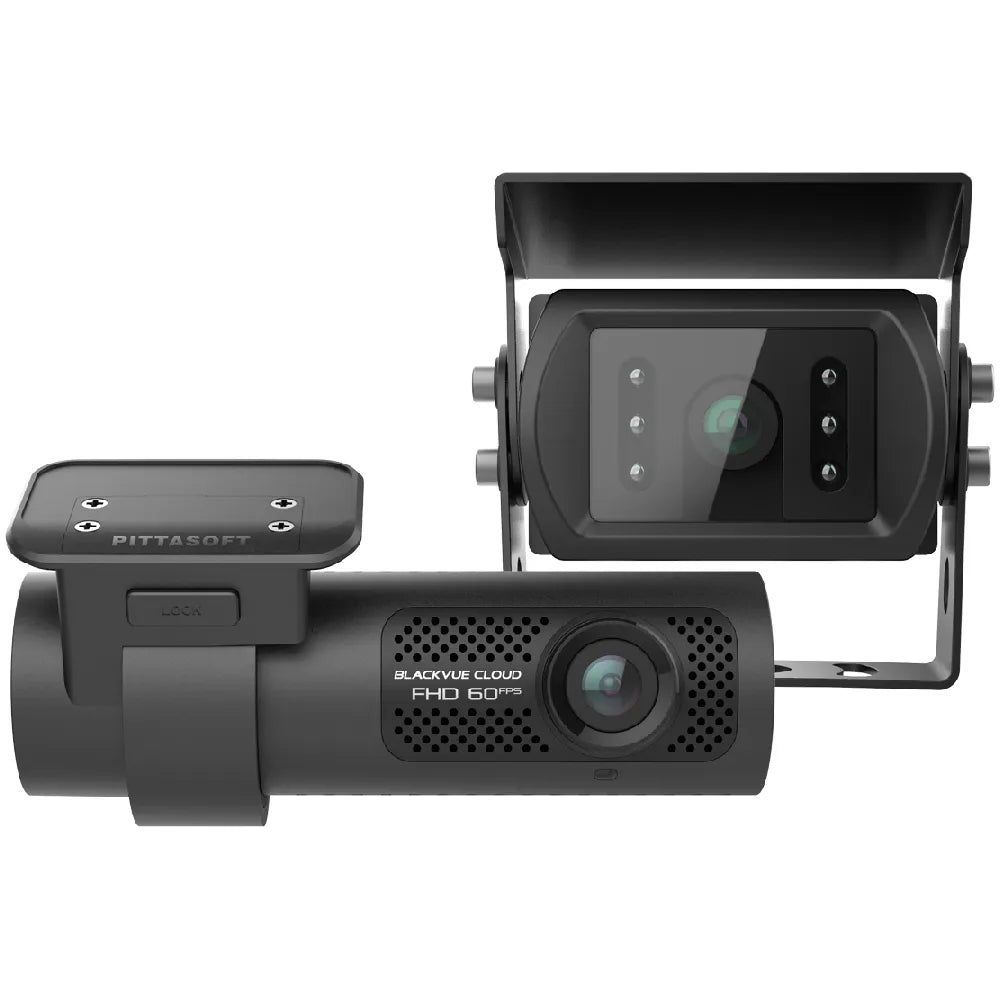

The BlackVue DR770X-2CH Truck offers a commercial-level dash cam for many different applications with a front-facing dash cam and a resistant external rear camera.

The Perfect Dashcam For Trucks & Heavy Vehicles
The external waterproof rear cam with embedded IR lights and up to 15m (49ft) coaxial cable is ideal for most large vehicles. Catch detailed footage of the front surroundings of your vehicle at 1080p Full HD 60FPS and rear at 1080p Full HD 30FPS.

Improved Sony STARVIS™ Sensor
The Sony STARVIS™ image sensor that equips the DR770X Series front and rear cameras delivers outstanding low-light performance. The back-illuminated sensor is capable of capturing an unprecedented amount of detail in both shadows and highlights. The DR770X features an upgraded CPU for better performance and image quality.

Industry-leading design
The award-winning unique design of BlackVue cameras enables a discreet installation and easy access to features and useful functions.

Enhanced Night Vision Capabilities
The newly integrated Sony STARVIS™ allows for enhanced Night Time Vision recording, allowing you to easily see foreign objects in low light conditions.

LED's For Short-Range Night Vision
With LED’s housed in a rear water-resistant external camera unit, your vehicle can record close encounters in the dark to ensure you’re always protected with video recording proof. Note: The camera will see close distances but not long-range objects.

Supercharged With BlackVue Cloud™

• Live View
  Remote Viewing at your fingertips.
• Emergency Alarm
  Receive notifications on the go.
• Video Backup
  Move files from the dashcam to the cloud.
• Video Playback
  Watch on your dashcam or smartphone.

Safety & Satisfaction Always Come First
BlackVue won the 2021 Canstar Dash Cam awards, achieving 5 stars in all categories. BlackVue was rated five stars in all rating categories, including picture quality, ease of use, ease of accessing footage, memory/storage capacity, sound quality, value for money, design, and overall satisfaction.

Specifications:

• Model Name: DR770X-2CH Truck
• Channel: 2 Channel (Front + Rear External)
• Colour / Size / Weight: Front: Black / Width 118.5 mm x Height 36 mm / 104 g; Rear: Black / Width 65 mm x Height 36 mm / 157g
• Memory: microSD Card (64 GB/128 GB/256 GB) *BlackVue or Samsung Pro MLC Endurance SD cards must be used.
• Speaker & GPS: Built-In
• LED: Front: Security LED, Recording LED, Touch Sensor LED, Bluetooth/Wi-Fi/LTE LED; Rear: Security LED
• Sensor: 3-Axis Acceleration Sensor
• Battery or Capacitor: Built-In Super Capacitor; Capacitors are better as they are not at risk of heat damage which batteries face.
• Recording Mode: Normal Recording; Event Recording (Impact Detection); Manual Event Recording; Parking Mode Recording (Impact and Motion Detection) For Extended Parking Mode recording, a B112 or B124X dedicated battery pack is recommended.
• Button: Wi-Fi: Enable or disable the WiFi function; Proximity sensor: Voice recording ON/OFF *Touch the button or it recognises when a hand approaches to within about 2cm.
• Camera: Front: STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel); Rear: STARVIS™ CMOS Sensor (Approx. 2.1 M Pixel)
• Illumination Sensor & External Rear Camera Lights: 940nm, 6 Infrared (IR) Lights *IR is on the external (rear) camera only.
• External Camera: Rugged Waterproof Enclosure For External Mounting
• Viewing Angle: Front: Diagonal 139°, Horizontal 116°, Vertical 61°; Rear: Diagonal 116°, Horizontal 97°, Vertical 51°
• Format Free: Yes (Adaptive)
• Resolution/FPS Front Camera: Full HD (1920×1080) @60FPS
• Resolution/FPS Exterior Camera: Full HD (1920×1080) @30FPS *Frame rate is different during Parking mode and Wi-Fi > streaming
• Image Quality: Highest (Extreme): 25 + 10 Mbps; Highest (12+ 10 Mbps); High (10 + 8 Mbps); Normal (8 + 6 Mbps)
• Video Codec: H.264 (AVC)
• Video File Extension: MP4
• Input Voltage: DC 12V – 24V (3 pole DC Plug: (Ø3.5 x Ø1.1), MAX 1A/12V) *Note: USB cables are only 5V and will not power on the dashcam
• Current Consumption: Avg. 390mA (4.68W at 12V, when GPS and Wi-Fi are ON); Avg. 300mA (3.6W at 12V, when GPS and Wi-Fi are OFF) *Approx. 60mA increase in current when IR LEDs are ON. (Actual power consumption may vary depending on use conditions and environment)
• Voltage Cut-Off: Built-In Variable Voltage Cut-off System; 11.8V – 12.5V; 22.8V – 24V
• Operating & Storage Temp: -20℃ – 80℃ (-4°F – 176°F )
• High-Temperature Cut-Off: Approximately 80℃ (176°F)
• Wi-Fi: Built-In (802.11n 2.4~2.4835 GHz)
• Software: BlackVue Viewer* Windows 7 or higher & Mac OS X Sierra (10.12) or higher.
• GPS: Built-In (Dual Band: GPS, GLONASS)
• Application: BlackVue Application (Android 5.0 or higher, iOS 11.0 or higher) *Some videos may not play on HTC mobile devices due to the resolution of the files.
• Microphone: Built-In
• Origin: Made in Korea
• Certifications: Front: FCC, ISED, CE, UKCA, RoHS, Telec, WEEE; Rear: FCC, ISED, CE, UKCA, RoHS, WEEE
• Dimensions: 27cm × 20cm × 24 cm
• Weight: 1.50kg

Package Contents:

• Front Camera
• Rear External Camera
• MicroSD Card (64GB)
• MicroSD Card Reader
• 12V Power Cable
• Cable Clips
• Spare Mounting Tabs
• Tape Pry Tool
• Quick Start Guide
• Coax Cable 15M
• Mounting Screws & Key
