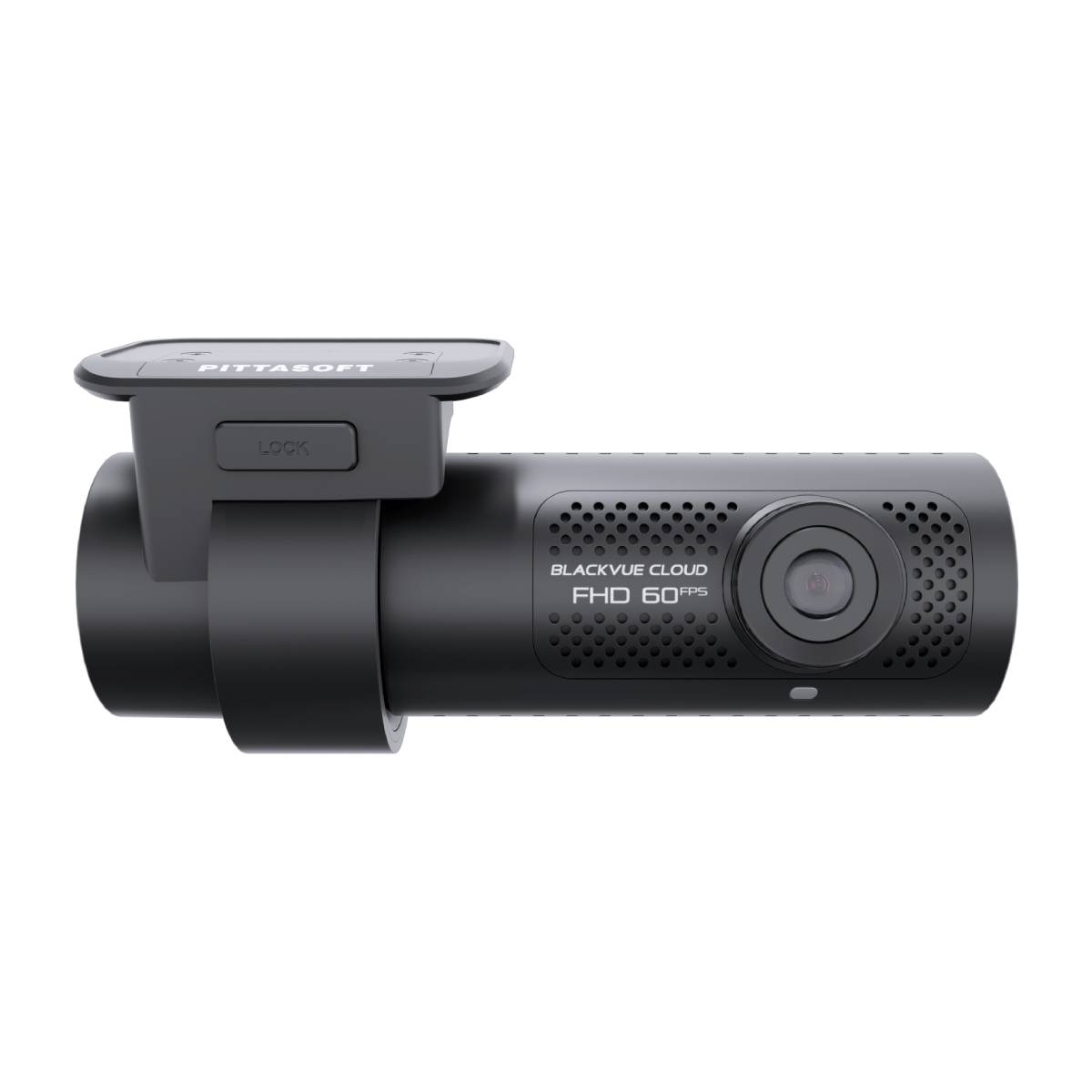

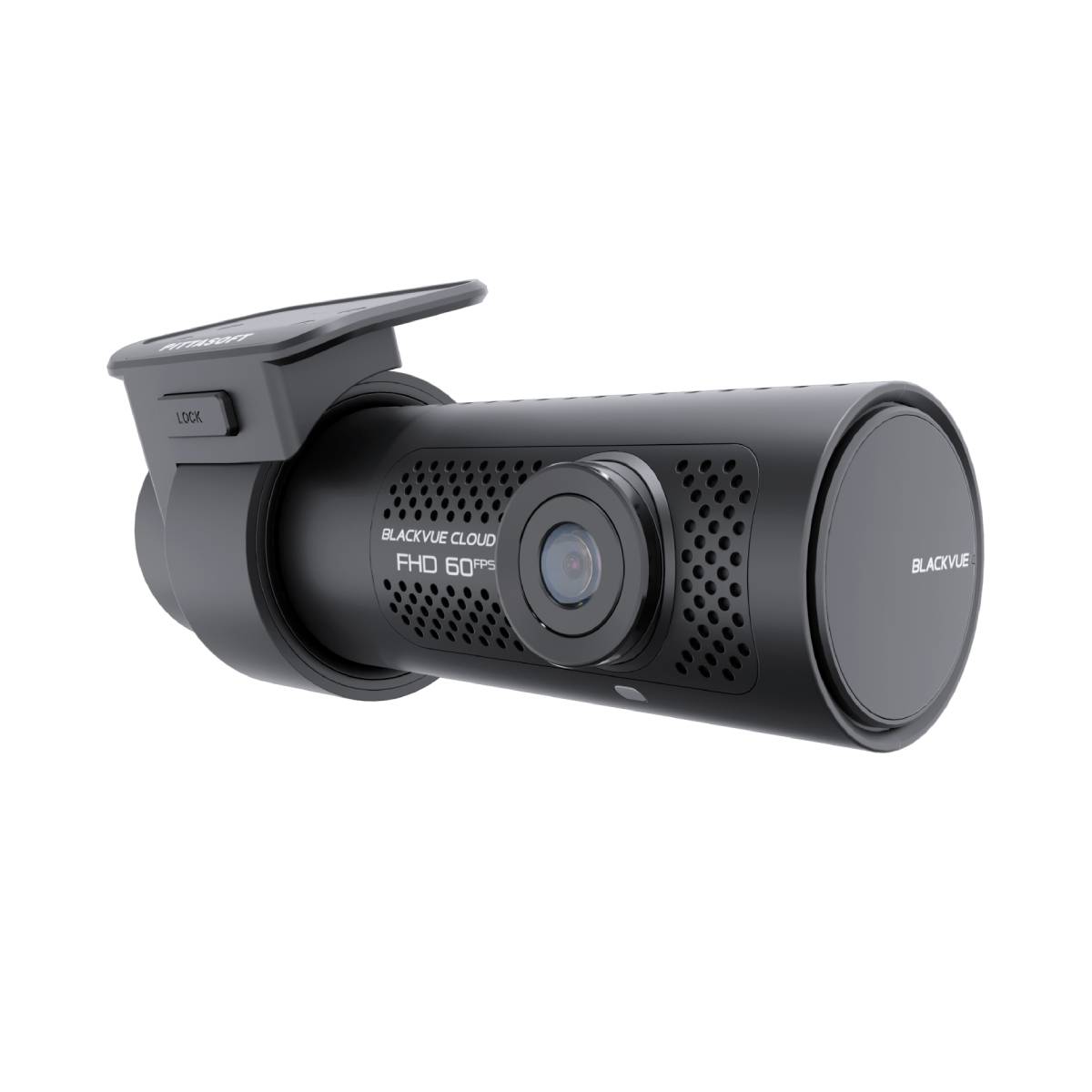

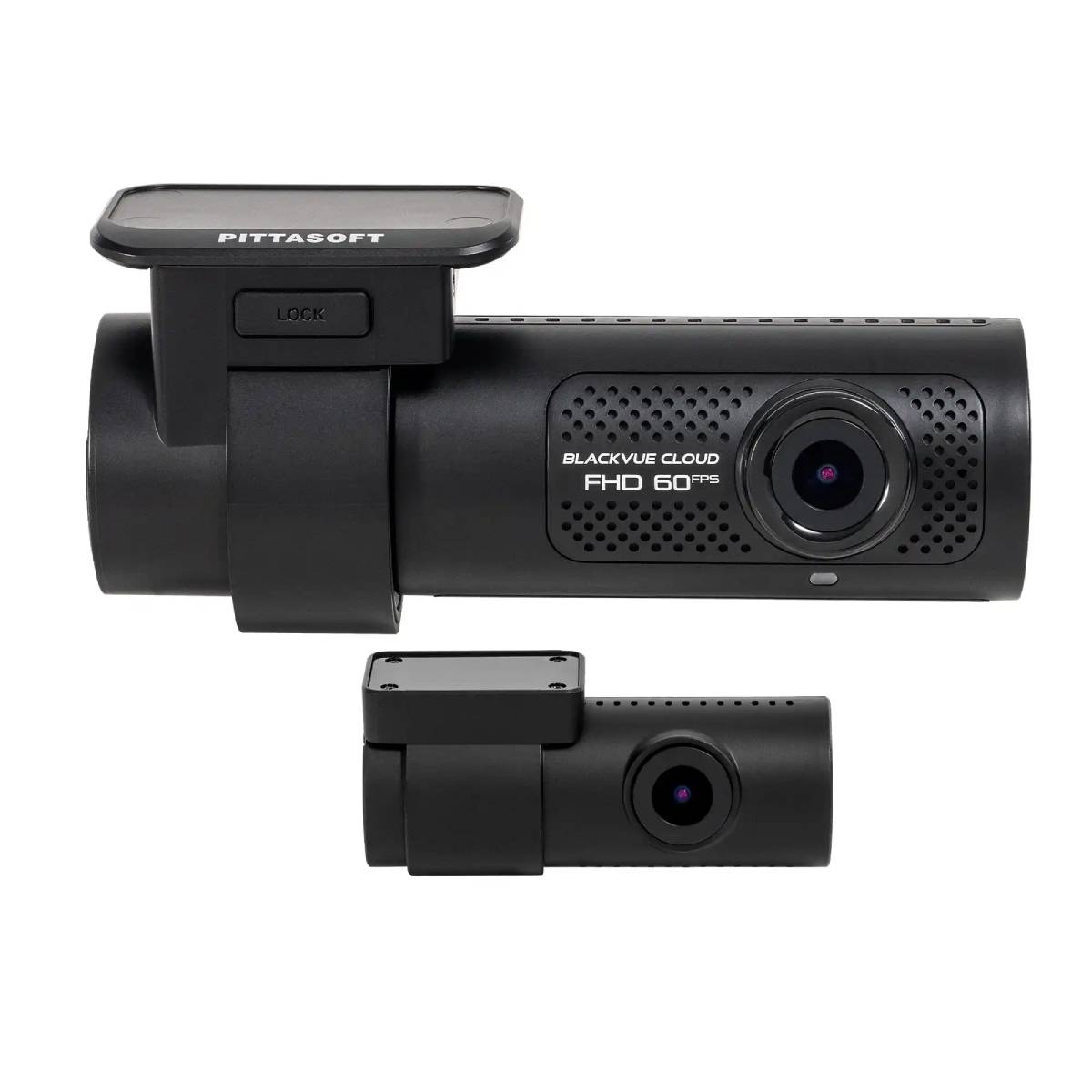

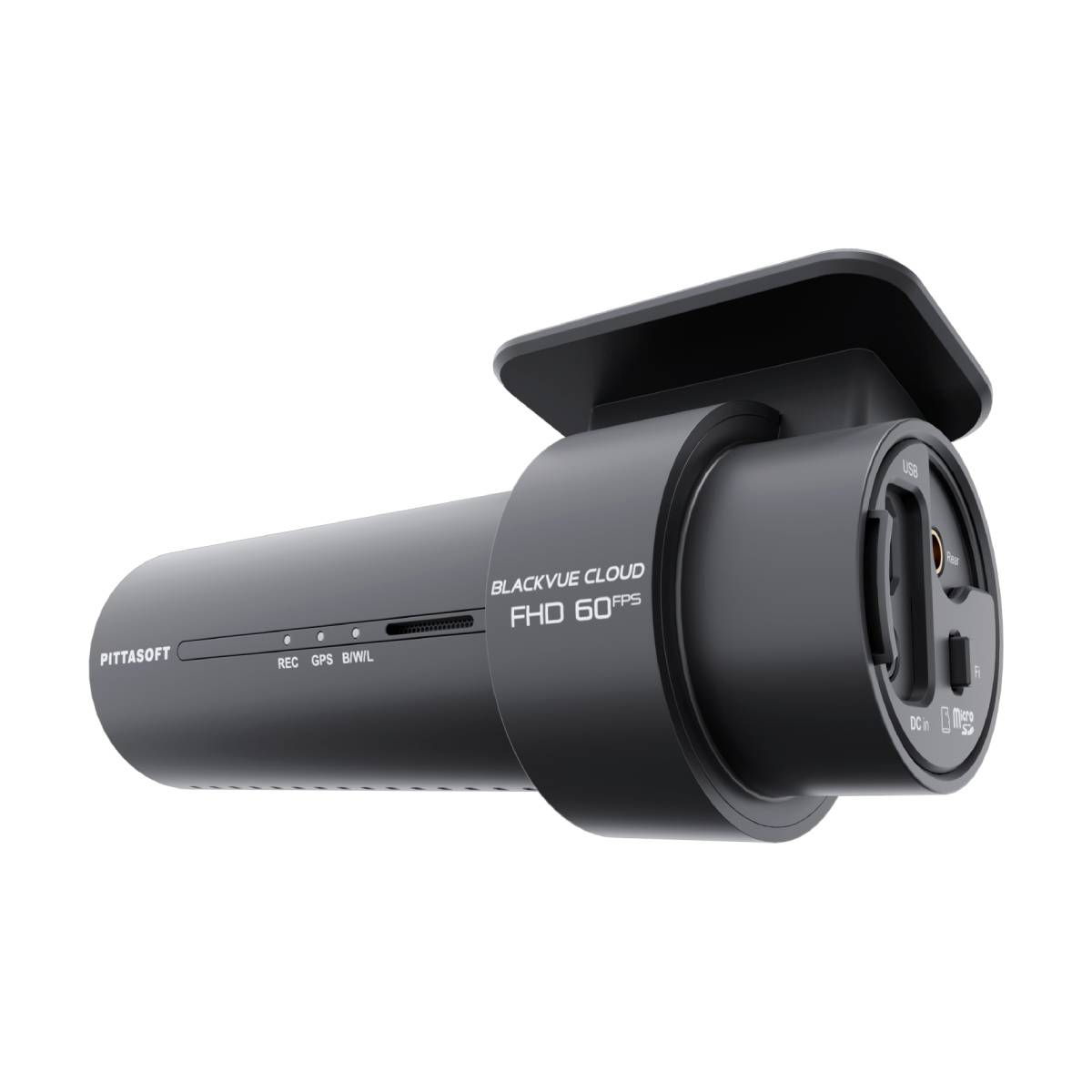

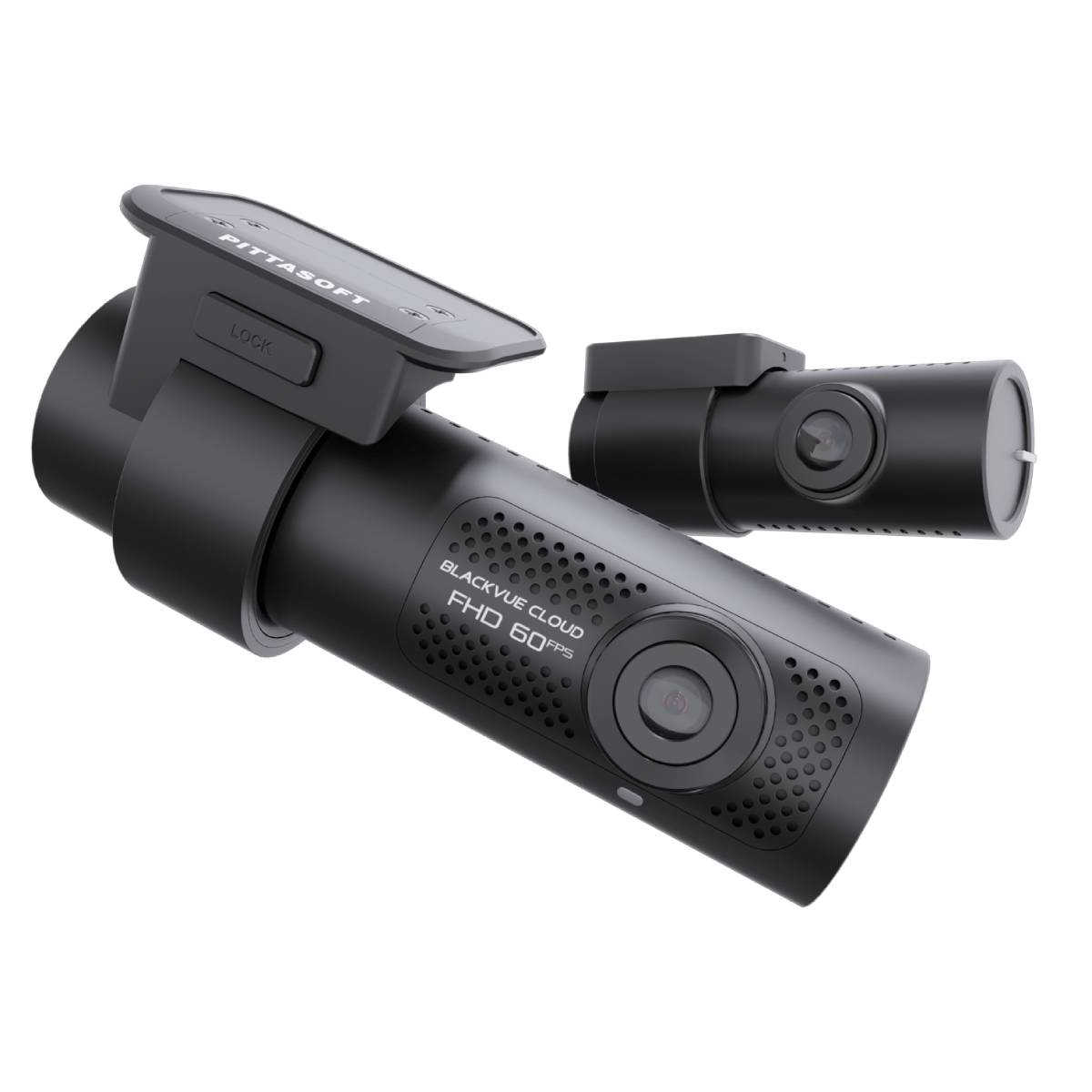

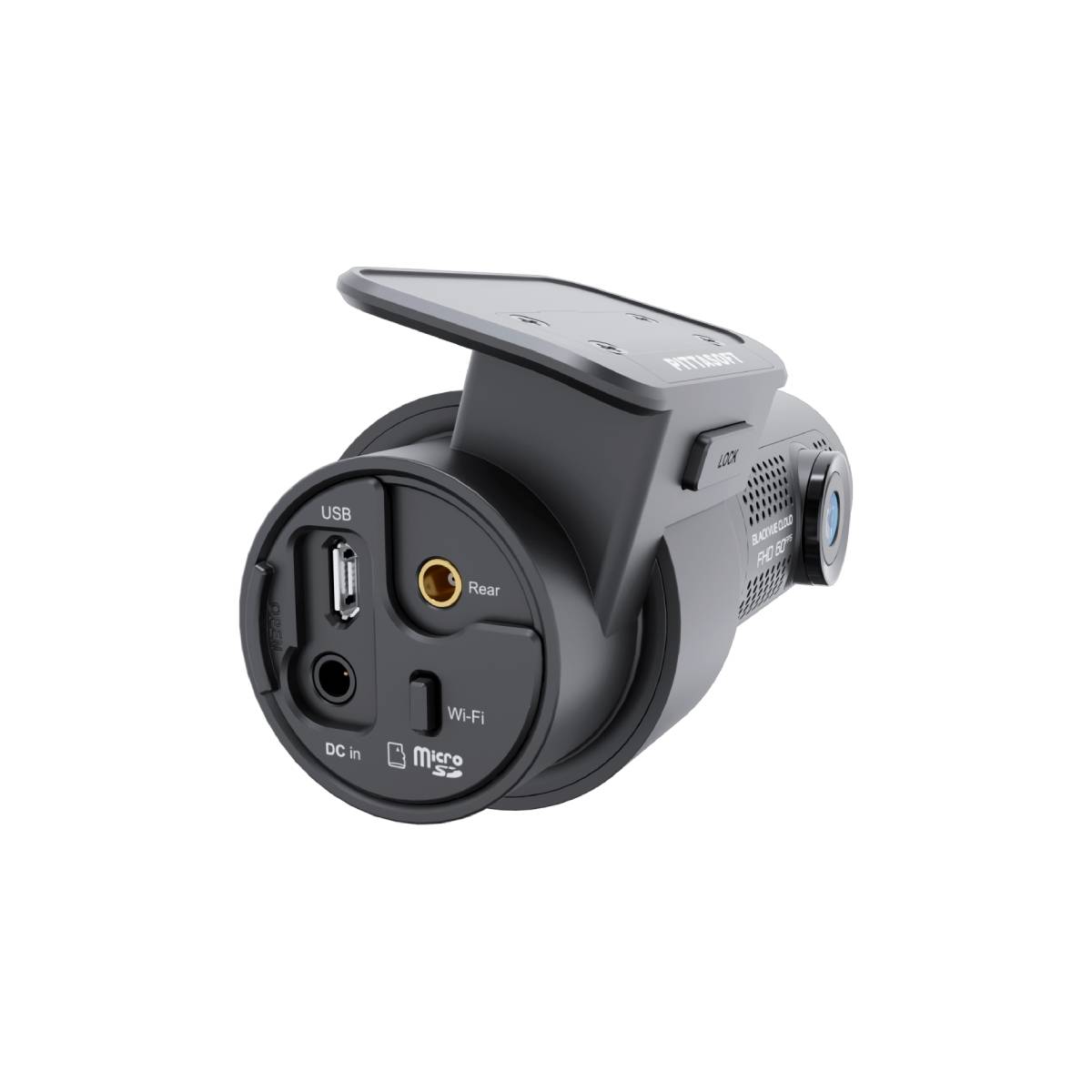

BlackVue DR770X-2CH-128 Dual Channel Full HD Dashcam With 128GB MicroSD Card

Powered By Sony STARVIS™ Image Sensors For Best Image Quality Under Any Light!

Dual Channel Full HD Dashcam With 128GB MicroSD Card
Our most popular, most robust Full HD dual dashcam system. With exceptional all-new Sony STARVIS™ night vision and all-new built-in power management hardware, you can rest easy knowing you are always protected.

Full HD For Everyone
Both the front and rear cameras feature an upgraded Full HD Sony STARVIS™ image sensor. The back-illuminated image sensors produce the best image quality under any light thanks to high sensitivity and wide dynamic range.

• 1080P Dual Full HD
• 60FPS Front Full HD Camera
• 2.1MP Sony STARVIS™ Sensors (Front + Rear)
• 139° Front & Rear Viewing Angle
• 15% Improved Low Light Sensitivity
• 4G Optional LTE Connectivity Module (Not Included)

Native Parking Mode Support

Built-In WiFi With Mobile App.

Built-In Power Management

Enhanced Night Vision

Industry-Leading Design
The award-winning unique design of BlackVue cameras enables a discreet installation and easy access to features and useful functions.

Enhanced Night Vision Capabilities
The newly integrated Sony STARVIS™ allows for enhanced Night Time Vision recording, allowing you to easily see foreign objects in low light conditions.

Intelligent Parking Mode
With advanced parking mode technology, your dashcam protects your car, recording videos when it detects movement or impact, even when you’re not there. Buffered recording even includes the few seconds before and after the triggered event, so you get the complete picture.

Supercharged With BlackVue Cloud™

• Live View
  Remote Viewing at your fingertips.
• Emergency Alarm
  Receive notifications on the go.
• Video Backup
  Move files from the dashcam to the cloud.
• Video Playback
  Watch on your dashcam or smartphone.

Safety & Satisfaction Always Come First
BlackVue won the 2021 Canstar Dashcam awards, achieving 5 stars in all categories. BlackVue was rated five stars in all rating categories, including picture quality, ease of use, ease of accessing footage, memory/storage capacity, sound quality, value for money, design, and overall satisfaction.

Specifications:

• Model Name: DR770X-2CH
• Channel: 2 Channel (Front + Rear)
• Colour / Size / Weight: Front: Black / (W) 118.5mm x (H) 36 mm / 103g; Rear: Black / (W) 67.4mm x (H) 25mm / 25g

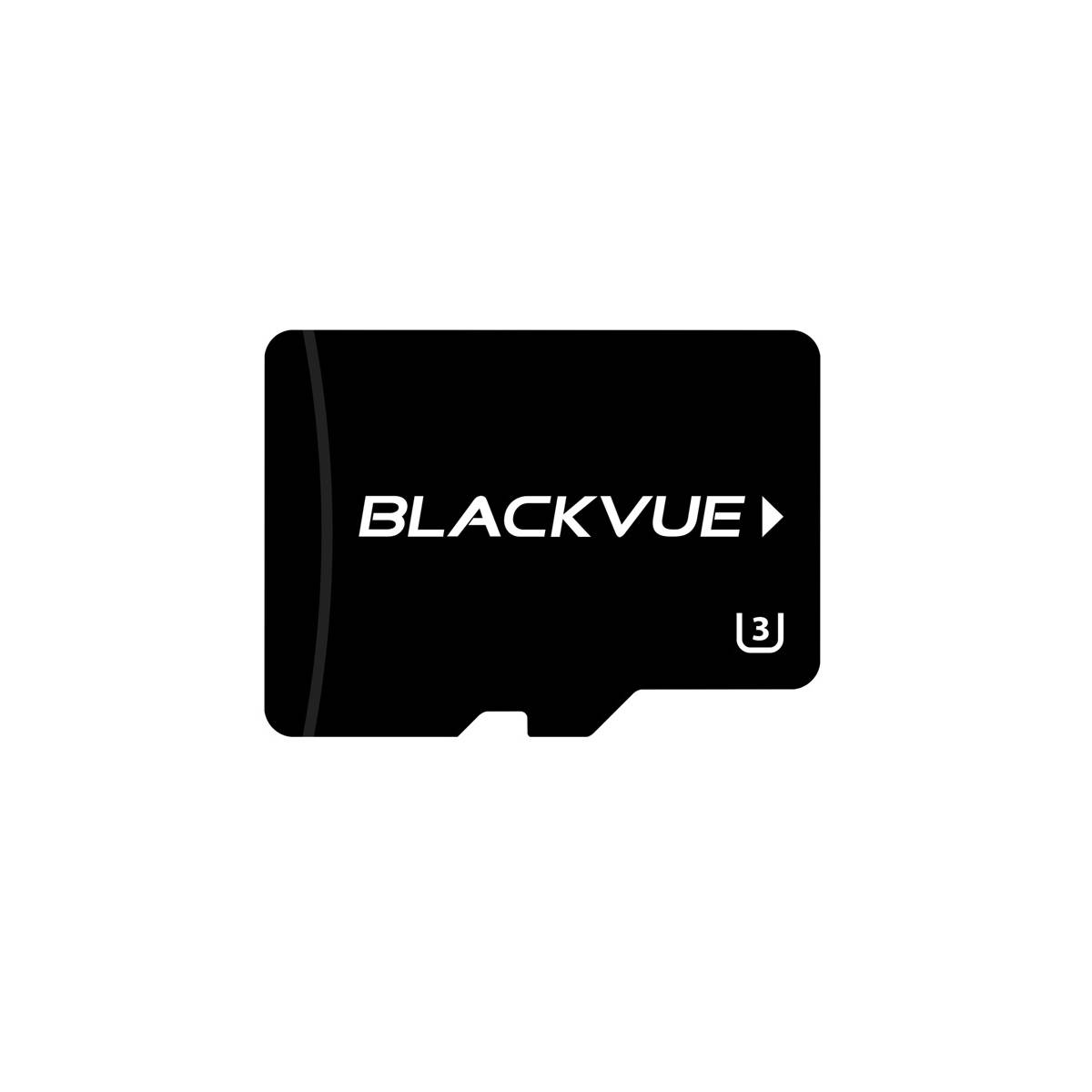

• Memory: microSD Card (128GB)
• Speaker & GPS: Built-In
• LED: Front: Security LED, Recording LED, Touch Sensor LED, Bluetooth/Wi-Fi/LTE LED; Rear: Security LED
• Sensor: 3-Axis Acceleration Sensor
• Battery or Capacitor: Built-In Super Capacitor *Capacitors are better as they are not at risk of heat damage which batteries face.
• Recording Mode: Normal Recording; Event Recording (Impact Detection); Manual Event Recording; Parking Mode Recording (Impact & Motion Detection). *For extended Parking Mode recording, a B112 or B124X dedicated battery pack is recommended.
• Button: Touch Sensor: Trigger Manual Recording *Touch the sensor to trigger manual recording. Can be disabled in settings.
• Camera: Front: STARVIS™ CMOS Sensor (Approx. 2.1M Pixel); Rear: STARVIS™ CMOS Sensor (Approx. 2.1M Pixel)
• Viewing Angle: Front: Diagonal: 139° / Horizontal: 116° / Vertical: 61°; Rear: Diagonal: 139° / Horizontal: 116° / Vertical: 61°
• Format Free: Yes (Adaptive)
• Resolution/FPS: Front: Full HD (1920×1080) @60FPS; Rear: Full HD (1920×1080) @30FPS *Camera resolution is fixed and cannot be changed.
• Image Quality: Highest (Extreme): 25 + 10 Mbps; Highest (12 + 10 Mbps); High (10 + 8 Mbps); Normal (8 + 6 Mbps) *The second value refers to the rear camera.
• Video Codec: H.264 (AVC)
• Video File Extension: MP4
• Input Voltage: DC 12V – 24V (3 Pole DC Plug: (Ø3.5 x Ø1.1), MAX 1A/12V) *Note: USB cables are only 5V and will not power on the dashcam.
• Current Consumption: Normal Mode (WiFi On / GPS On / 2CH): Avg. 380mA / 12V; Parking Mode (WiFi On / GPS Off / 2CH): Avg. 300mA / 12V *Actual power consumption may vary depending on use conditions and environment.
• Voltage Cut-Off: Built-In Variable Voltage Cut-Off System; 11.8V – 12.5V; 22.8V – 24V
• Operating & Storage Temp: -20℃ – 80℃ (-4°F – 176°F )
• High-Temperature Cut-Off: Approx. 80℃ (176°F)
• Wi-Fi: Built-In (802.11n 2.4 ~ 2.4835 GHz)
• Software: BlackVue Viewer* Windows 7 or Higher & Mac OS X Sierra (10.12) or Higher.
• GPS: Built-In (Dual Band: GPS, GLONASS)
• 4G LTE: Optional via the CM100GLTE module
• Application: BlackVue Application (Android 5.0 or Higher, iOS 11.0 or Higher) *Some videos may not play on HTC mobile devices due to the resolution of the files.
• Microphone: Built-in
• Origin: Made in Korea
• Certifications: Front: FCC, ISED, CE, UKCA, RCM, RoHS, Telec, WEEE, KC; Rear: FCC, ISED, CE, UKCA, RCM, RoHS, WEEE, KC
• Dimensions: 21cm × 15cm × 14cm
• Weight: 1.00kg

Package Contents:

• Camera
• MicroSD Card (128GB)
• MicroSD Card Reader
• BlackVue Hardwiring Kit
• 12V Power Cable
• Cable Clips
• Spare Mounting Tabs
• Tape Pry Tool
• Quick Start Guide
• 6M Coax Cable Included (10M & 15M Optional)
