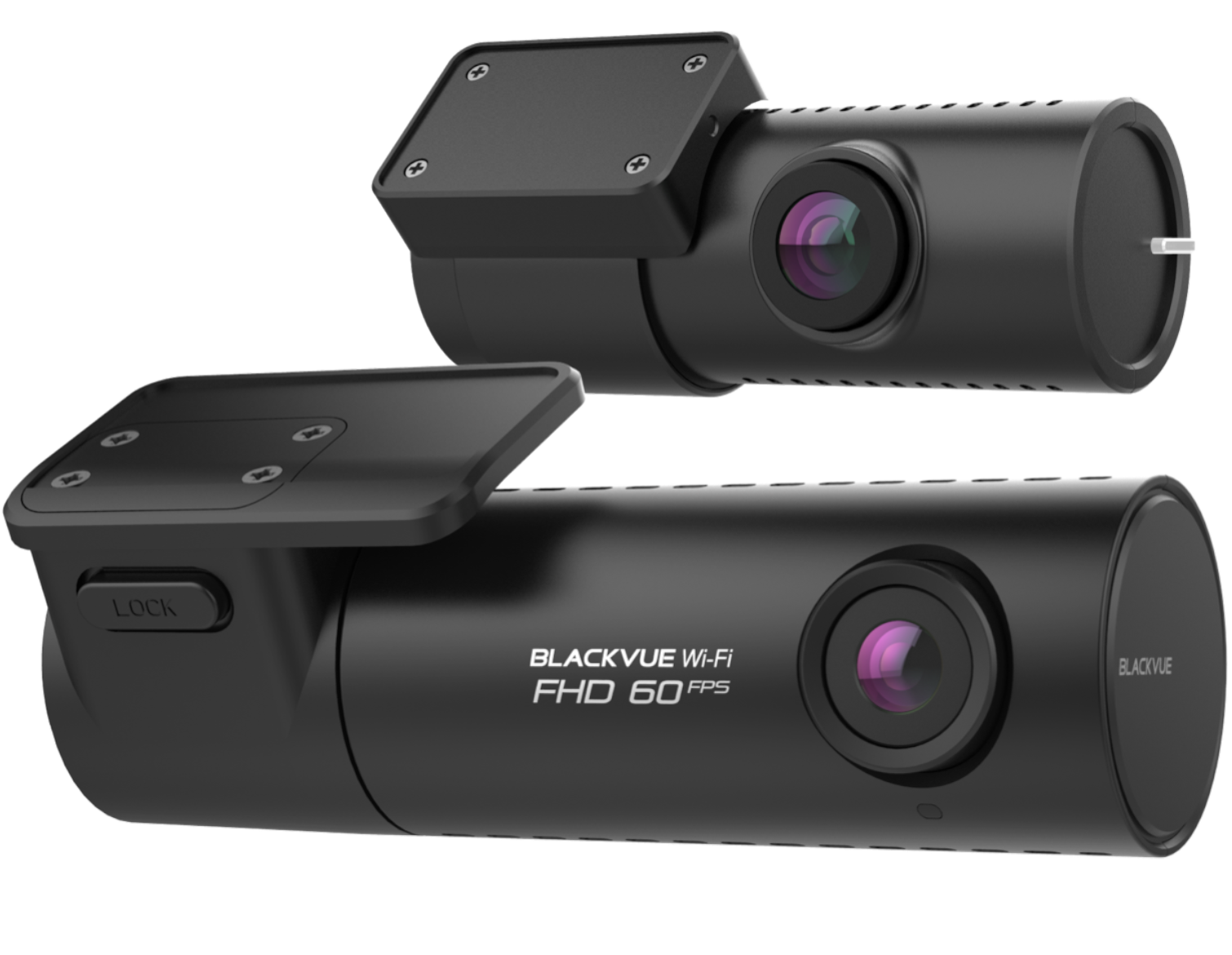

BlackVue DR590X-2CH-32-PL DR590X-2CH Plus 32GB Dual Full HD Front & Rear Dash Cam

Quick answer

The BlackVue DR590X-2CH Plus records Full HD through a windscreen camera and a small rear window camera at the same time.

BlackVue Australia calls it a high performing mid tier dash cam, with built in WiFi and an optional GPS receiver.

Problems it solves

• Dim night footage where plates are hard to read. The front camera uses a Sony STARVIS sensor of about 2.1MP, chosen for low light.
• Pulling the card every time you want to see a clip. Clips can be pulled up on the BlackVue app over the built in 2.4GHz WiFi.
• Hot Australian cabins cooking a battery. A supercapacitor sits inside instead, and the unit has its own high temperature cut off at about 80 degrees.

Specifications

• Cameras: Front unit plus rear window unit
• Recording: Full HD 1920 x 1080 at 30fps on each camera
• Front sensor: Sony STARVIS CMOS, about 2.1MP
• Rear sensor: CMOS, about 2MP
• Front view: 131 degrees diagonal
• Rear view: 136.8 degrees diagonal
• Bitrate: Highest 12 + 10 Mbps
• File: MP4, H.264
• Card support: microSD up to 512GB
• WiFi: Built in, 2.4GHz
• GPS: Optional external receiver
• Power input: 12V or 24V DC systems
• Draw: 330mA normal mode, 340mA parking mode
• Power backup: Supercapacitor
• Front unit: 175 x 36 x 85mm, 315g
• Origin: Made in Korea

Fitment and compatibility

Cars, utes and trucks on 12V or 24V systems, powered from the 12V socket or hardwired. The rear camera mounts inside the back glass on its own cable. For parking mode beyond a short stop, BlackVue recommends its B-130A battery pack.

What is in the box

The BlackVue manual lists the front camera, rear camera and rear camera cable, a 12V socket power cable, a hardwiring power cable, a quick start guide, double sided tape for both mounts, five cable clips, a microSD card reader, a microSD card and a pry tool.

Install notes

The hardwiring cable lets the camera keep watching in parking mode, and BlackVue builds a low voltage cut off into the camera itself. The pry tool tucks the rear camera lead under trims.

Warranty

BlackVue Australia gives 36 months warranty to Australian customers, with its terms and conditions applying. This comes with the manufacturer's warranty through the Australian distributor. See the manufacturer's terms for details, plus our guarantees under the Australian Consumer Law.

FAQ about the DR590X-2CH Plus

Does the DR590X-2CH Plus suit a prime mover running 24 volts?

Yes. BlackVue rates the input at 12V to 24V DC, so it suits trucks as well as cars.

How long can the DR590X-2CH Plus keep recording while parked?

On the car battery it is limited by the built in voltage cut off; BlackVue recommends its B-130A battery pack for extended parking mode. The hardwiring cable lets the camera keep watching in parking mode, and BlackVue builds a low voltage cut off into the camera itself.

Which power leads come with the DR590X-2CH Plus in the box?

Both a 12V socket cable and a hardwiring cable are packed, according to the BlackVue manual.
